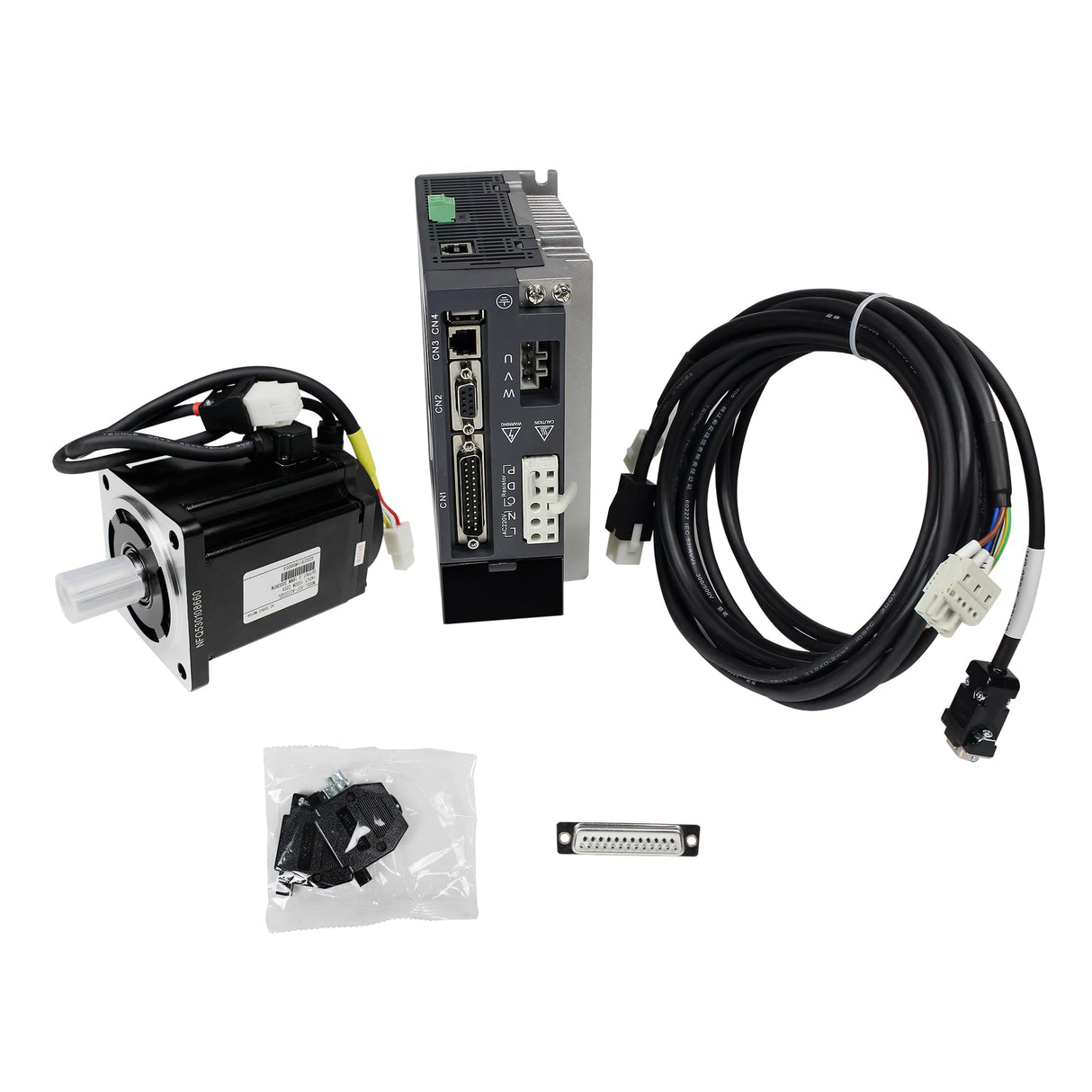

CNCTOPBAOS 1KW AC Servo Motor Kit,220V 1000W 3000rpm 3.18N.m Servo motor and Driver CNC Controller Kit,17 bit Encoder RS485 for CNC Milling Lathe
Regular price
$395.00
Unit price
/
Unavailable
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: CNCTOPBAOS
Features:

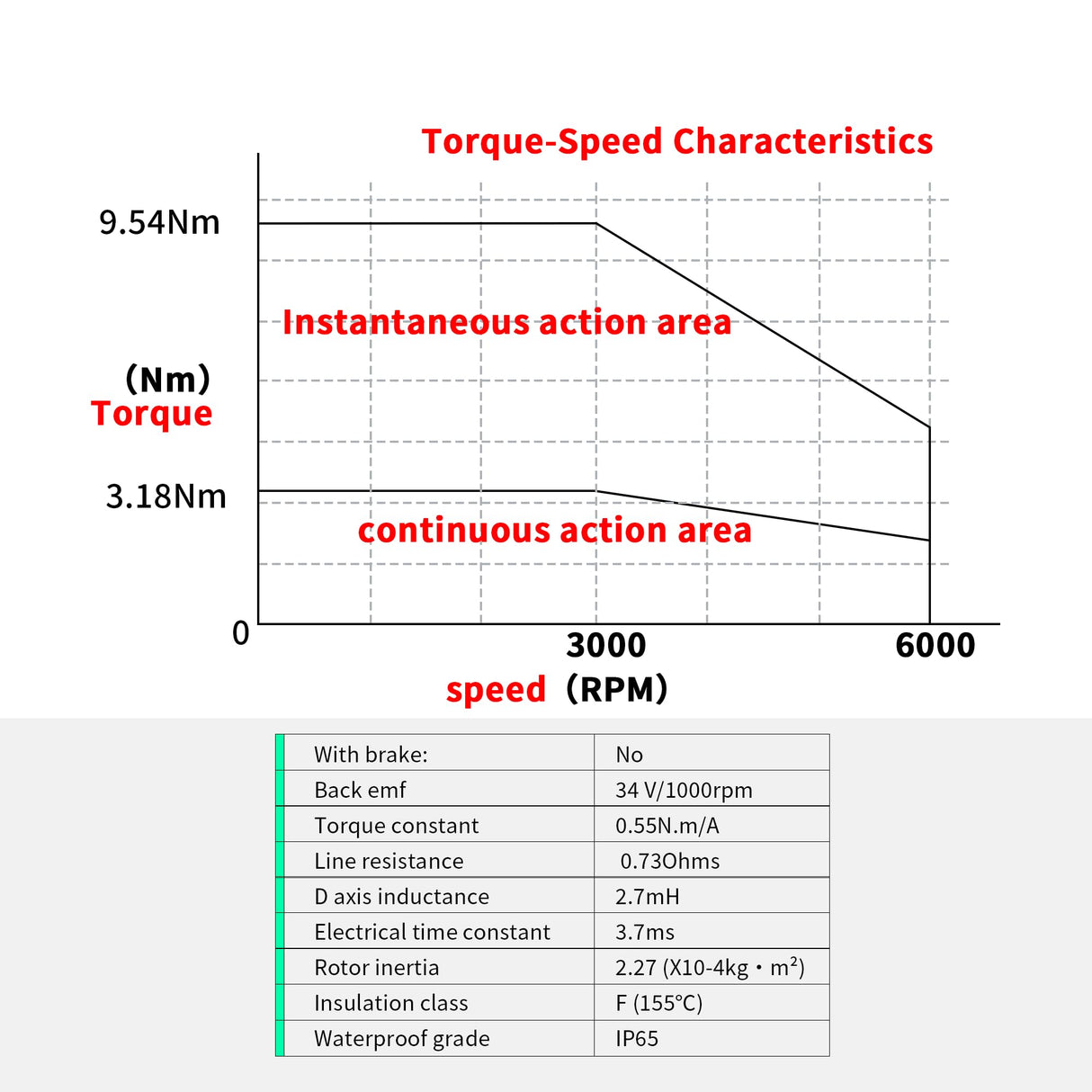

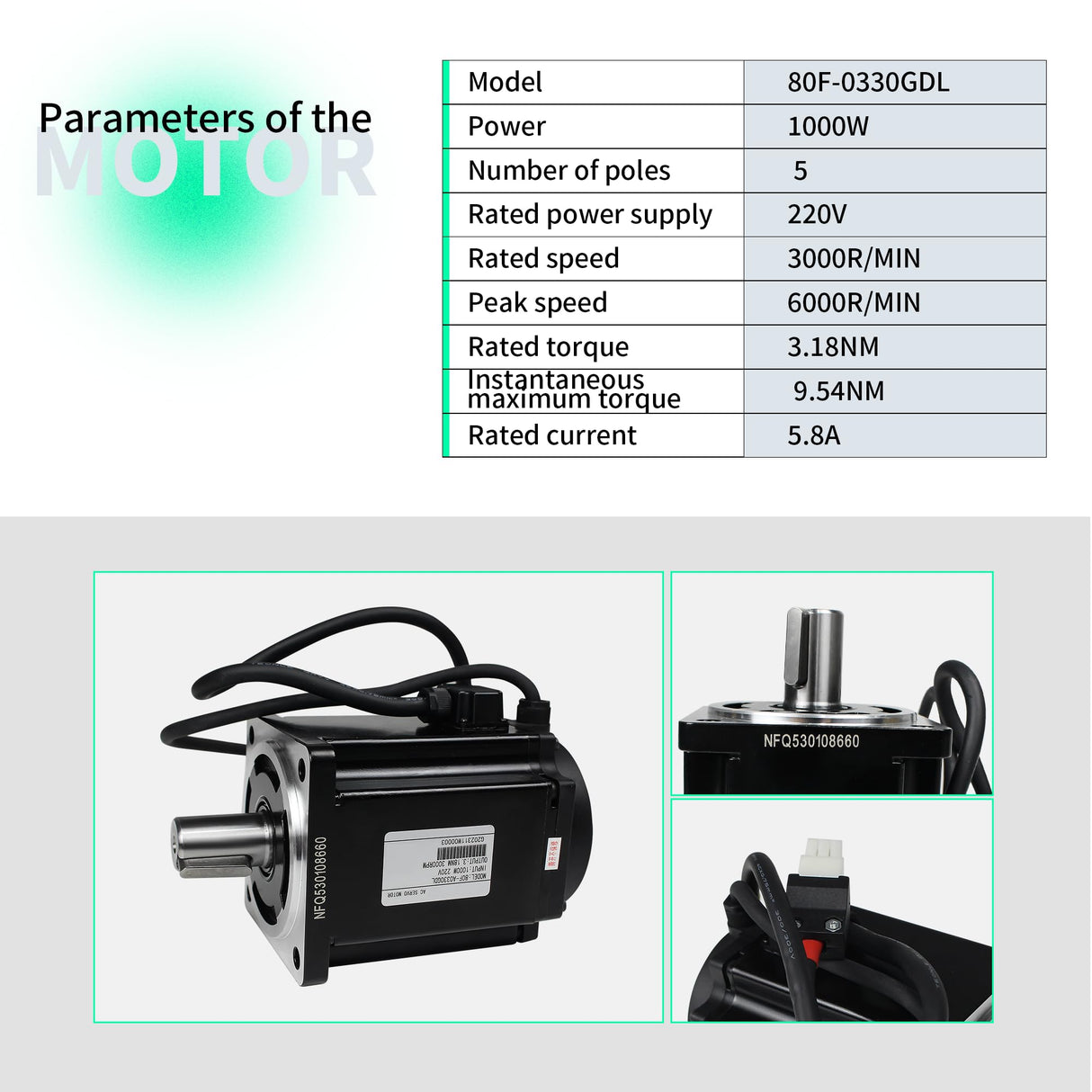

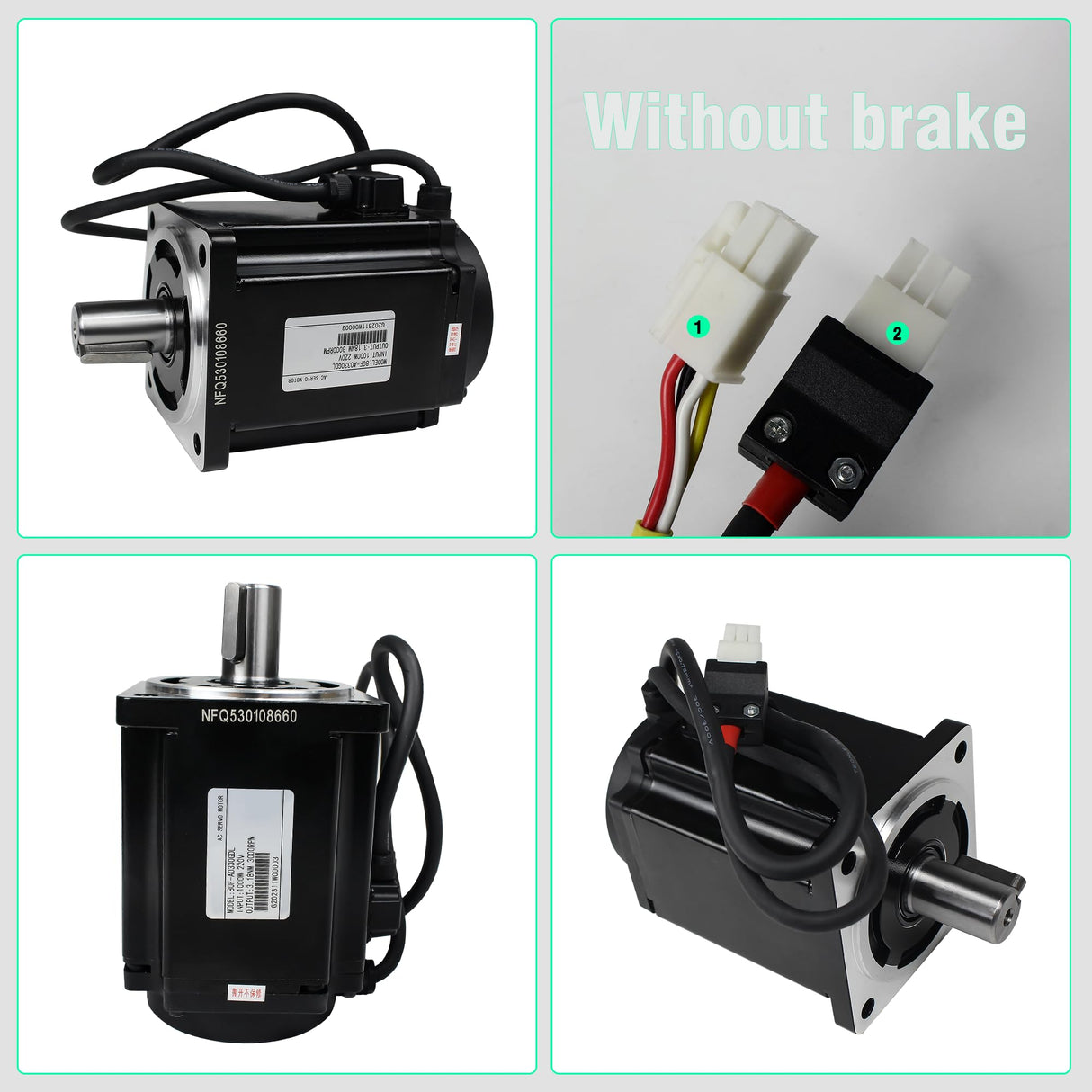

- ♞【Motor parameters】Model: 80F-0330GDL; Power: 1000W; Number of poles: 5 pairs; Rated power supply: 220V; Rated speed: 3000r/min ;Peak speed:6000r/min; Rated torque: 3.18Nm; Instantaneous maximum torque: 9.54Nm; Rated current: 5.8A; With brake: No; Insulation class: F(155℃); Waterproof grade: IP65

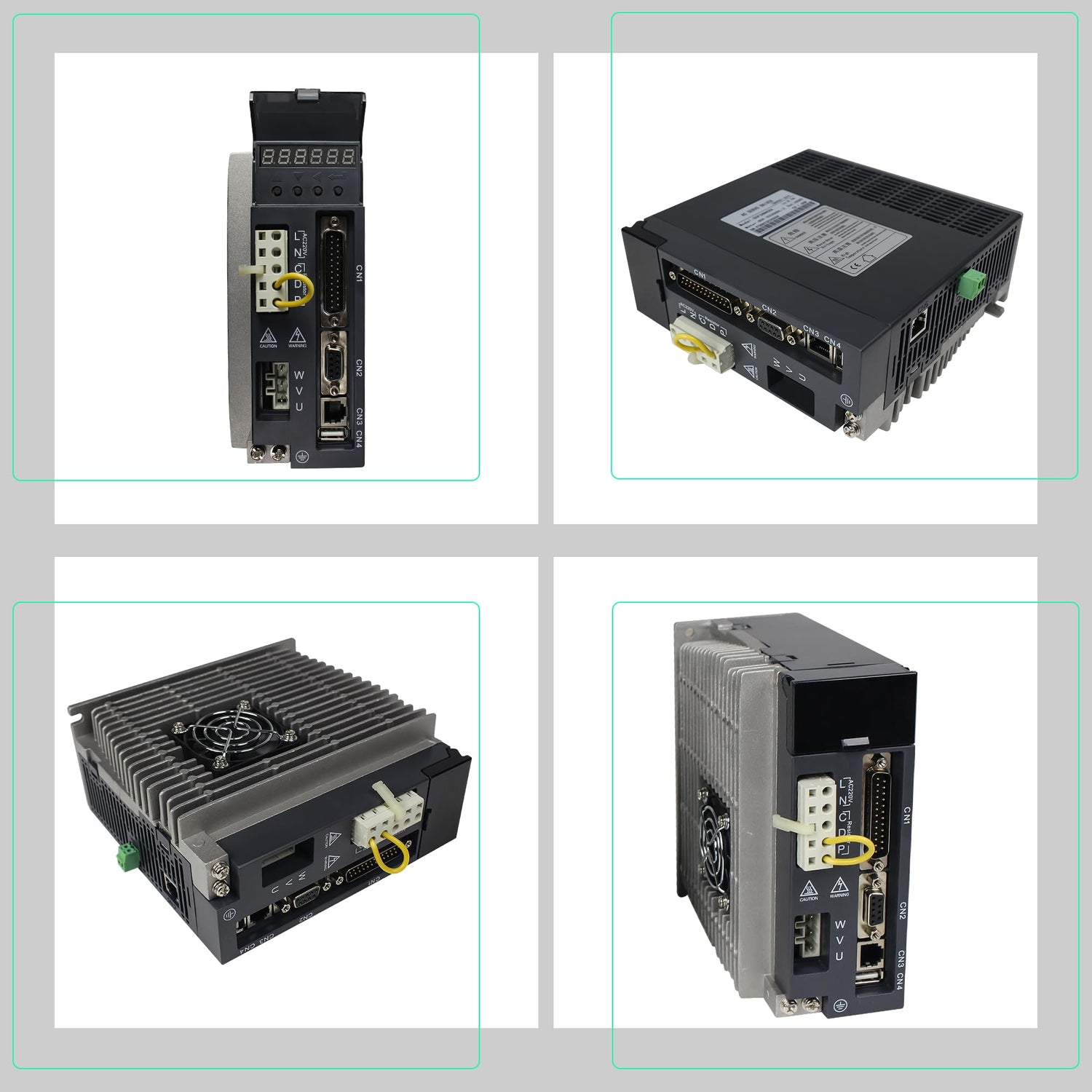

- ♞【Driver parameters】Model: SDF08NK8X; Maximum current: 10.5A; Input voltage: AC170-253V (50/60Hz); Cooling method: Heat dissipation air cooling; Control mode: SVPWM control; Encoder: 17 bit absolute photoelectric encoder; Operating temperature: 0℃-+55℃; Storage temperature: -20℃-80℃; Protection level: IP54
- ♞【17bit Encoder&Accurate control】Matching with 17-bit single-turn absolute value optical encoder, 5 pairs of poles,to ensure the accuracy of 1/5120000; With Strong applicability,all input/output ports can be freely defined and have strong applicability,a variety of intelligent monitoring functions and operation panels are convenient for customers to debug and diagnose.
- ♞【Multiple Functions】Under voltage,over voltage,over load,over current,encoder exception,position error etc.Position control, speed control, torque control Modbus communication can be converted to meet common applications,standard RS485 communication function, realize upload and download network control.The internal simple PLC function, in some simple control occasions, PLC can be completely omitted, and a lower cost solution can be realized.
- ♞【Application areas】Widely used on Industrial manipulator,Semiconductor equipment,Engraving Carving equipment,Measuring equipment,Medical equipment,Industrial robot and other automated equipment on the market.
Part Number: 80F-0330TBL
Package Dimensions: 14.0 x 11.0 x 8.5 inches
