Doesbot GRBL 1.1 CNC 3-Axis Control Board Support 48V 500W DC Spindle and 12V 60W Laser with Power Switch for DIY Mini Engraving Machine Wood Router
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Doesbot
Features:
- New design by Doesbot in 2023
- Input voltage (board power supply): 12V to 24V, Toggle switch control
- Support 48V 500W DC spindle motor
- Support 12V, 5V with TTL and without TTL laser.Maximum 12v 60w
- Adjustable driver subdivision
- Support the xyz limit switch, probe interface
- Support Externally connected high-power driver
- Nano 3-Axis Control Board is a Arduino Nano based 3-Axises Motion control system
- This controller has burned the grbl1.1 firmware
model number: 3AXIS-RED
Part Number: 3AXIS-RED
Details: New design by Doesbot in 2023

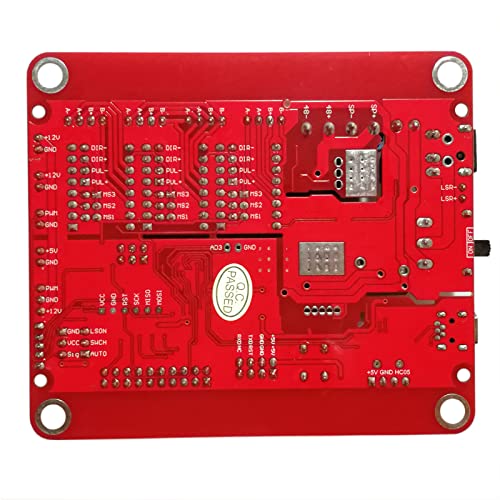

Board with 1.6MM high-quality A-plate, reliable and stable.

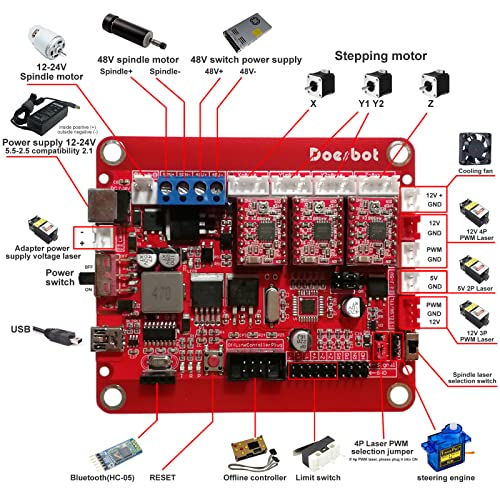

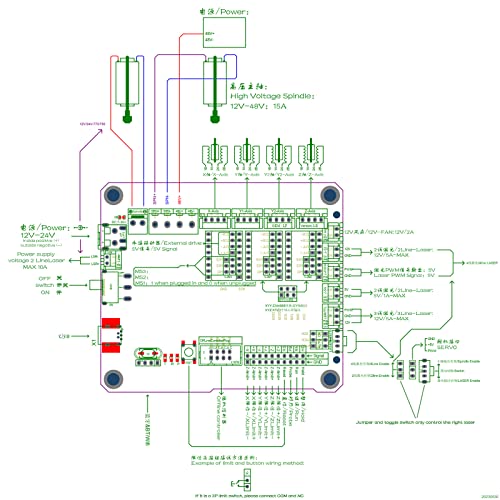

Input voltage (board power supply): 12V to 24V, Toggle switch control, socket 5.5-2.5 compatible with 2.1, Power polarity inside positive(+),outside negative(-)
Please note the positive and negative poles, make the right connection. Its not seller's responsibility if the fault was from this.
Double y-axis, all-round use,XYZ or XYY.
Stepper drive setup subdivision.

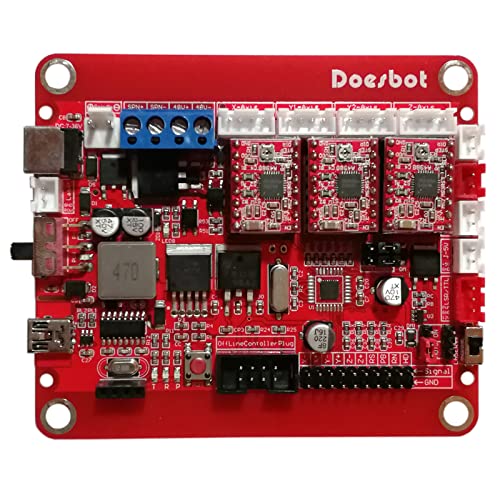

Integrated 3 A4988 drivers, directly connect to four wire stepper motor.
Support 48V 500W DC spindle motor
Support 12V, 5V with TTL and without TTL laser.Maximum 12v 60w
Adjustable driver subdivision.
Support the xyz limit switch, probe interface.
Support Externally connected high-power driver, Please unplug A4988 drivers first
Support external Offline Controller(Optional).
A4988 can be replaced with drv8825 driver and tmc2208 driver. Please pay attention to the direction of the driver during replacement. Nano 3-Axis Control Board is a Arduino Nano based 3-Axises Motion control system, can be used for Laser Engraving machine, Drawer Machine, CNC Engraving Machine etc.
This controller has burned the grbl1.1 firmware
Packing list:
1*Motherboard
4*A4988 drive with radiator (One of the gifts)
1*Spindle motor line (vh3.96)
1*USB data line
EAN: 0749350422093
Package Dimensions: 6.4 x 4.1 x 1.5 inches
