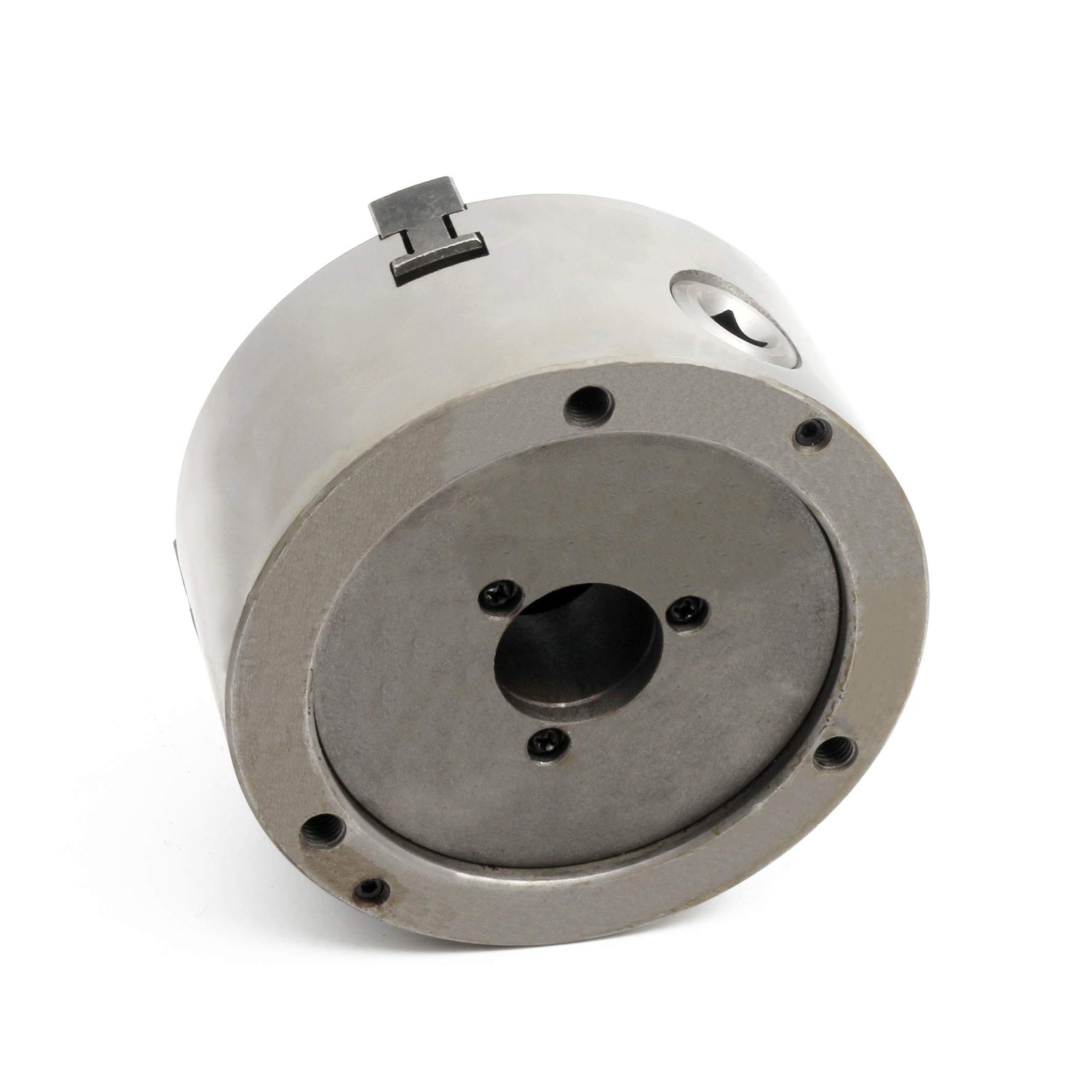

RATTMMOTOR 4-Jaw K12-125mm Self-centering Linkage Lather Chuck with Chuck Wrench for CNC Roter Engraving Milling Machine
Regular price
$78.00
Unit price
/
Unavailable
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: RATTMMOTOR
Color: 125mm
Features:

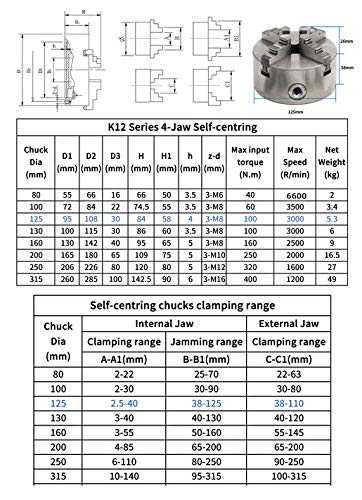

- Mode Name: K12 series 4-Jaw self-centering chuck.

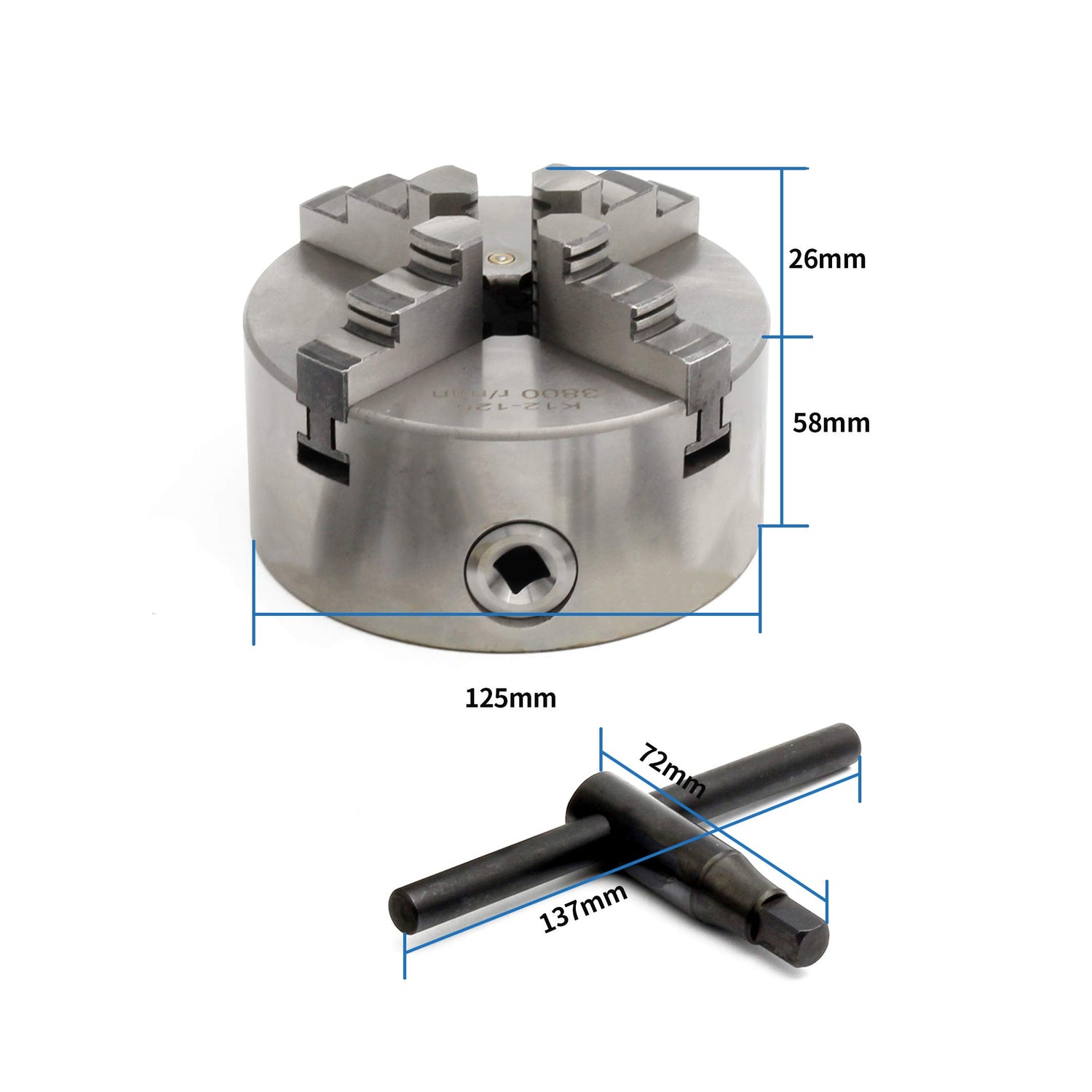

- Diameter:125mm; Net Weight:5.3kg.
- Max input torque: 100N.m; Max Speed: 3000R/min
- Internal jaw clamping range: 2.5-40mm; Internal jaw jamming range: 38-125mm; External jaw clamping range: 30-110mm.
- Grease must be emptied out from the threaded holes of chuck before mounting.
model number: K12-125
Part Number: K12-125

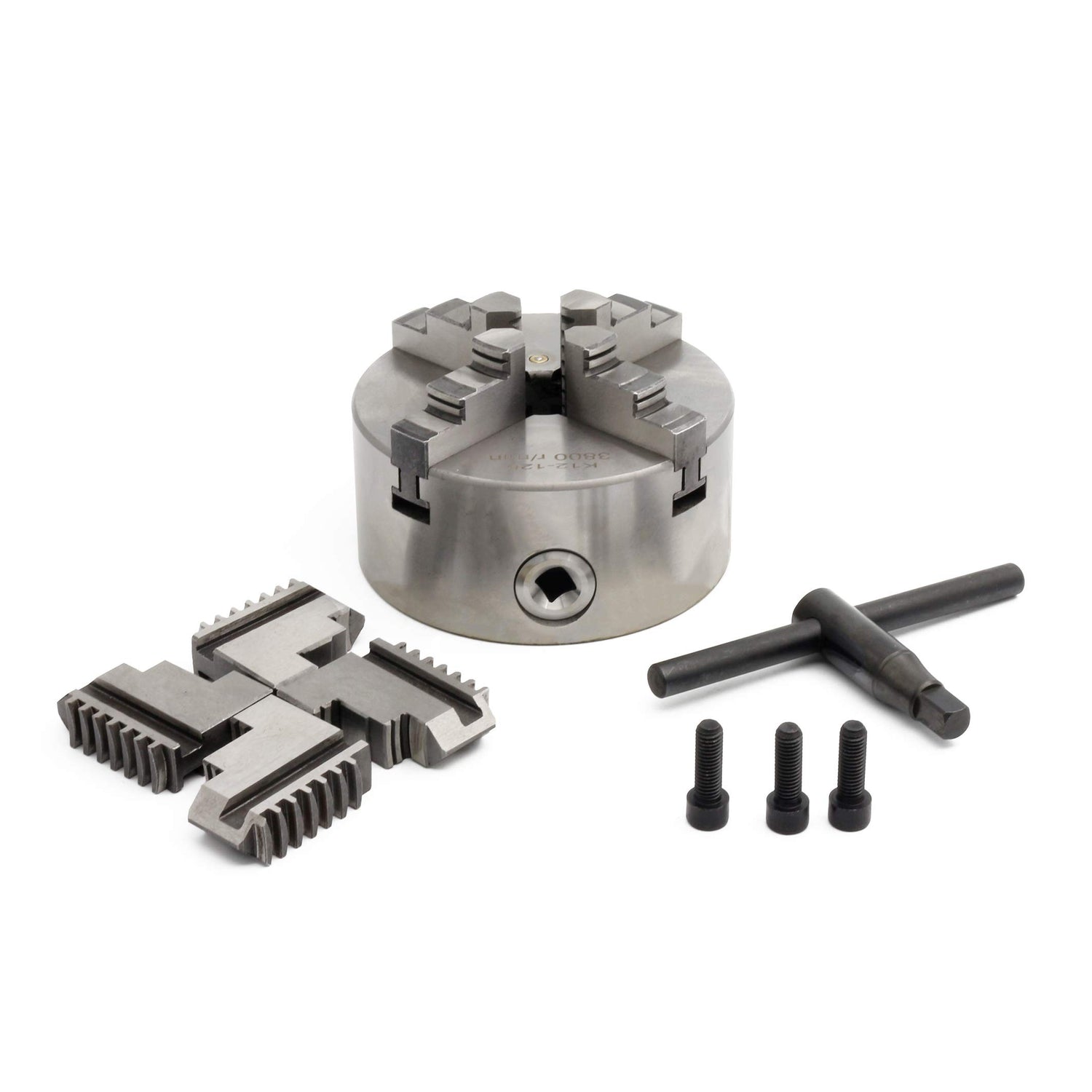

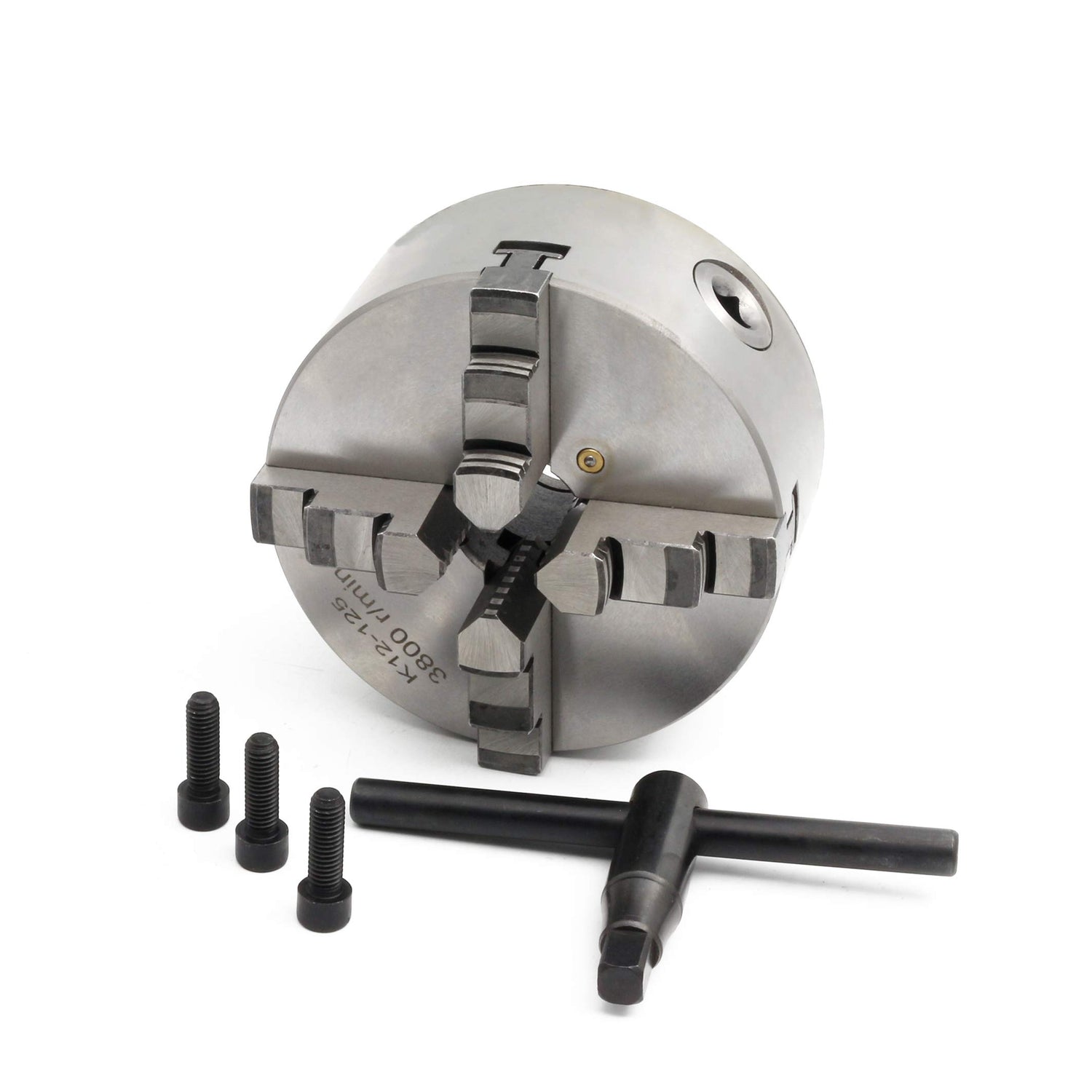

Details: Package Include:
1pcs K12-125mm Chuck

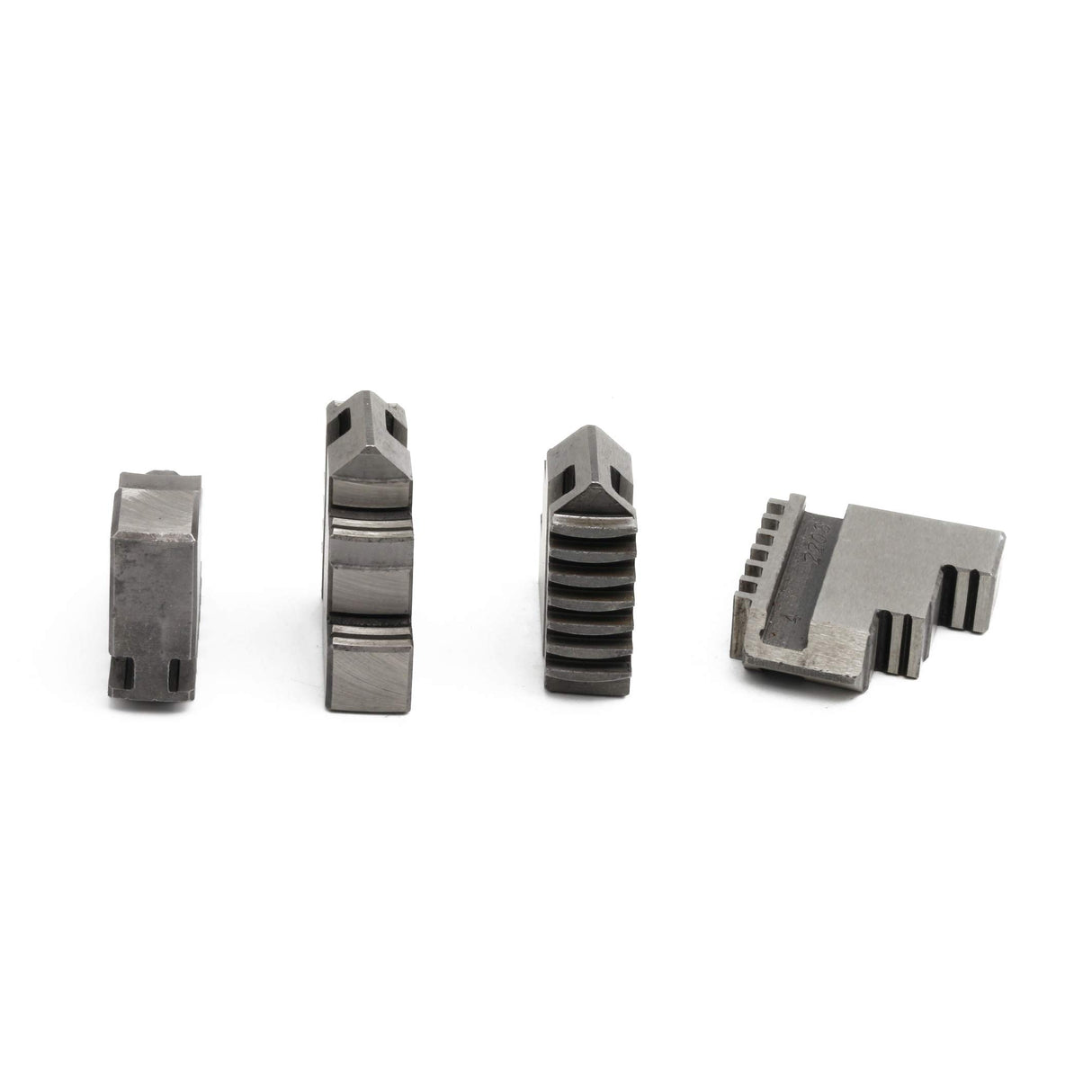

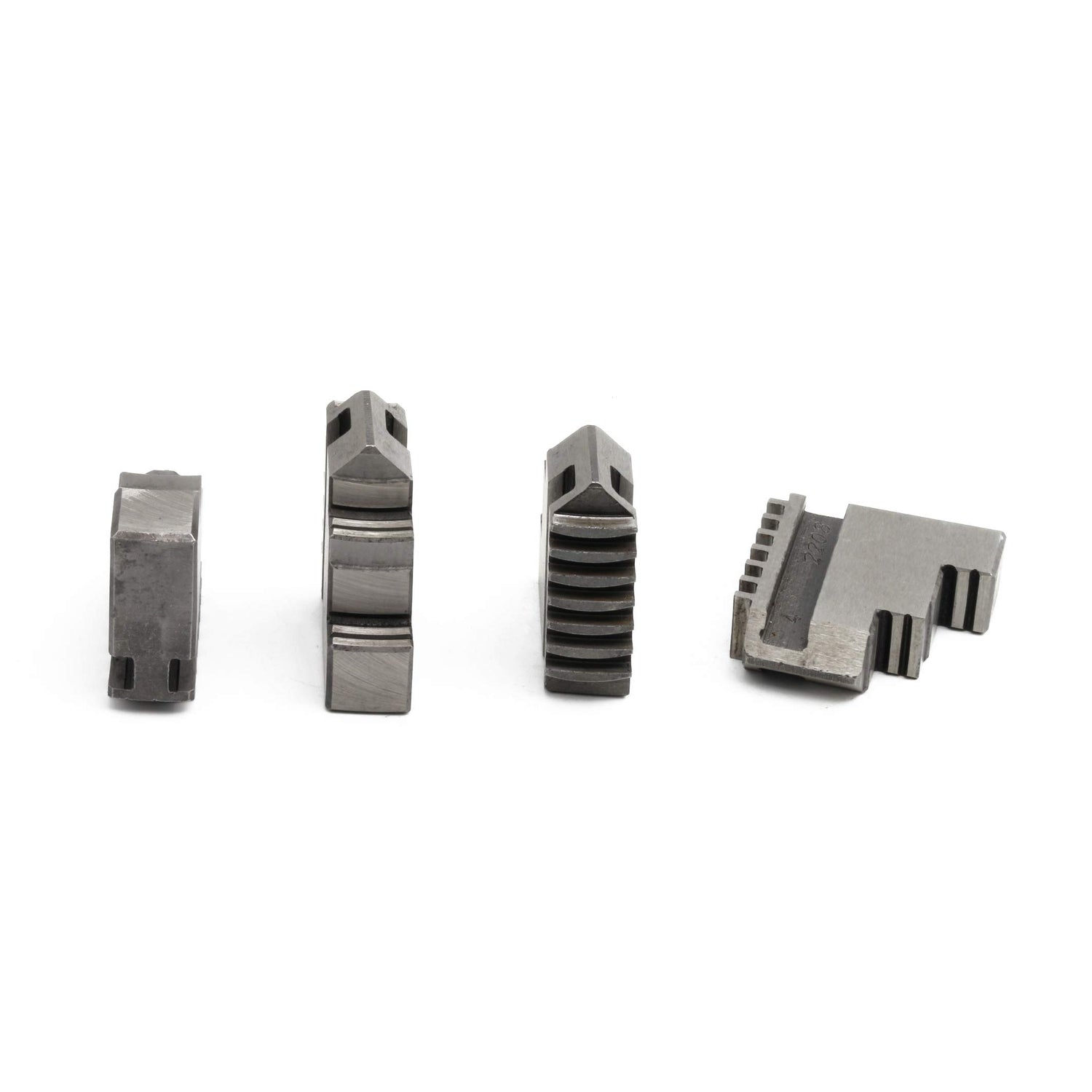

1set External Jaws
1pcs Chuck Wrench
3pcs Socket Head Cap Screw
Operation Instruction:
Grease must be emptied out from the threaded holes of chuck before mounting.
Wash and lubricate the chuck regularly in order to maintain its accuracy and durability.
After the work piece is clamped, do not knock it with hammer for preventing the chuck accuracy from being affected and the parts.
EAN: 0769135311886
Package Dimensions: 7.8 x 7.6 x 7.4 inches
