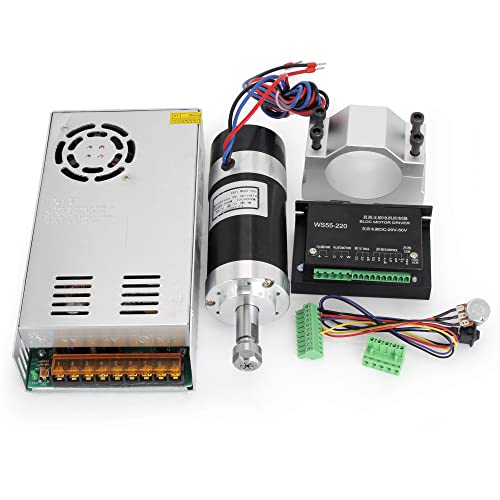

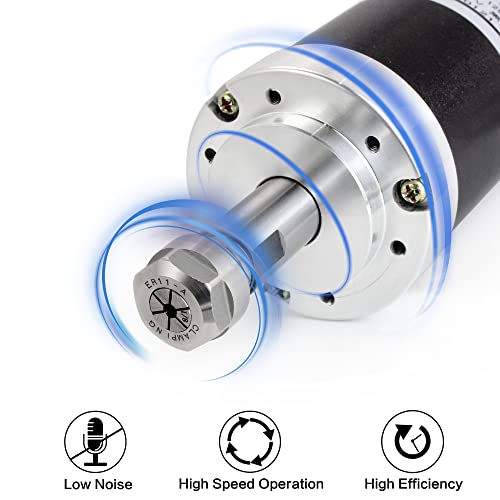

RATTMMOTOR CNC Brushless Spindle Motor Kit, 48VDC 500W Spindle Motor Air Cooled ER11, 12000RPM, 0.6N.m, 55MM+BLDC Driver Motor Speed Controller 600W
Regular price
$145.50
Unit price
RATTMMOTOR CNC Brushless Spindle Motor Kit, 48VDC 500W Spindle Motor Air Cooled ER11, 12000RPM, 0.6N.m, 55MM+BLDC Driver Motor Speed Controller 600W is backordered and will ship as soon as it is back in stock.
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: RATTMMOTOR
Features:

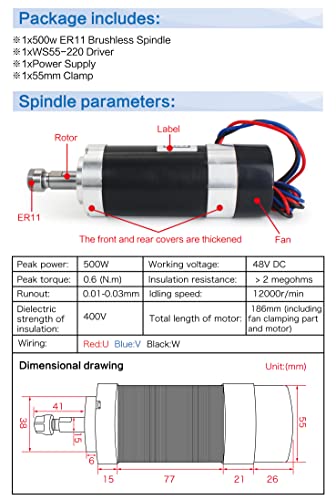

- 【Air Cooled Spindle】Power: 500W; Voltage: 48VDC; Speed: 12000r/min; Torque：0.6NM; Diameter: 55mm.Radial runout off :about 0.01-0.03mm;Insulation resistance: > 2 megohms; Dielectric strength of insulation: 400V.

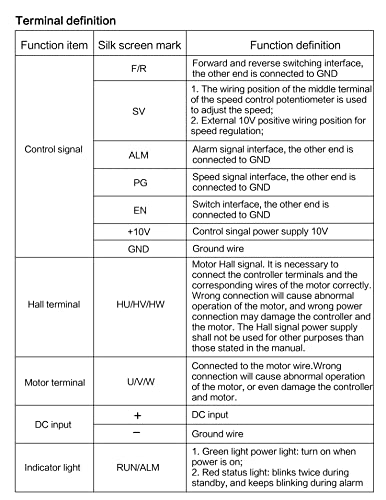

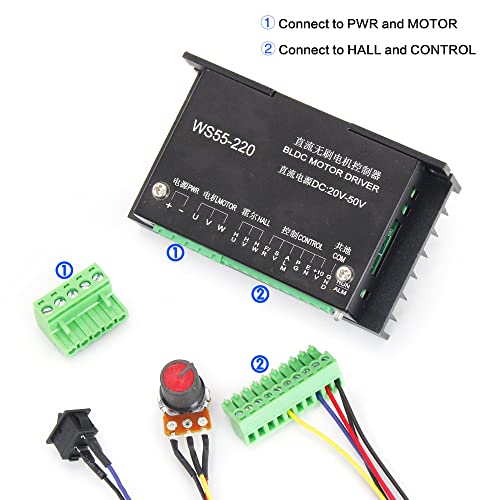

- 【Spindle Motor Drvier Features】Compatible with square wave with and without Hall, with potentiometer speed regulation function, external 10V voltage speed regulation function, switch function, speed output function, alarm output function, forward and reverse function, etc., and has a protective shell.

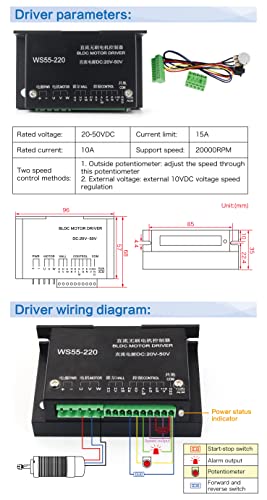

- 【Spindle Motor Drvier Parameters】Rated voltage: 20-50VDC; Rated current: 10A; Limiting current: 15A; Support speed: support speed above 20000RPM, the specific speed depends on the motor itself and the load.

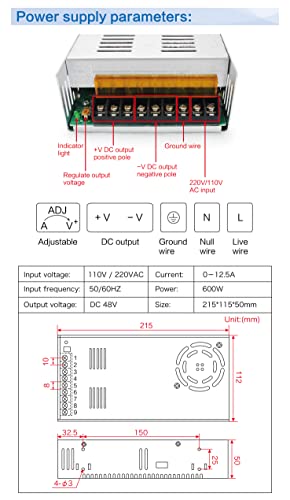

- 【DC Switching Power Supply Parameters】Input voltage: 110V / 220V AC; Current: 0-12.5A; Input frequency: 50/60Hz; Power: 600W; output Voltage: DC 48V; Size; 215*115*50mm.

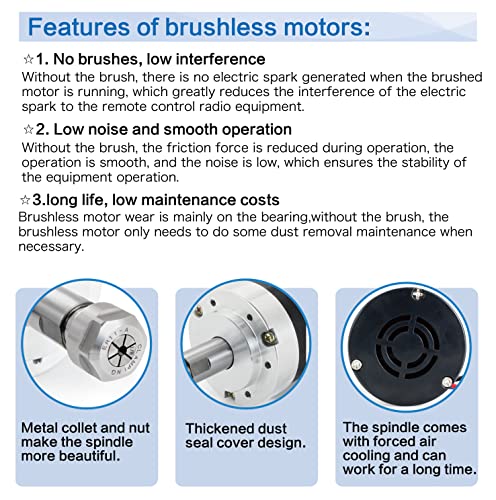

- 【Advantages-1】The brush is removed, and there is no electric spark generated when the brushed motor is running, which greatly reduces the interference of the electric spark to the remote control radio equipment.
model number: 500WBLDC-4
Part Number: 500WBLDC-4
Package Dimensions: 10.3 x 7.2 x 6.0 inches
