Cloudray CNC Chuck Rotation Axis Rotary Attachment Rotate Engraving for Cutting Machine (Chuck Rotation Axis + 3 Phase Stepper Motor)

Brand: Cloudray

Color: Black

Features:

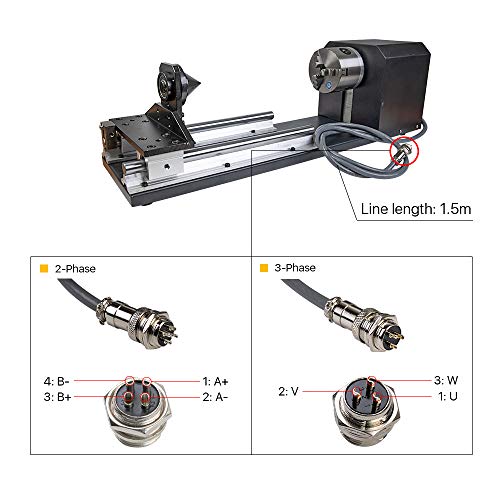

• 2 Phase Stepper Motor has 4 Leads, 3 Phase Stepper Motor has 3 Leads. Please confirm before buying.
• Higher torque and higher speed.
• Reduced motor heating and more efficient.Smooth motion and super-low motor noise.
• Closed-loop control, no longer lose any steps, up to its maximum torque.

Binding: Office Product

model number: Chuck Welle+3 Phase Schrittmotor

Part Number: MP09RB3P

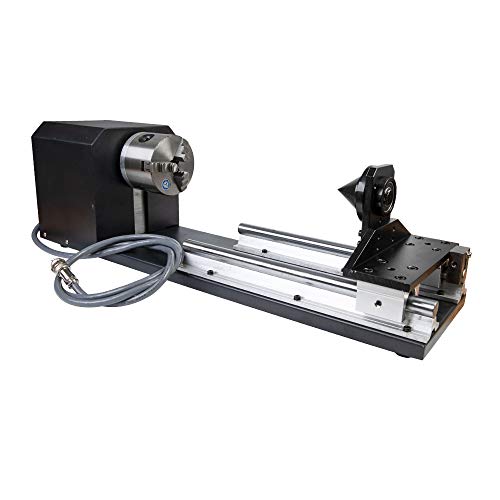

Details: Rotary Axis Attachment Our Standard Rotary Attachment is ideal for engraving cylinder items with your laser. From glasses, to mugs, to wine bottles, to flashlights, the Rotary Attachment can quickly and easily adjust to size for a wide variety of products.
Feature:

Closed-Loop Control, No Longer Lose Any Steps, Up To Its Maximum Torque
Reduced Motor Heating And More Efficient
Smooth Motion And Super-Low Motor Noise
Higher Torque And Higher Speed
No Tuning And Always Stable
Zero-Speed Stability
Specifications:
3-Phase Stepper Motor
Phase: 3 (Or 2-Phase Stepper Motor)
Step Angle: 1.2 Degree (1.8 for 2-Phase Stepper Motor)
Angle Accuracy: plus or minus 5%(full step,no load)
Insulation Resistance: 100M ohms min.500VDC
Current /phase(A): 5.6A
Usage:

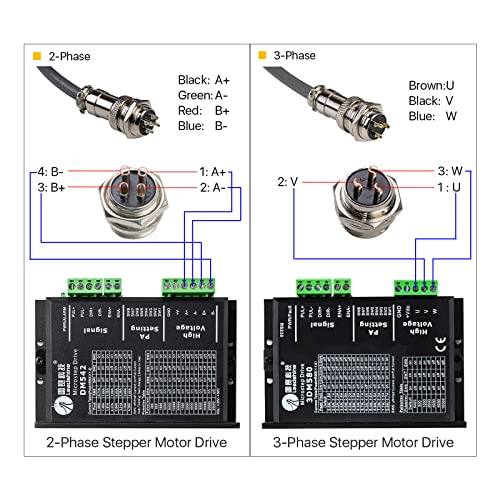

Match Drivers:
3DM580 / 3DM683 --3-Phase
DM542 / DM556--2-Phase

EAN: 0669819721775

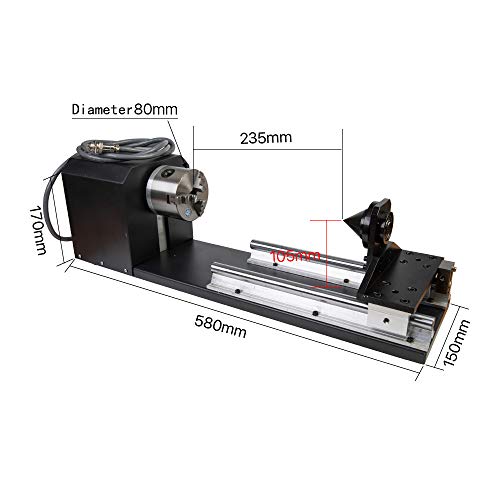

Package Dimensions: 24.3 x 10.2 x 8.5 inches
