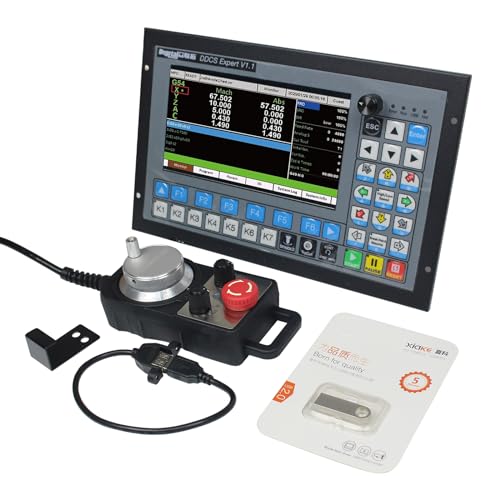

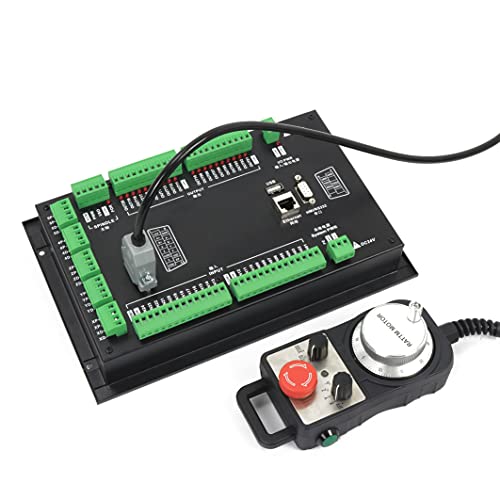

CNCTOPBAOS 4 Axis Milling Machine CNC Controller,1000KHz Offline Standalone PLC,DDCS Expert Motion Control System with MPG Handwheel for CNC

Brand: CNCTOPBAOS

Features:

• ♞【Product】Model Number:DDCS EXPERT ; 1M Hz output frequency for each axis; 7 inch full color display screen; resolution ratio: 1024*600, 40 operation keys
• ♞【Introduction】The DDCS Expert numerical control system adopts the ARM+FPGA design framework. ARM controls the human-computer interface and code analysis and the FPGA provides the underlying algorithms and creates the control pulse. This guarantees reliable control and easy operation.The internal operating system is Linux based.
• ♞【Compatible G Code】Compatible with standard G-code,support popular CAD/CAM software, such as ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360 and so on;
• ♞【Power Supply】The Power Supply for the controller is 24VDC, minimum Current is 0.5A
• ♞【Applications】The DDCS Expert can be used for many styles and types of CNC machines. Lathes, CNC Routers,Pick&Place and Milling Machine, lathe and cutters are just a few examples.

Part Number: DDCS-EXPERT

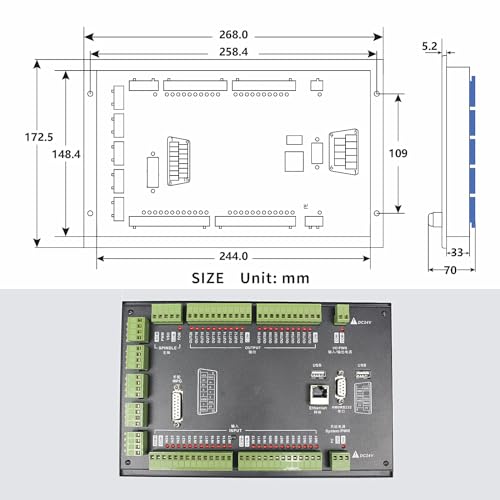

Package Dimensions: 16.0 x 10.0 x 5.4 inches
