InduSKY 2pcs 8mm Inductive Proximity Sensor Detecting Distance Approach Sensor Cylinder Proximity Switch NPN NO DC 6-36V 300mA 3-Wire (Diameter 18mm)

Brand: InduSKY

Features:

• 【High Quality】: Brass nickel-plated shell, not easy to rust and fade. With 115CM high-quality copper wire, strong and durable, and excellent electrical conductivity.
• 【Sensitive Detection】: ABS material detection surface, the built-in intelligent sensing chip of the proximity switch can sensitively detect objects, when proximity switch is close to single target object, it will send control signal.
• 【Strong anti-interference】：TVS tube protection, strong anti-interference ability. Non-contact output, and long service life.
• 【Theory】: Output Type: NPN NO(Normal Open); Diameter of Head : 18mm;Detecting Distance: 8mm; Supply Voltage: DC 6-36V; Current Output : 200-300mA; Detect Object : Metal.
• 【Application】: It is a component widely used in automatic control industry for detecting, controlling, and contactless switching. It is Widely used in mechanical automation, 3D printing limit positioning, paper making, light industry for limiting station, orientation taking count, speeding trial etc.

model number: IDSFZ02

Part Number: IDSFZ02

Details: Specification:
Type: LJ18A3-8-Z/BX
Supply Voltage : DC 6-36V
Detection distance: 8 mm
Switching frequency: 200MHZ
Current Output : 200-300mA

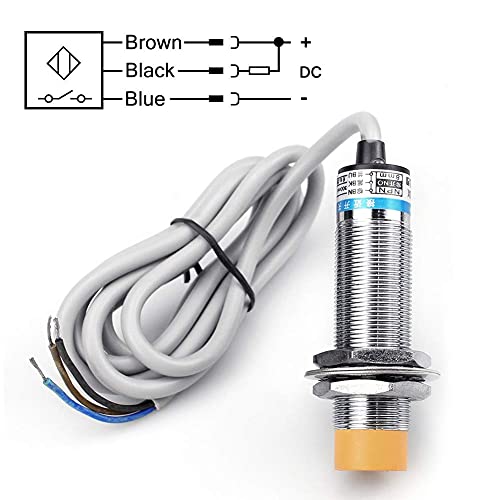

Output form: NPN DC three-wire normally open

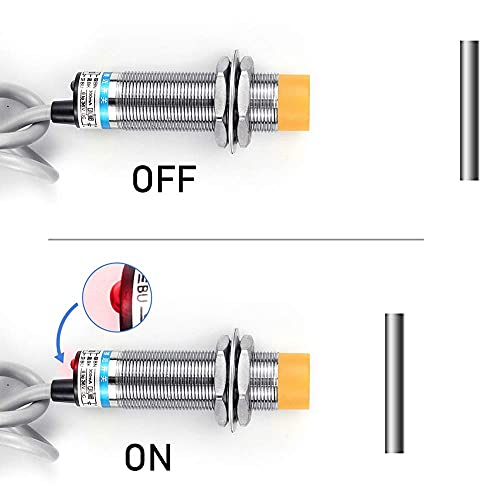

Output level: low level (when there is metal)
Output indication: LED (red)
Detection substance: metal
Line length: 115cm
Nut size: M18

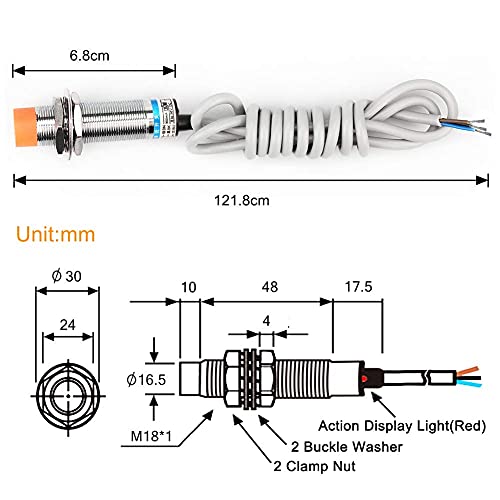

Product size: 18mm in diameter, 68mm in total length

The package includes:

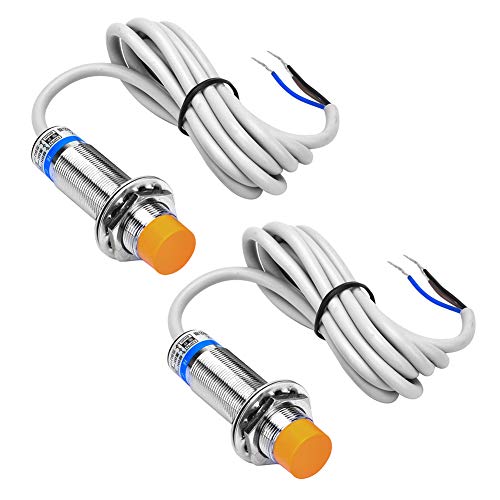

2 x Inductive Proximity Switch

EAN: 0742773201986

Package Dimensions: 6.8 x 6.4 x 1.3 inches
