Author: JET
Brand: Jet
Color: White
Features:

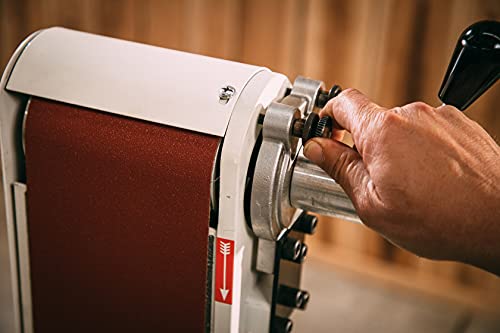

- Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use

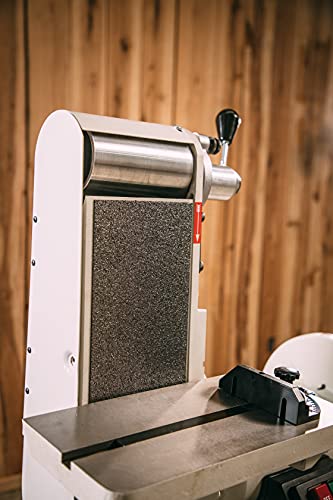

- Graphite covered steel platen runs cooler increasing machine and belt life
- Heavy-duty steel open-style stand provides solid support
- Specially designed belt guard allows full use of the 6" belt width and length
- Tracking adjustment knob with quick-lock handle keeps belt on track during use
- Two precision-ground cast iron tables have positive stops at 90 degrees and 45 desgrees for sanding flat pieces or mitered angles
Binding: Tools & Home Improvement
model number: 708599K
Part Number: 708599K
Details: Description
Amazon.com

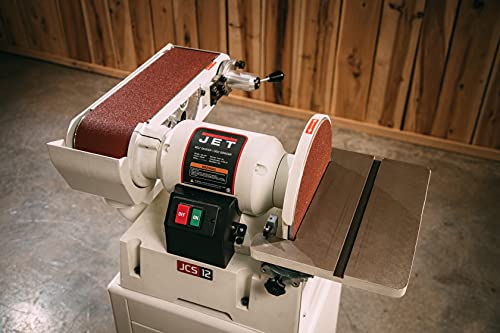

Jet's disk-and-belt-sander combination brings professional-quality sanding to any shop setting. Set on an open steel stand, both tools run off a center-balanced, fully encased induction motor that's prewired for 115-volt outlets. The 1-1/2 horsepower motor delivers plenty of power for most loads and applications. We appreciate the convenience of a single 4-inch dust chute that comes pretty close to meeting the manufacturer's claim of collecting 95% of removed material.
The 6-by-48-inch belt sander cycles at 2,500 sfpm and can be adjusted to operate both vertically and horizontally, and the cast-iron, miter-slotted table tilts to accommodate almost any sanding application. Unique thumbscrews make tracking adjustments quick, easy, and fairly consistent. The Jet sports a graphite platen to reduce heat and help increase belt life. The 12-inch disk sander removes material quickly with little vibration and, like the belt sander, features a pivoting cast-iron table with a miter slot. Both tables have positive stops at 45 and 90 degrees. We appreciate the pad-lockable start button that comes standard on all big Jet tools and prevents accidental start-up and unauthorized use. --Justin Paul
Product Description

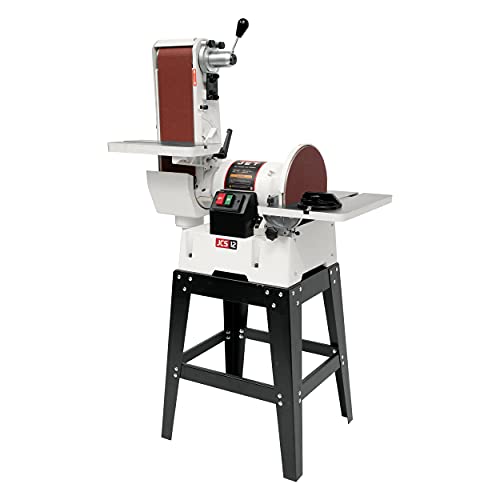

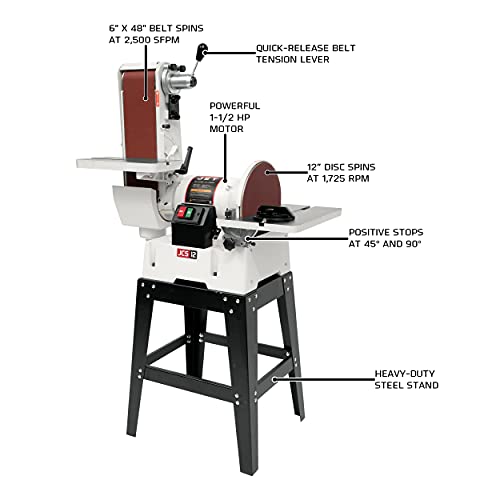

The JET JSG-6DC Sander combines a 12" disc and a 6"x48" belt to provide raw industrial 1.5-HP sanding power. The exclusive dual thumbscrew belt tracking adjustment locks to keep the belt on track while tackling any tough application. The sander boasts both a quick-release belt tension lever and a quick-lock dust cover for the disc. The built-in handle allows for easy portability around the workshop.
From the Manufacturer

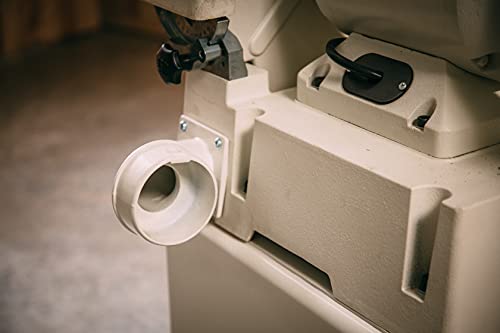

Horizontally, vertically, and any angle in between--that's where you'll be sanding with this combination sander. The 1-1/2 hp, single phase, 115/230-volt motor is prewired for 115 volts and produces 2,500 sfpm. Both precision-ground cast-iron tables have miter gauge slots and positive stops at 45 and 90 degrees. Belt table measures 12-1/2 by 7 inches while the disc table measures 16-1/2 by 10 inches. The belt guard is designed to allow full use of the belt length, and belt tracking adjustments are easily made with exclusive dual thumb screws. A 4-inch dust port base efficiently collects the majority of dust produced by both sanders before it becomes airborne. Your belt sander purchase includes a back stop for horizontal mode, miter gauge, sanding belt, and disc.
FEATURES
Belt sander operates horizontally and vertically and can be locked at any angle in between Both sanding tables have positional stops at 90 degrees and 45 degrees for quick reference Belt tracking adjustments are easily made with exclusive dual thumb screws The belt guard is designed to allow the full usage of the 6" belt width and length Two precision ground cast iron tables with mitre gauge slots Exclusive design single 4" dust port base which efficiently collects the majority of the dust produced by both sanders before it becomes airborne
STANDARD EQUIPMENT
Back stop for horizontal mode Mitre gauge Sanding belt Sanding disc 4" dust chute
SPECIFICATIONS
Sanding Belt (WxL/in): 6 x 48
Disc (Dia/in): 12

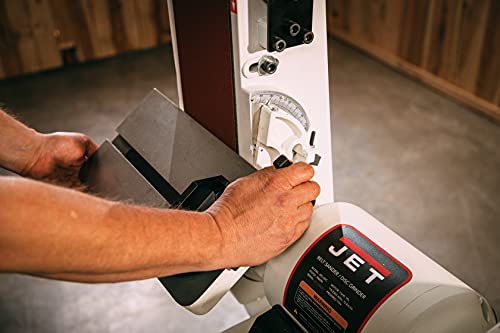

Belt Table Tilt (Down, Up): 45 degrees, 20 degrees

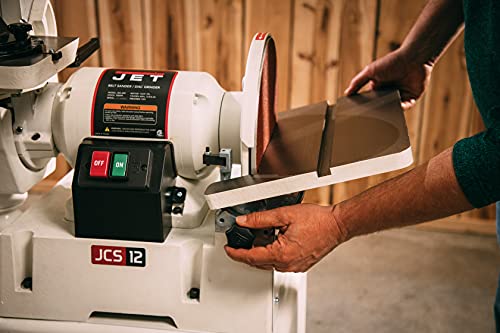

Disc Table Tilt: 45 degrees, 25 degrees
Motor: 1 1/2 HP, 1 Ph 115/230V Prewired 115V
Belt Speed (SFPM): 2,500
Net Weight (lbs): 210
Open stand: 26"H x 15"D x 19-1/2"W
EAN: 0410050026439
Package Dimensions: 29.0 x 27.0 x 26.0 inches
