Powermatic 6-Inch Jointer, 3 HSS Knives, 1 HP, 1Ph 115/230V (Model 54A)

Author: Powermatic

Brand: Powermatic

Color: Yellow

Features:

• Three high speed steel auto-set knives automatically align themselves in the cutterhead
• 66" long adjustable infeed and outfeed tables provide more working surface
• Built-in ledge for 1/2" rabbeting capacity
• Extra-long 38" two-way tilting fence with positive stops provides quick positioning for 90° or bevel cuts
• Fence controls are center mounted for convenience
• Fine/quick adjustment lever on infeed table for precision cuts
• Push button switch is lockable to prevent accidental starting

Binding: Tools & Home Improvement

model number: 1791279DXK

Part Number: 1791279DXK

Details: Amazon.com

The Powermatic 54A Six-Inch Jointer makes it easy to achieve the high levels of accuracy you need when creating flat, straight surfaces for elegant projects. Designed and built to provide precision and dependability, this jointer boasts a cutter-head with "Quick Set" knife system and heavy-duty construction for years of powerful performance.
Powerful Motor and Stable Design
Measuring 21 x 13 inches (W x D), the all-steel base cabinet provides stable footing for the Powermatic 54A and puts the table surface at a comfortable 32 inches above the floor.
The one-horsepower, one-Ph, 115-volt motor is mounted within the cabinet and can be converted to use 230-volt power. It's also located on a special mount within the base cabinet for easy belt-tension adjustments.
The base contains a dust collection chute that evacuates debris from below the cutter-head and guides the debris to the exterior four-inch diameter port near the floor for less mess, better air quality, and improved visibility of the work piece.
Three-Knife Cutter-Head for Smooth Cuts

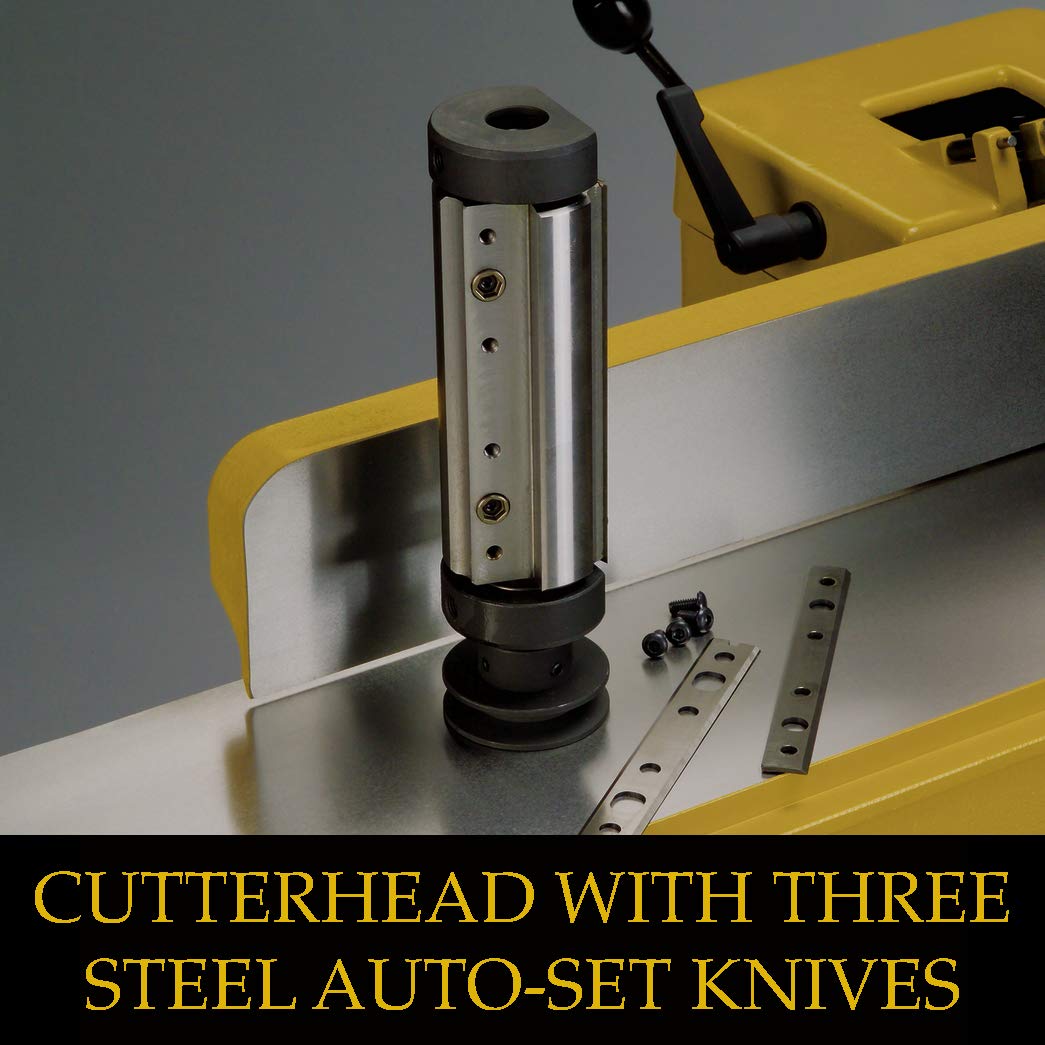

The Powermatic 54A features a three-knife cutter-head fitted with adjustment cams that make setting knife heights both easy and accurate.
Each knife is made from high-quality steel for long-lasting performance. And since the knives are secured by a set of four gib screws and a gib plate, they are easy to change and set.
Generous Table Size and Easy Adjustability

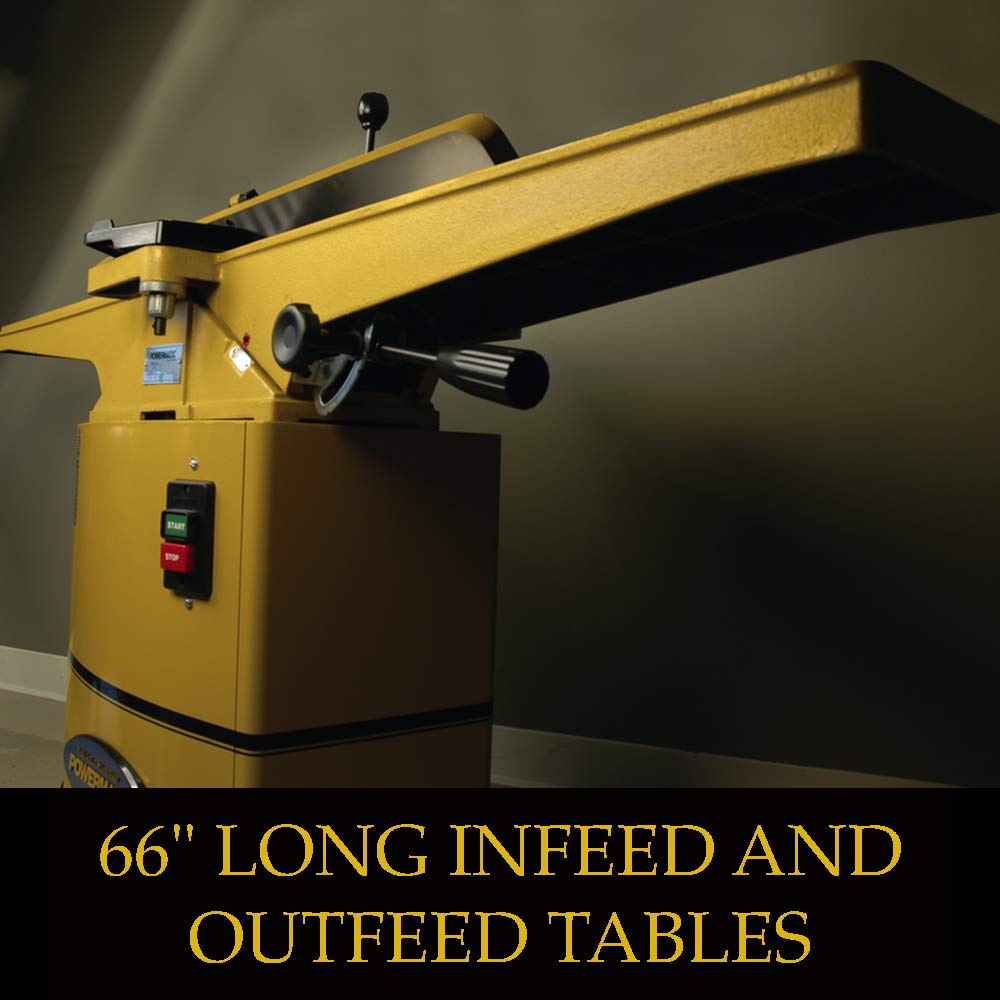

With a width of 7-1/4 inches and length of 66 inches, the Powermatic 54A has the longest tables available in its class, so it provides plenty of support for large work pieces.
The tables are precision ground to ensure flatness, and each is mounted on dovetailed ways that keep them aligned through height changes. For added convenience, you can adjust the out-feed table height via a hand wheel mounted below the table.
Additionally, an easy-to-read scale on the front side of the in-feed table allows quick and precise setting of specific cut changes, and a finger-operated gib screw locks the table in position once it is set.
Precisely Ground Fence

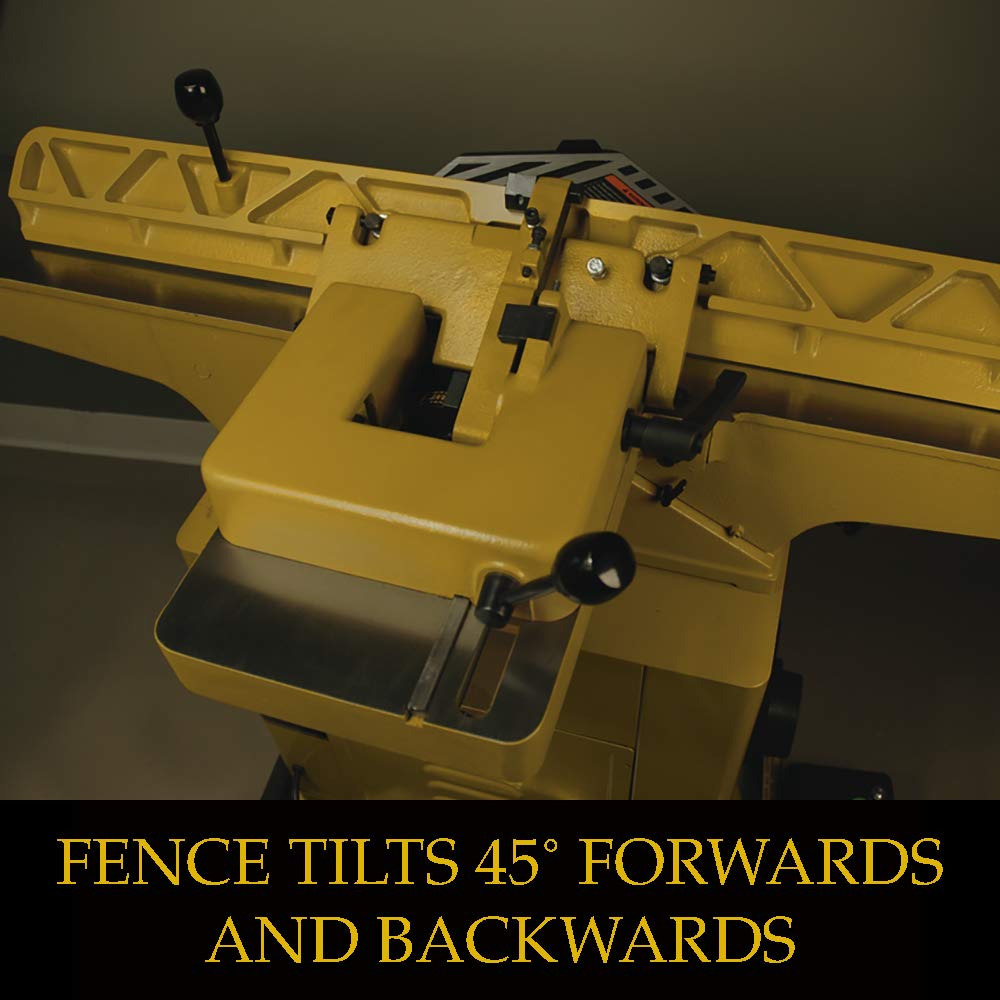

Like the tables, the cast-iron fence system is precisely ground. It tilts up to 45 degrees towards and away from the tables. Fully adjustable stops at 90 degrees (vertical) and each 45-degree position make setup fast and help keep the Powermatic 54A accurate.
For added convenience, the fence controls are center mounted, and a push-button switch is lockable to prevent accidental starting.
The Powermatic 54A is backed by a five-year warranty.
What's in the Box
One Powermatic 54A, one jointer stand, one door with mounting hardware, one dust chute with mounting hardware, one jointer assembly, one fence assembly, one pulley cover, one belt, one cutter-head guard, two hold-downs, one hardware bag, one fence handle, all necessary tools, manual, and warranty card.



Product Description

The Powermatic 54A jointer features three auto-set knives that align themselves in the cutterhead for rapid knife changes. Oversized infeed/outfeed tables are mounted on dovetailed ways and have a built-in rabbeting ledge. The fence is 38" in length, with positive stops at 90° and 45° right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a powerful motor with a non-slip v-belt drive for maximum performance. The 4" dust port offers easy connection to any dust collection system.

From the Manufacturer

This is the same great Powermatic Model 54A 6" jointer except it has the NEW Quick-Set knives that make for very quick, very accurate and very easy knive replacement. You still have the the 1hp, 1ph motor and the center mounted cast iron fence assembly along with the very large 66" x 7 1/4" table surface. The fence has positive stops at 90 and 45 degrees and you still get the 1/2" rabbeting capacity. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision depth of cut. The hea

EAN: 0662755523113

Package Dimensions: 69.0 x 28.5 x 24.0 inches
