RATTMMOTOR CNC GRBL Offline Controller, 3 Axis GRBL DIY CNC Router Offline Control Button/Module LCD Screen for Mini CNC Carving Milling Engraver

Brand: RATTMMOTOR

Features:

• The injection molded case is beautiful and formal; the integral button and the key cap are not easy to fall off.
• Support SD card and TF card at the same time, standard capacity 1G.
• With this offline controller module, you can directly control the CNC router without connecting it to your computer.

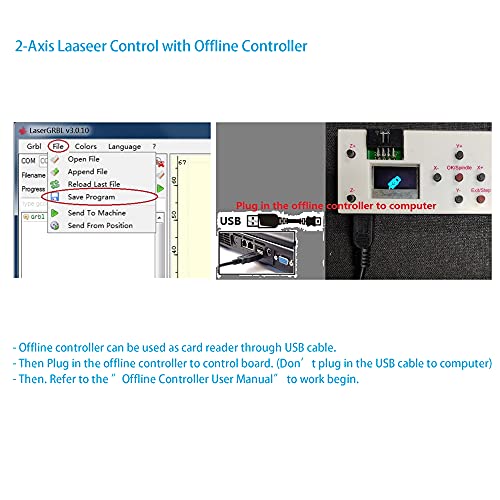

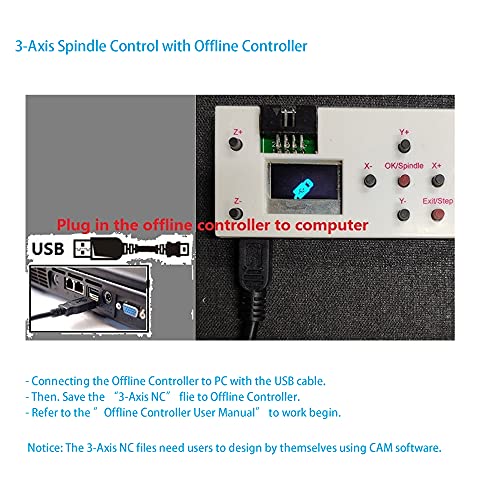

• After inserting the file into the SD card,the engraving file can be directly identified. You can also use the micro USB cable to connect the offline hand controller board to your computer and save the file directly.
• Easy to use: All you have to do is connect the offline module to the GRBL controller board, which you can use it to control the CNC router machine.

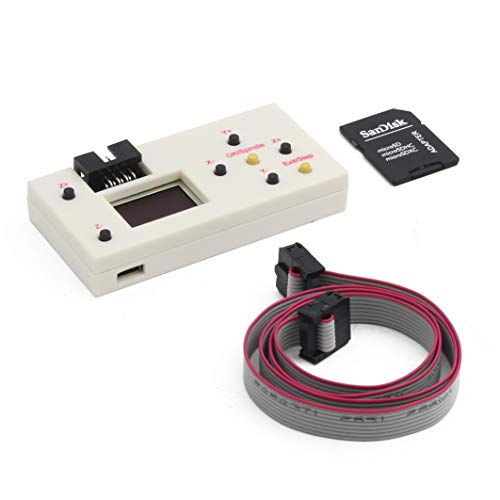

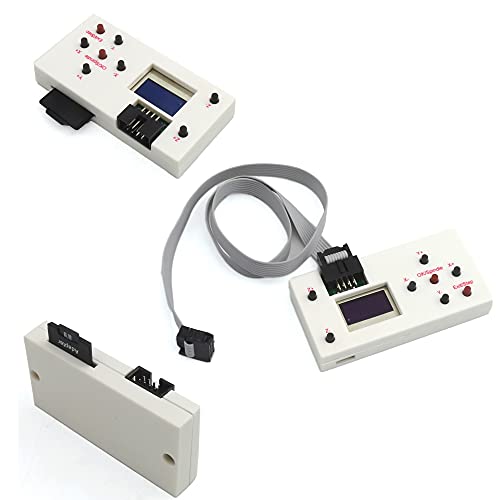

Details: Package include:
1 set of offline hand controller board
1 set of cable
1 set of SD card

Specification:

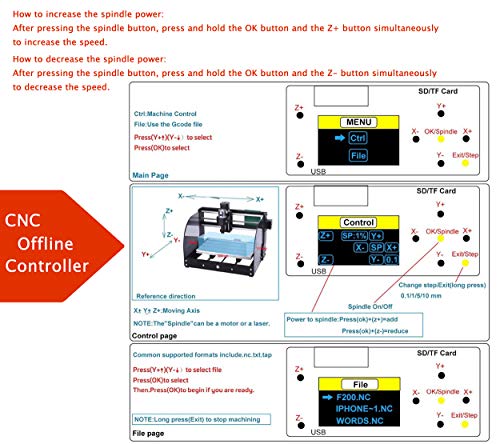

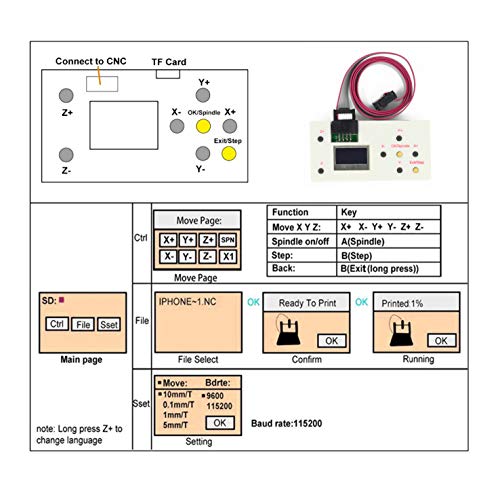

(1) Main Page
Ctrl: Machine Control
File: Use the Gcode file
Press [Y+] [Y-] to select
Press[Ok] to Enter

(2)Control Page
X± Y± Z±: Moving Axis
OK/Spindle: Spindle ON/OFF
Exit/Step: Change Step/Exit (long press)
How to increase the spindle power: After pressing the spindle button, press and hold the OK button and the Z+ button simultaneously to increase the speed.
How to decrease the spindle: After pressing the spindle button, press and hold the OK button and the Z- button simultaneously to decrease the speed.
Note: The spindle can be a motor or a laser.

(3)File Page
Common supported formats include nc. tex. tap.
Press [Y+] [Y-] to select file
Press [Ok] to Enter
Press [Ok] to begin if you are ready
Note:Long press [Exit] to stop machining

EAN: 0769135311664

Package Dimensions: 5.8 x 4.4 x 3.3 inches
