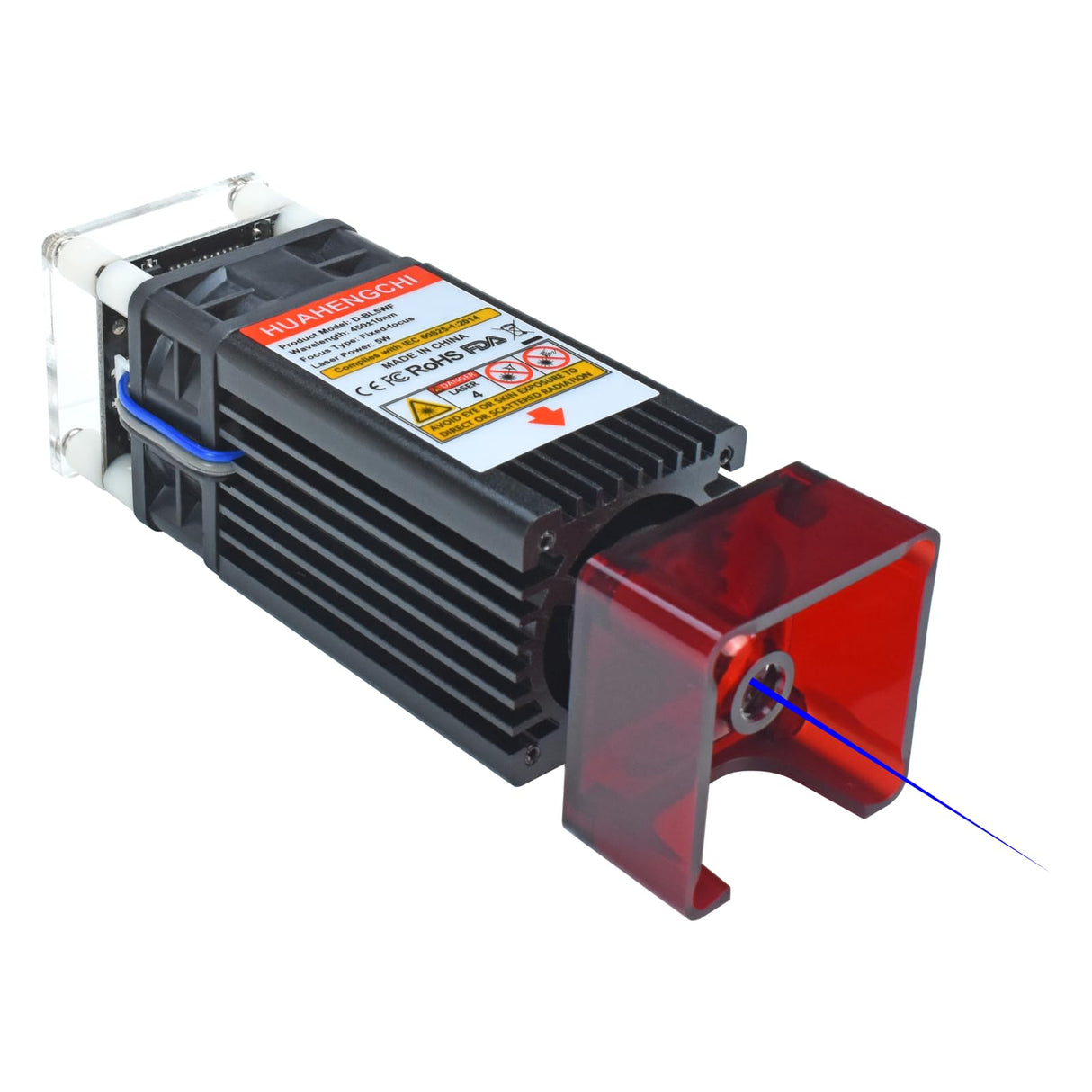

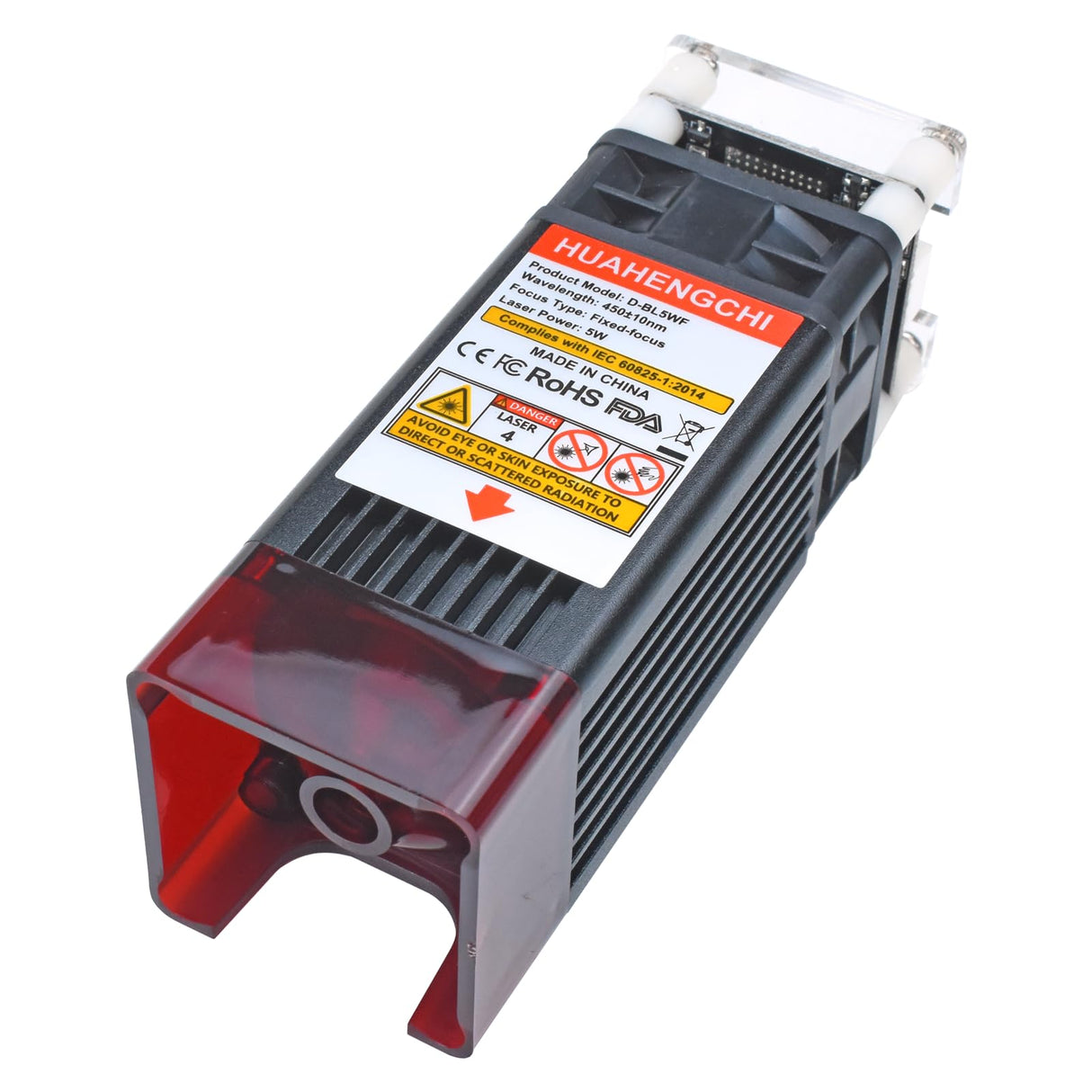

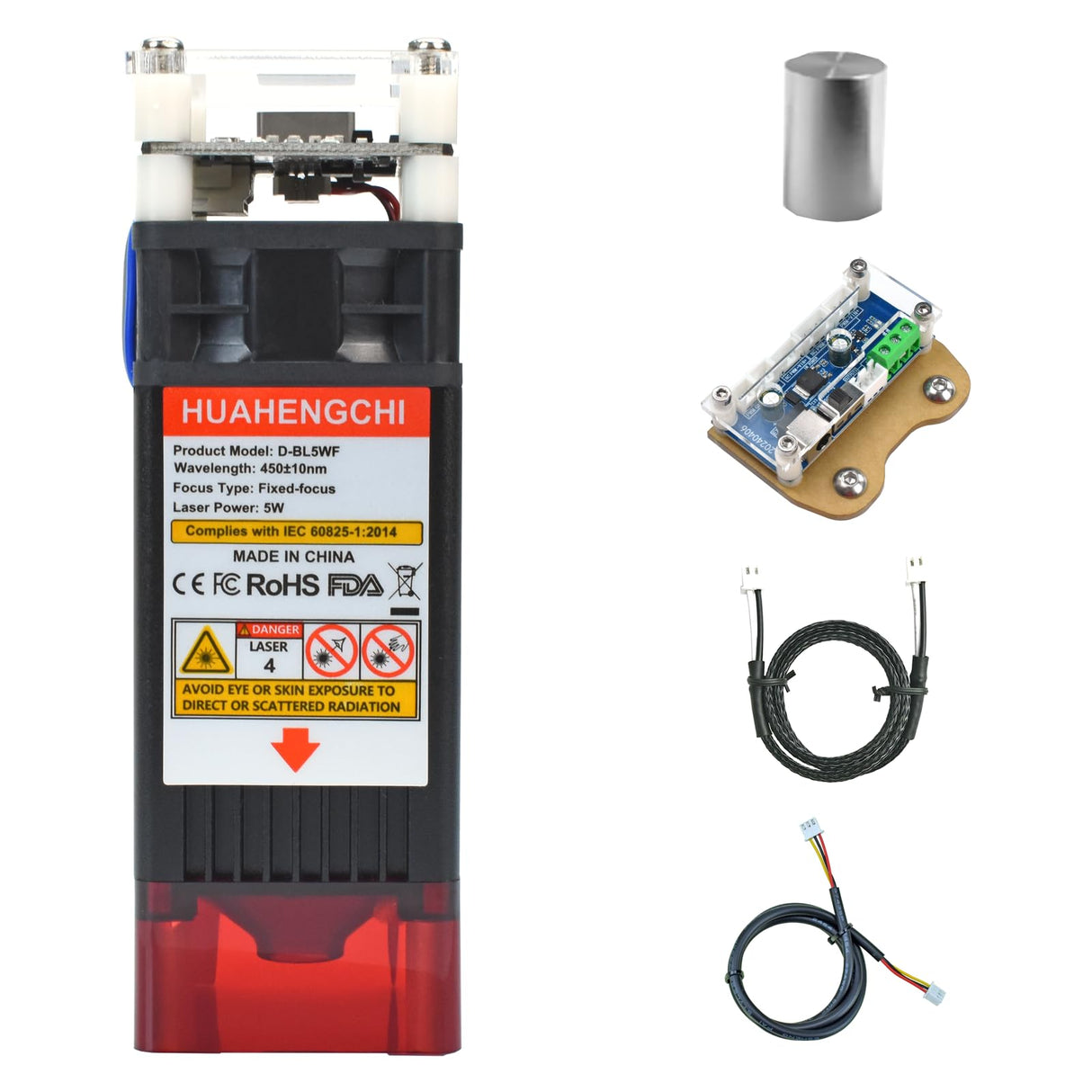

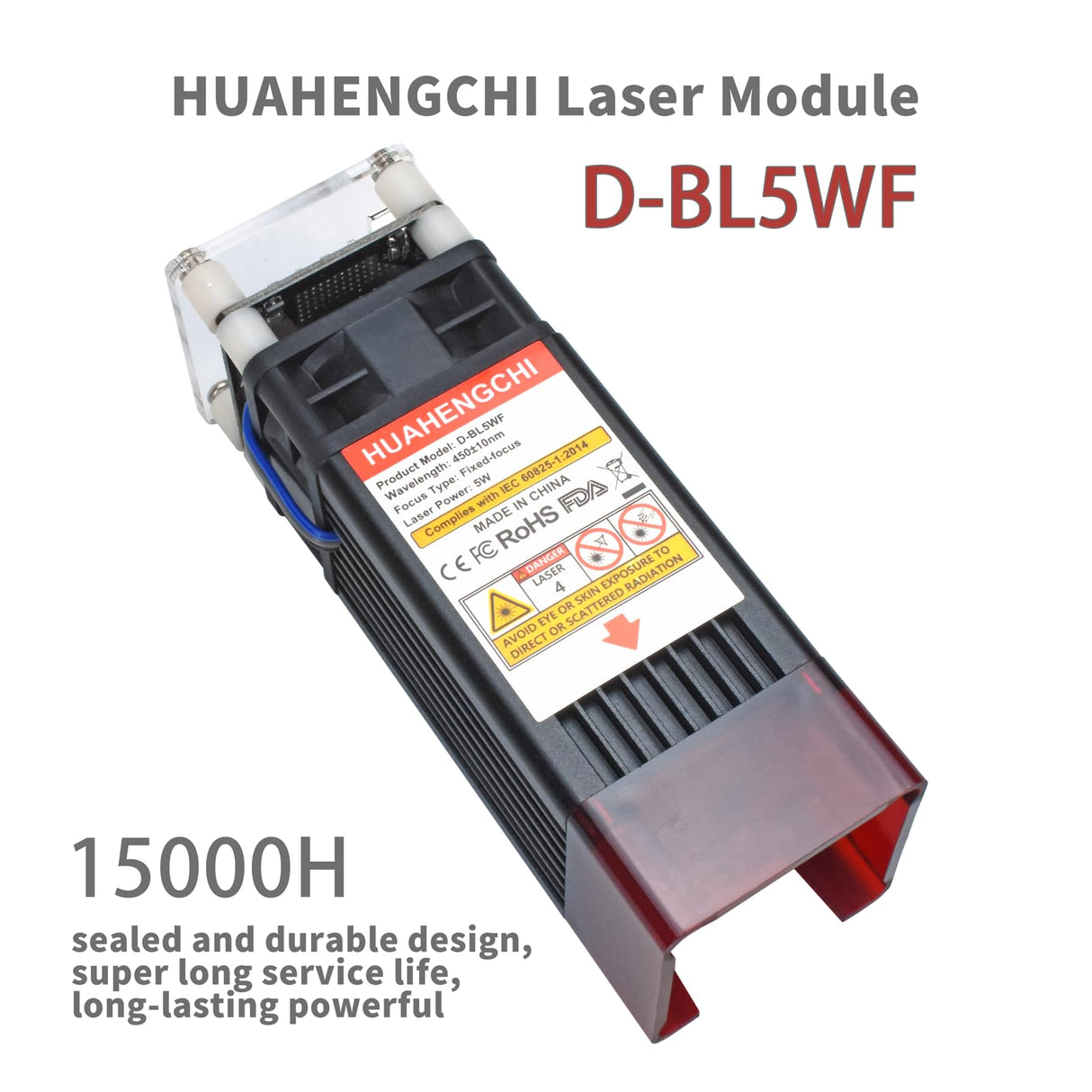

HUAHENGCHI 5000mW(5W) Laser Engraver Module w/Wind Gathering Hood, 450nm 23mm Fix Focus Laser Head for CNC Machines, DIY Laser Engraving Tool Suitable for Metal Wood Acrylic Paper, Class 4, 12V
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: HUAHENGCHI
Color: Black
Features:
- 【5000mW(5W) Diode Laser】- Optical Power Output 5~5.5W, Class 4 laser engraver module, 23mm short focal length, beam smaller, excellent in engraving. Engraving 304 stainless steel directly at a speed of 1800mm/min. Cutting 4~5mm thick basswood plywood by one pass at a speed of 120mm/min.
- 【Compressed Spot Technology】- The 450nm blue laser module with original diode adopts beam compresses spot technology to reduce the focal area and make it more accurate. The solution makes high engraving speed and high precision possible.

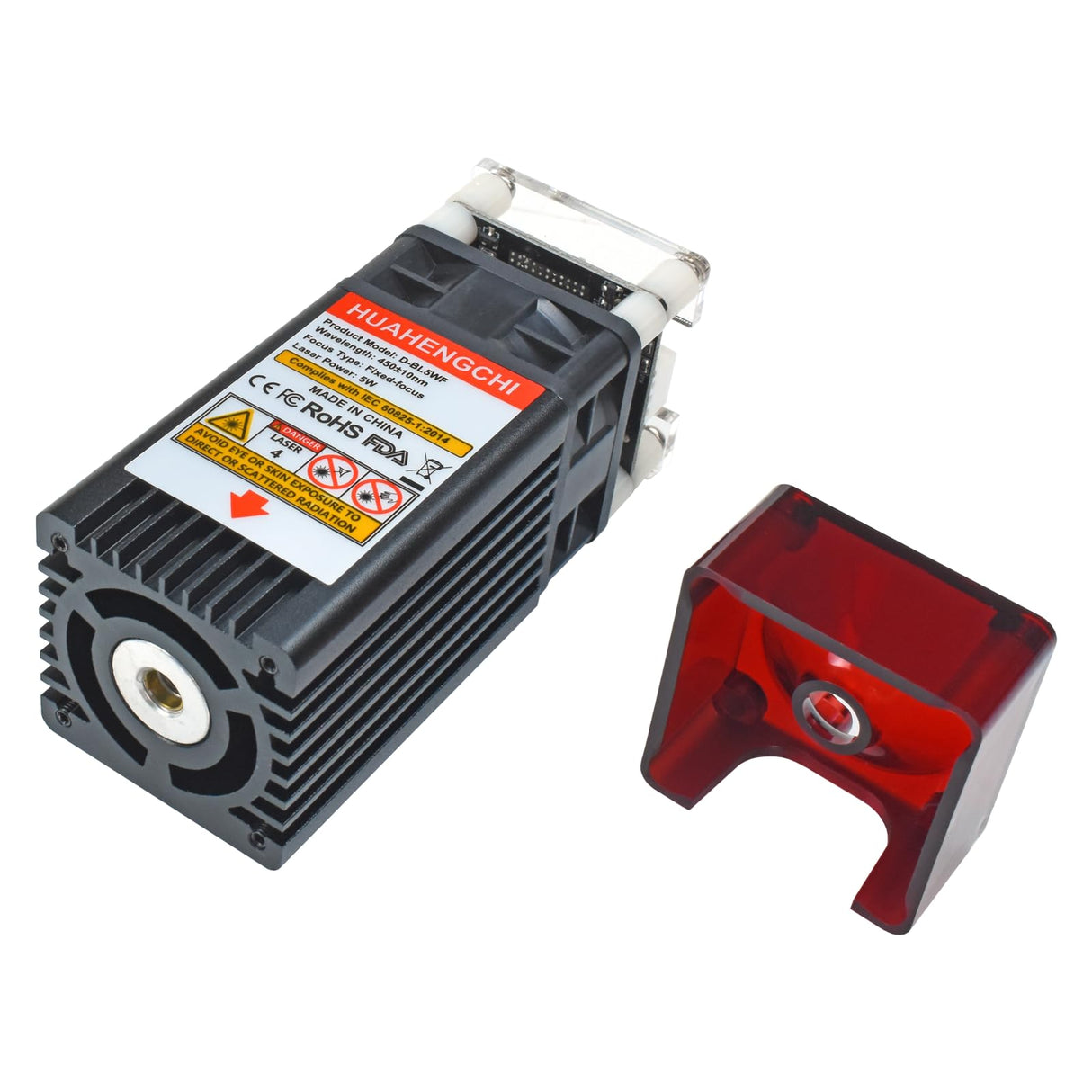

- 【Wind Gathering Hood Design】- Engraving on MDF/Plywood without a pump will produce dust and smoke, the red safety cover with wind gathering design can protect the lens from pollution and keep in long-time high engraving precision. Reducing the pollution to the lens can ensure the service life of the laser module.
- 【Eye Protection Design】- The 21mm high laser module shield can filter the irritation of high-intensity laser to the eyes, protect the eyes from laser damage, you can rest assured to appreciate the engraving process.
- 【Widely Compatibility and Application】- Designed for Laser Engraver, 3D printer, CNC Mill, DIY Engraving and Cutting, this laser engraving module is widely used on CNC3018 Pro, Max, Plus, it's compatible with most 2-axis, 3-axis, 4-axis CNC controller boards in market. Engravable Materials: MDF, Balsa, Paper, Wood, Fabric, Plastic, Leather, Plywood, Foam Paper, Anodized Aluminum, Stainless Steel; - Cuttable Materials: Cardboard, Non-woven Fabric, Plywood, MDF, Acrylic, some thin plastic board.
- 【24 Hours After Sale】- HUAHENGCHI is committed to providing customers with high-quality after-sales service, if you encounter any problems when using our products, please contact our after-sales service team at any time. Our professional technicians will provide you with solutions and help in time.

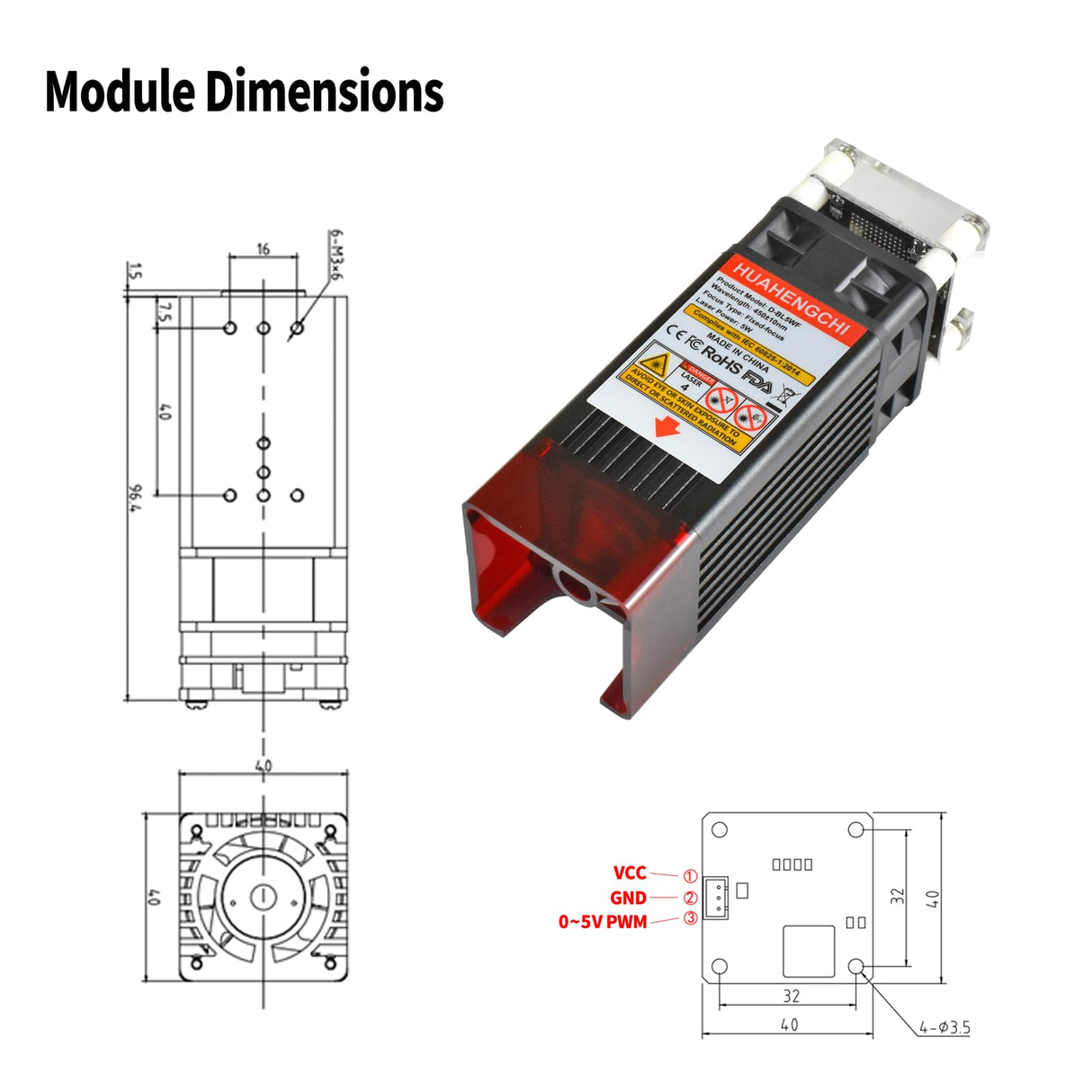

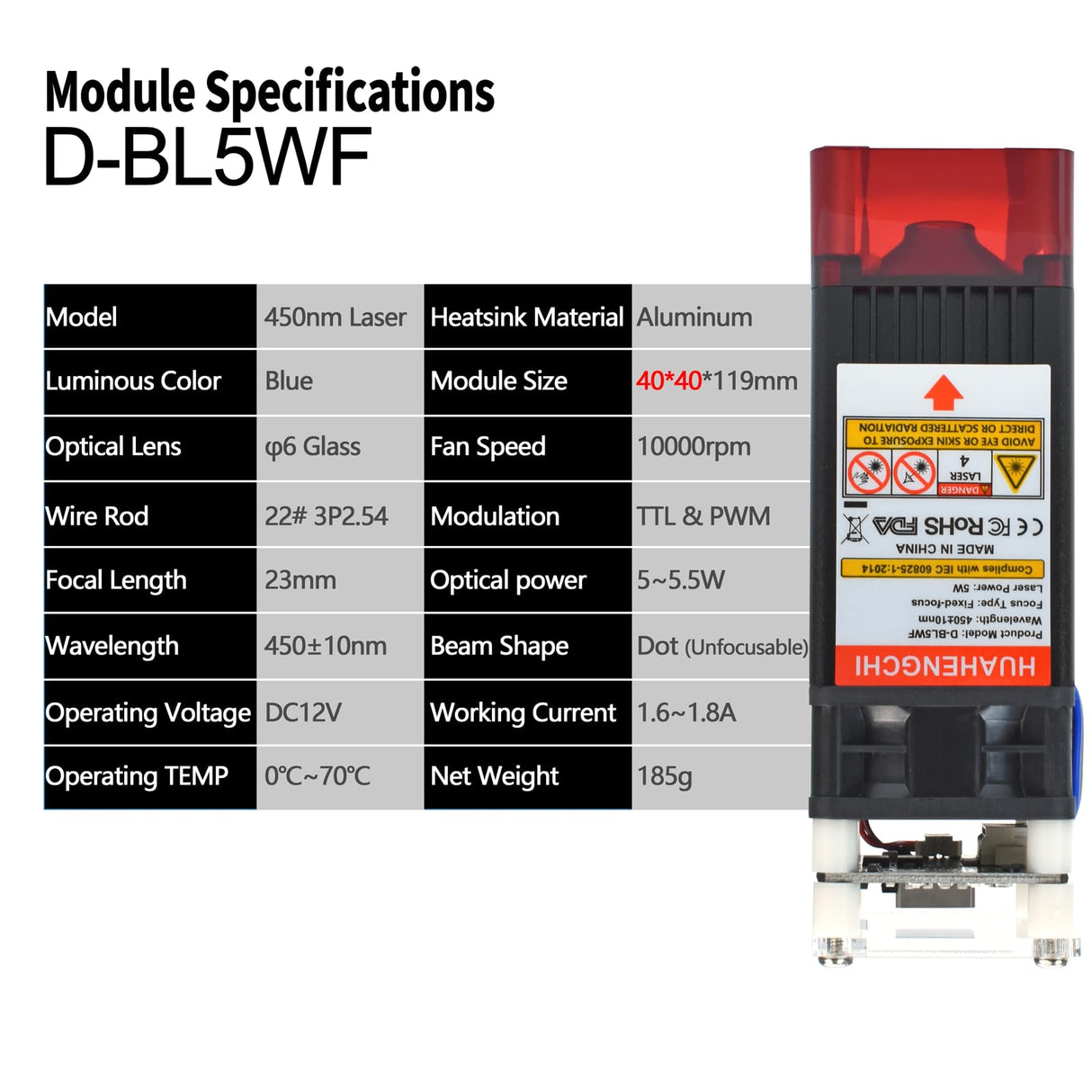

Details: HUAHENGCHI 5000mW(5W) Laser Engraver Module w/Wind Gathering Hood, 450nm 23mm Fix Focus Laser Head for CNC Machines, DIY Laser Engraving Tool Suitable for Metal Wood Acrylic Paper, Class 4, 12V General Specifications: Model：D-BL5WF Heatsink Material：Aircraft Aluminum + PCTG Luminous Color：Blue Housing Size：40mm x 40mm x 119mm Cooling Mode：12V 10000 rpm 40mm cooling fan Optical Lens：φ6 Glass Lens TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation Product Net Weight: 185g Technical Parameters： Electric Power：21.6W Optical power output：5000mW(5~5.5W) Effect power output: 40W Laser Wavelength：450±10nm Beam Shape：Dot ( Not Focusable ) Operating Voltage：DC 12V Working Current：1.6~1.8A PWM/TTL Input：DC5V Input Interface：PH2.54-3Pin (+,-, PWM/TTL) Note: Please wear appropriate safety goggles when using the laser module to prevent laser light, even any reflections from entering to eyes. Regular cleaning and maintenance of the lenses will maintain good cutting results and achieve a longer service life.
Binding: Office Product
Part Number: D-BL5WF
model number: D-BL5WF
