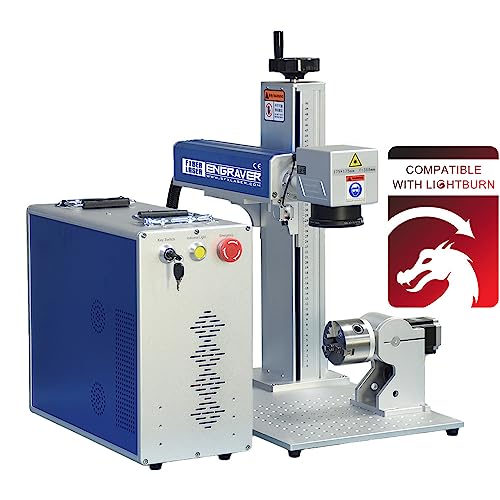

US Stock 60W JPT M7 MOPA (YDFLP-60-M7-M-R) Fiber Laser Marking Machine Fiber Laser Engraver Laser Marker 175×175mm with 80mm Rotary Axis Compatible
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: SFX
Features:
- Laser Power: 60W+Marking Field(Lens): 175*175mm+Engraving Depth:≤1.0mm+80mm Rotary Axis+EZCAD2.0(Compatible with Lightburn)

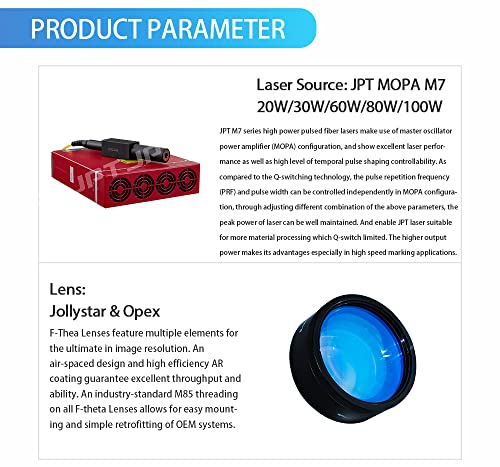

- Laser Source: MOPA JPT M7(YDFLP-60-M7-M-R); Maximum Pulse Energy: 2.0mJ; Repetition Rate Frequency : 1-4000kHZ; Pulse Duration: 2-500ns
- Application Advantage: Metal surface processing, peeling coating; Aluminum black marking; Semi-conductor&electronics industry applications; Large area engraving; Excellent marking effect on plastic or other sensitive material; Black and color marking on stainless steel.
- High-Rate of Electrical-Optical Conversion: up to 70%; Imported laser scanning system makes the marking speed up to 7m/s. Re-position precision is 0.002mm

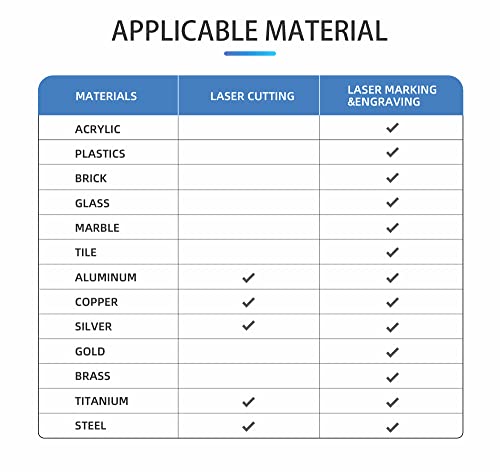

- Applicable Material: Carbon Steel, Aluminum, Stainless Steel, Brass, Copper,Gold, Silver, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
Binding: Office Product
Part Number: BY-50GS-175-MOPA

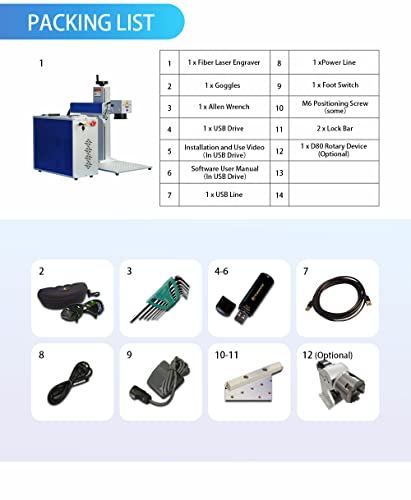

Details: Packaging Details:
60W JPT MOPA M7 Laser Engraver+175*175mm Lens+80mm Rotary Axis

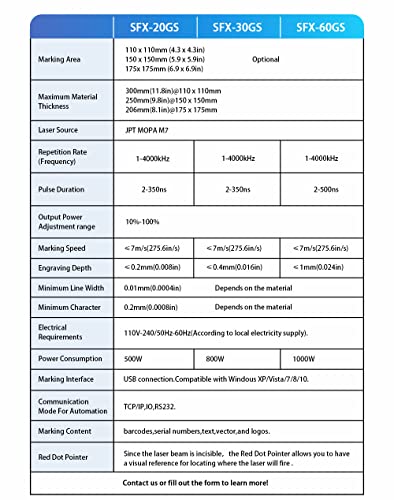

Technical Parameters:
Laser Power: 60W Marking Area: 175*175mm Max. Material Thinkness: 206mm Laster Source: JPT MOPA M7 (YDFLP-60-M7-M-R) Maximum Pulse Energy: 2.0mJ Repetition Rate Frequency : 1-4000kHZ@JPT Pulse Duration: 2-500ns Output power adjustment range 10%-100% Marking Speed: 7m/s Engraving Depth:≤1.0mm Min. Line Width: ≤0.01mm（Depends on the material) Min. Character: 0.2mm（Depends on the material) Input Voltage: 110V-240V/50-60Hz Complete Power Consumption: 1000W Communication Mode for Automation TCP/IP, IO,RS232
Application Advantages:
Metal surface processing, peeling coating; Aluminum black marking; Semi-conductor&electronics industry applications; Large area engraving; Excellent marking effect on plastic or other sensitive material; Black and color marking on stainless steel.
EAN: 0782902352172
Package Dimensions: 30.7 x 28.3 x 19.0 inches
