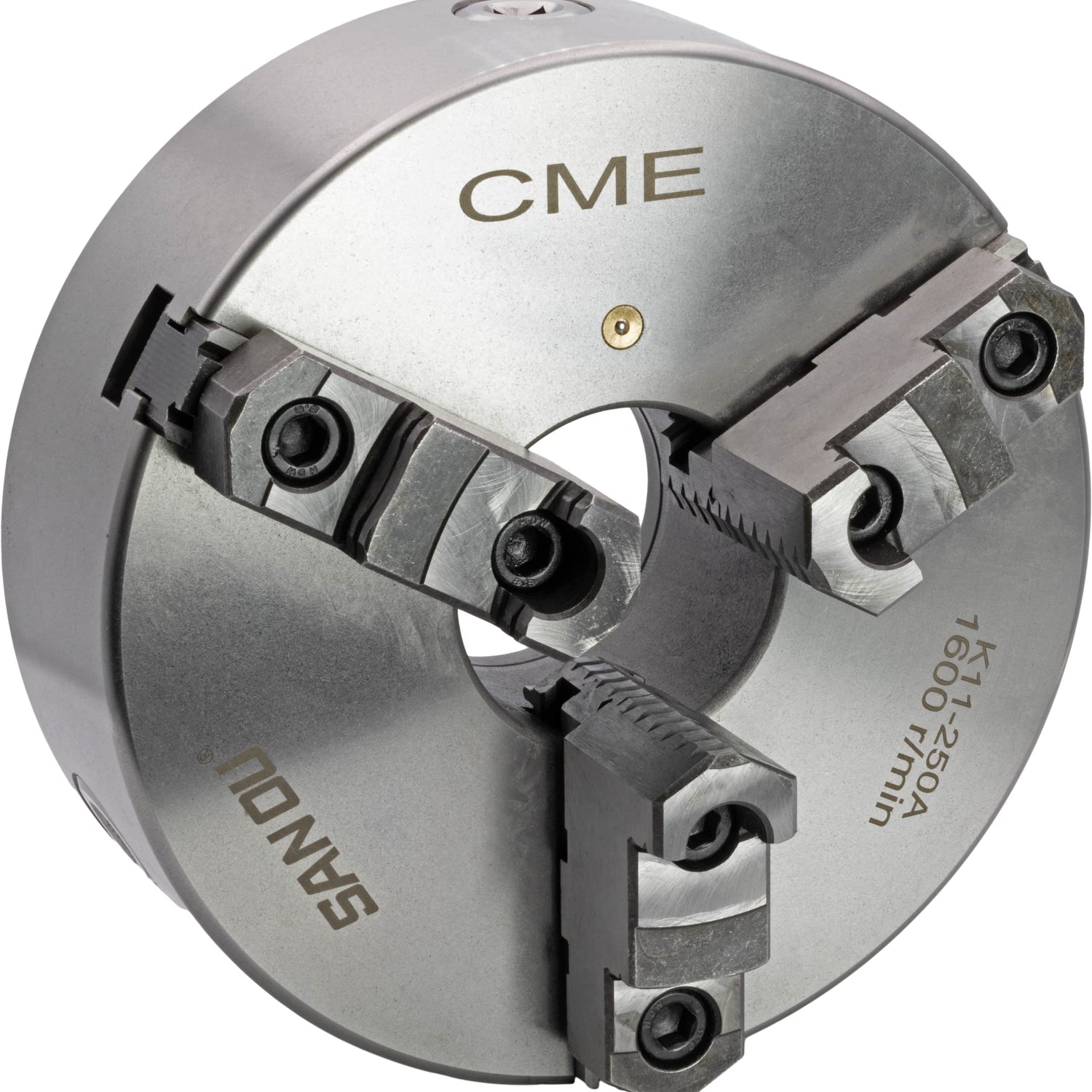

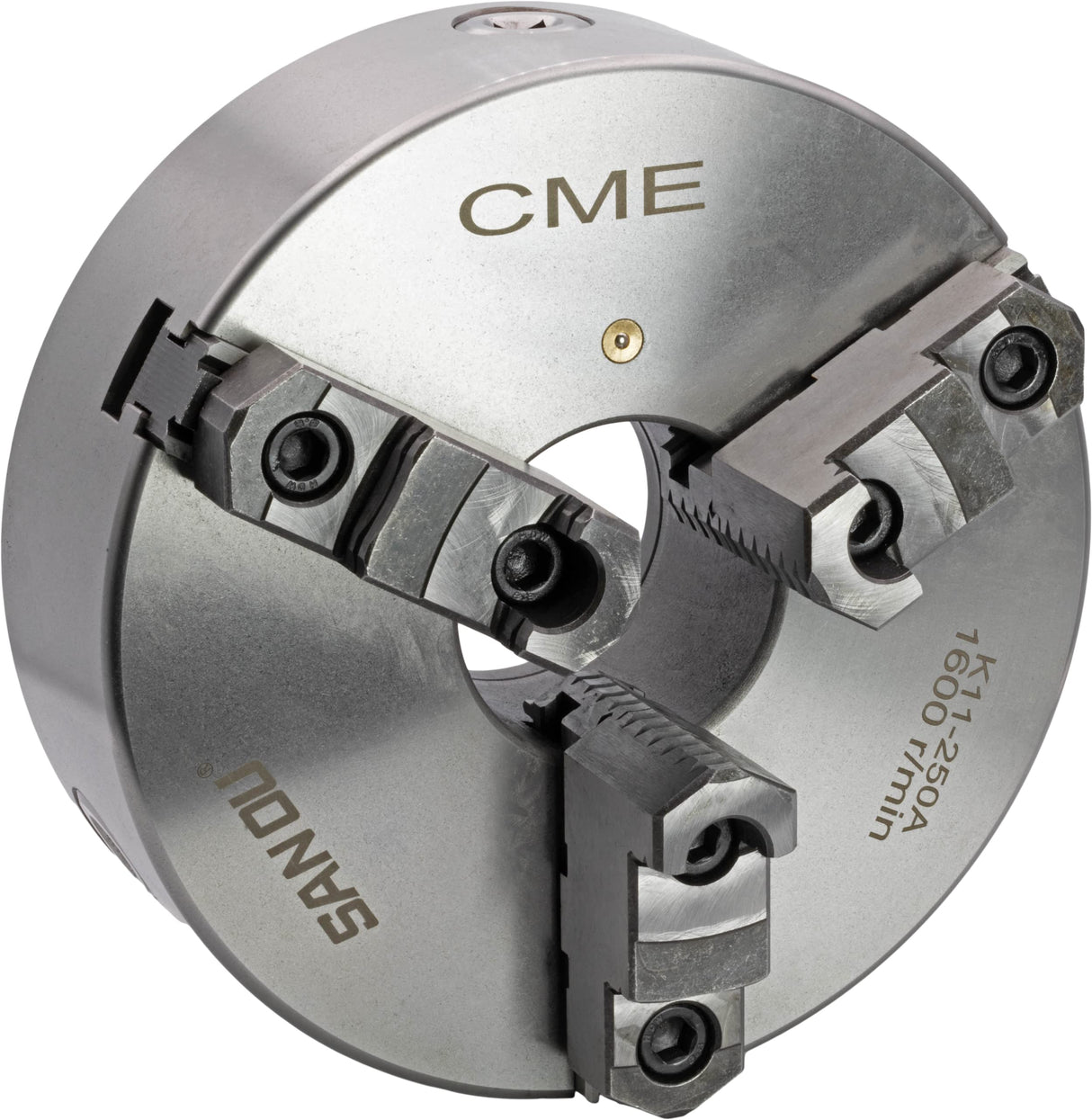

CME 10" 3-Jaw Self-Centering (Scroll) Lathe Chuck, Plain (Flat) Back, Two-Piece Reversible Jaws
Regular price
$275.54
Unit price
/
Unavailable
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: CME Tools
Features:
- Two-Piece Reversible Jaws; Jaws are composed of top and bottom pieces; American Standard Tongue and Groove Style; ISO3442
- Highly durable; Steel inner mechanisms are quench hardened to increase toughness

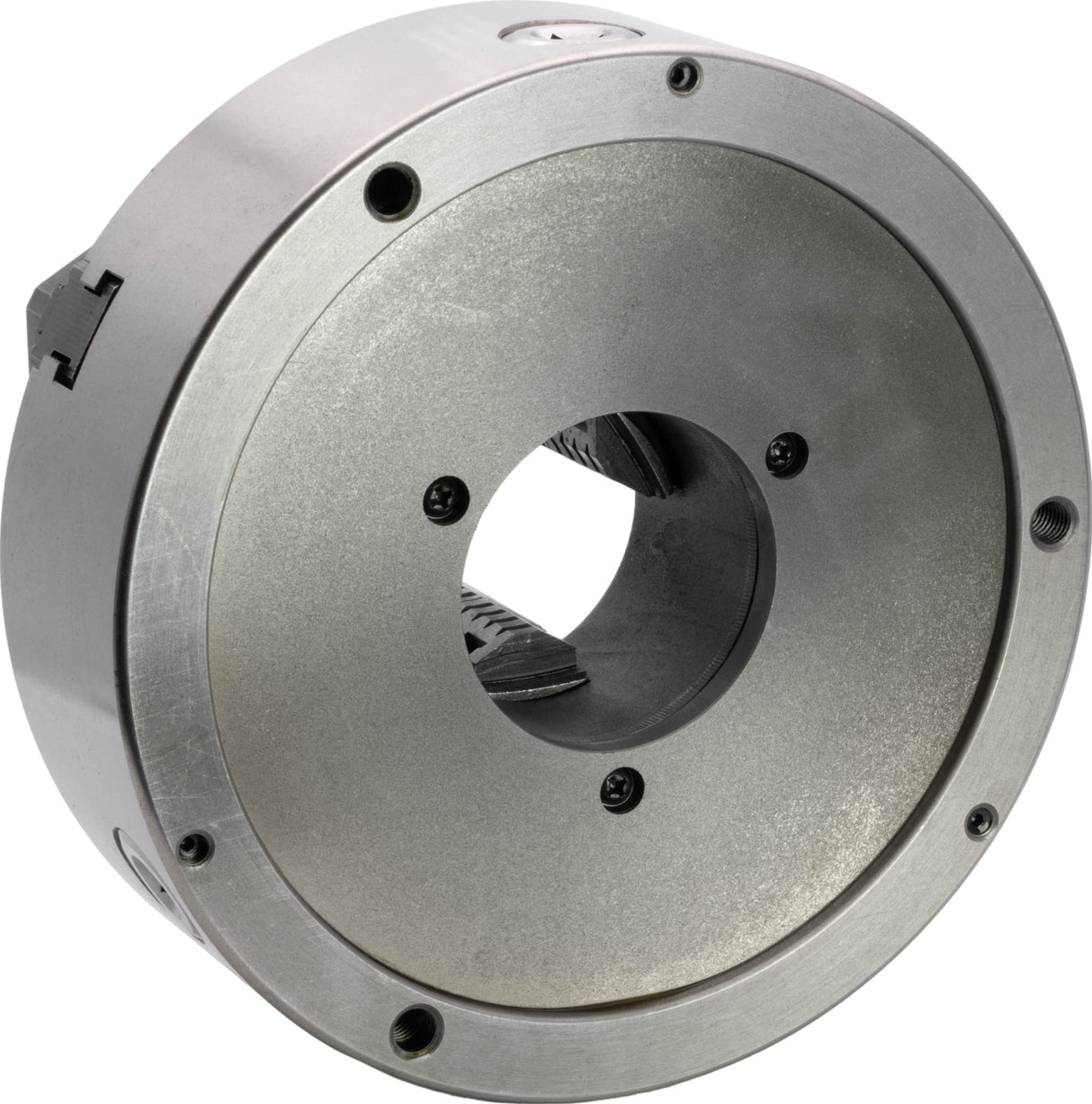

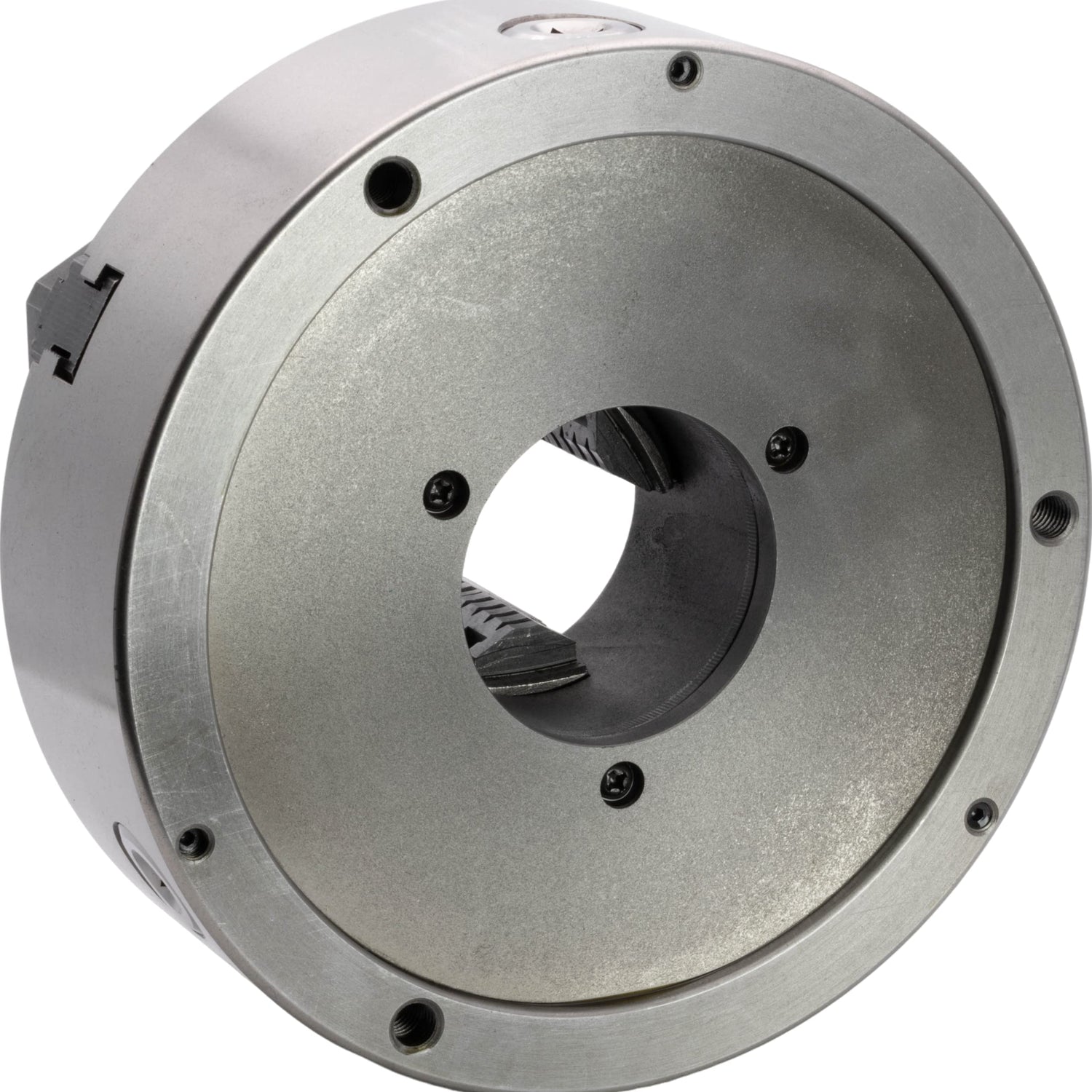

- Plain back; Requires a fitted backing plate to mount to your lathe's spindle; CME fully machined backing plates are available

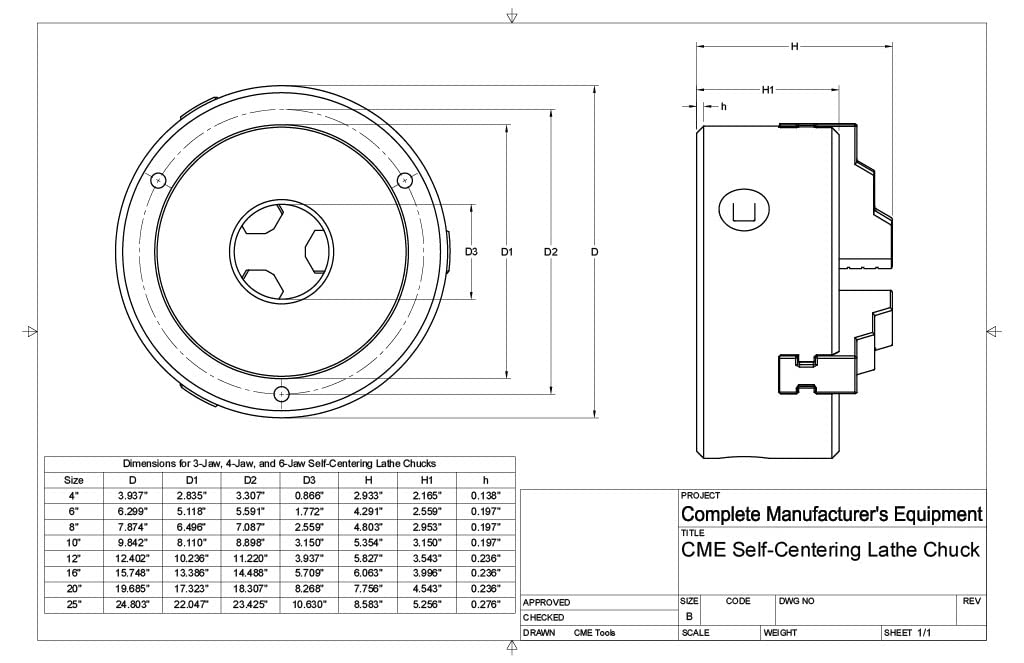

- 9 13/16" Body Diameter; 3 1/8" Through-Hole Diameter; 0.2362"-4.3307" Clamping Range; 3.5433"-9.8425" External Clamping Range
- 8.1102" Registration Diameter; 0.1969" Registration Depth; Rear mounting holes are positioned on a 8.8976" diameter circle
Part Number: 1003F0
model number: 10" 3-Jaw
