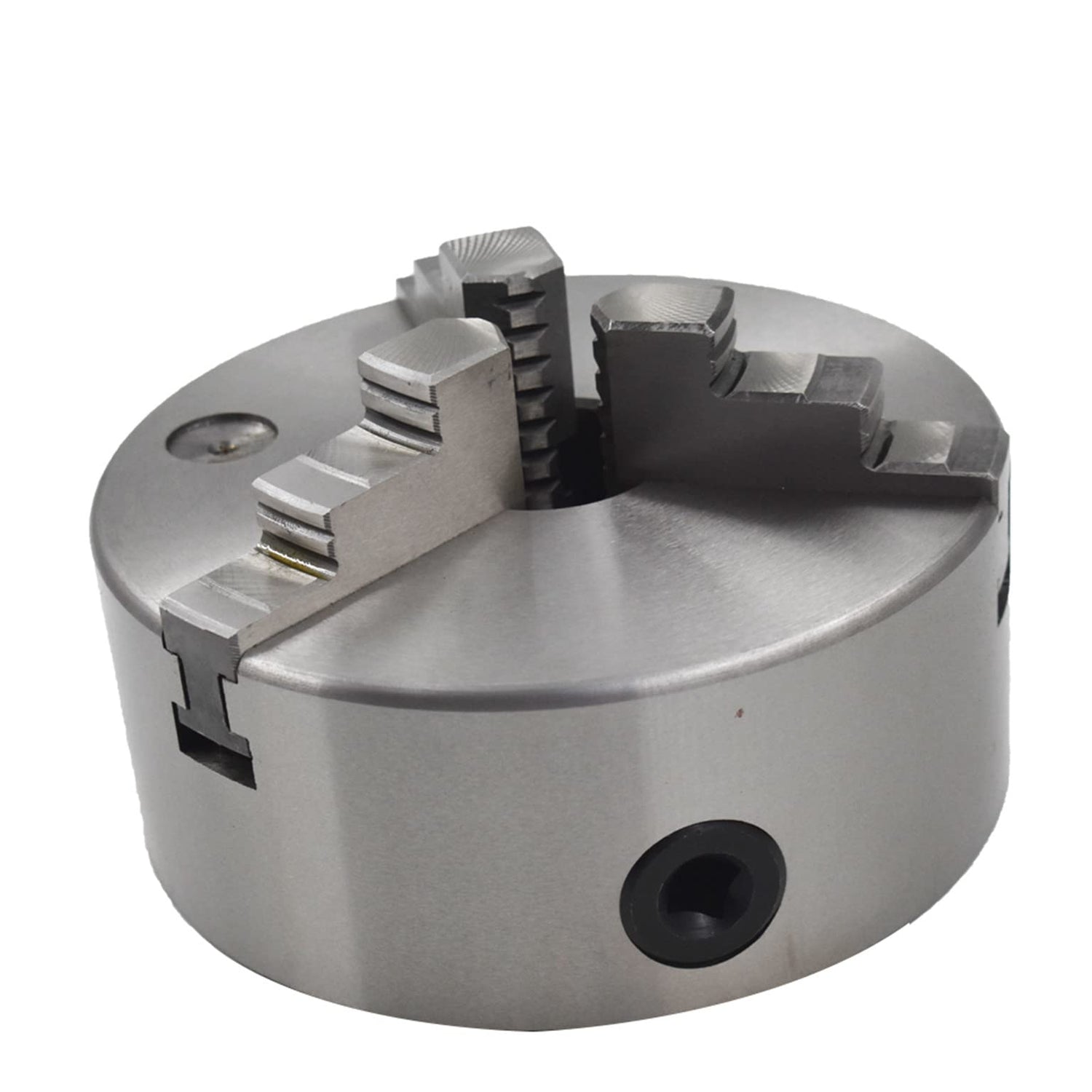

mitoharet 3 Jaw Self Centering Lathe Chuck K11-160 6Inch Lathe Chuck with Reversible Jaw Scroll for CNC Drilling Milling Machine Wood Turning
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: mitoharet
Features:
- The chuck seat is made of high-quality materials, which is strong and durable in use; the fragile parts are specially designed by quenching, which has higher durability and longer service life
- This power lathe chuck is suitable for clamping various parts such as hanging shafts, disks, equilateral triangles, etc
- The 3 jaw lathe chuck has an automatic centering function, so it does not need to be repeatedly calibrated during installation
- Both side of jaw teeth and guides are ground and hardened to HRC 58-62
- The clamping range of the inner jaw is 3-55mm; the clamping range of the outer jaw is 55-145mm
Details: K11-160 6Inch Lathe Chuck
Specification:
Model: K11-160
Material: Iron (chuck body), steel (jaws)
Chuck Type: 3-jaw chuck
Outside Diameter: 160 mm (6")
Center Thru Hole Diameter: 30 mm (1.18")
Internal Jaw Clamping Range (A-A1): 0.12" / 3 mm - 2.17" / 55 mm
Internal Jaw Jamming Range (B-B1): 1.97" / 50 mm - 6.3" / 160 mm
External Jaw Clamping Range (C-C1): 2.17" / 55 mm - 5.7" / 145 mm
Mounting Thread: 3-M8
Features:
- Because the pitch of the flat rectangular thread is equal, the three claws have the same movement distance, which has the function of automatic centering.
- This chuck is equipped with a set of reversible jaws, the external jaw clamping range is larger than the internal jaw, which is suitable for clamping a variety of industrial parts.
- This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.
- The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.

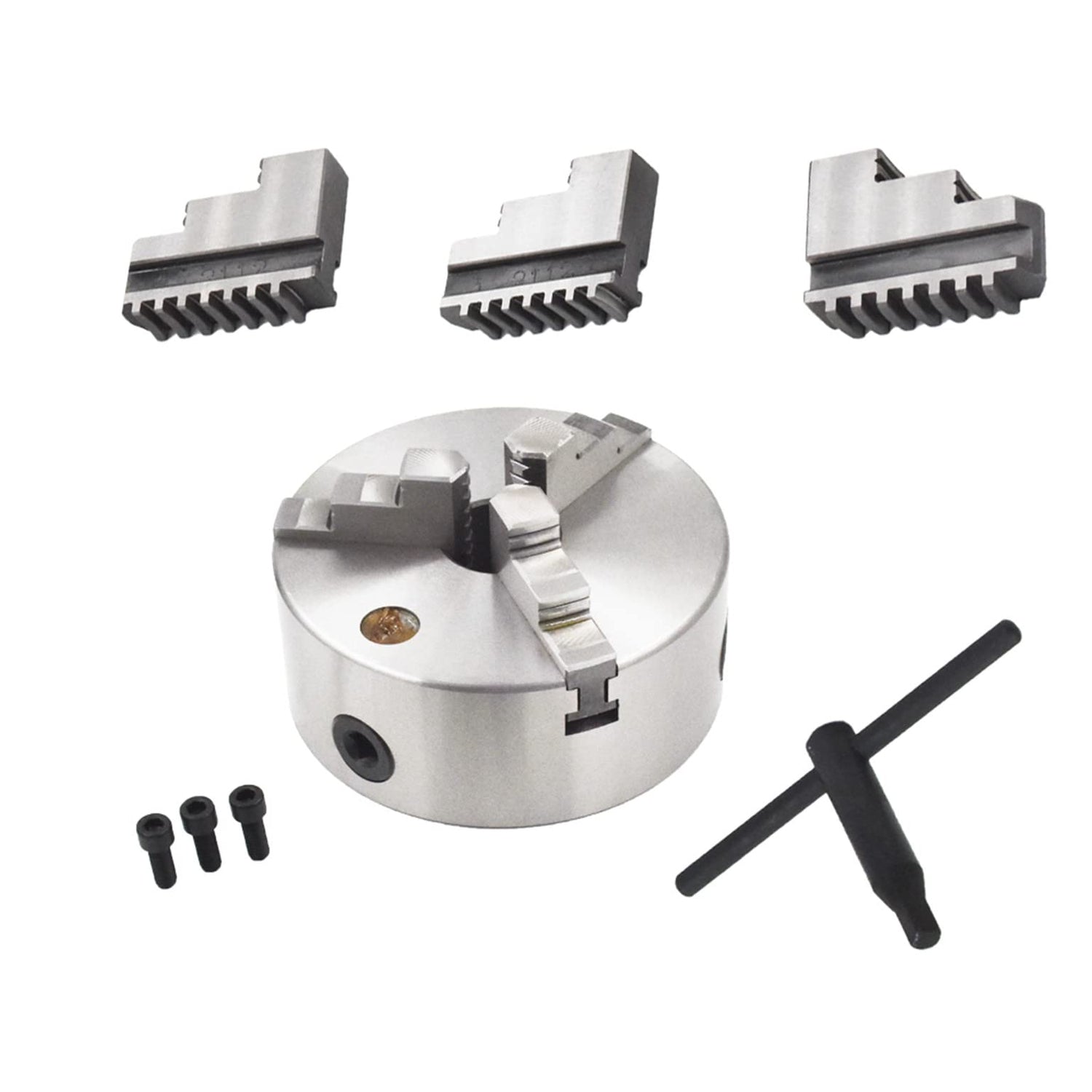

Package Included:
1 x Chuck Set
EAN: 6903036752735
