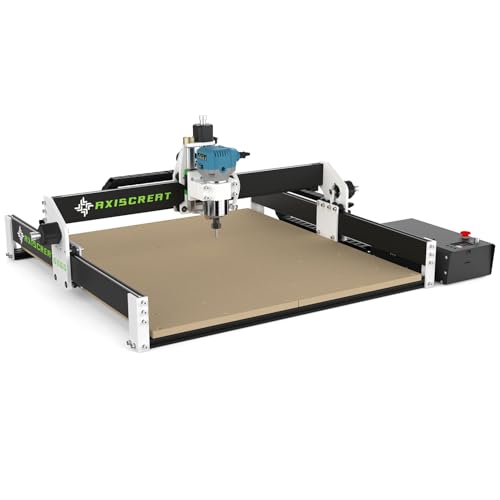

Axiscreat CNC Router Machine 6060, 710W Power Trimmer Router, Linear Rails and Belt Driven, 3-Axis Cnc Engraving Milling Machine for Wood Acrylic Aluminum, Working Area 23.6" x 23.6" x 3.74"
7% off
7% off
Sale price
$699.99
Regular price
$749.99
Unit price
/
Unavailable
{# bubble up to the parent hub #}
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Axiscreat
Features:

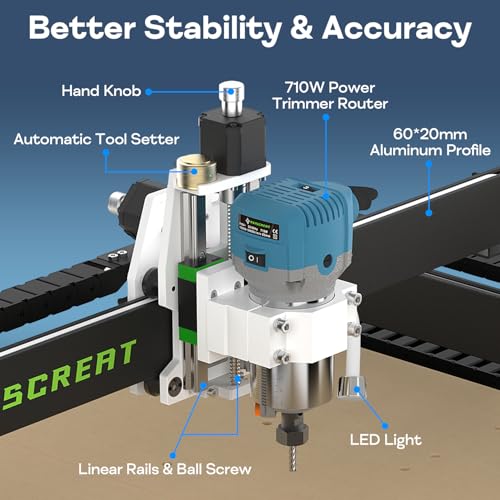

- Linear Rails & Belt Drive: Our Axiscreat engraving machine uses a belt drive for the X/Y axes and a linear guide for the Z-axis. The maximum speeds are 3500mm/min for the X/Y axes and 500mm/min for the Z-axis. Equipped with an automatic tool-setting probe and light recognition contact signal, it allows operation without powering the spindle, meeting high-speed and precision requirements

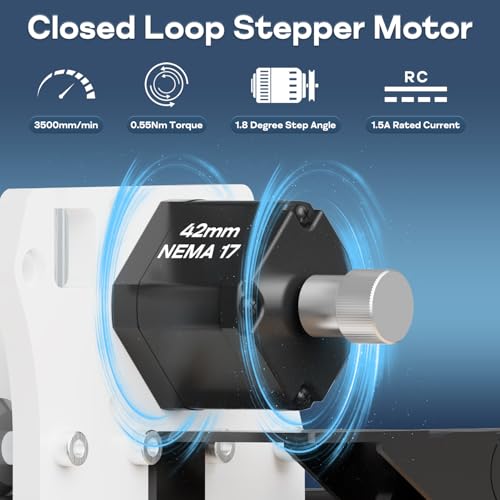

- Performance: It features a 710W trimmer router and a 42mm NEMA 17 stepper motor, suitable for engraving various materials. The speed range is from 10000 to 34000 RPM, adjustable via the offline controller

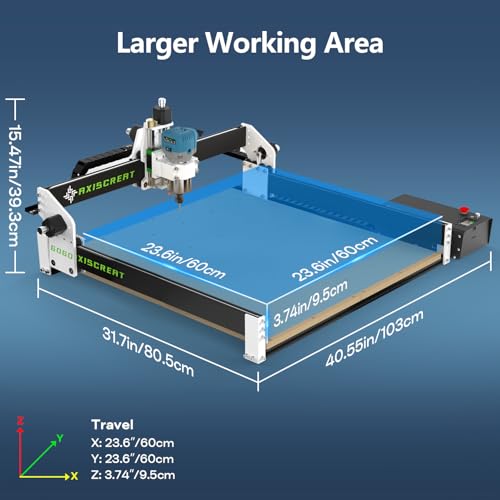

- Working Area and Structure: The working area measures 23.6 x 23.6 x 3.74 inches (60 x 60 x 9.5 cm) and is suitable for cutting, engraving, and drilling on materials such as wood, MDF, acrylic, aluminum, leather, and metals. The machine weighs 23 kg and has a robust structure to minimize vibrations. The X/Y axes use eccentric nuts for stable adjustments
- Control and Expansion Functions: Based on open-source Grbl v1.1, it features a replaceable 32-bit chip driver. Supports various expansion functions, including ER11 collet (clamping range of 1-6mm), NEMA 23 motors, MPG, and laser output. When replacing the stepper motor, the drive chip must be replaced simultaneously

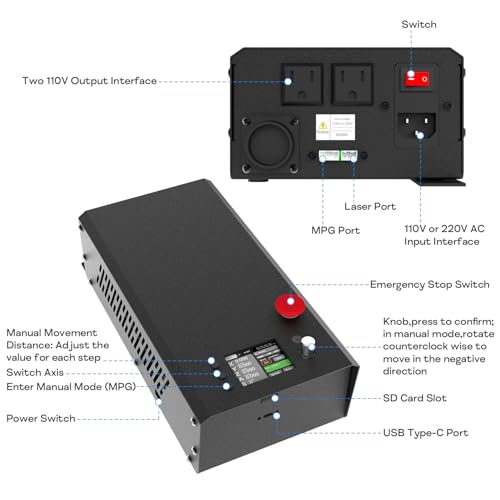

- Diversified Control Methods: Standard equipment includes an offline controller and power box with two 110V sockets controllable via the offline controller to manage the power on/off for the trim router and vacuum. Operable via the offline controller, PC application, or manually. The offline controller has a 2.5-inch display, making it user-friendly. A USB cable is required to connect to a computer application
Part Number: AT-CNC-6060-2
model number: 6060
