TECHTONGDA Hinge Boring Machine Woodworking Hole Drill Wood Electric Pneumatic Hole Puncher 0-2inch Drilling Depth Double Heads 48-6
Regular price
$3,239.00
Unit price
/
Unavailable
{# bubble up to the parent hub #}
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: TECHTONGDA
Color: Onecolor
Features:

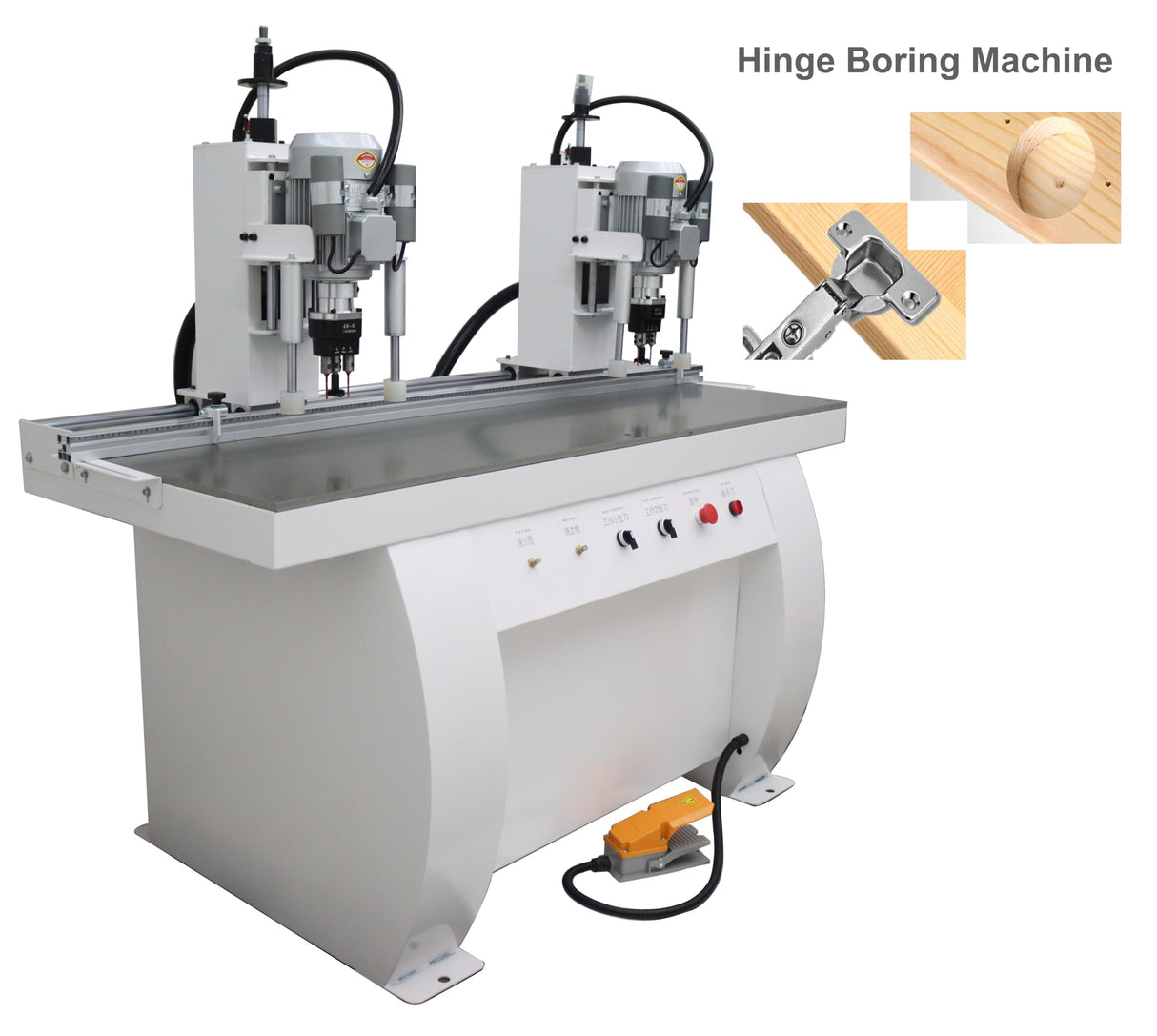

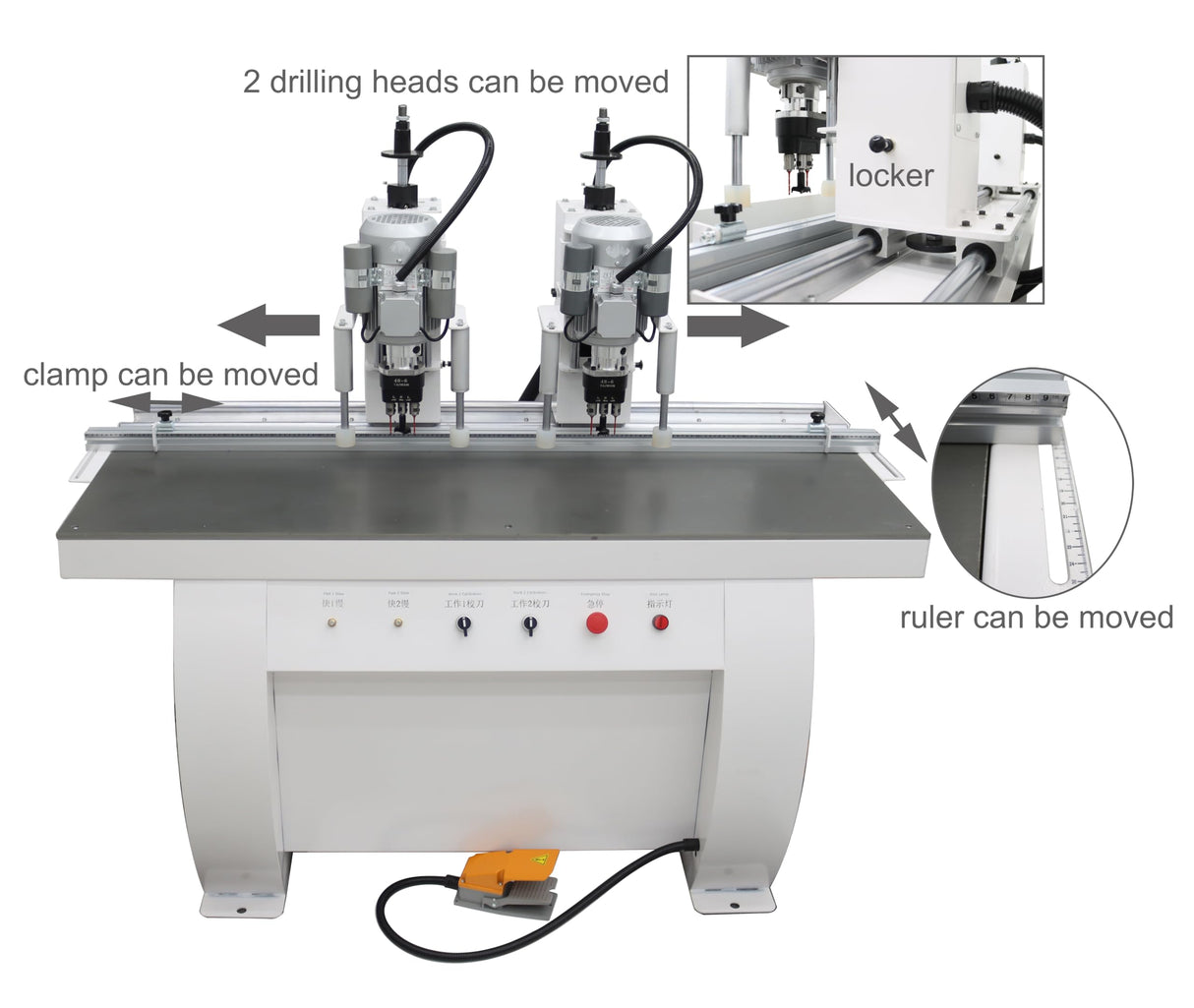

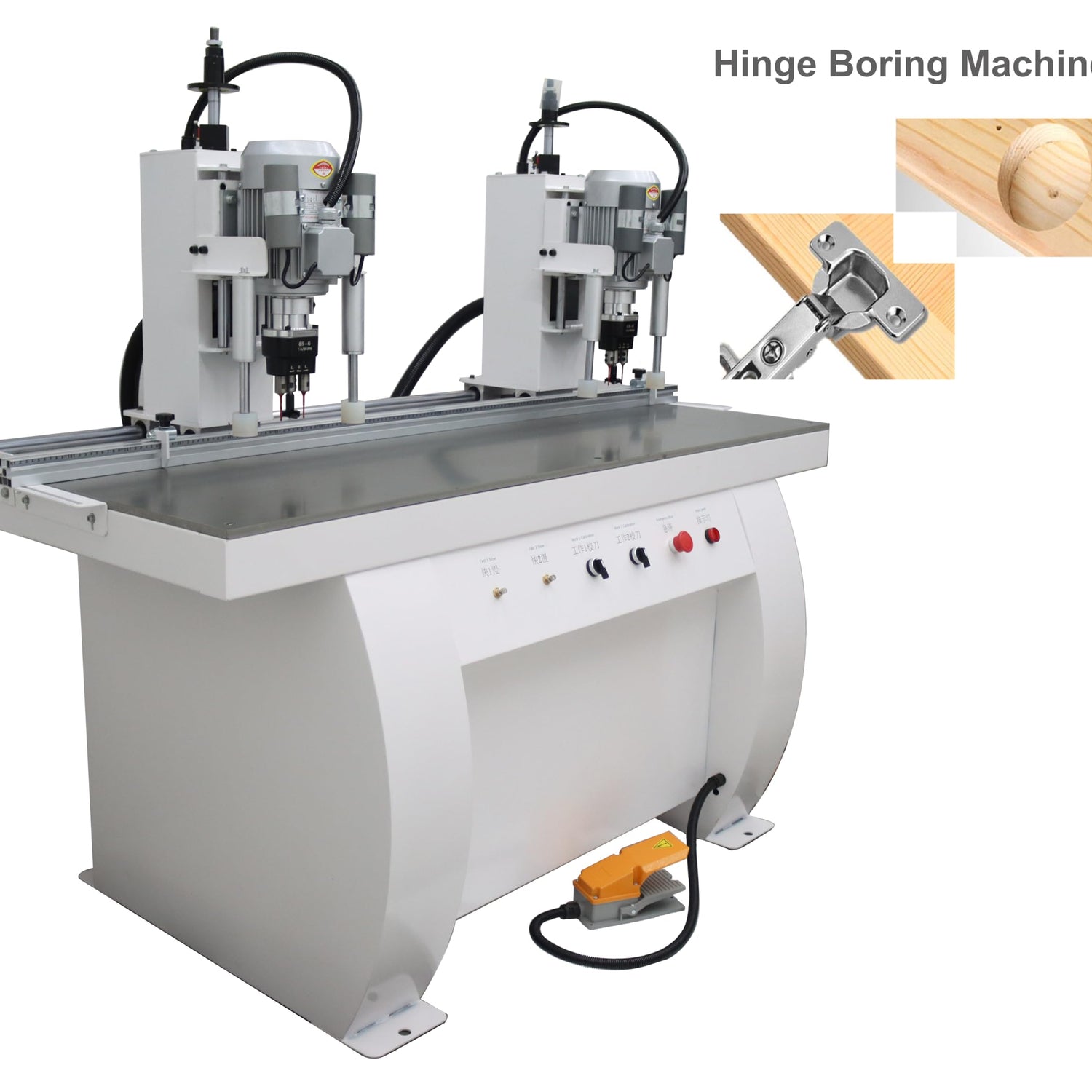

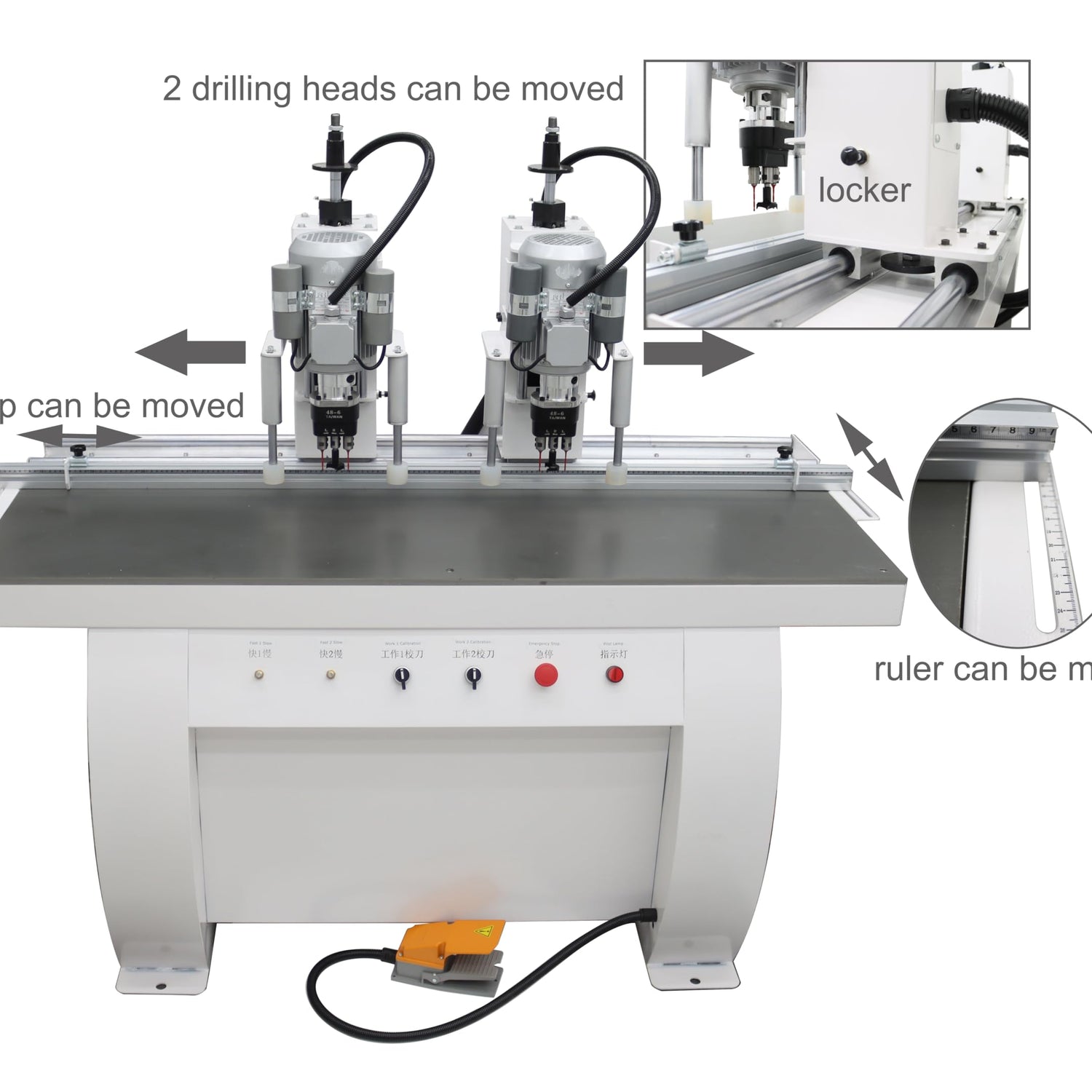

- 【Double Heads】This is a Hinge Boring Machine with 2 drilling heads. Each head can slide horizontally and each head has a lock for fixing. Three holes in the vertical position can be processed at one time, including one big hole for hinge head hole and two for assembly screw hole. The hinged drilling machine is mainly used for cabinet, wardrobe, door processing and manufacturing.

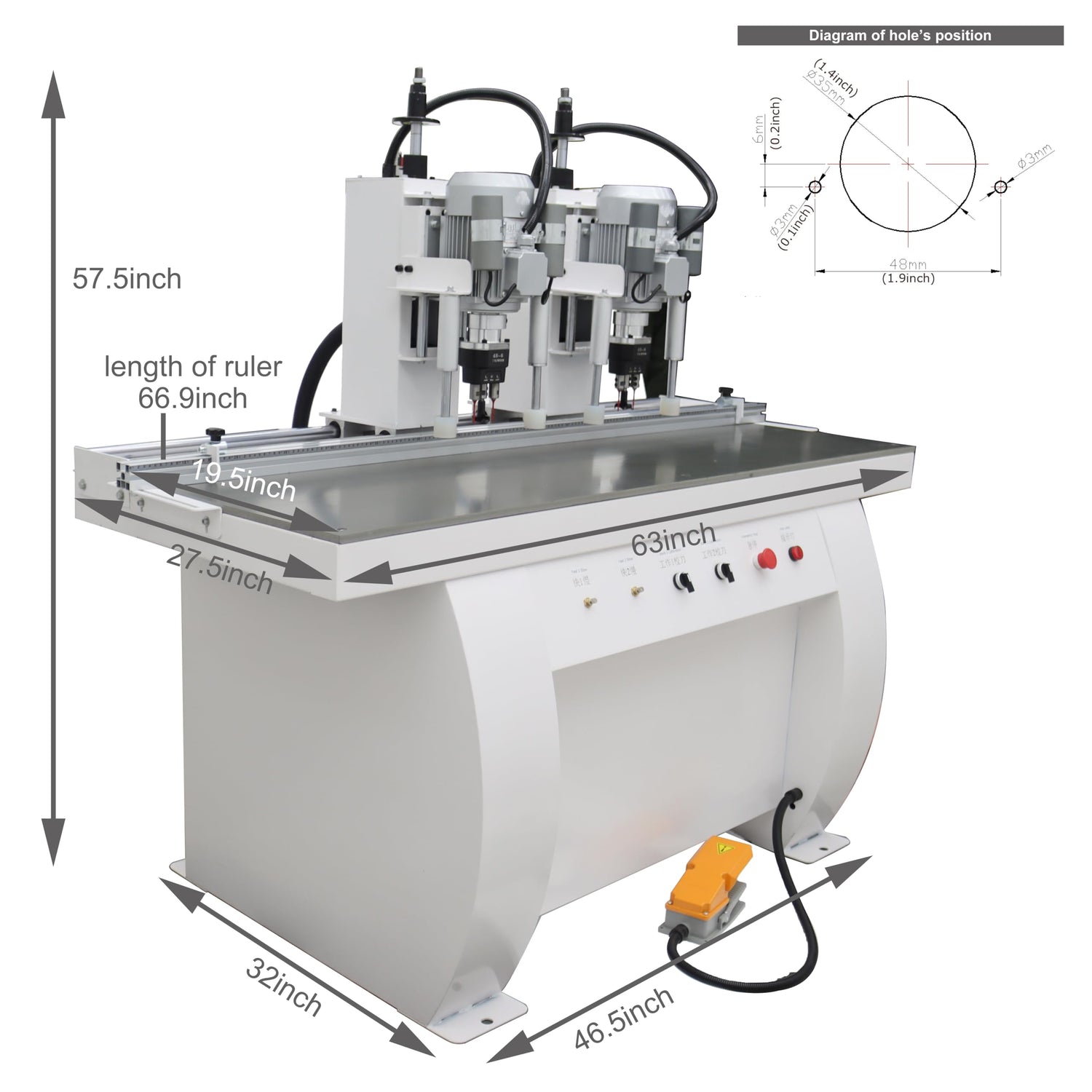

- 【Parameters】The distance between the centers of the two small holes is 1.9inch(48mm). The diameter of the big hole and small holes are 1.4inch(35mm) and 0.1inch(3mm). The depth of the hole is adjustable and the max. depth of hole is 2inch(50mm). The drilling sets can be replaced for holes of other sizes.

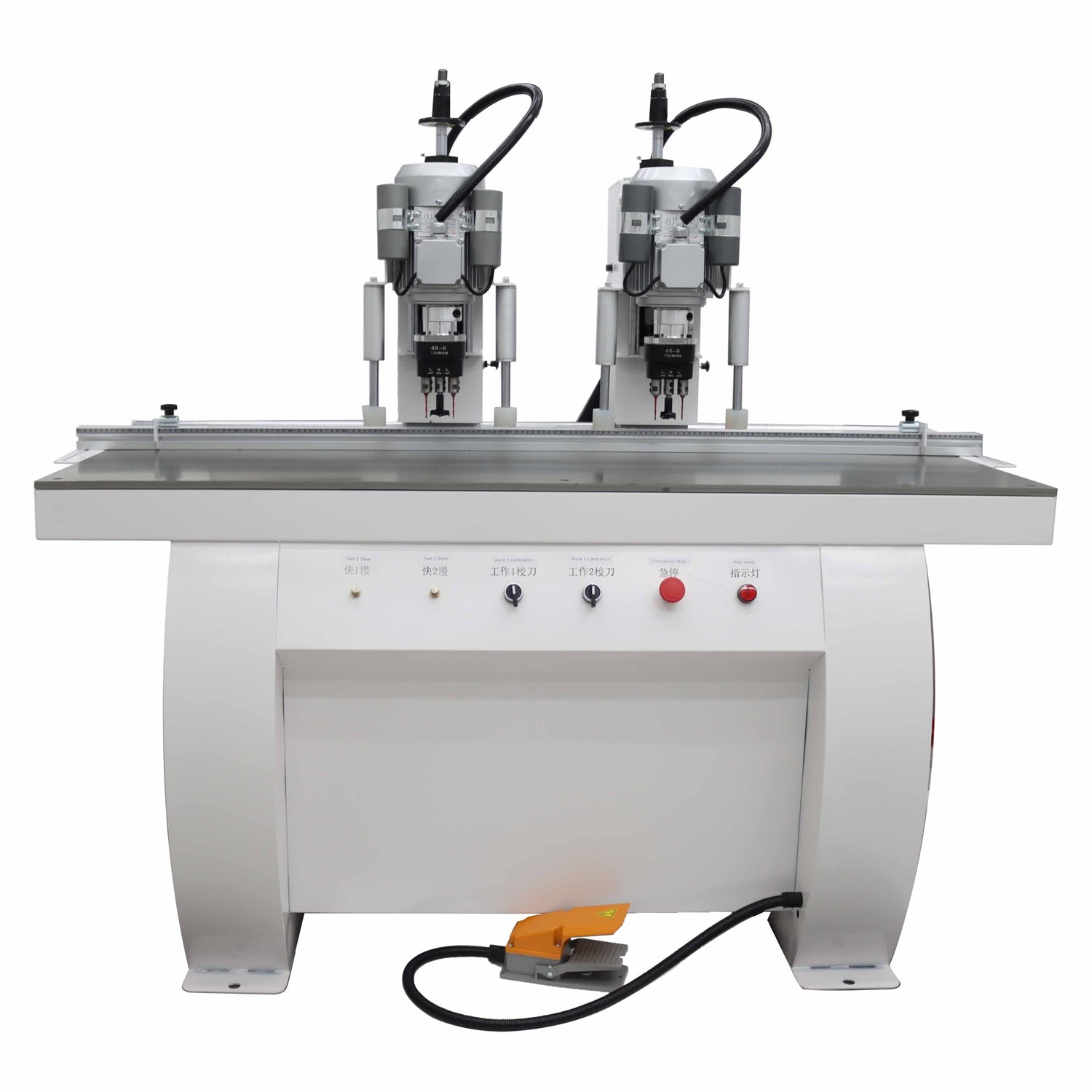

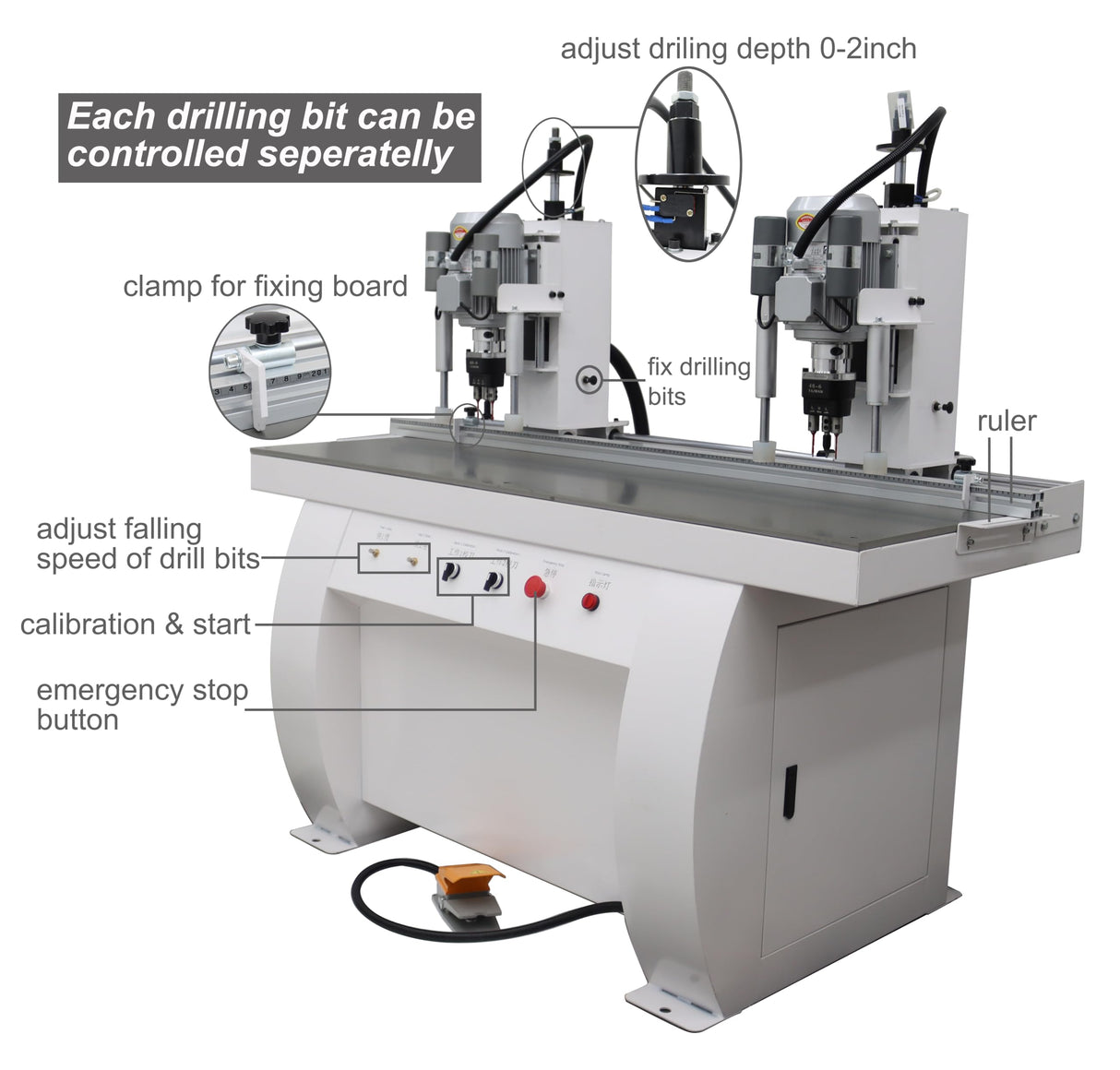

- 【Special Design】The woodworking hole drilling machine has double 1.5KW copper motors with rotating speed of 3400RPM, which will be powerful and durable. The puncher also should be connected to an air pump. Simple control panel for easy operation. The bit descent speed is divided into two gears. With emergency stop switch for safety.
- 【Precise and Stable】Ruler is equipped on the working table so that the drilling can be precise and convenient. There are also 2 clamps on the ruler for fixing the board when drilling for stability. The clamps can slide on the ruler and you just need to move the clamps and the boards will also be moved and you can dill holes at different positions. With 2 spring-loaded rubber feet to press the board firmly when drilling.

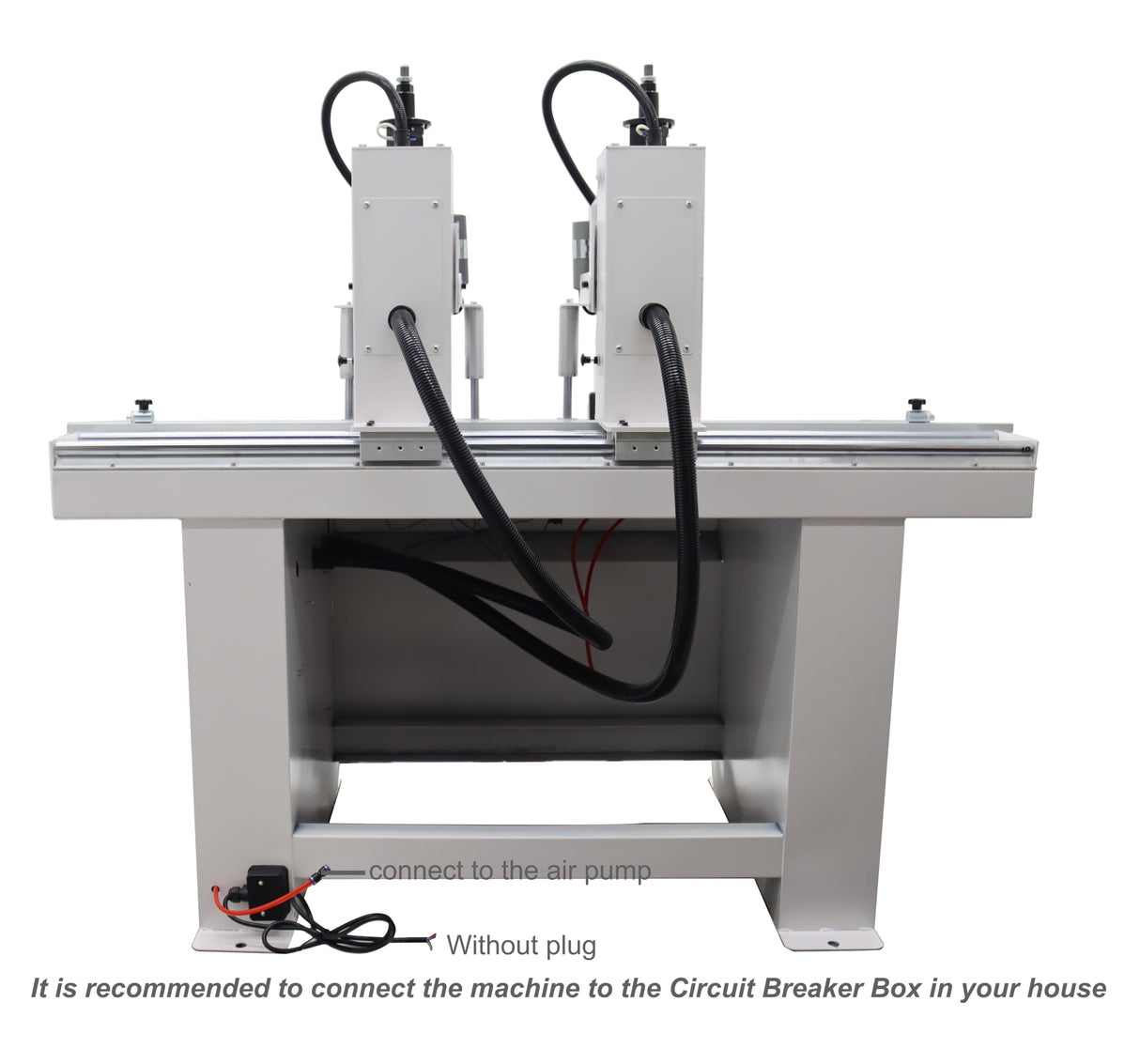

- 【Easy Operation】This machine need electric source and air source. A foot pedal is equipped for easy control. The thickened enlarged base make the machine stable in operation.
Details: Parameters
Voltage: 110V/60HZ
Motor’s Power: 1.5KW*2
Speed of main shaft: 3400R/min
Air pressure: 0.6-0.8Mpa
Combined drill model: 48-6
Drill bit: φ1.4inch(35mm) *1,φ0.1inch(3mm)*2
Maximum depth of hole: 0-2inch(50mm)
Length of ruler: 66.9inch(1700mm)
EAN: 0840403724963
Part Number: L027348
