12V Green Diode Lasers 532nm Laser Module Dot with TTL 0-30KHZ & Fan Cooling - Long Time Working
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Q-BAIHE
Color: Green
Features:
- Wavelength: 532nm, Output power: 95-120 mW
- Operating voltage: DC 12V, Operating Current: <500mA
- Modulation frequency: TTL 0-30 KHZ
- Reverse polarity protection: Yes, with automatic identification of positive and negative
- Laser Module Size:74 x 30 x 30mm , Circuit Board size:71.5 x 35 x 20mm
Binding: Tools & Home Improvement
model number: 532MD-100-12V-XL
Part Number: 532MD-100-12V-XL
Details: Features: .
Wavelength: 532nm
Output power: 95-120
Laser Shape: Dot
Cooling methods: Fan cooling
Modulation frequency: TTL 0-30K HZ
Working Method: continuous work
Color: Black
Material: Aluminum
Circuit control: constant control
Reverse polarity protection: Yes, with automatic identification of positive and negative
Operating voltage: DC = 12V
Operating Current: I <500mA
Warm up time: None
Operating temperature: -10 ℃ ~ +40 ℃
Storage Temperature: -10 ° C to +40 ° C
Structure: laser diode + lens + cooling Housing
Laser Module Size: 74x30x30mm
Circuit Board size: 71.5x35x20mm
Notes:

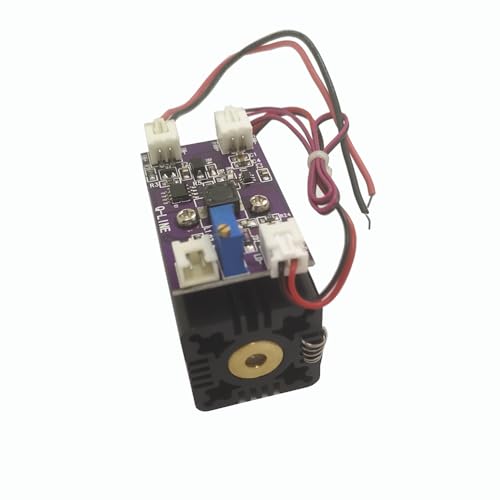

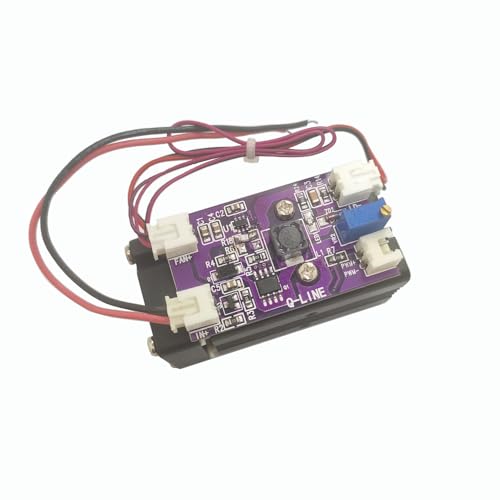

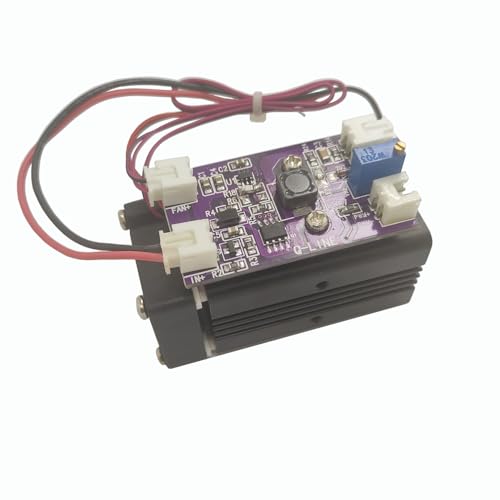

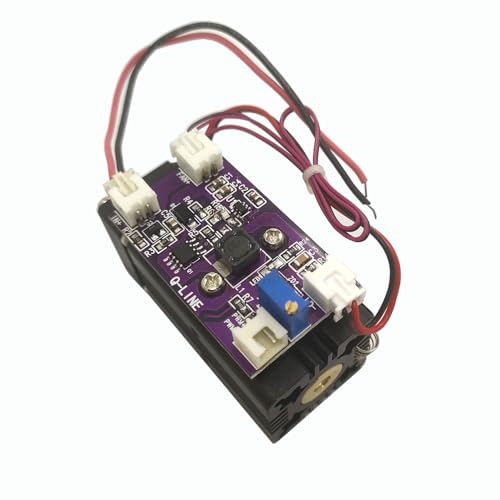

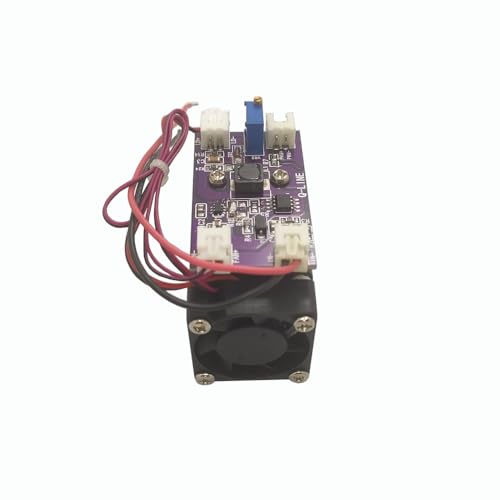

The 532nm Laser dot module is composed of 2 parts, Laser head (Laser diode+ housing +lens)and its driver circuit board. the laser head brings with fan cooling.
The input voltage is 12V, an over-specified voltage will lead to damage of circuits and modules, if you have any technical problems, please contact us, thank you!
This laser module can work for a long time!
Please aviode direct eye exposure to the laser beam, please wear 532nm protection glasses when working on this laser module!
Package:
1 x 12V 532nm Green Laser Dot Module Fan Cooling TTL 0-30KHZ-Long time working
EAN: 6240379161054
Package Dimensions: 5.7 x 3.4 x 1.6 inches
