Description
Description
Brand: Peachtree Woodworking Supply
Features:

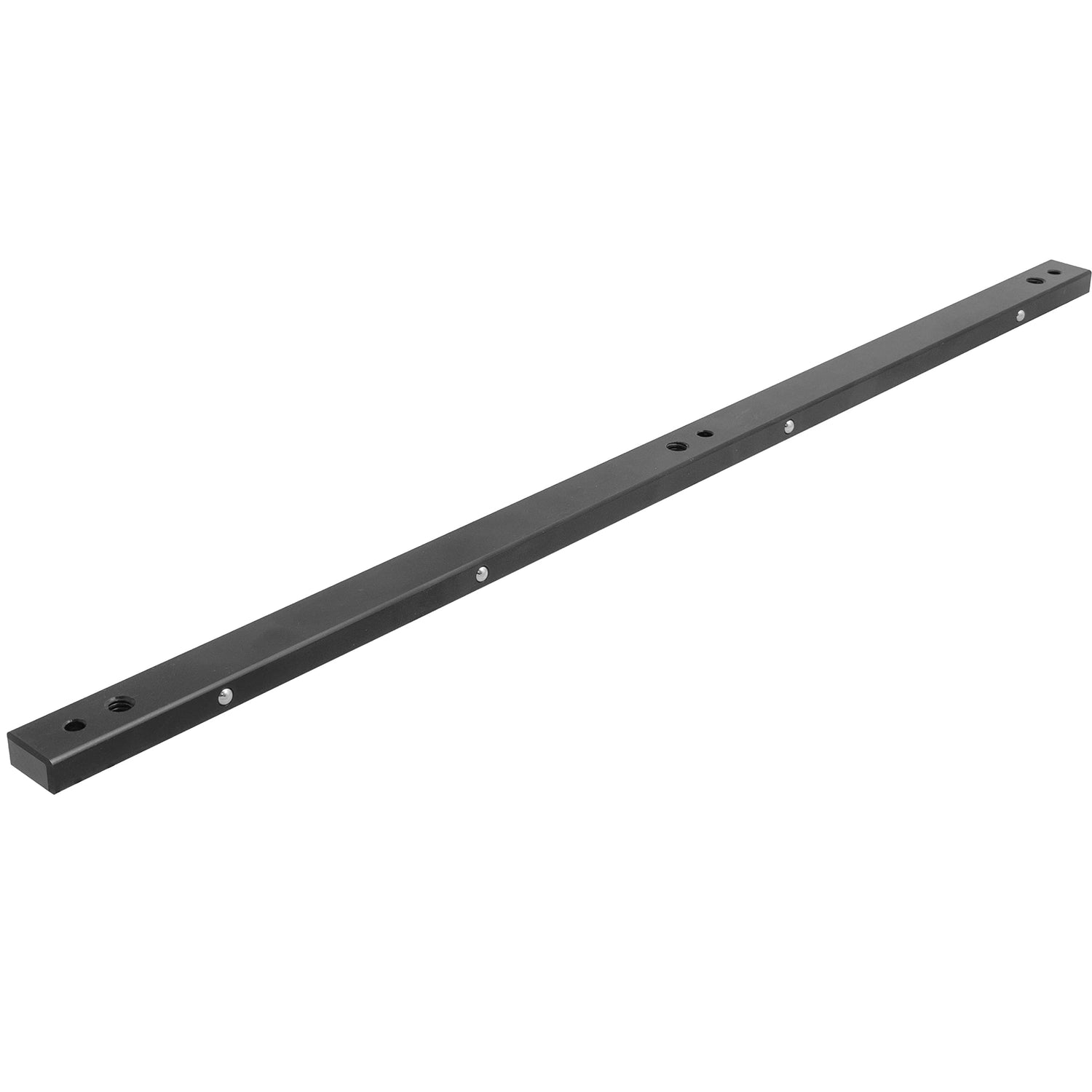

- Build your next table saw sled, router table jig or band saw fixture to operate with a smooth sliding action using the Fulton 18 inch Precision Steel Miter Bar! Attach the steel bar to most any type of sled, jig or fixture that is to be used with a 3/4 inch (19mm) by 3/8 inch (9mm) miter slot. Using our steel bar versus plastic or aluminum gives your sled, jig or fixture more strength and stability and it won’t bend or warp.

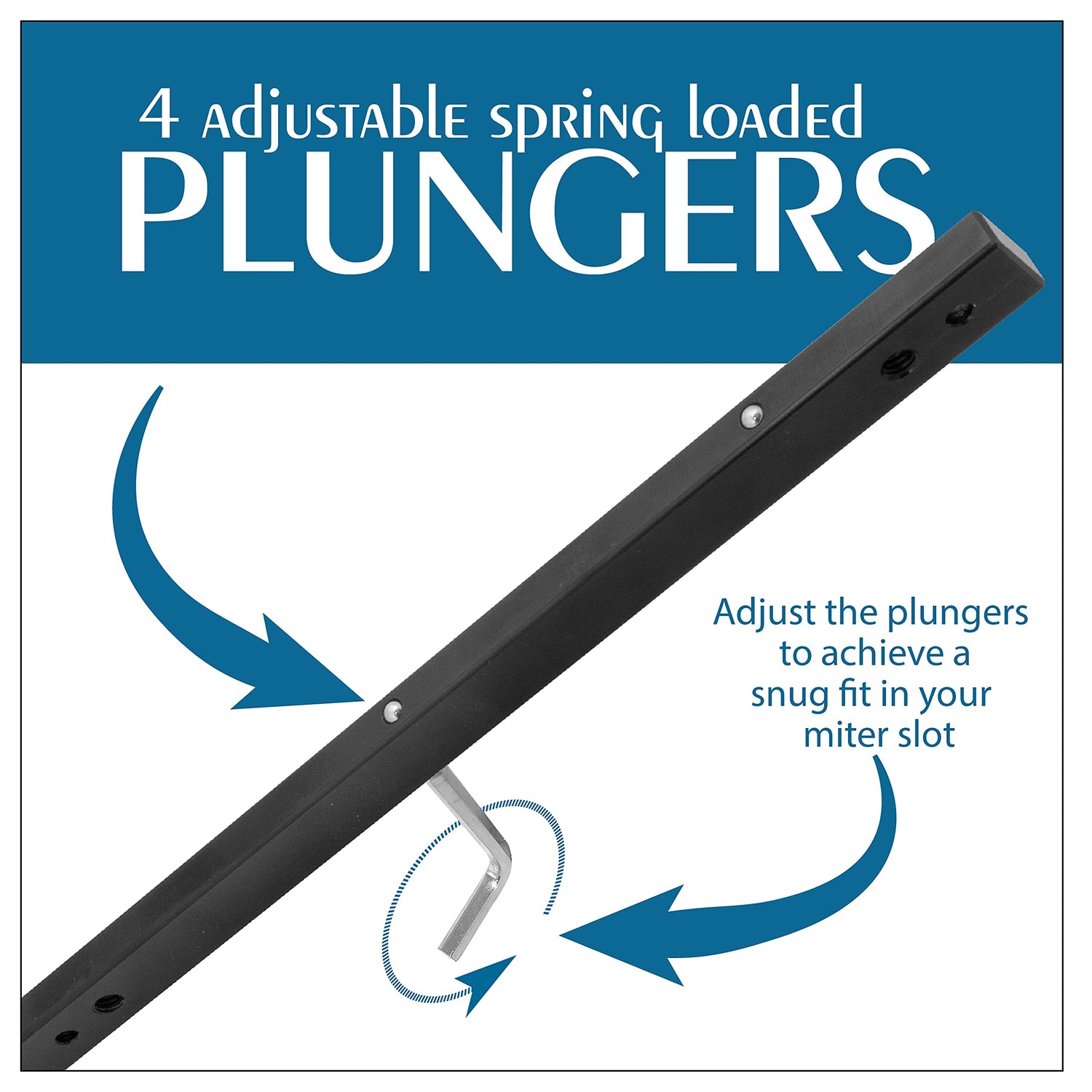

- When building sleds, jigs and fixtures one of the most important aspects is to achieve a smooth sliding action without side to side play. The Fulton Precision Steel Miter Bar does both with its solid steel bar and 4 adjustable spring loaded plungers. The plungers can be adjusted with the included hex key wrench for just the right fit.

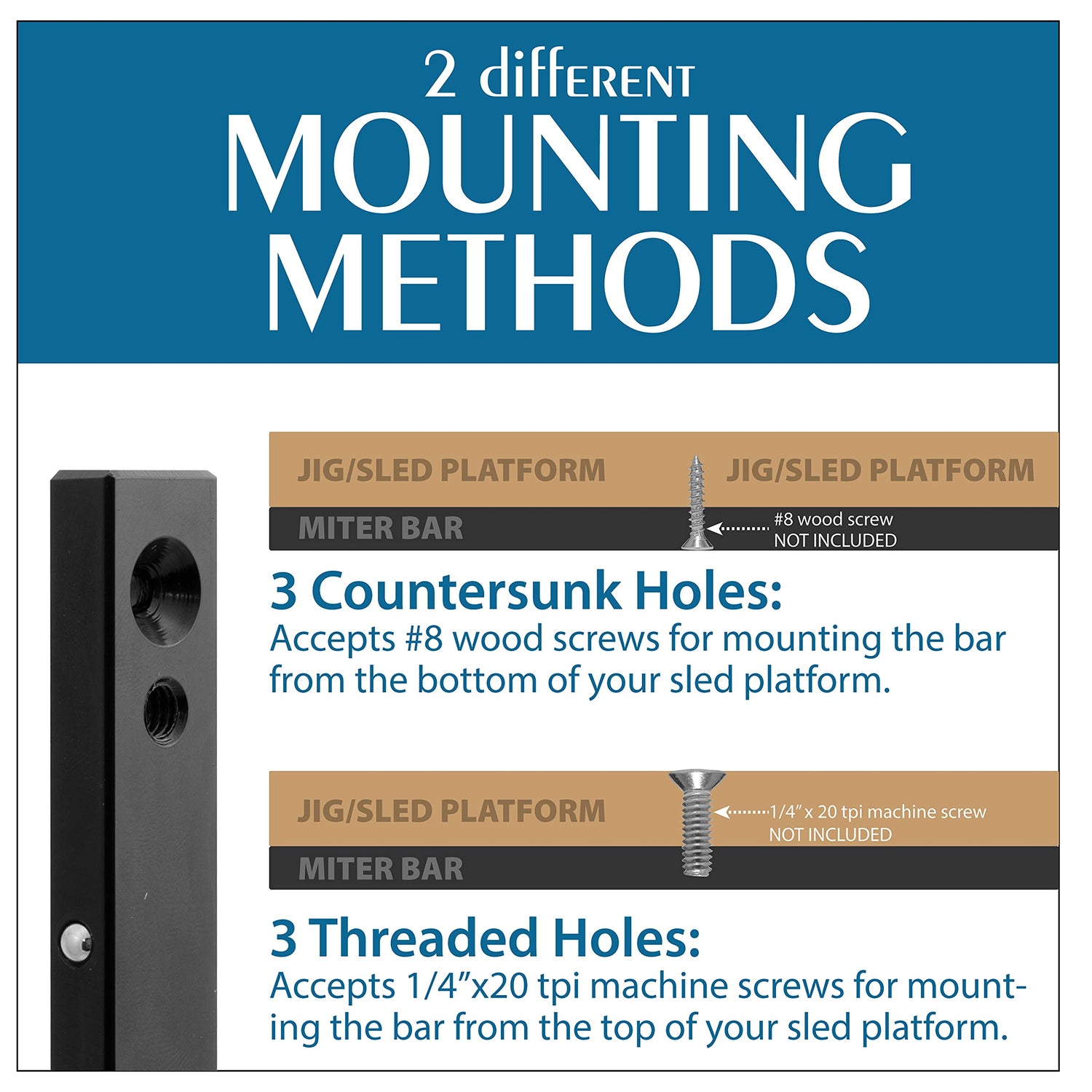

- Not only is the Fulton Steel Miter Bar adjustable, its easy to mount! You can mount the bar from the top of your sled, jig or fixture platform or base, or you can mount it from the bottom. There are three threaded holes along the length of the bar for mounting the bar using 1/4 inch by 20 tpi machine screws (not included). There are also three counter sunk holes on the bar to mount the bar using #8 wood screws (not included).

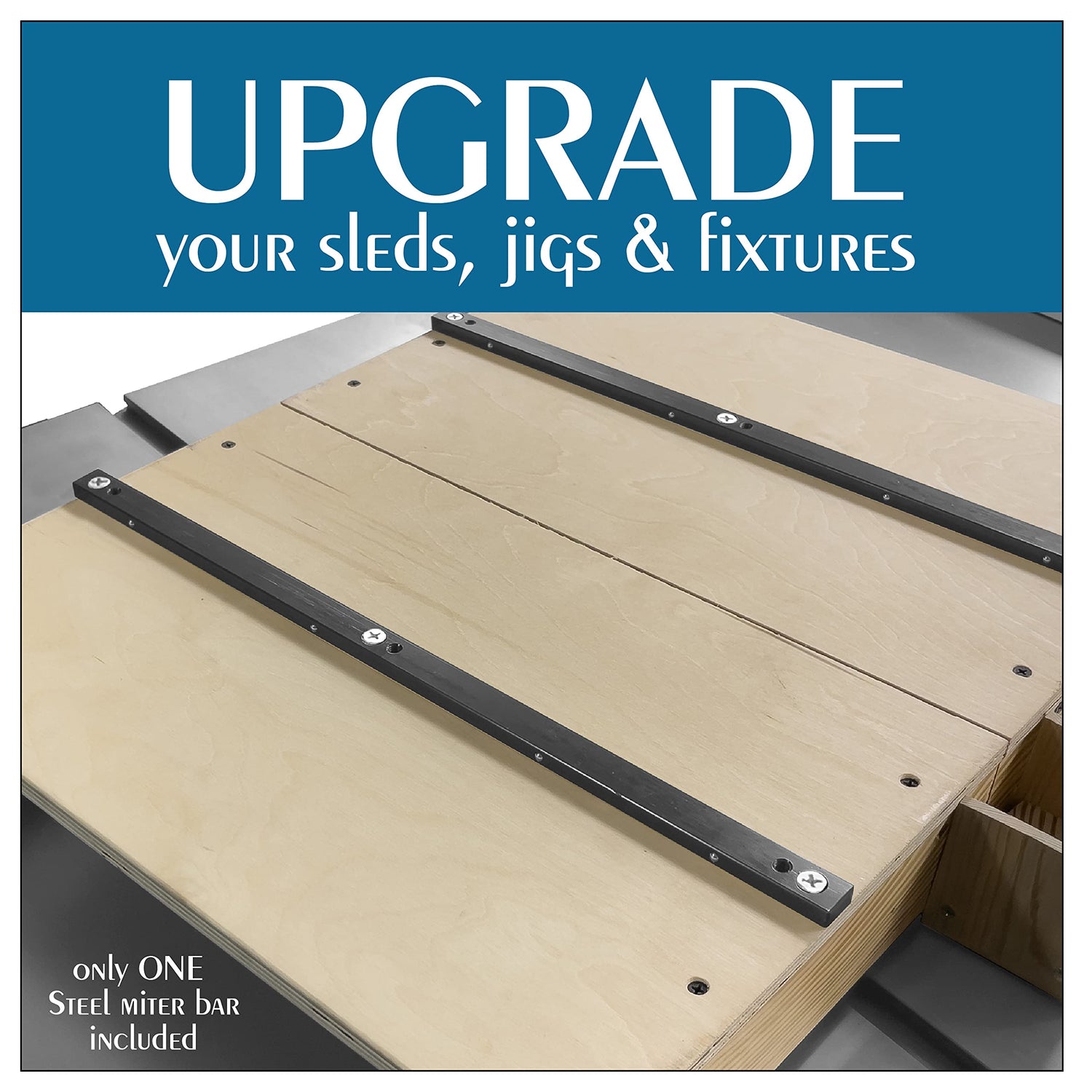

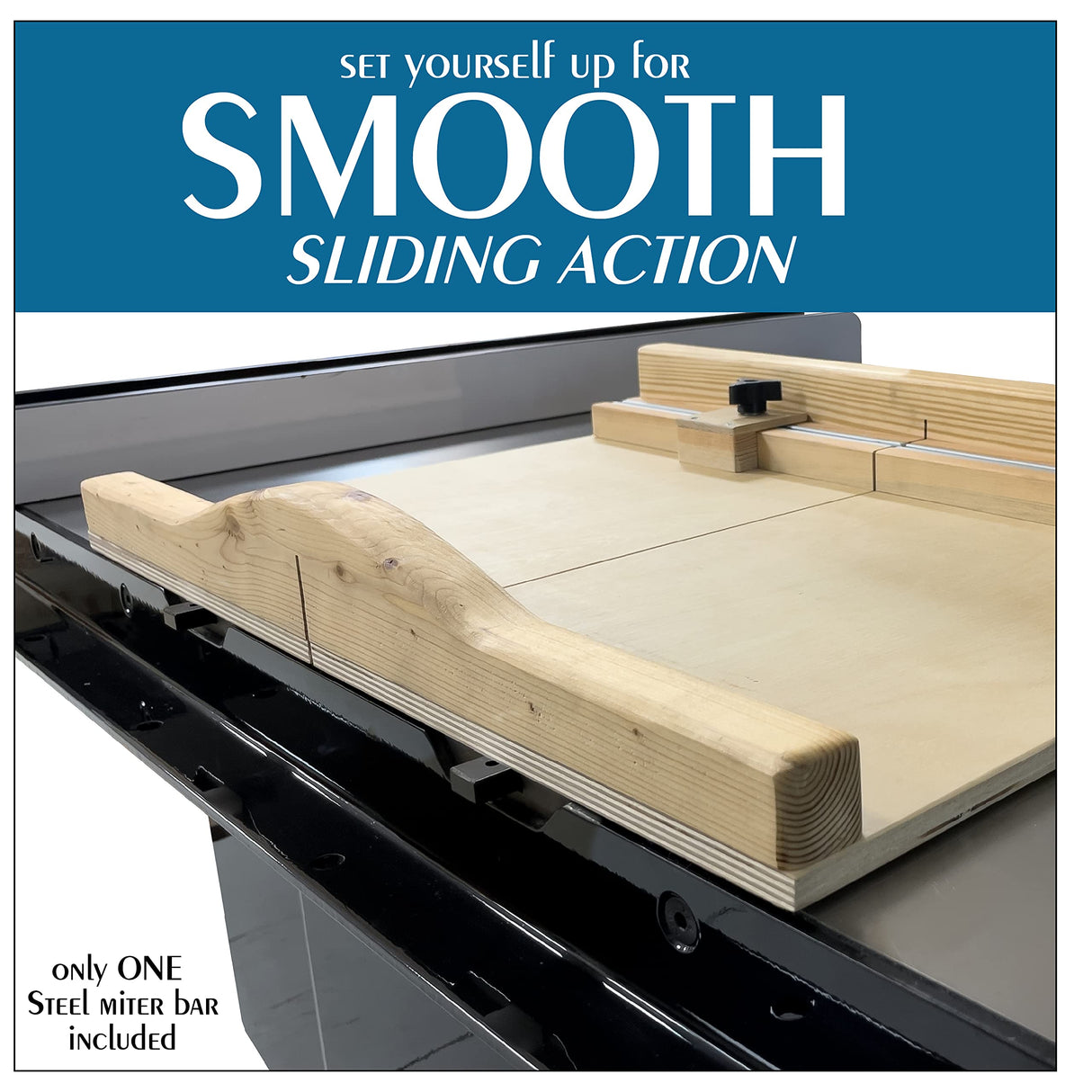

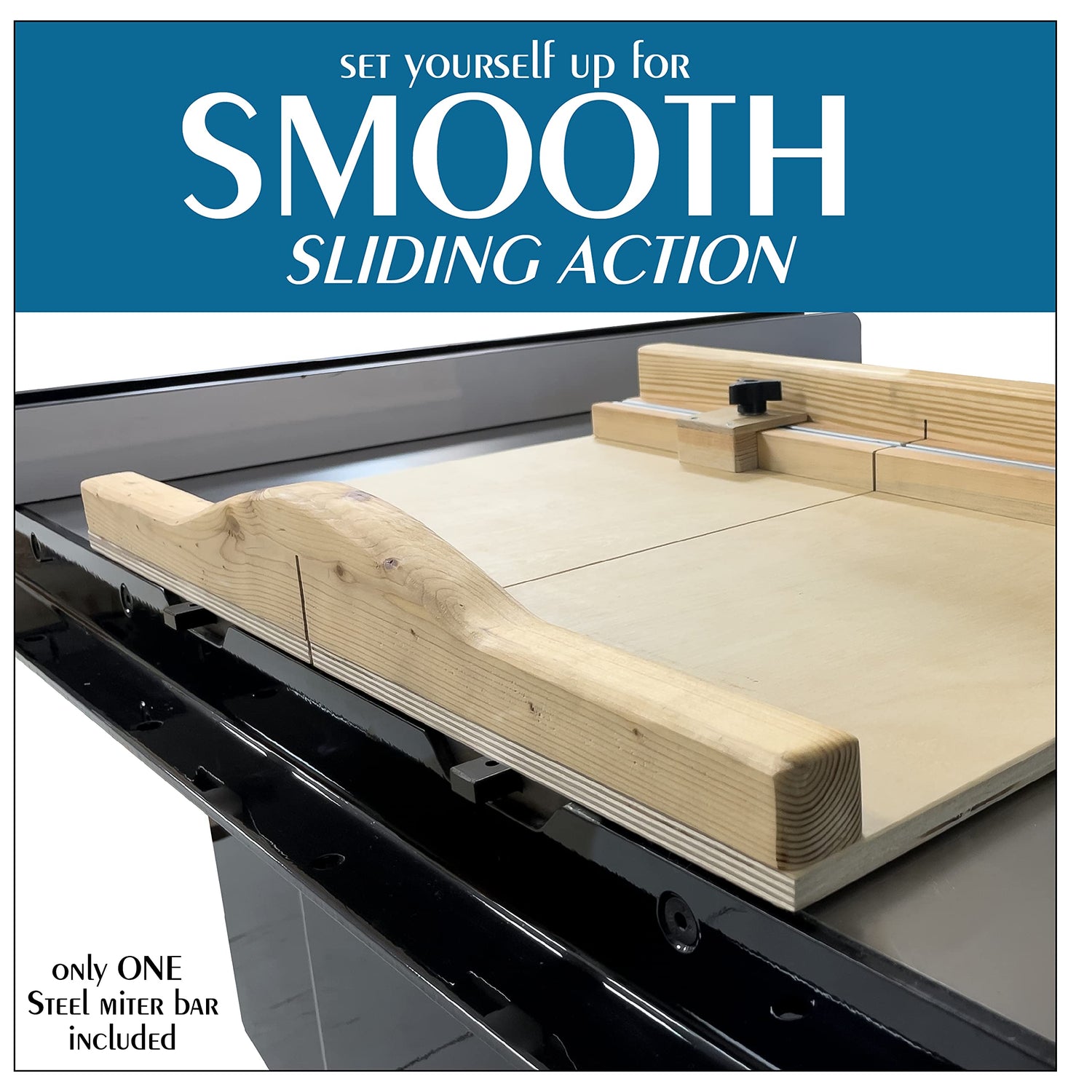

- Once you mount the bars to your sled, jig or fixture you are sure to feel the difference. This is especially true when you first run the bars through your miter slots. The smooth sliding action is perfect for crosscut sleds, miter angle jigs, shop made coping sleds and a whole lot more! Using two bars (only one is included) for even more stability works exceptionally well.

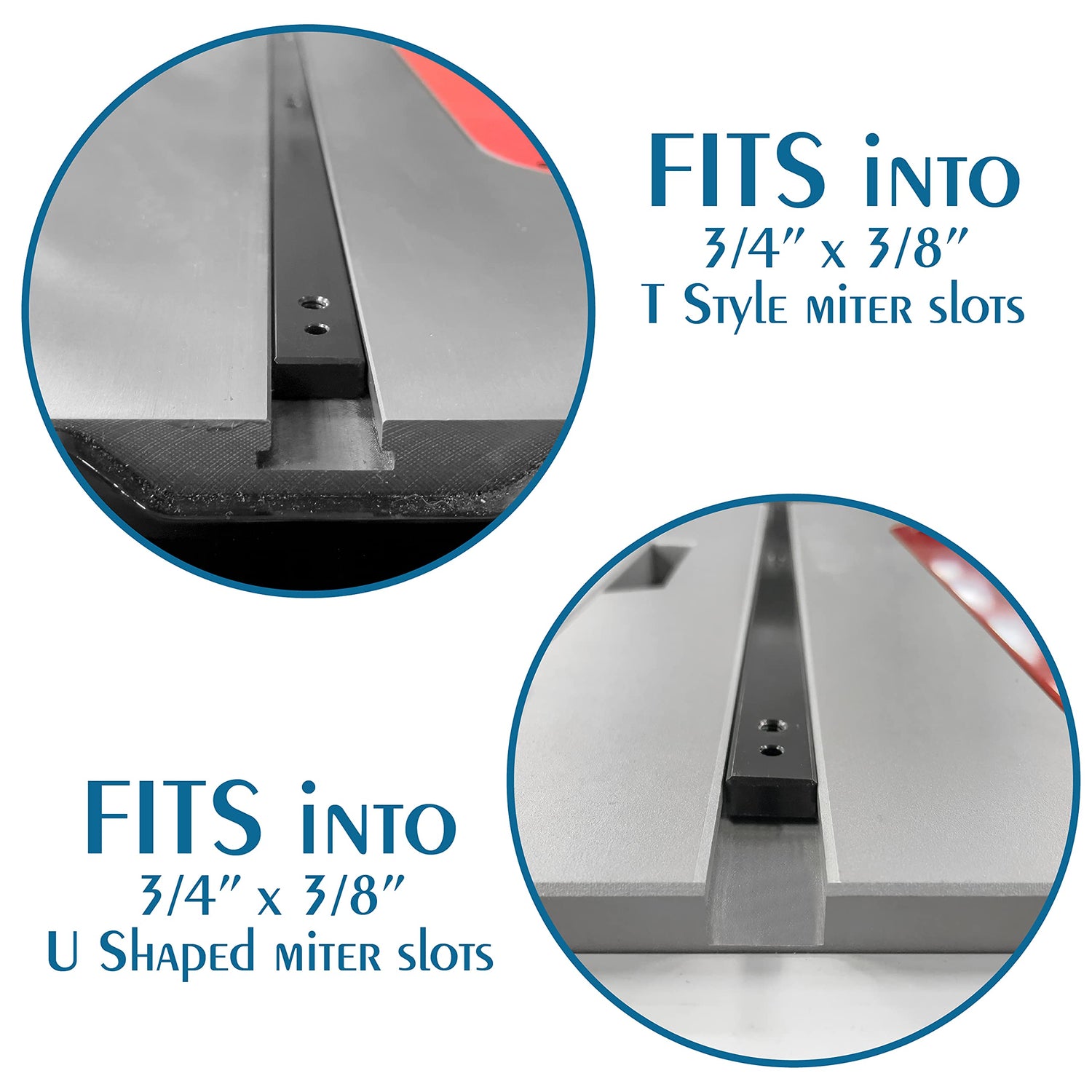

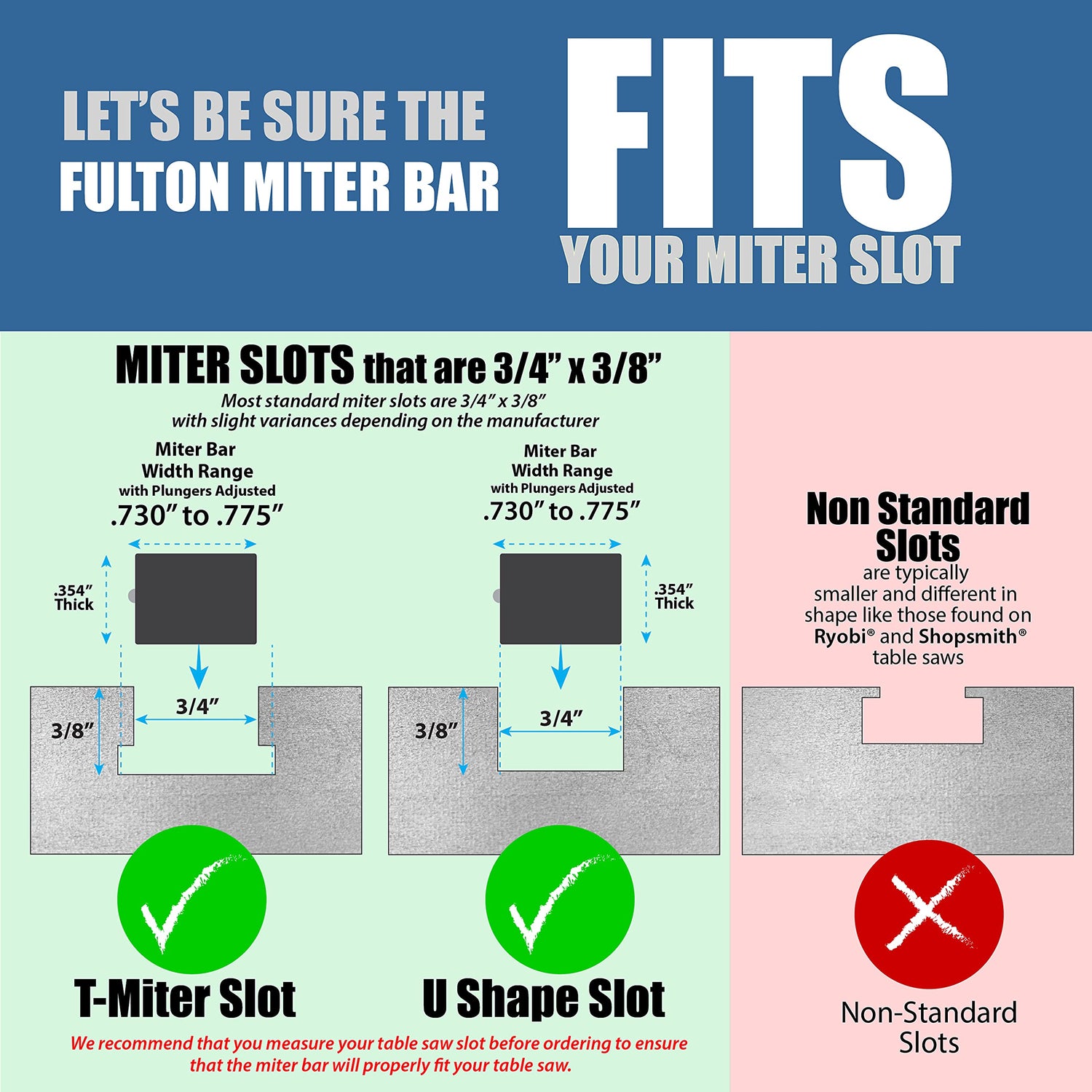

- The bar is approximately 18 inches long and will fit into miter t slots and u-shaped miter slots. Non-standard slots found on some job site style table saws and other small machinery will not accept this bar due to the non-standard slot dimensions. We recommend that you measure your miter slot before placing your order.
Binding: Kitchen
model number: 3337
Part Number: 3337
Details: Finally a universal Precision Miter Bar for building virtually any sled or miter slot jig. With adjustable spring plungers, the miter bar maintains constant pressure against the walls of the miter slot so you have virtually no play side to side, while being able to slide through the slot with ease. The bar fits most standard 3/4” x 3/8” miter slots. Made of hardened steel the Precision Miter Bar will not bend or twist like some of the plastic bars you may have. This is the perfect accessory for anyone who likes to build their own jigs and fixtures and who is concerned with quality.
EAN: 0810948015819
Package Dimensions: 19.6 x 1.6 x 1.1 inches
