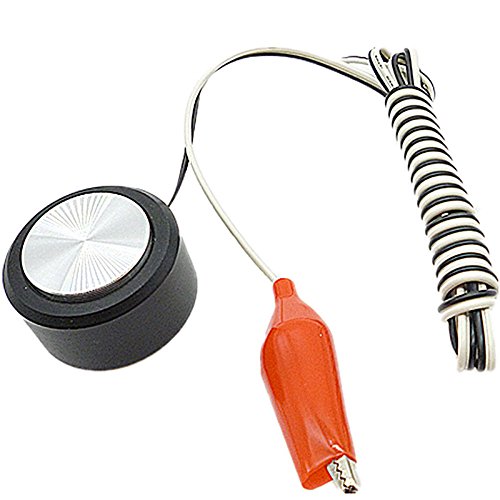

1pc New CNC Router Tool Mill Z-Axis Setting Touch Plate Probe Milling Tool Kit For Mach3 CNC Engraving Machine Tools
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Jwn
Features:

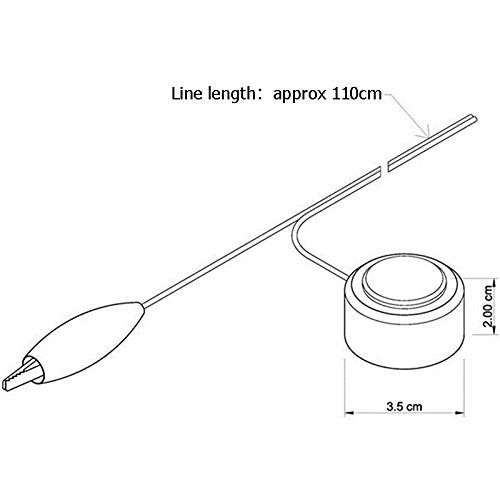

- Size: approx. 3.5 x 2cm/ 1.38 x 0.79inch (D x H)
- Effective surface of the blade: approx. 25mm /0.98inch (diameter)
- Line length: approx. 110cm
- If your interface board has the limit switch port or other probe port, you can connect it to that port
- The wire connect on the control panel interface.
Part Number: Handtool-396
Details: Specification:
Brand new
Material: wire+metal
Color: as picture shows
Size: approx. 3.5 x 2cm/ 1.38 x 0.79inch (D x H)
Effective surface of the blade: approx. 25mm /0.98inch (diameter)
Line length: approx. 110cm
These touch plates make setting your tool height and zeroing your z-axis a breeze. These are fully functional in Mach 3 and many other CNC controller software.
Two ways to connect this item:
If your interface board has the limit switch port or other probe port, you can connect it to that port
If your interface board does not have that port, your driver board has that port, you can connect it to the driver board's limit switch port
Then in the Mach 3, you need to setup the probe(Mach3 --- Config---Ports and Pins---Input signals Probe enabled , the pin number type the one you use) and the Auto-Tool-Zero. in the attachment, it is the code, you can edit it as your requirements Usage:
The wire connect on the control panel interface.
The clip and the control board GND (negative) is connected.
The tool can be clamped portion of the operation when the blade with a clip.
When the tool contacts the blade that the process is complete.
Package included:
1 x CNC router engraving machine tool
EAN: 6467420327751
