3D Printer CNC Controller Ardiuno CNC kit with for ArduinoIDE,Longruner GRBL CNC Shield Board+RAMPS 1.4 Mechanical Switch Endstop DRV8825 A4988
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Longruner
Color: Black
Features:

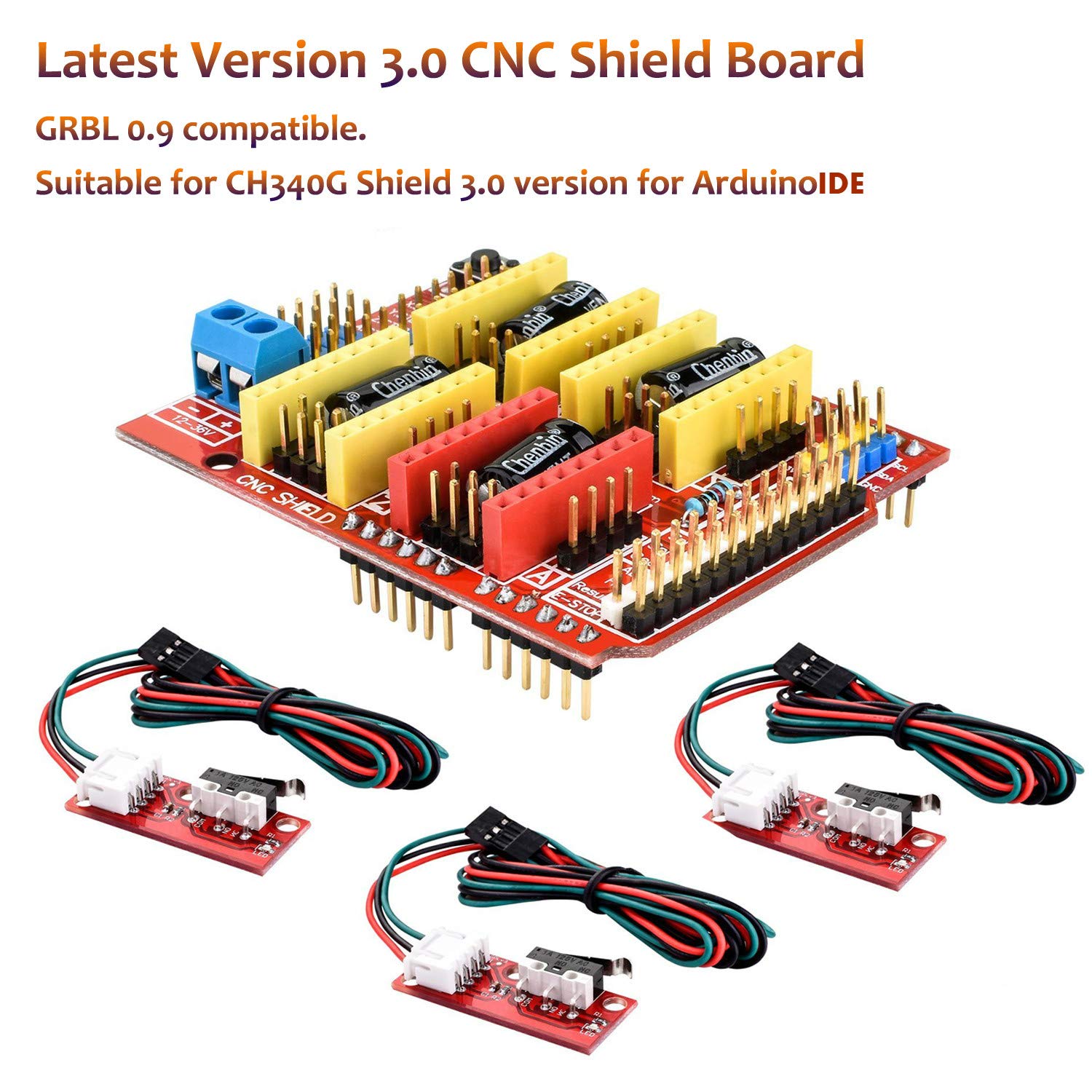

- ★ Latest CNC Shield Expansion Board V3.0 ★-CNC shield board is updated version 3.0, which is suitable for CH340G Shield 3.0 version compatible with for ArduinoIDE, GRBL 0.9.
- ★ Professional 3D printer CNC Kit ★ This is a professional 3d printer DIY kit with multiple types of modules or components you need. It is a great assortment set for starters and professionals.
- ★ Premium Quality ★ Each part of this Logrunner 3d printer conk kit was made of premium material. These components can be used in a wide range of application.

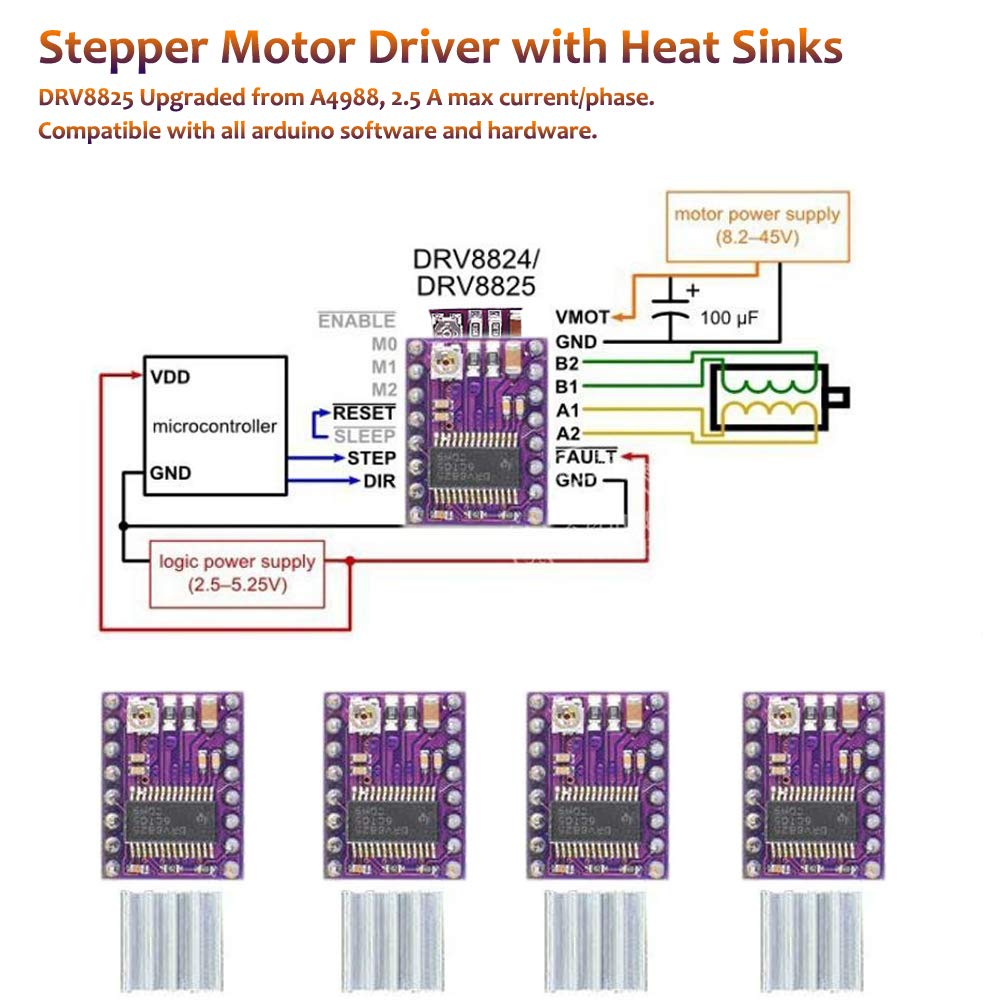

- ★ DRV8825 Stepper Motor Driver with Heat Sinks ★ High quality stepper motor drive with 4 Aluminum Cooler, running within 2.5A current (Maximum), compatible with for ArduinoIDE software and hardware.
- ★ Good after-sales service. We'll respond within 24 hours for any questions.
model number: LKB02
Part Number: LKB02

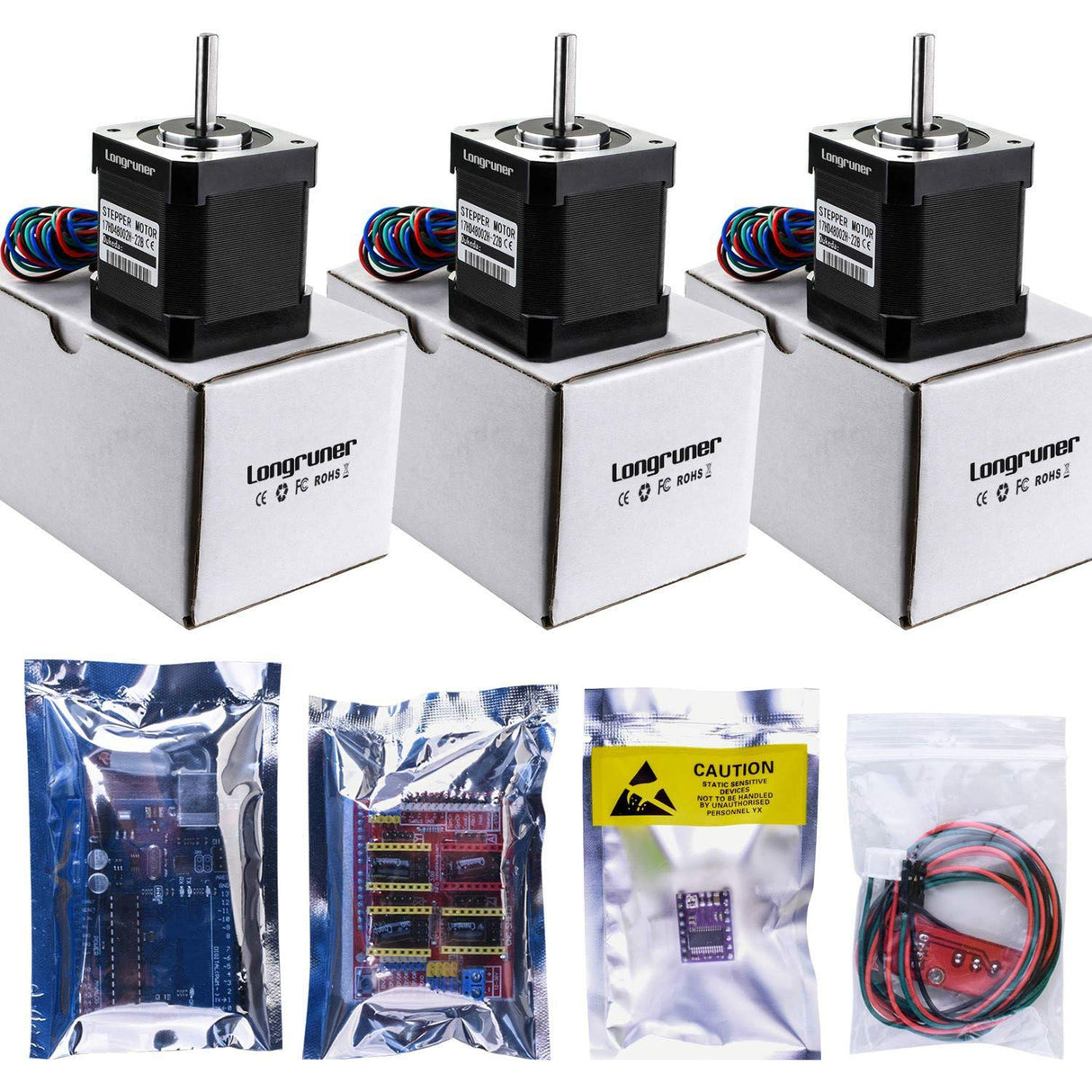

Details: CNC Shield Board: Latest CNC Shield Version 3. 0 for Arduino. GRBL 0. 9 compatible. 4-Axis support (X, Y, Z , A-Can duplicate X, Y, Z or do a full 4th axis with custom firmware using pins D12 and D13). 2 x End stops for each axis (6 in total). Coolant enable. Compatible with A4988 or DRV8825 stepper driver. Runs on 12-36V DC. DRV8825 Stepper Motor Driver: Stepper motor driver (upgraded from A4988, 2. 5 A max current/phase. It's not Arduino official board but it's compatible with all Arduino software and hardware). Neman 17 Stepper motor Specification: Model No. :17HD48002H-22BStep Angle: 1. 8 beholding Torque: 59Ncm(84 oz. in)Rated Current/phase: 1. 7AFrame Size: 41 x 41mmBody Length: 47mmShaft Diameter: 5mmShaft Length: 22mmWeight: 380gMechanical End stop Connection Description: Red line connect VCC (ramps of +)black wire connect the GND (ramps of -)Green Line connect SIGNAL (ramps in s)Tips: Under normal circumstances, the system must be configured to at least three mechanical switches. Advantage: Easy to install, the more common used styles. Length of Cable: 70 great Package Includes:1 x CNC Shield Board1 x Logrunner UNO R3 Board1 x 1. 5m USB cable for R3 Board3 x Neman 17 stepper motor 1. 7 A (with bracket and screw)3 x Neman 17 Stepper Motor Mounting Bracket3 x Mechanical Switch Endstop3 x 3Pin 70cm Cable4 x DRV8825 Stepper Motor Driver4 x Aluminum heatsink w/ 3M tape backing12x M3 Screws for bracket of stepper motor
EAN: 8414771507439
Package Dimensions: 7.7 x 5.5 x 4.3 inches
