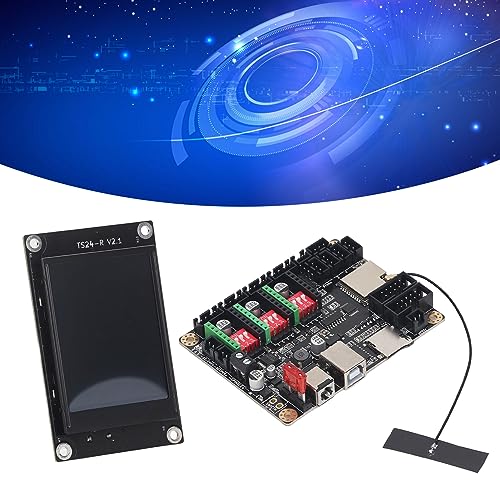

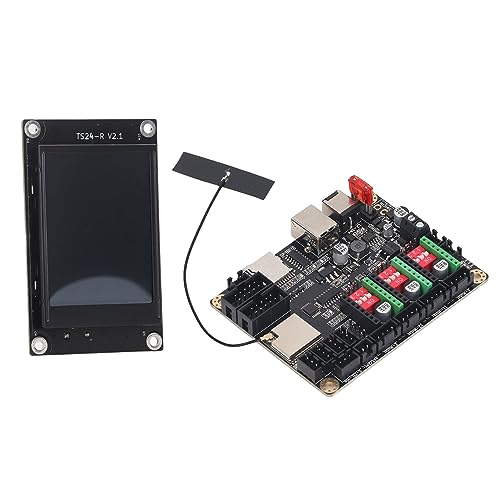

3D Printer Control Board MKS DLC32 V2.1 32 Bit Control Board with WiFi 2.4 Inch TS24 R V2.1 Touch Screen Laser Engraving Machine Main Board

Brand: Hyuduo

Features:

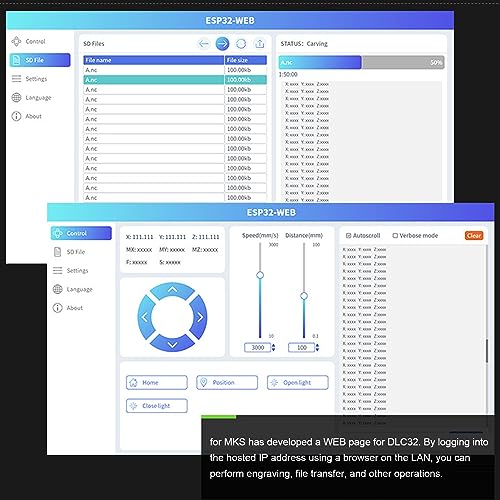

• Super Wide Compatibility: This motherboard allows for quick engraving and web control, mobile app control, etc. The for MKS DLC32 has mounting holes and board size compatible with the for MKS DLC and can also be used with for GRBLaser and for LightBurn PC software.
• 32 Bit Processor: This motherboard has high performance, and it is equipped with a 32 bit STM32 processor, support storage card storage, expandable WIFI module, power failure relay module, break material detection switches and external card slot.
• 2.4 Inch TS24 R V2.1 Touch Screen: This touch screen provides a clear readout that simplifies the user's operation process, with a clear UI interface that intuitively presents the desired functions for easy operatio.The 3D printer control board coexists of stylish appearance and excellent performances.
• Built In 8M Byte Flash Memory Chip: This 3D printer motherboard has a built in 8M byte flash memory chip to enhance product's quality and provide effective protection for more application scenarios.
• High Accuracy: This 3D printer touch screen is able to work highly with the machine controller, thus providing high accuracy printing operation and printing excellent and stable products.

model number: Hyuduotc3swyzxa1

Part Number: Hyuduotc3swyzxa1

Details: Spec:
Item Type: 3D Printer Motherboard Kit
Material: PCB

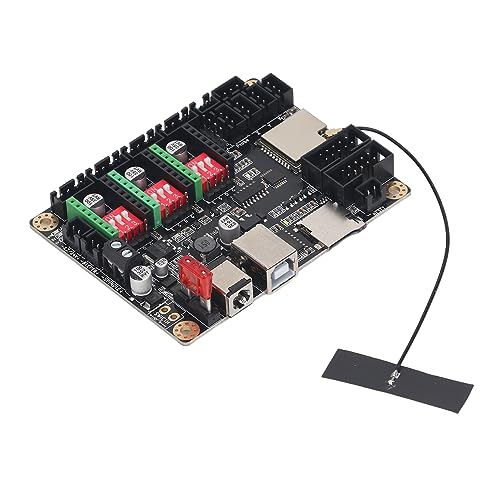

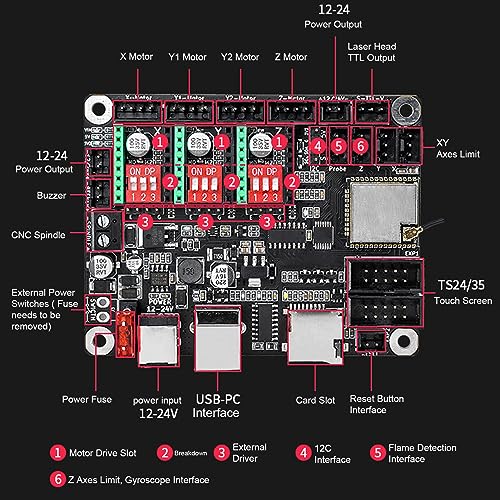

Main Board Parameters:
Model: for MKSDLC32

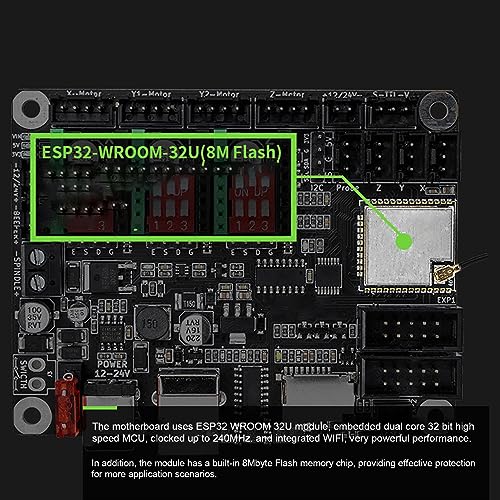

Voltage: 12-24V DC (MCU: ESP32 WROOM 32U (32 Bit)
MCU Frequency: 240MHz
Flash Memory: 8192K Bytes
Memory: 520K Bytes
Laser Speed: ＜8000mm/min
Offline Display: for MKS TS24 R, TS35 R
Firmware: for GRBL
Serial Port Driver: USB
Axes WIFI Onboard: 4(X, Y1, Y2, Z)
Storage Card: Support
MKS Laser Tool: Support
Available Machine: CNC Laser Engraving Machine
Stepper Driver: A4988, DRV8825, TMC2208, 2209, 2225(for Nema17 Motor)
Additional Driver: TB6600, TMC2160(for Nema23 motor)
Laser: Less Than 20W (>20W, External Power Supply)
Compatible Software: for LaserGrbl, for Xloader, for GrblController, for Benbox, for MDraw, for LightBurn

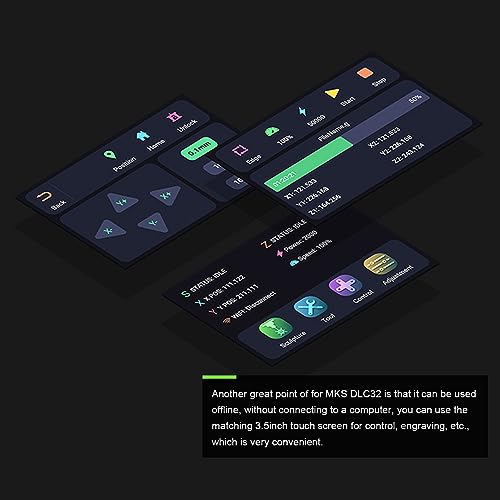

Display Parameters:

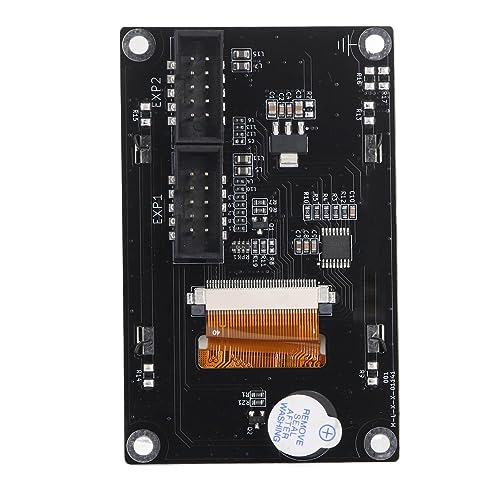

Model: TS24 R V2.1
External Size: Approx. 80 x 50mm/3.15 x 1.97in
Color Touch Screen: 2.4 Inch Touch Screen
Microprocessor: 32 Bit STM32 Processor
Update Method: SD File Update
Support Storage System: Storage Card
Support File Format: Gcode
Expandable Modules: WIFI Module, Power Failure Relay Module, Material Break Detection Switches, External Card Slot.
A4988 Driver Features And Advantages:
Low RDS (On) Output
Automatic Current Decay Mode Detection or Selection
Mixed With Slow Current Decay Mode
Synchronous Rectification For Low Power Consumption
Internal Under Voltage Lockout
Cross Current Protection
3.3 And 5 V Compatible Logic Supplies
Thermal Shut Down Circuitry
Ground Fault Protection
Load Short Circuit Protection
Five Selectable Stepping Modes: Full Step, 1/2, 1/4, 1/8, and 1/16

How to Use:
According to the introduction of using.

Package List:

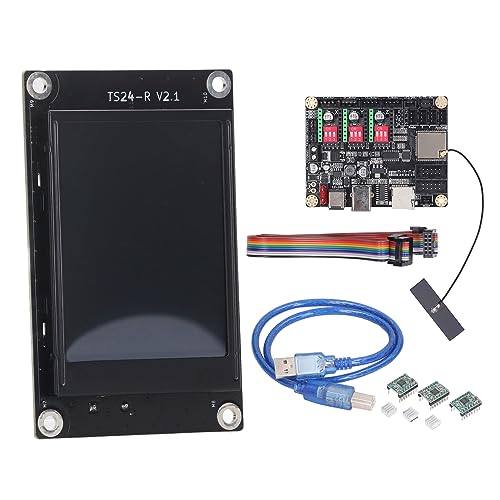

1 x for MKS DLC32 V2.1 Motherboard
1 x Blue USB Data Cable
1 x TS24 R V2.1 Display Screen
2 x 10pin 40cm Row Cable
3 x Driver
3 x Heatsink

Package Dimensions: 8.6 x 5.3 x 2.5 inches
