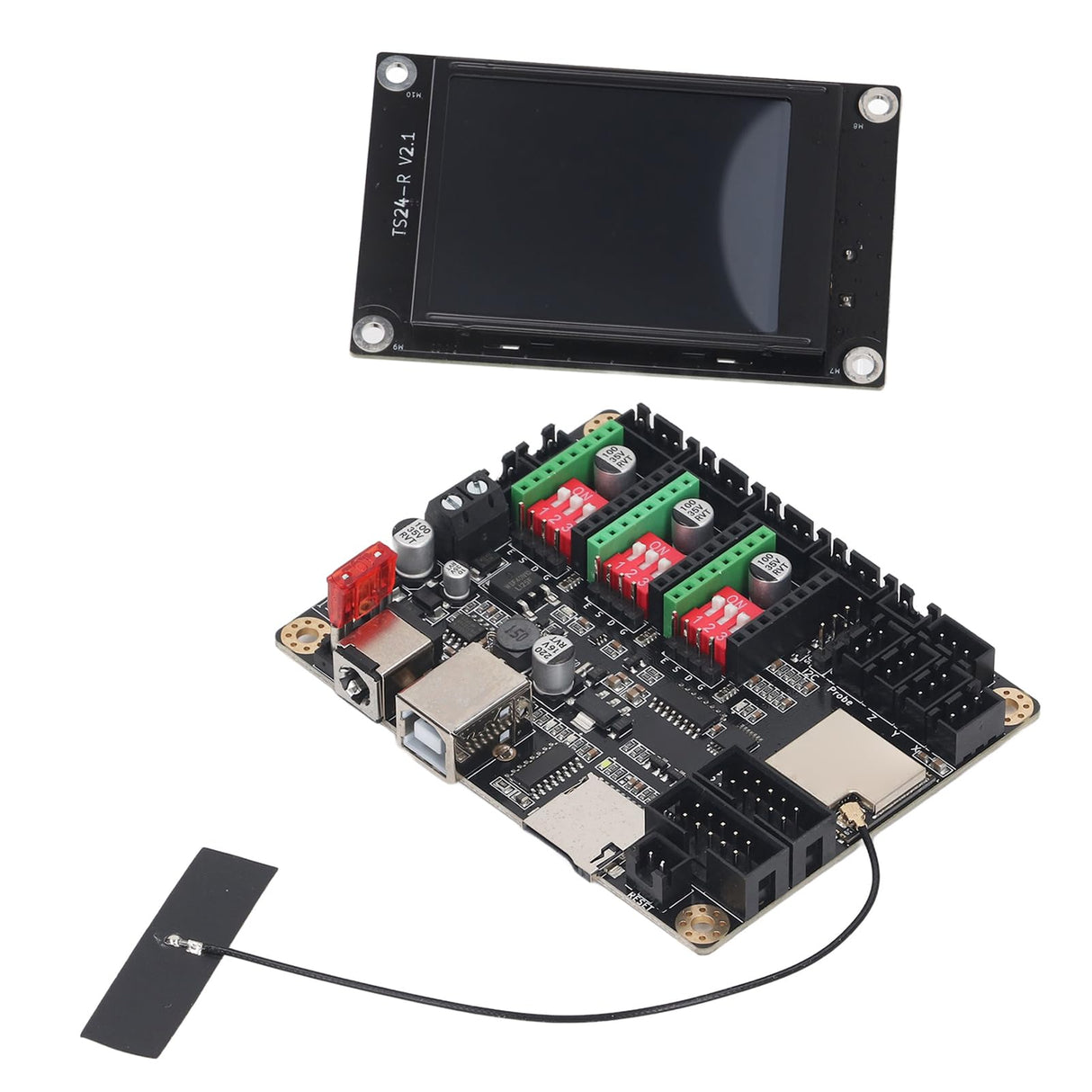

3D Printer Motherboard Kit 3D Printer Mini Controller Board Laser Engraving Machine Main Board 32 Bit for MKS DLC32 V2.1 Control Board

Brand: FTVOGUE

Features:

• Software Control: This motherboard allows for quick engraving and web control, mobile app control, etc. The for MKS DLC32 has mounting holes and board size compatible with the for MKS DLC and can also be used with for GRBLaser and for LightBurn PC software.
• High Performance: This motherboard is equipped with a 32 bit STM32 processor, support for storage card storage, expandable WIFI module, power failure relay module, break material detection switches and external card slot, providing high performance.
• High Accuracy: This 3D printer touch screen is able to work highly with the machine controller, thus providing high accuracy printing operation and printing excellent and stable products.
• 2.4 Inch TS24 R V2.1 Touch Screen: This touch screen provides a clear readout that simplifies the user's operation process, with a clear UI interface that intuitively presents the desired functions for easy operatio.
• Built In 8M Byte Flash Memory Chip: This 3D printer motherboard has a built in 8M byte flash memory chip to provide effective protection for more application scenarios.
• Industrial supplies, industrial control, additive manufacturing products, 3D printer driving modules

model number: FTVOGUEd4mfst8eik

Part Number: FTVOGUEd4mfst8eik

Details: Specification:
Item Type: 3D Printer Motherboard Kit
Material: PCB
Main Board Parameters:
Model: for MKSDLC32

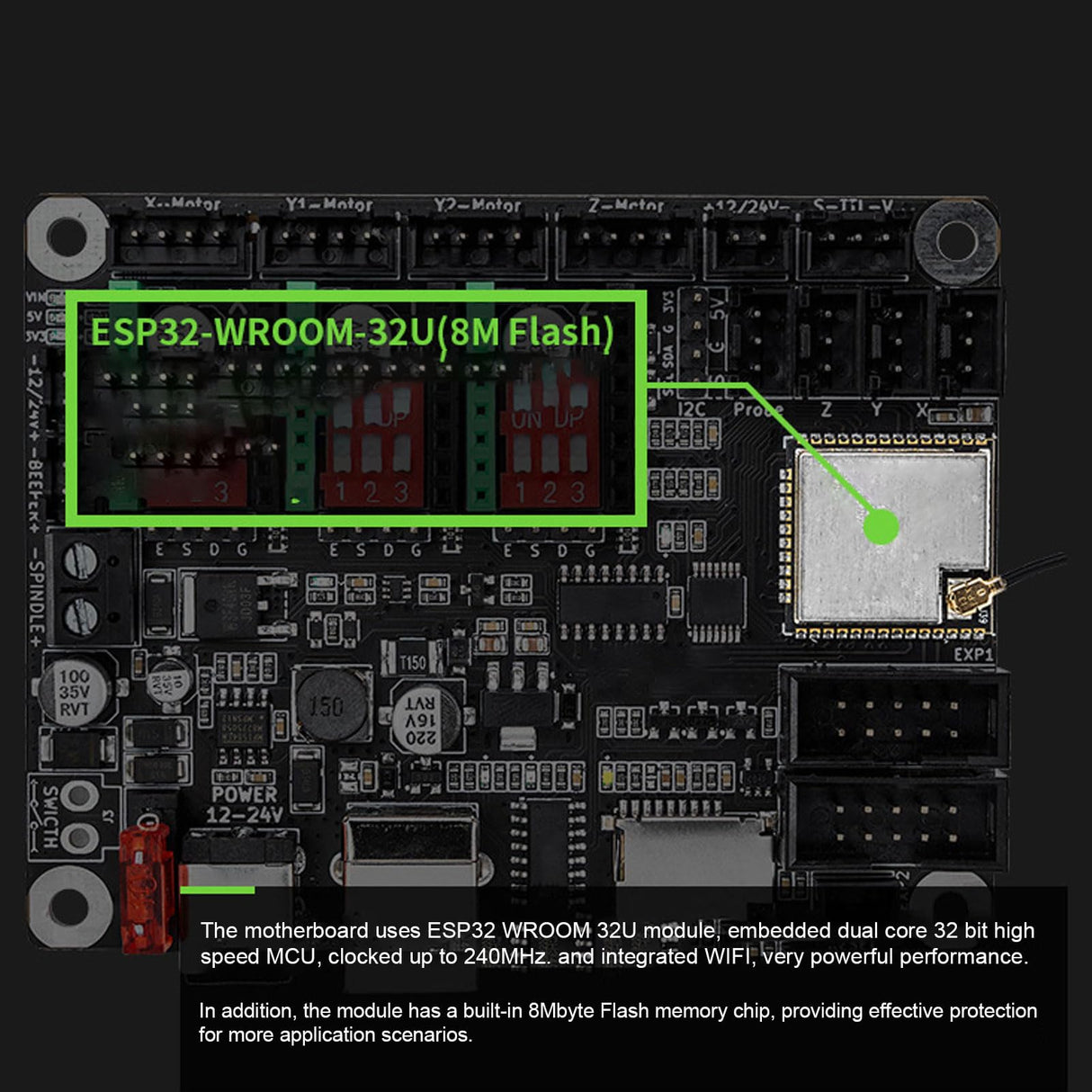

Voltage: 12-24V DC (MCU: ESP32 WROOM 32U (32 Bit)
MCU Frequency: 240MHz
Flash Memory: 8192K Bytes
Memory: 520K Bytes

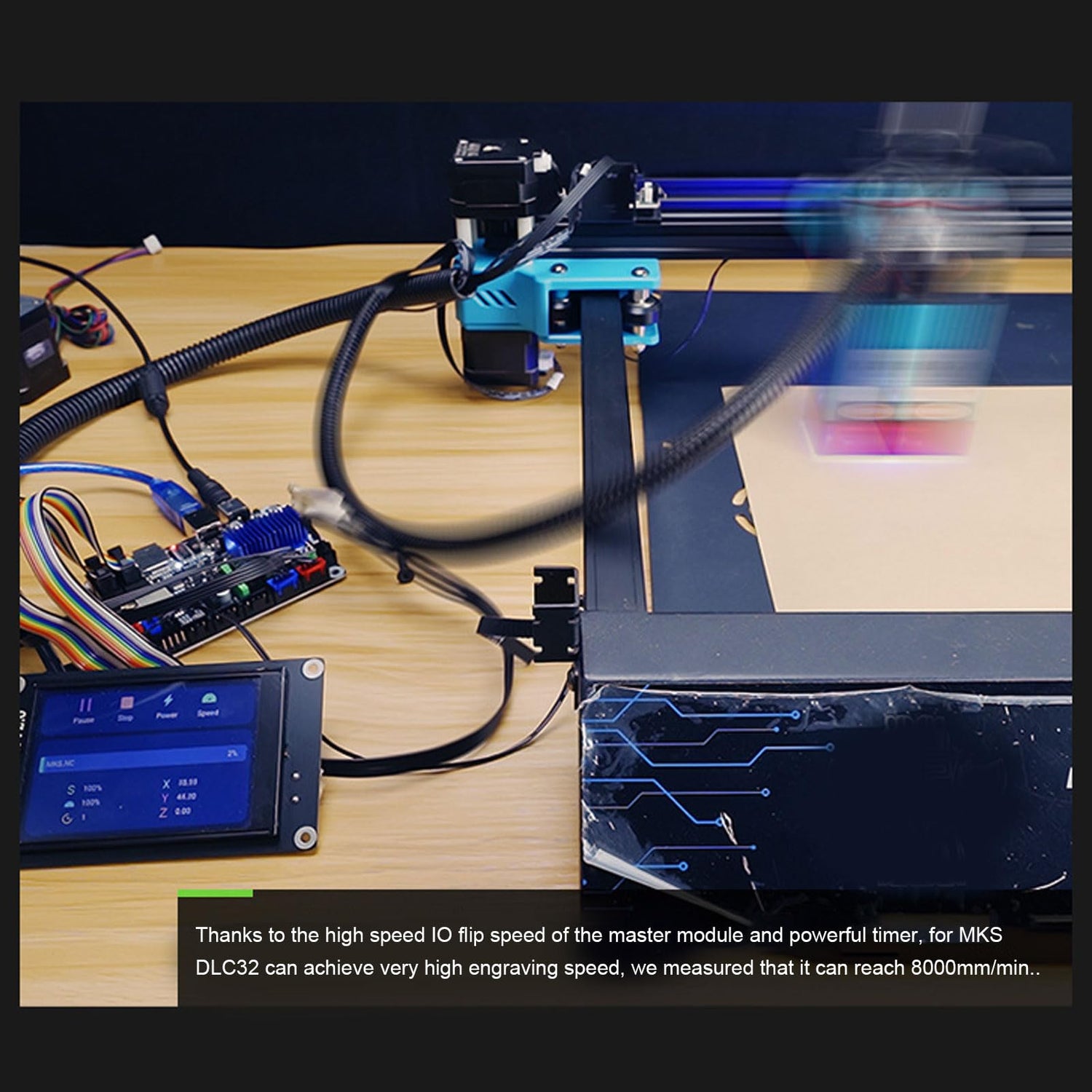

Laser Speed: ＜8000mm/min
Offline Display: for MKS TS24 R, TS35 R
Firmware: for GRBL
Serial Port Driver: USB
Axes WIFI Onboard: 4(X, Y1, Y2, Z)
Web Site: Support
APP: Support
Storage Card: Support
MKS Laser Tool: Support
Available Machine: CNC Laser Engraving Machine

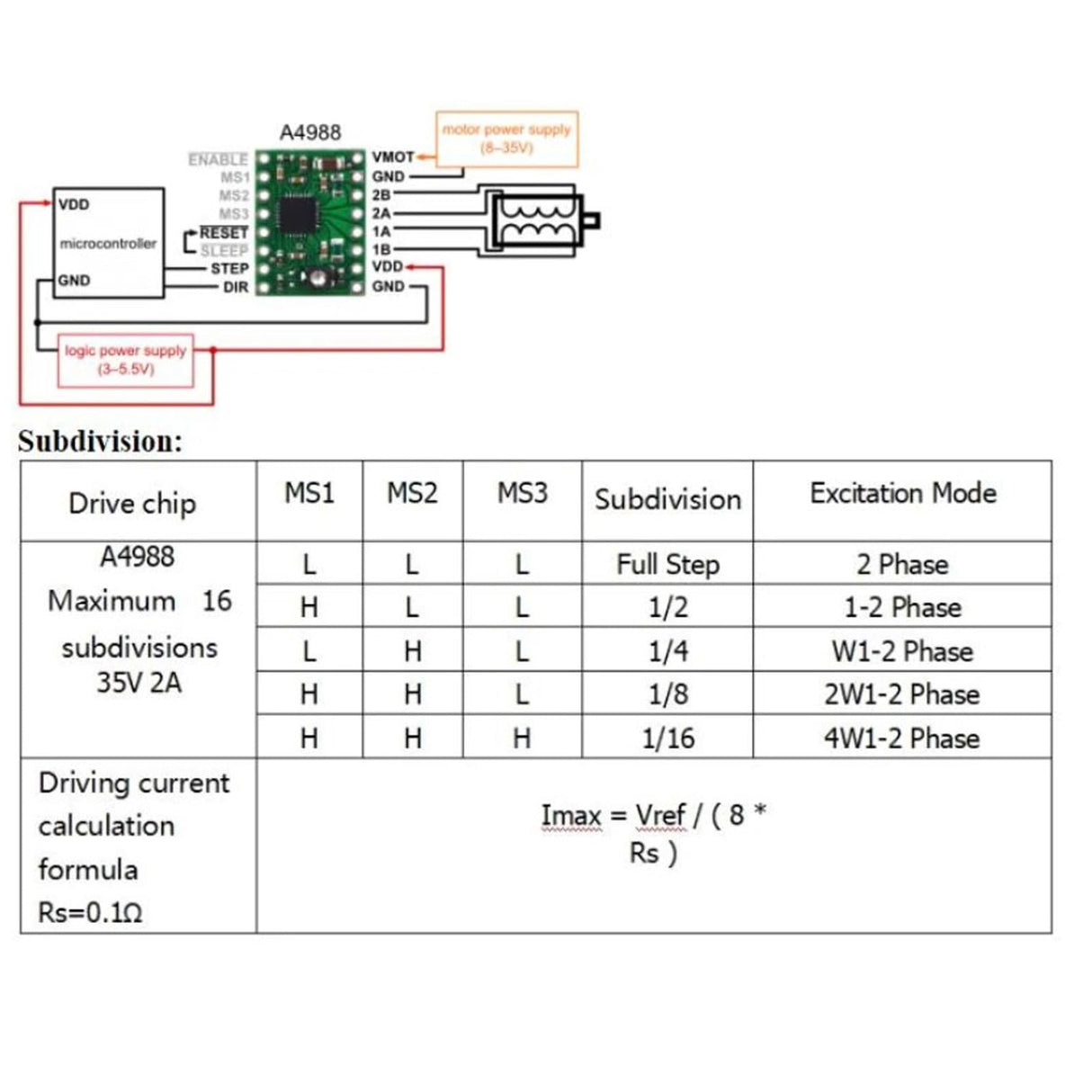

Stepper Driver: A4988, DRV8825, TMC2208, 2209, 2225(for Nema17 Motor)
Additional Driver: TB6600, TMC2160(for Nema23 motor)
Laser: Less Than 20W (>20W, External Power Supply)
Compatible Software: for LaserGrbl, for Xloader, for GrblController, for Benbox, for MDraw, for LightBurn

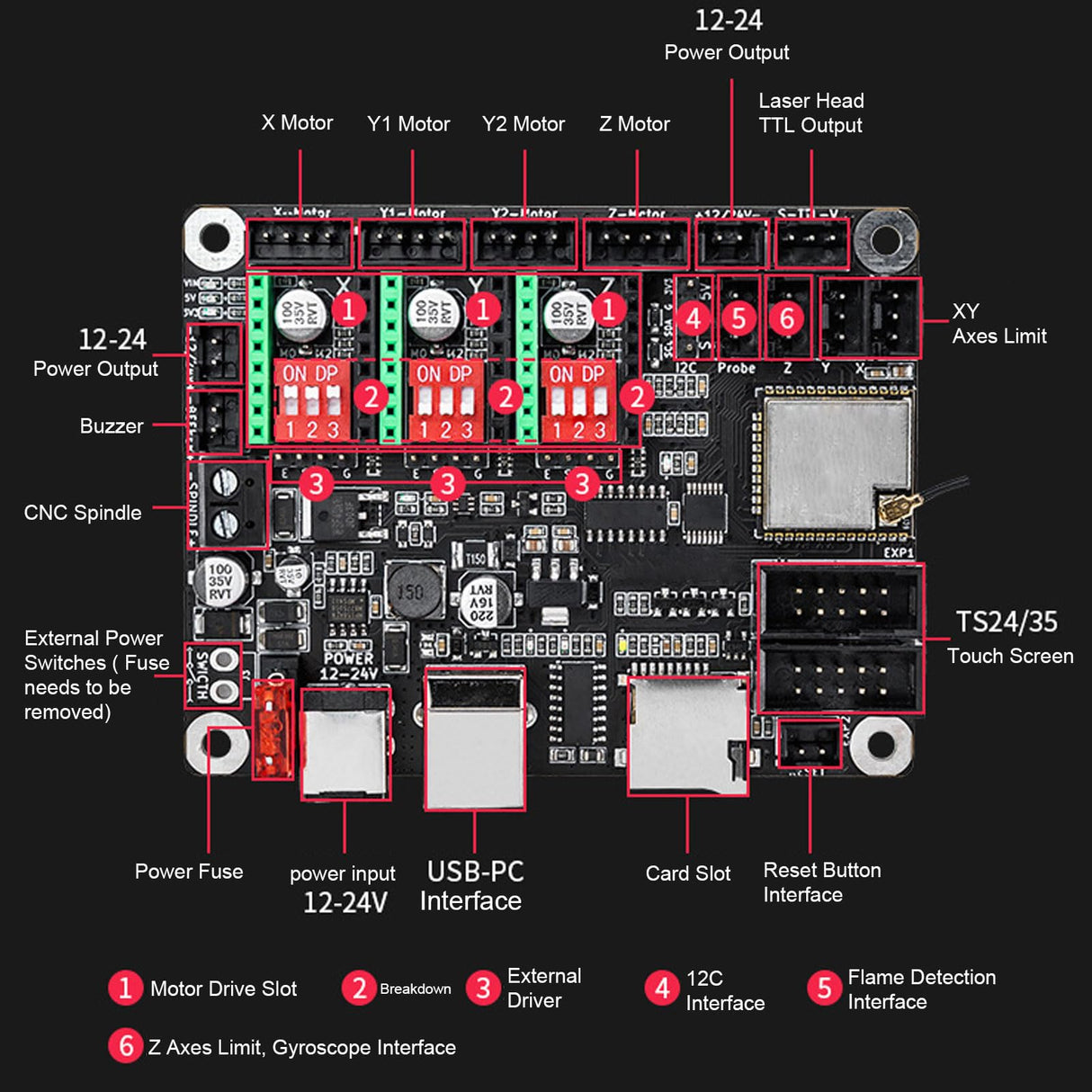

Main Board Introduction: for MKS DLC32 motherboard is a special desktop engraving machine developed for offline engraving main control board. The hardware is equipped with 32 bit high speed ESP32 module, integrated WIFI function, directly drive 2.4 or 3.5 inch touch color screen and can achieve fast engraving and web control, cell phone APP control, etc. for MKS DLC32 mounting holes and board size is compatible with for MKS DLC, and can also be used with for GRBLaser and for LightBurn PC software.
Display Parameters:
Model: TS24 R V2.1
External Size: Approx. 80 x 50mm/3.15 x 1.97in
Color Touch Screen: 2.4 Inch Touch Screen
Microprocessor: 32 Bit STM32 Processor
Update Method: SD File Update
Support Storage System: Storage Card
Support File Format: Gcode

How to Use:
According to the introduction of using.

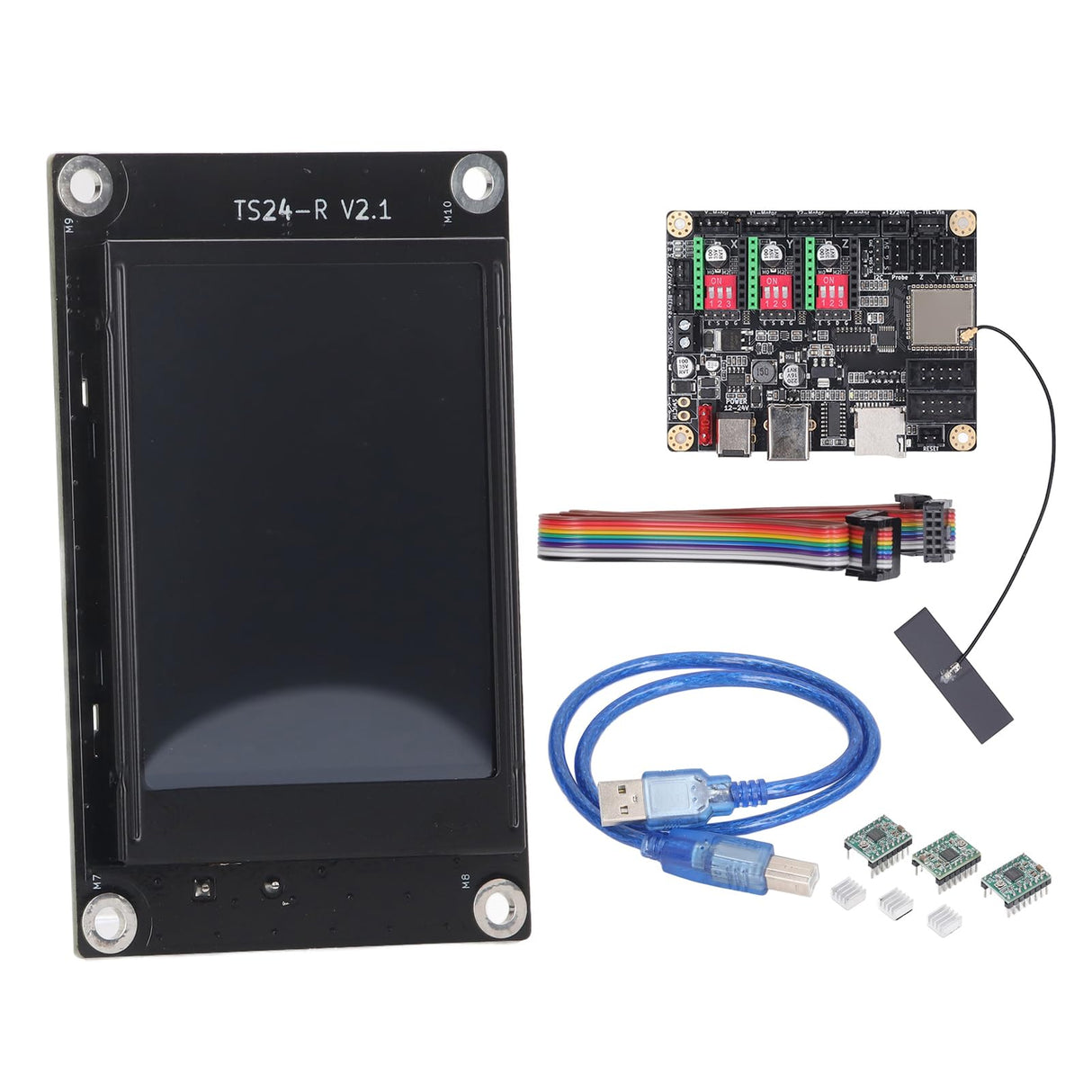

Package List:

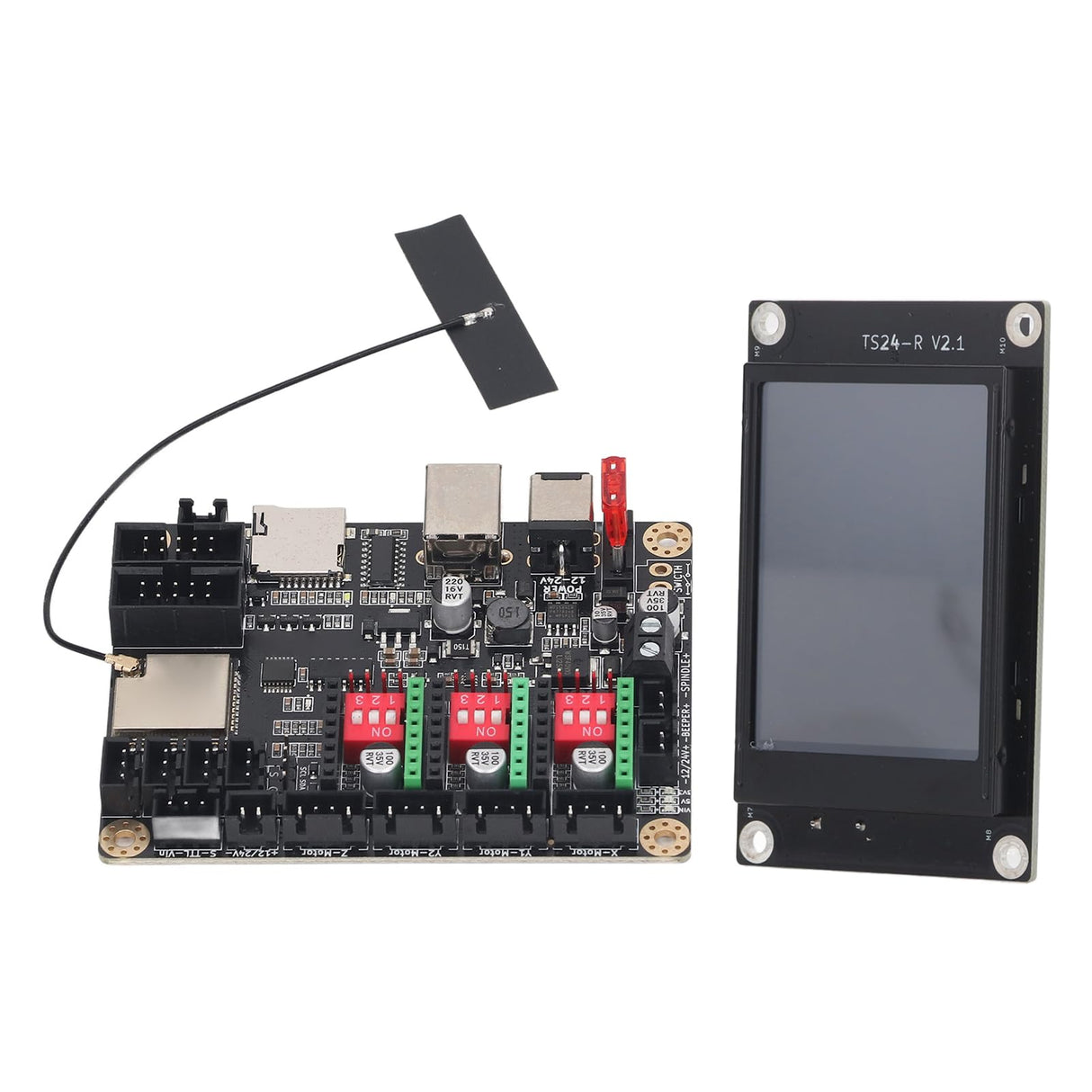

1 x for MKS DLC32 V2.1 Motherboard
1 x Blue USB Data Cable
1 x TS24 R V2.1 Display Screen
2 x 10pin 40cm Row Cable
3 x Driver
3 x Heatsink

Package Dimensions: 8.6 x 5.4 x 2.6 inches
