3D Printer Motherboard Kit Laser Engraving Machine Main Board Equipped 32 Bit STM32 Processor Mini 3D Printer Control Board Expandable WiFi Module

Brand: Walfront

Features:

• High Performance: This motherboard has high performance, and it is equipped with a 32 bit STM32 processor, support storage card storage, expandable WIFI module, power failure relay module, break material detection switches and external card slot.

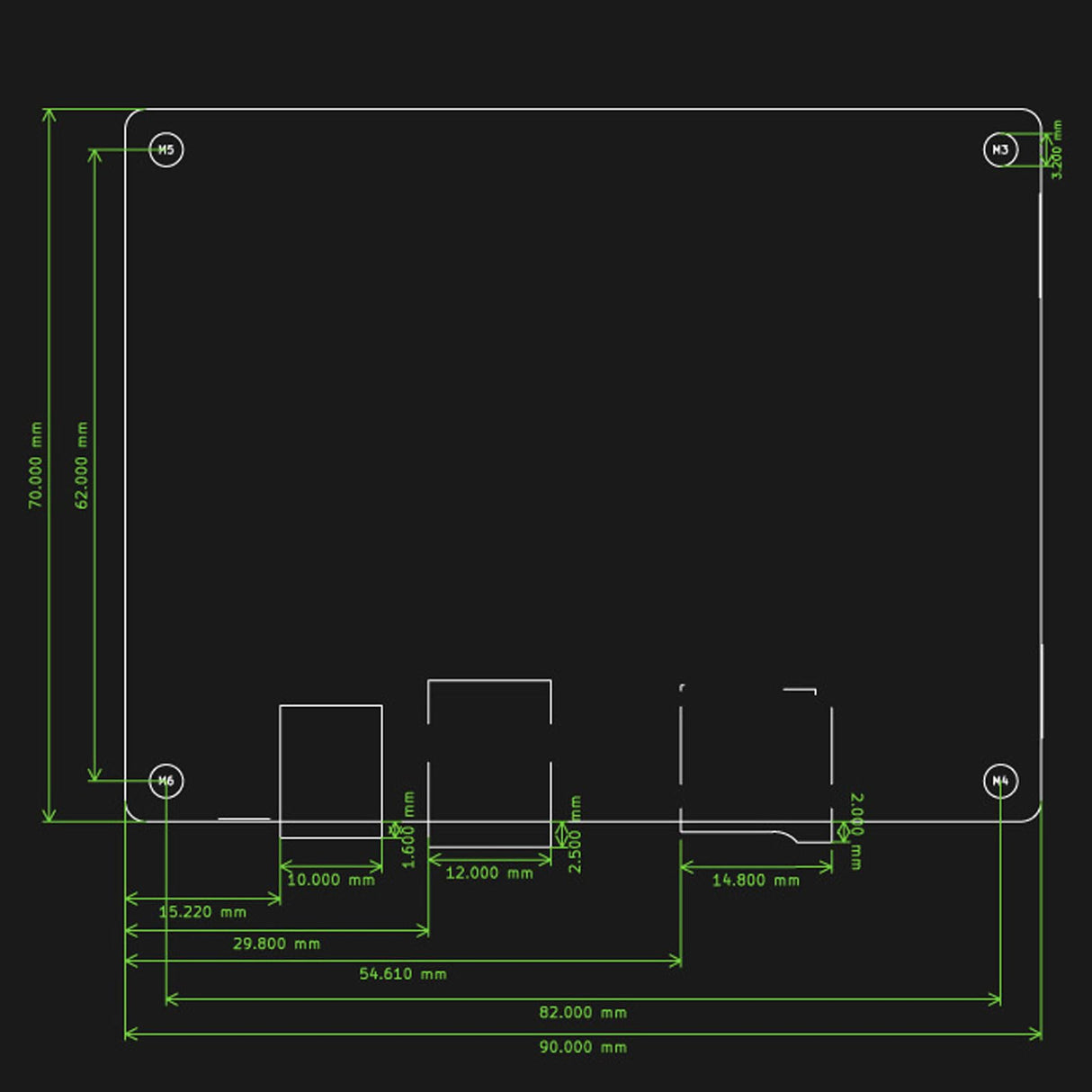

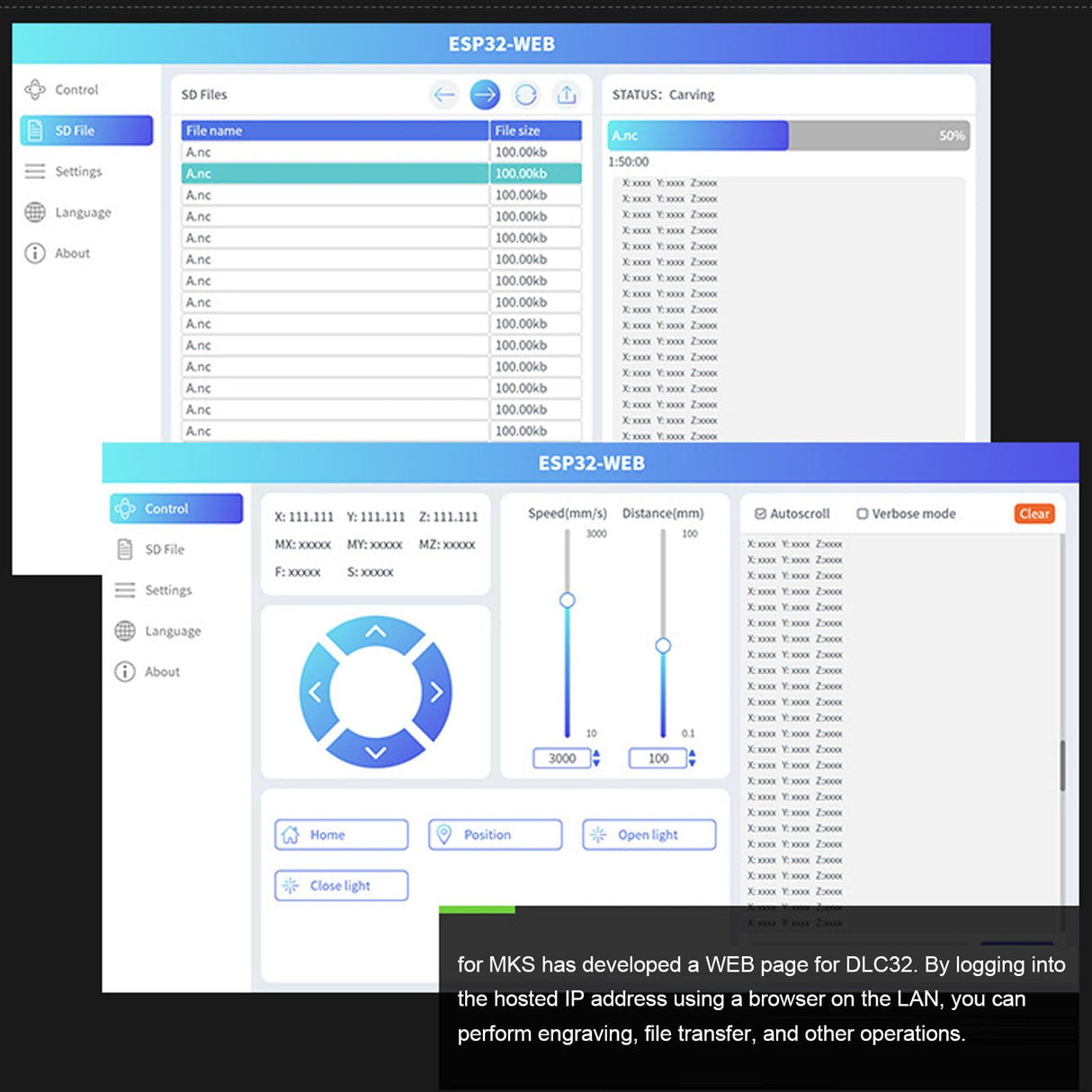

• Software Control: This motherboard allows for quick engraving and web control, mobile app control, etc. The for MKS DLC32 has mounting holes and board size compatible with the for MKS DLC and can also be used with for GRBLaser and for LightBurn PC software.

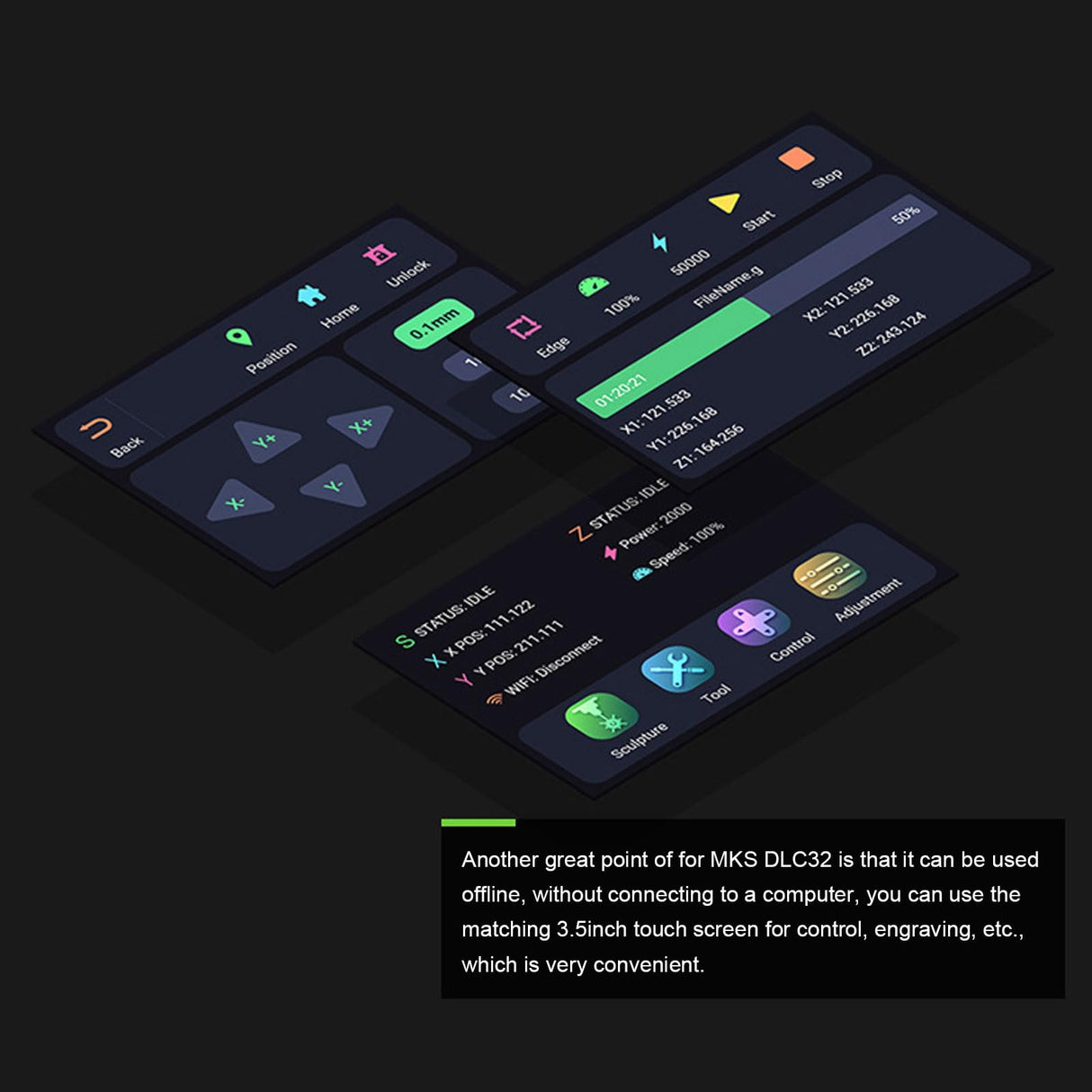

• 2.4 Inch TS24 R V2.1 Touch Screen: This touch screen provides a clear readout that simplifies the user's operation process, with a clear UI interface that intuitively presents the desired functions for easy operatio.
• High Accuracy: This 3D printer touch screen is able to work highly with the machine controller, thus providing high accuracy printing operation and printing excellent and stable products.
• Built In 8M Byte Flash Memory Chip: This 3D printer motherboard has a built in 8M byte flash memory chip to provide effective protection for more application scenarios.

model number: WALFRONTrnu6e9dg2g

Part Number: WALFRONTrnu6e9dg2g

Details: Specification:
Item Type: 3D Printer Motherboard Kit
Material: PCB

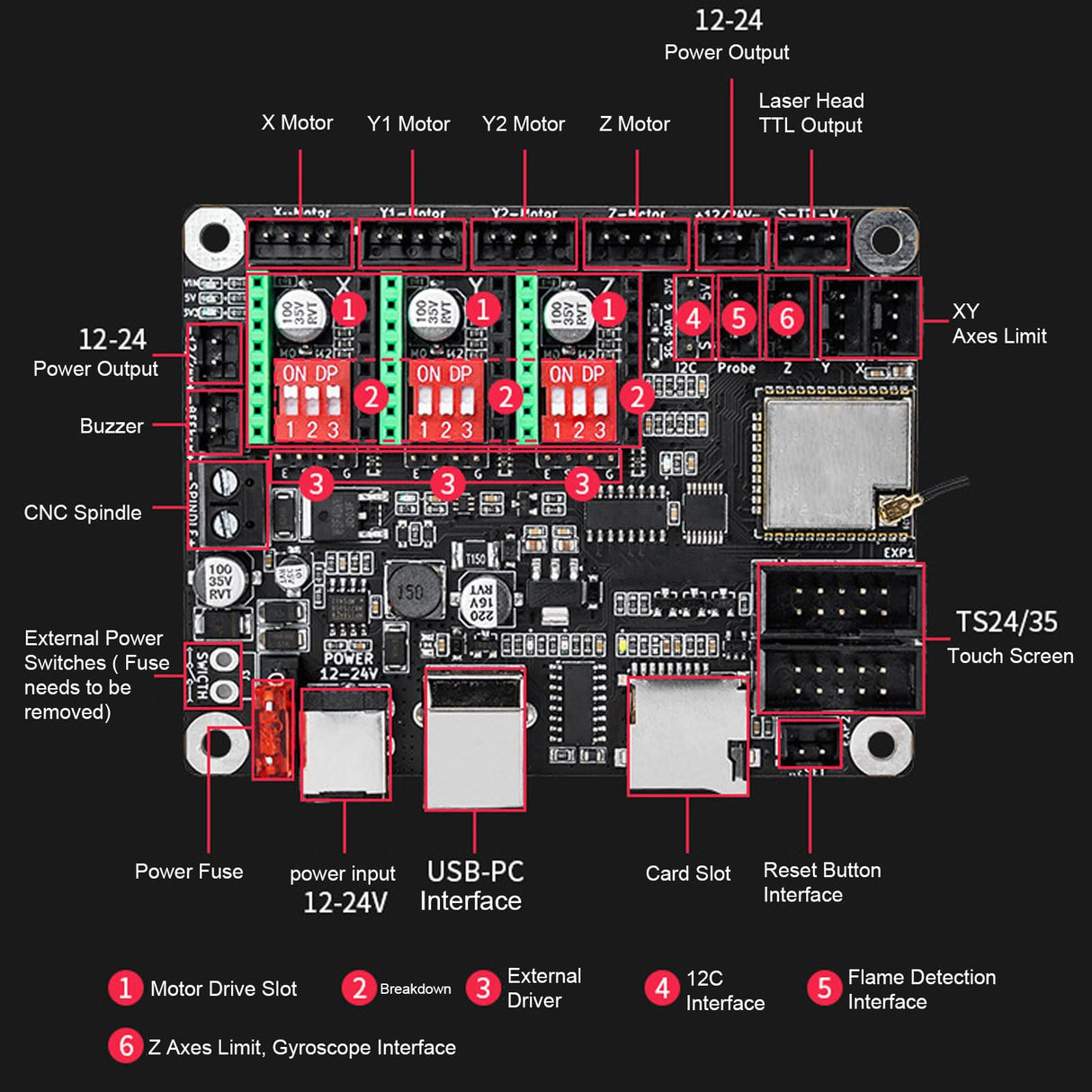

Main Board Parameters:
Model: for MKSDLC32
Voltage: 12-24V DC (<10A)

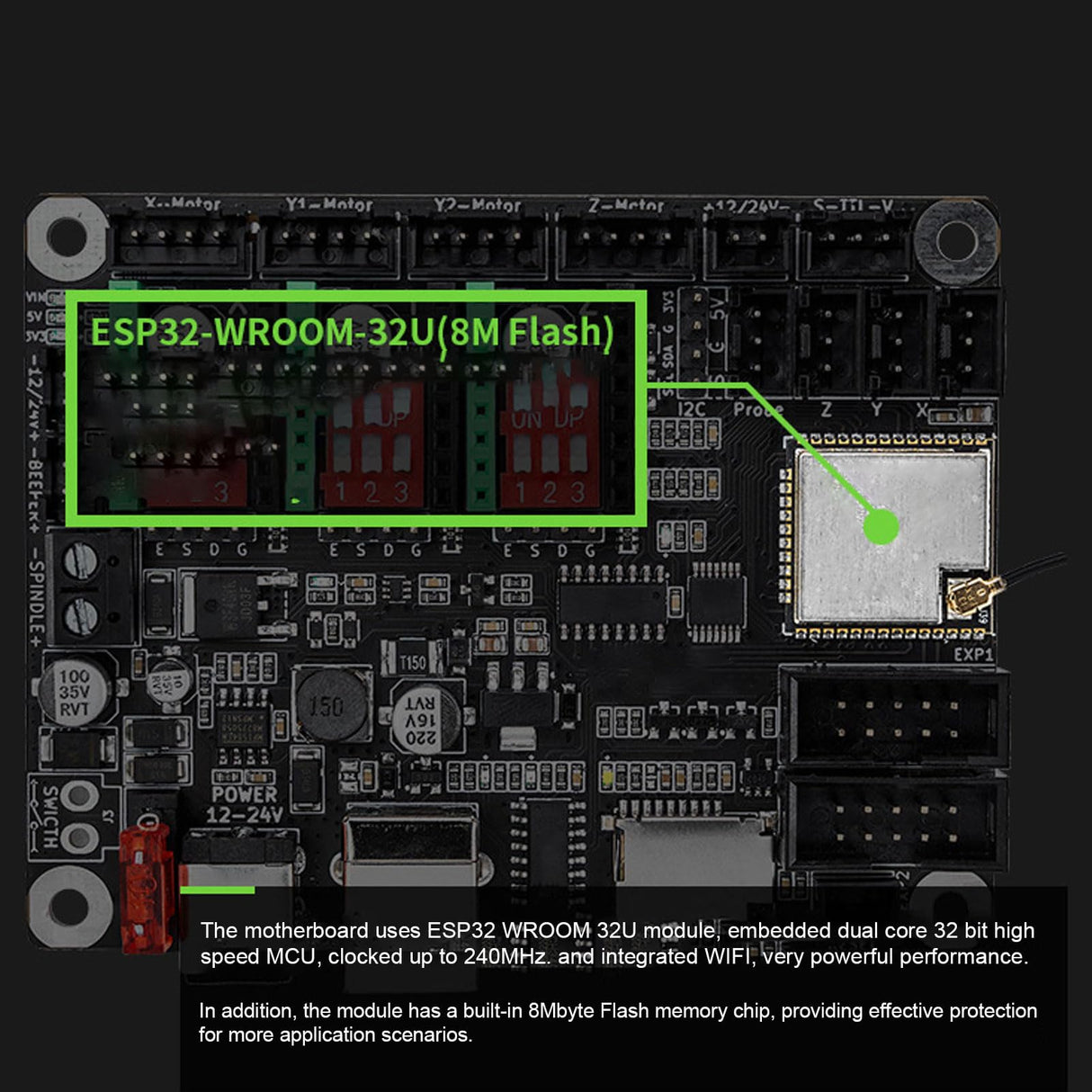

MCU: ESP32 WROOM 32U (32 Bit)
MCU Frequency: 240MHz
Flash Memory: 8192K Bytes
Memory: 520K Bytes

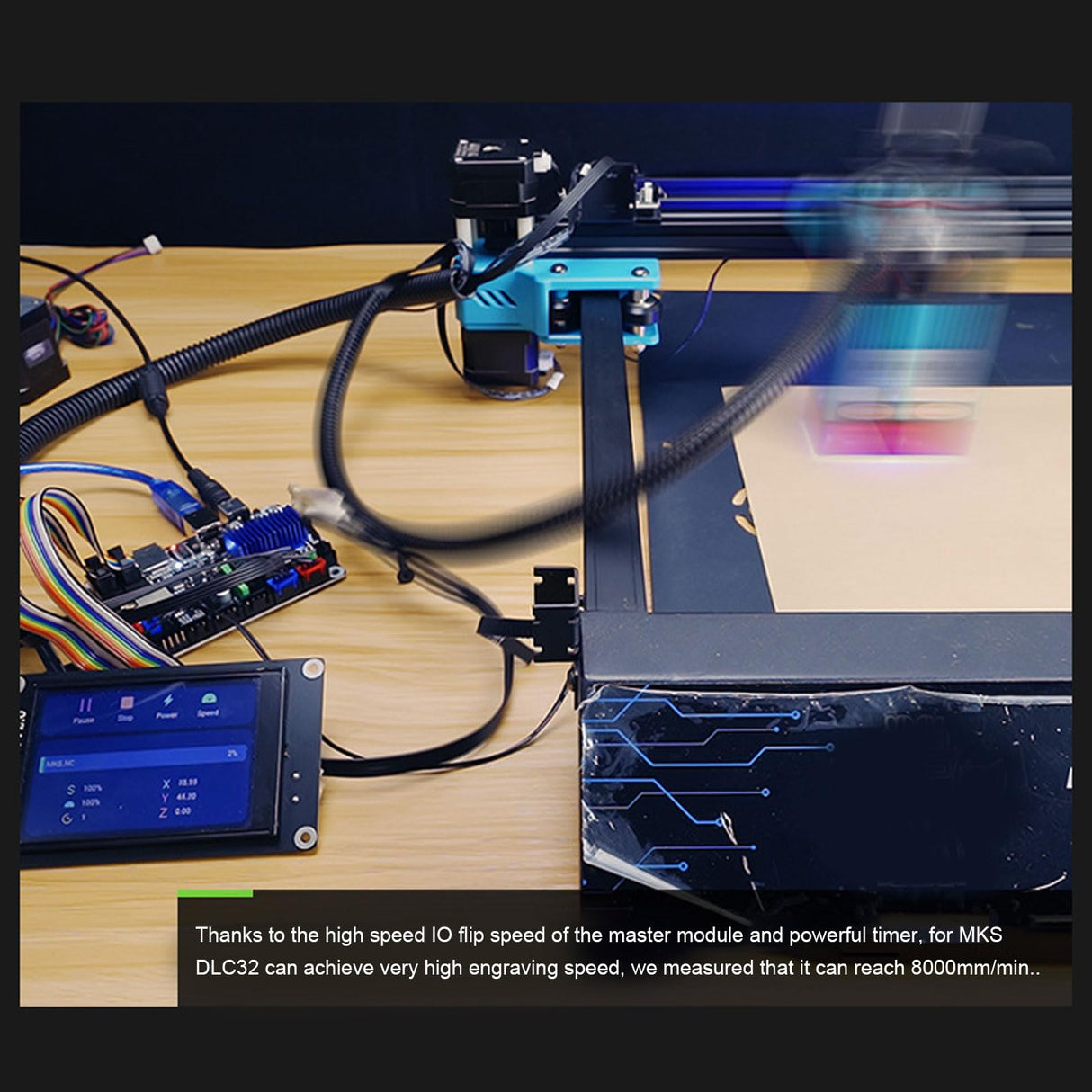

Laser Speed: ＜8000mm/min
Offline Display: for MKS TS24 R, TS35 R
Firmware: for GRBL
Serial Port Driver: USB
Axes WIFI Onboard: 4(X, Y1, Y2, Z)
Web Site: Support
APP: Support
Storage Card: Support
MKS Laser Tool: Support
Available Machine: CNC Laser Engraving Machine

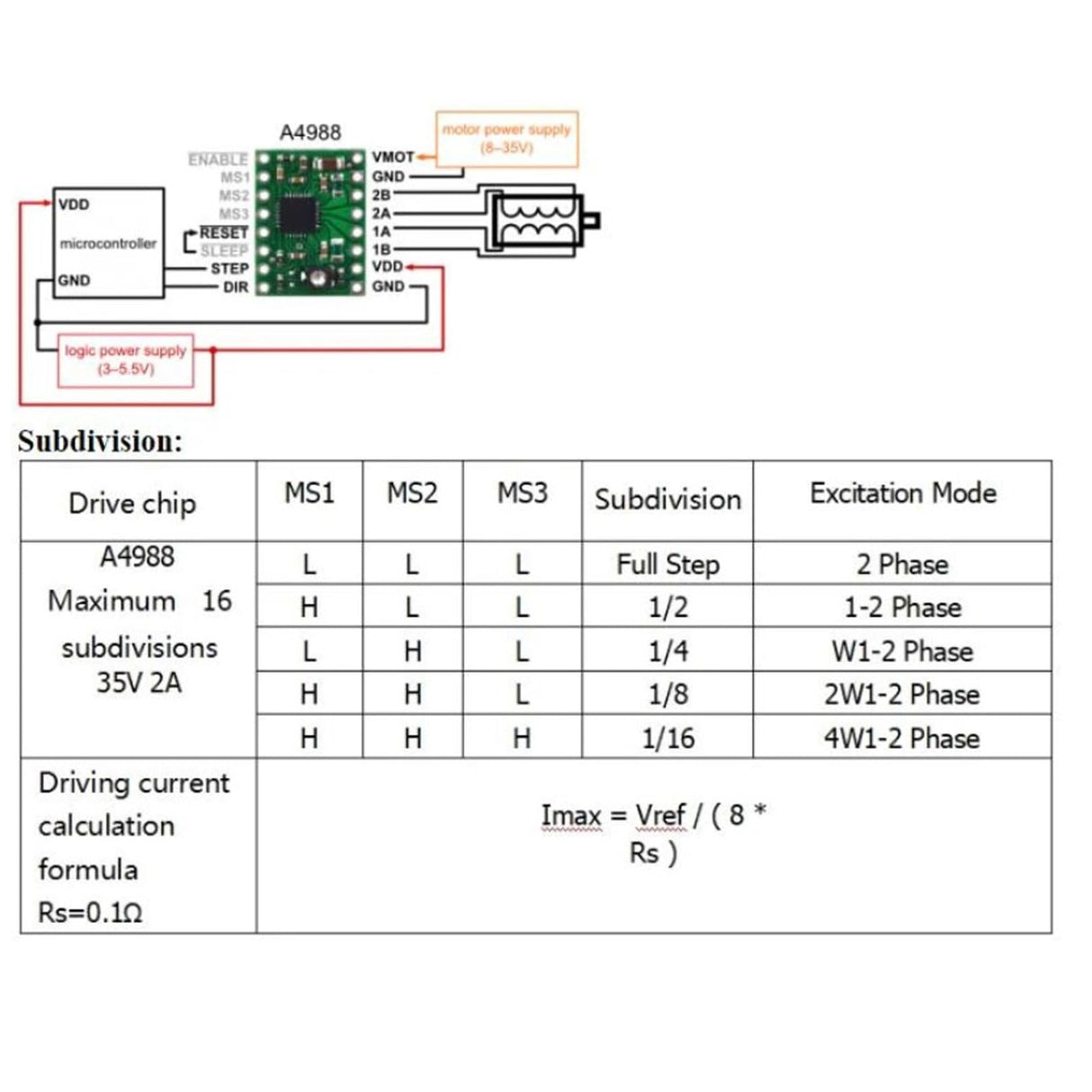

Stepper Driver: A4988, DRV8825, TMC2208, 2209, 2225(for Nema17 Motor)
Additional Driver: TB6600, TMC2160(for Nema23 motor)
Laser: Less Than 20W (>20W, External Power Supply)
Compatible Software: for LaserGrbl, for Xloader, for GrblController, for Benbox, for MDraw, for LightBurn

Display Parameters:
Model: TS24 R V2.1
External Size: Approx. 80 x 50mm/3.15 x 1.97in
Color Touch Screen: 2.4 Inch Touch Screen
Microprocessor: 32 Bit STM32 Processor
Update Method: SD File Update
Support Storage System: Storage Card
Support File Format: Gcode
Expandable Modules: WIFI Module, Power Failure Relay Module, Material Break Detection Switches, External Card Slot.

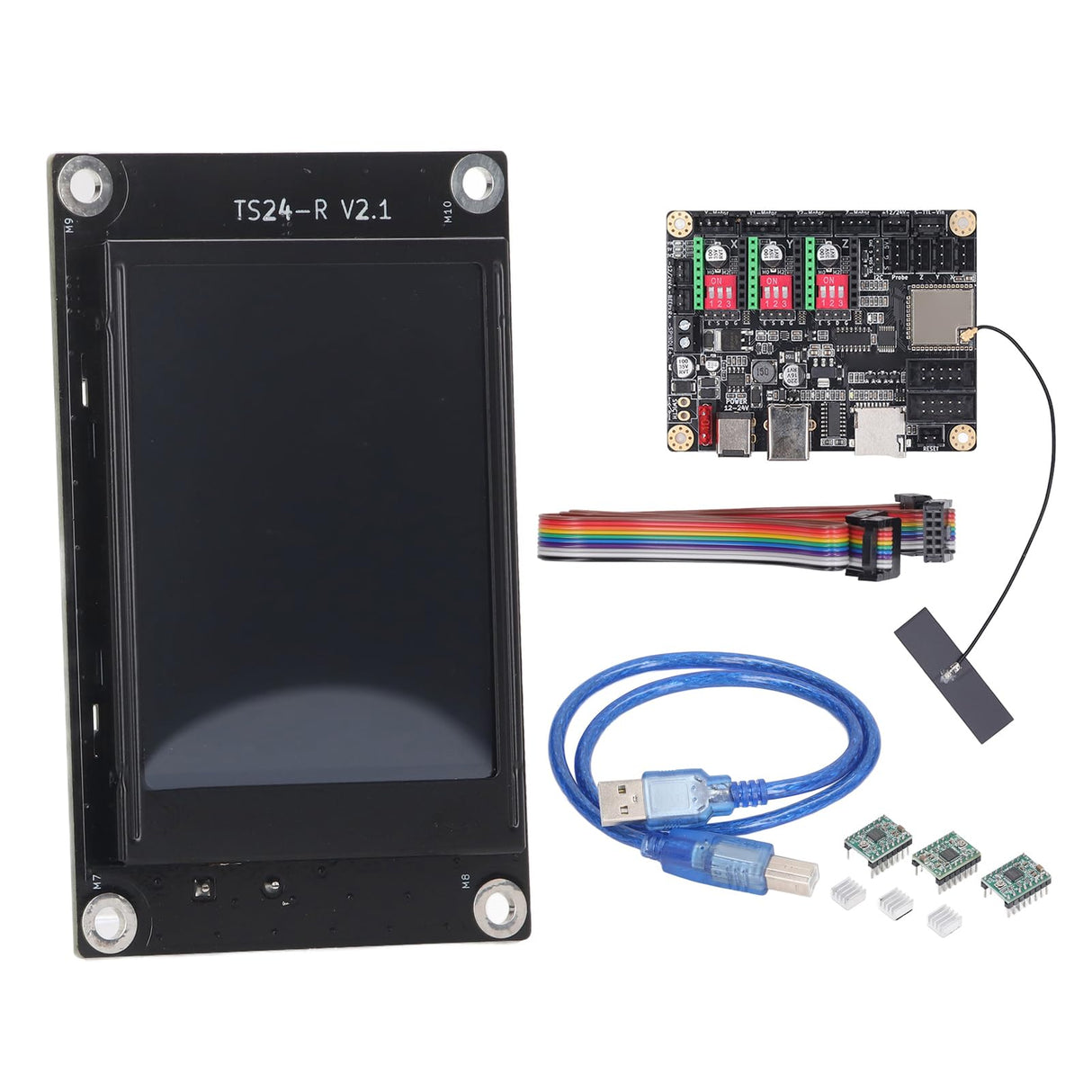

Package List:

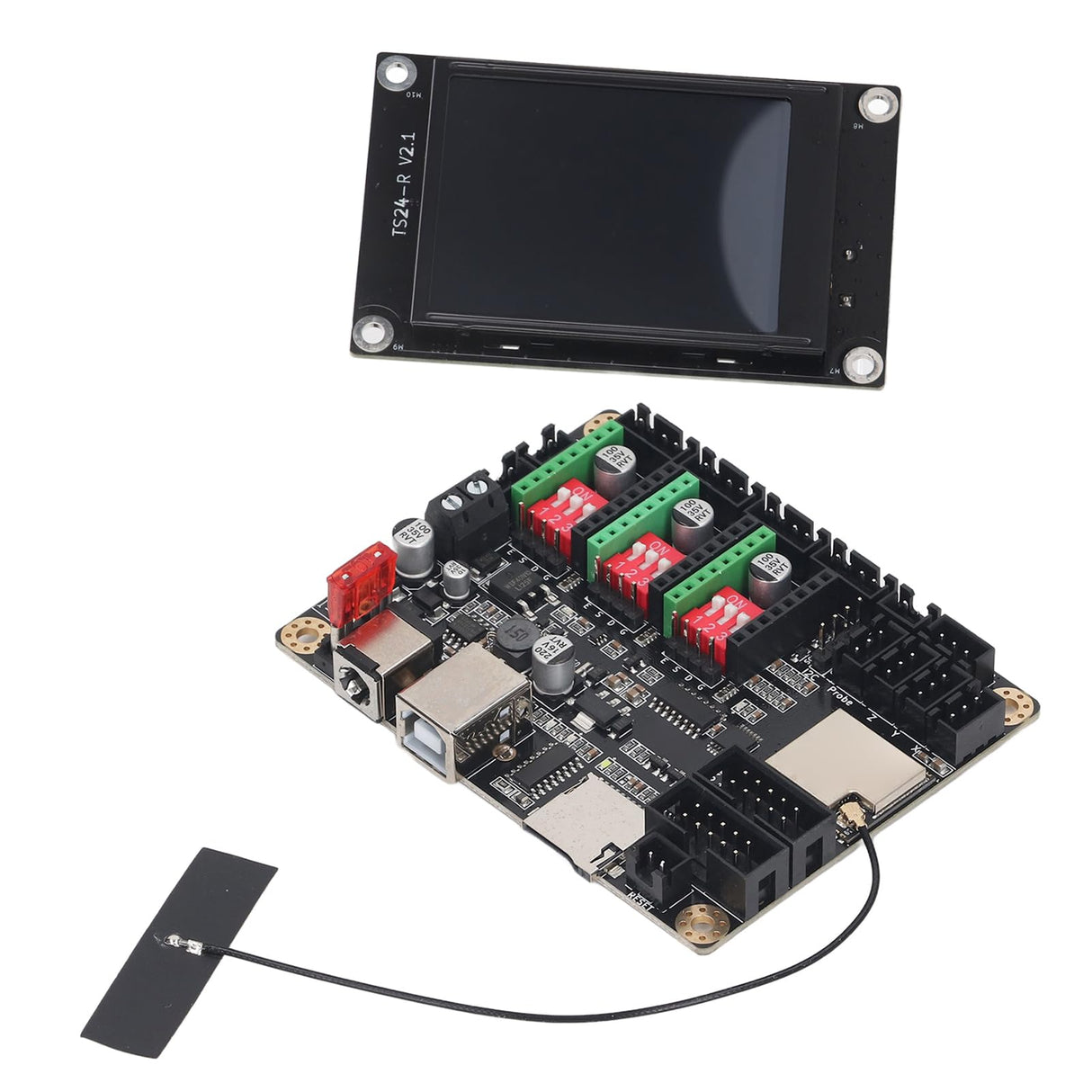

1 x for MKS DLC32 V2.1 Motherboard
1 x Blue USB Data Cable
1 x TS24 R V2.1 Display Screen
2 x 10pin 40cm Row Cable
3 x Driver
3 x Heatsink

Package Dimensions: 5.5 x 4.7 x 2.8 inches
