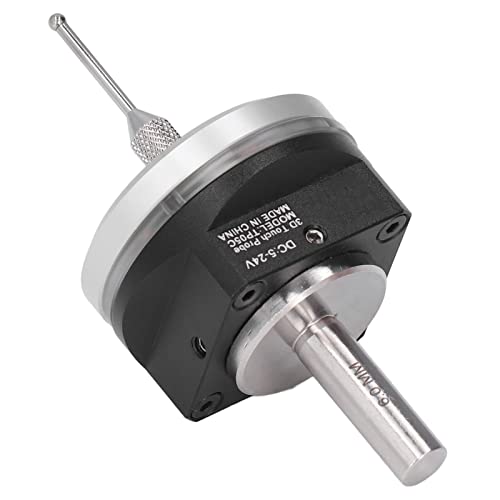

3D Touch Probe CNC Touch Probe 3D xyz axis cnctouchprobe z Digital 24v Edge and Center Finder tip Calibration Finder Tool Router grbl h3 Voltage

Brand: Tbest

Features:

• LIGHT DISPLAY: With light prompt, the green light is displayed after power on, and the red light is displayed after the trigger, intuitive and clear.
• GOOD DURABILITY: The 3D edge finder adopts multiple waterproof and dustproof design, which can maximize the service life of the probe.
• Make sure this fits by entering your model number.
• GOOD DURABILITY: The 3D edge finder adopts multiple waterproof and dustproof design, which can maximize the service life of the probe.
• MULTIPLE FUNCTION: With fast edge finding, circle center finding and table shape measurement functions, solve the trouble of clam workpiece positioning.

model number: Tbestg42o60y3m8

Part Number: Tbestg42o60y3m8

Details: 1. GOOD DURABILITY: The 3D edge finder adopts multiple waterproof and dustproof design, which can maximize the service life of the probe.
2. LIGHT DISPLAY: With signal light prompt, the green light is displayed after power on, and the red light is displayed after the trigger, intuitive and clear.
3. MULTIPLE FUNCTION: With fast edge finding, circle center finding and table shape measurement functions, solve the trouble of clamping workpiece positioning.

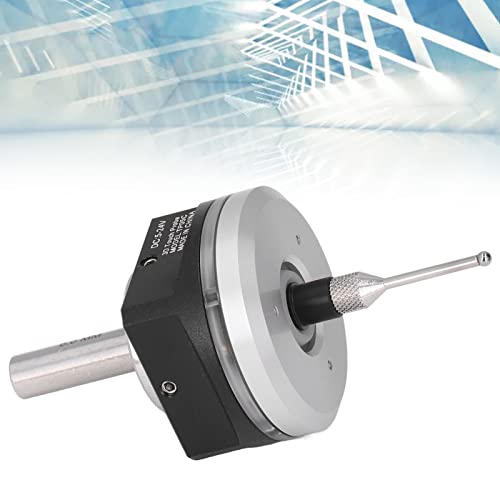

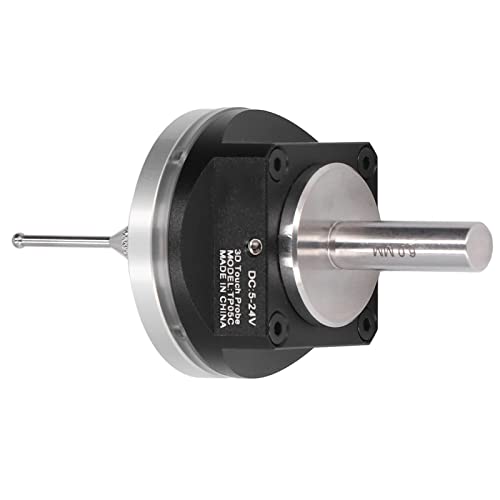

4. EXCELLENT MATERIAL: The housing is made of anodized aluminum alloy, with flat anti roll design, and has stainless steel needle and tungsten steel ball head.

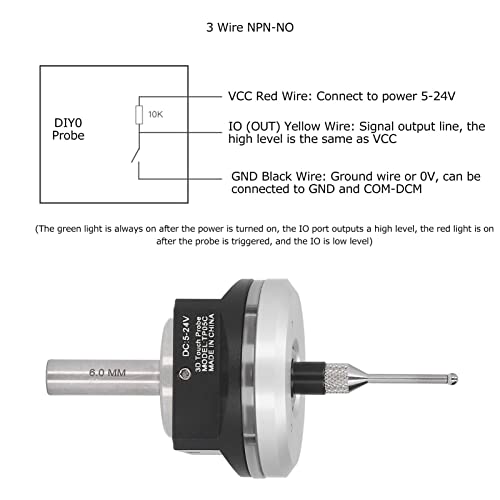

5. FOR CNC TOOLS: Compatible for Mach3, for GRBL CNC equipment, support XYZ coordinate stroke, simple in wiring, has strong practicability.

Spec:
Item Type: 3D Edge Finder
Material: Stainless Steel, Tungsten Steel, Aluminum Alloy
Product Model: V6 Version TP06
Stylus Direction: ±X, ±Y, +Z
Unidirectional Repeatability: Stylus Stroke Protection Distance:
XY Plane: Approx. ±4mm / 0.16in
Z Direction: Approx. 2mm / 0.08in
Trigger Life: >3 million times
Power Supply: 5~24V DC
Cable Length: Approx. 2 meter / 6.6ft

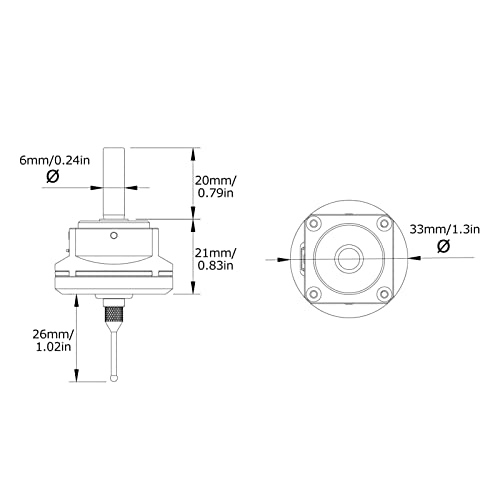

Edge Finder Shank Diameter: Approx. 6mm / 0.24in

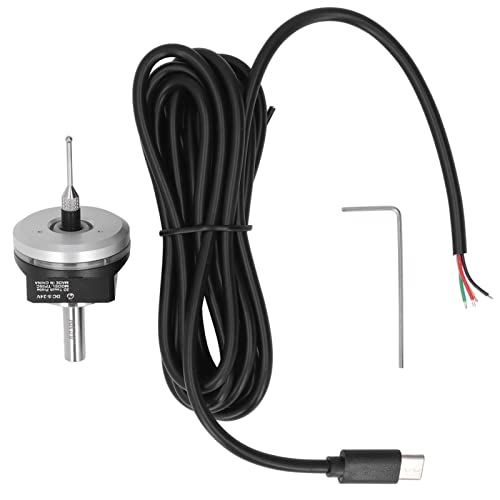

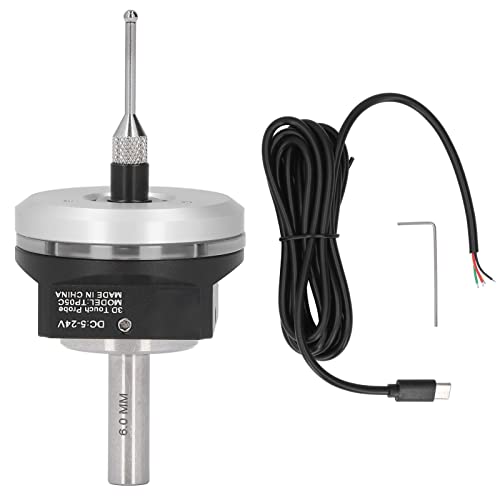

packing list:
1 x 3D Edge Finder
1 x Wrench

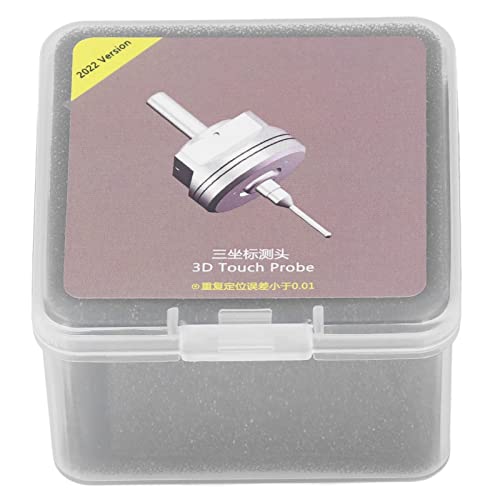

1 x Storage Box
1 x Cable

Notice:
Please do not open the spindle speed during measurement. In order to ensure the accuracy of the measurement, be sure to use a chuck of AAA level or above, and pay attention to water and moisture when using and storing the probe.

Package Dimensions: 5.9 x 3.9 x 3.5 inches
