3DMAN 3D Touch Auto Bed Leveling Sensor for Ender 3 V2, Ender 3 Pro, Ender 3 Series, Ender 5 Pro, Ender 5 Plus, CR10 Series and Other 3D Printers
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: 3Dman
Color: 3D Touch
Features:
- The 3D Touch auto leveling sensor is a device that uses the Hall defect to achieve leveling .The position of the point can be obtained by touching the point on the heated bed ,and then compensated by adjusting the Z-AXIS height during printing ,Printing can also be achieved even though the platform is not flat .
- Features simple, smart and precise. It could work with nearly any kind of bed materials, such as glasses, woods, metals and so on. The position of the point can be obtained by touching the point on the heated bed, and then compensated by adjusting the z-axis height during printing.
- The main functions and controls of 3D touch are the same as most auto bed leveling sensors, which consists of a RC servo and a micro switch,thus,3D printer touch can be used on almost every 3D printer control board.
- NOTE: Pulling/pushing hardly on the push-pin may damage Touch sensor and make it less accurate. Any problem when you receive the order, CONTACT US FIRST please!
- By using progressively designed solenoid and hall sensor, it can integrate high precision in such a simple structure.To make it more user-friendly and to bring you more enjoyable printing experience.

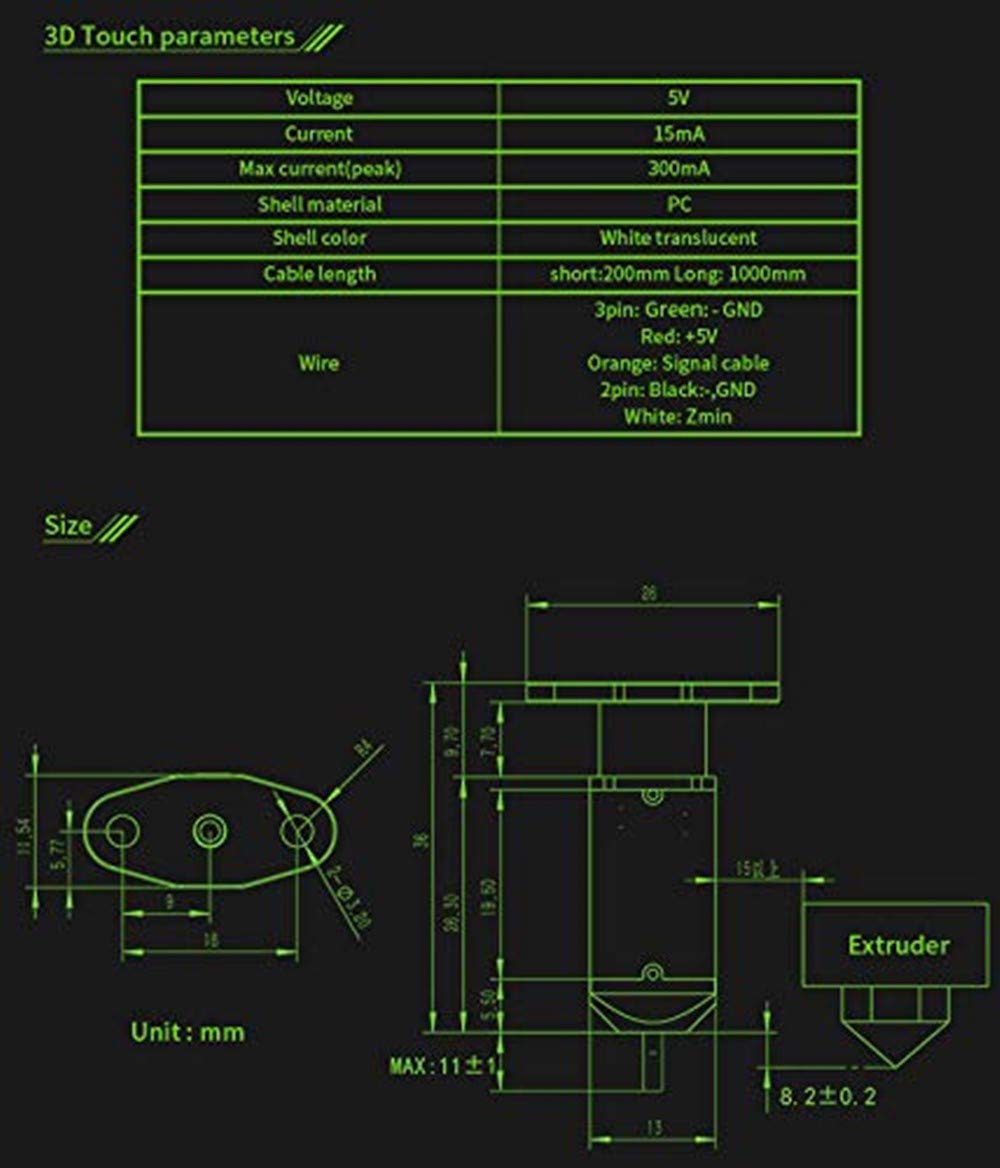

Details: Specifications:
Current:15mA
Max current (peak): 300mA
Voltage: 5V
Shell material: PC
Shell color: White translucent
Cable length : Short: 200mm Long: 1000mm

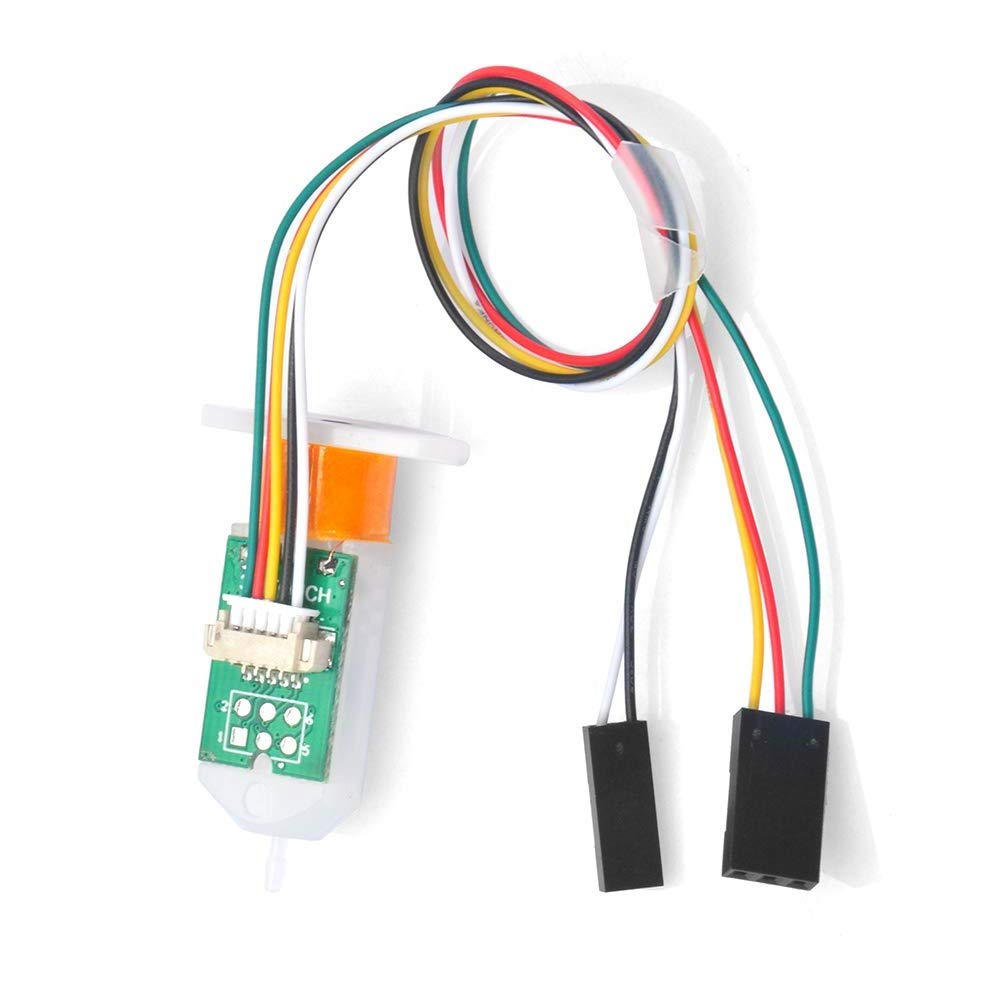

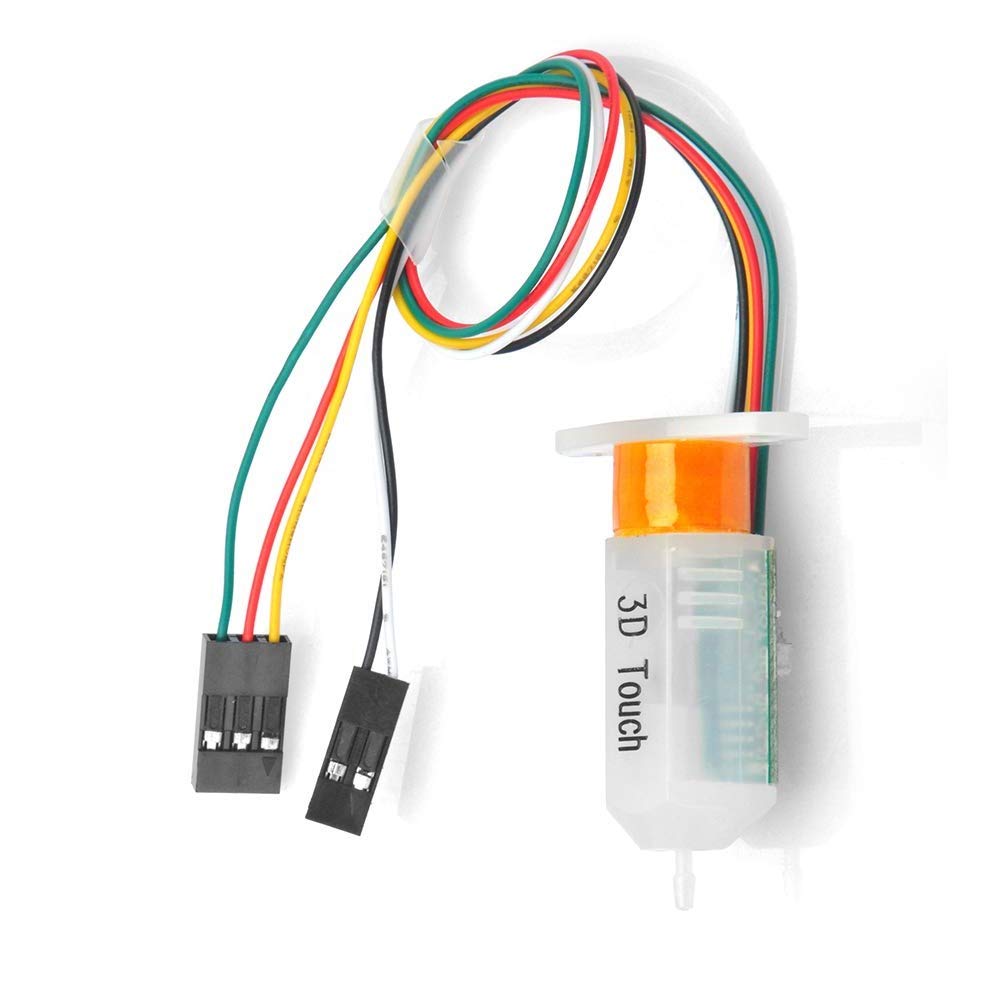

Wire:
3pin: Green :-GND RED:+5V Orange: Signal cable
2pin: Black:-GND White :Z min

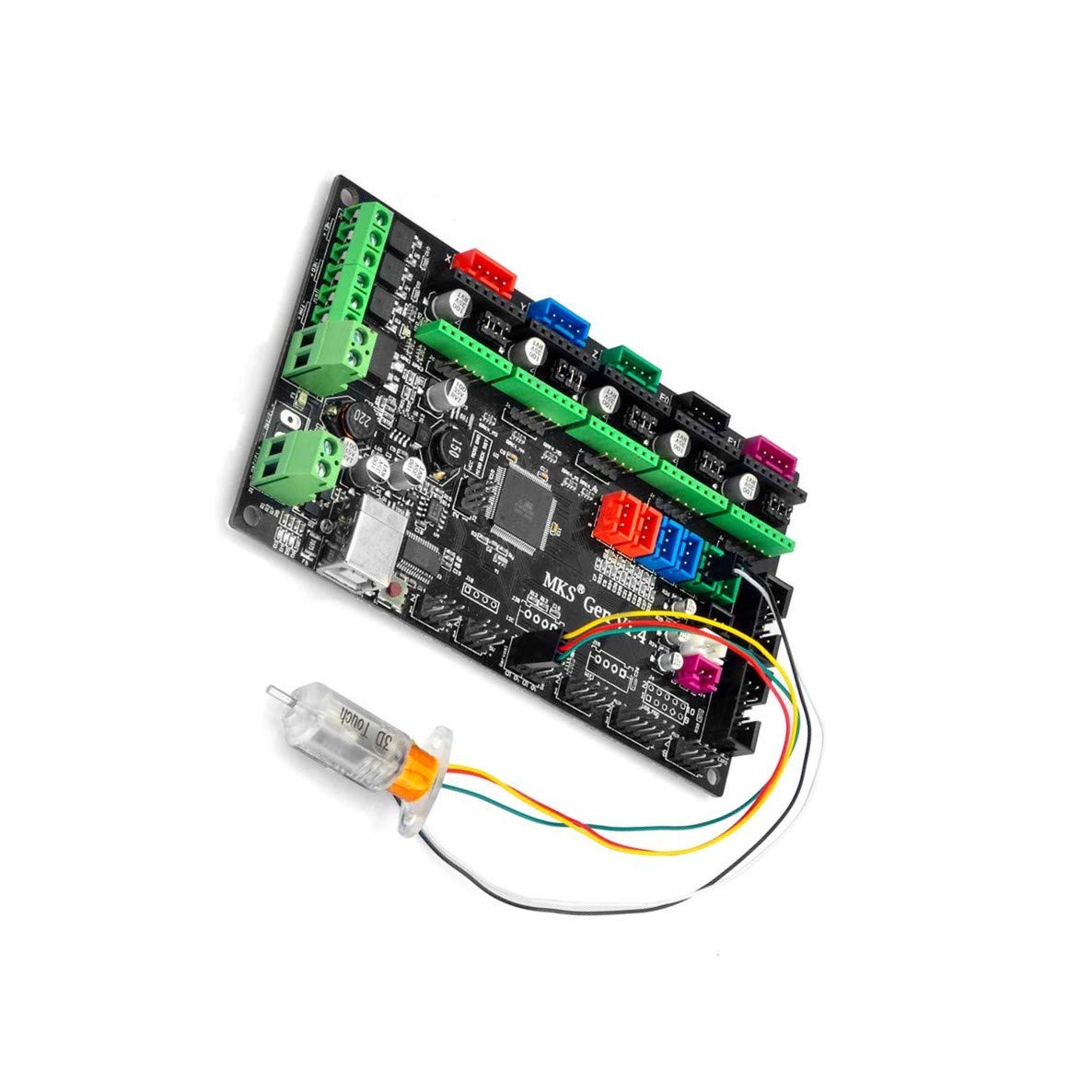

Work with LCD12864 and MKS Robin SGen_L Gen_L:
https://youtu.be/r2A0b7XQEaI
Work with MKS TFT35 and Robin SGen_L Gen_L:
https://www.youtube.com/watch?v=CB1x841_WYo
Replacement needle:
https://www.aliexpress.com/item/4000842314046.html
Used on CR-10 / Ender-3 3D printer:
https://www.aliexpress.com/item/4001211961989.html
Instructions
1.After receiving the module, do not install the module to the printer. First connect the signal wires of the module to the motherboard one by one.
After power on, there will be a needle suction and push needle action, which is normal.
2.When the main board and the module are powered on, do not plug and unplug the cables casually.
Please be sure to connect when the power is off.
3.After the firmware setting is completed, it is still uncertain whether the setting is correct. You can manually trigger the module in advance
to check whether the machine is operating normally. If it is abnormal, please stop it in time and recheck the firmware settings.
Prevent the probe from hitting the platform, causing damage to the module.
4.Due to there are too many motherboard manufacturers and models, advise customers to consult the motherboard manufacturer for specific settings.
To prevent incorrect settings due to different motherboards.

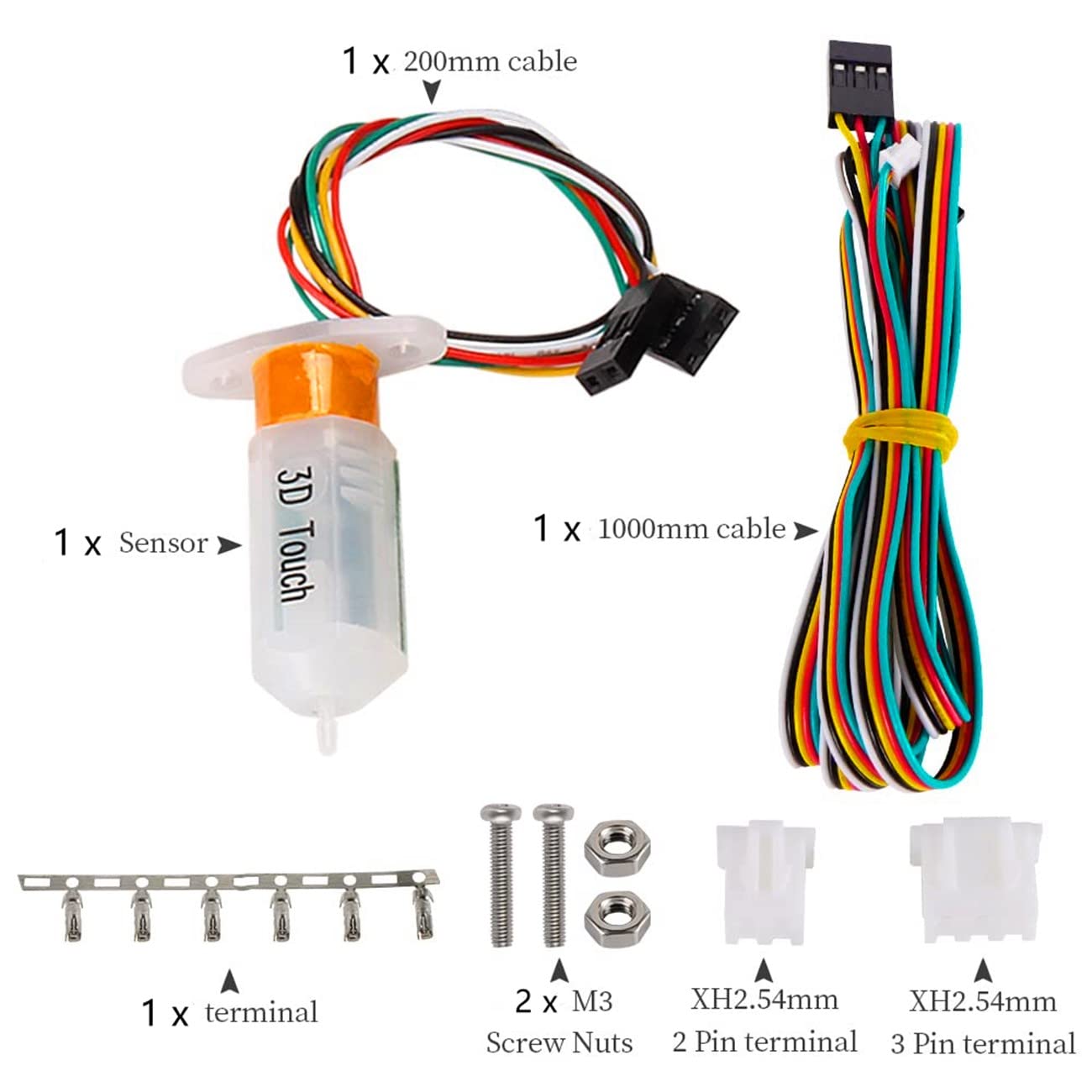

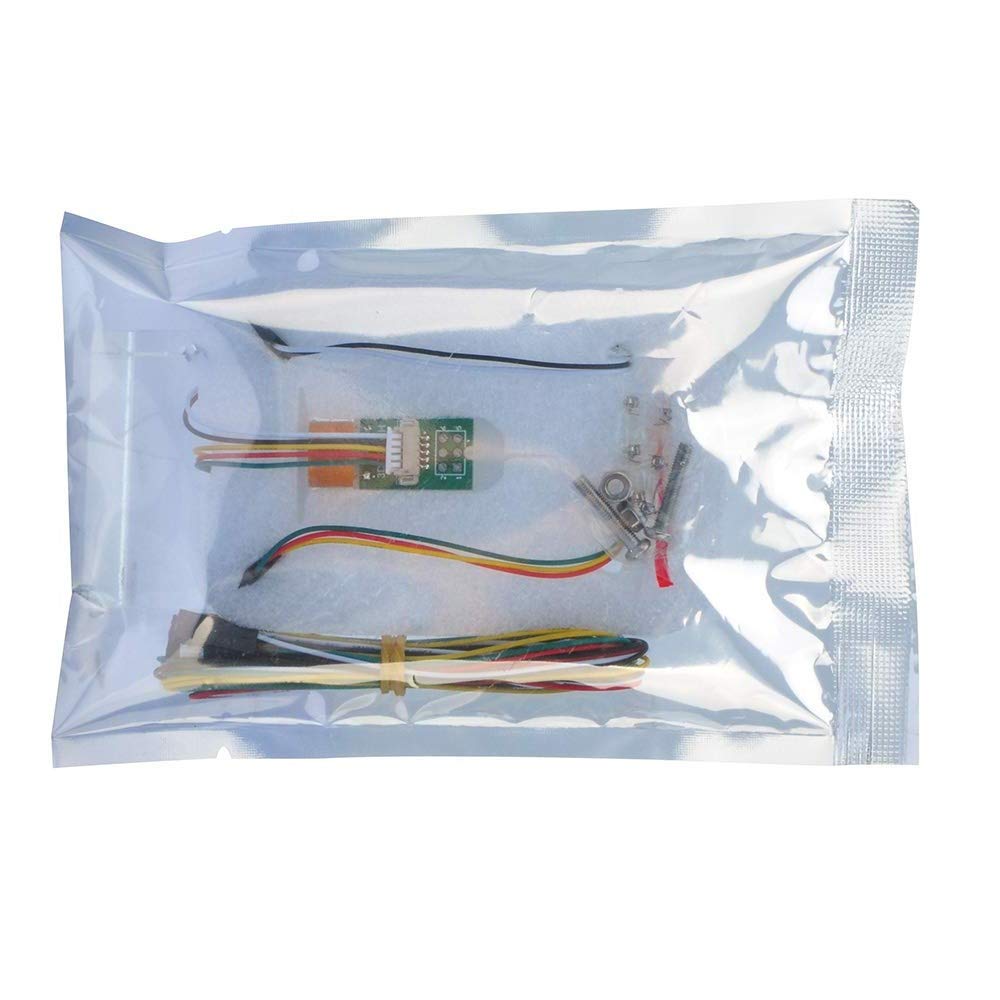

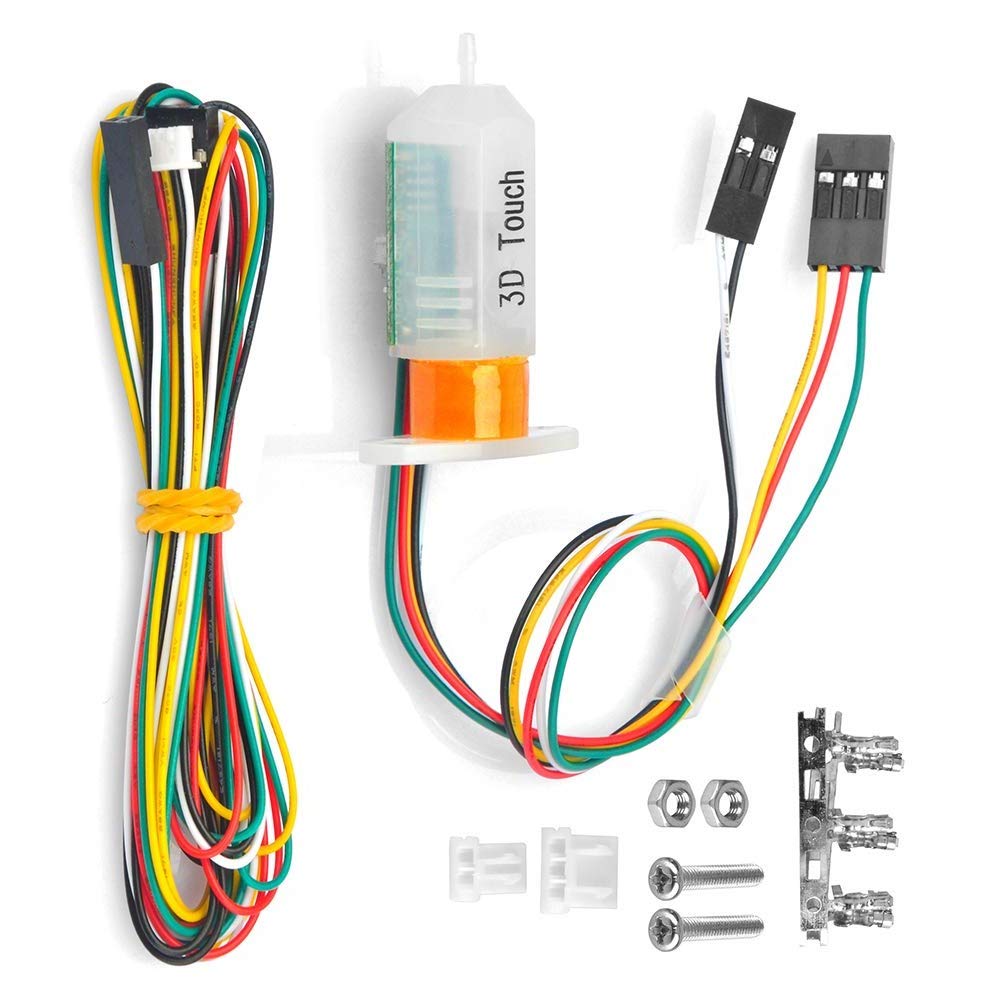

Package Included:
3D Touch Auto Leveling Sensor × 1
EAN: 0791738580352
Part Number: 3Dtouch-2.0
