Description
Description
Brand: Nother
Color: Polar Oxygen Silver
Features:
- Our company is a laser module manufacturer with actual power, actual wattage, high technical content and stable qualityOur company is a laser module manufacturer with actual power, actual wattage, high technical content and stable quality
- The 40W laser module is powerful, the engraving speed is 6-7 times faster than the traditional laser module, and the engraving effect of stainless steel is better.
- The laser engraving accuracy is 3-4 times higher than the traditional laser module, faster and finer conversion, more refined and precise.

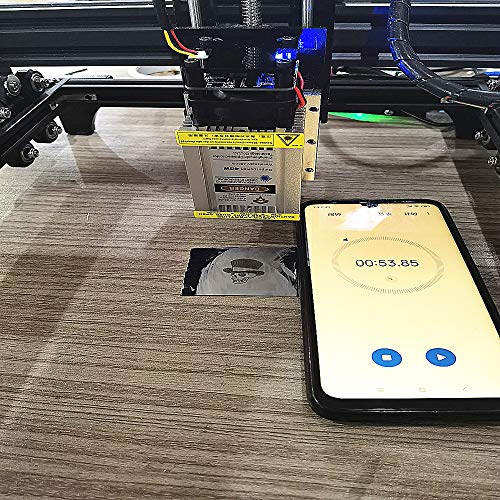

- 15W stainless steel engraving depth 60% / 40W stainless steel engraving depth 10%, engraving speed 3000mm per minuteKey Product Features
- It can engrave oxidized metal and cut 4mm plywood. This laser module is produced by high-tech laser production equipment
Binding: Office Product
Part Number: 40Wyh33
Details: 40W technical parameters Laser light source: semiconductor blue light

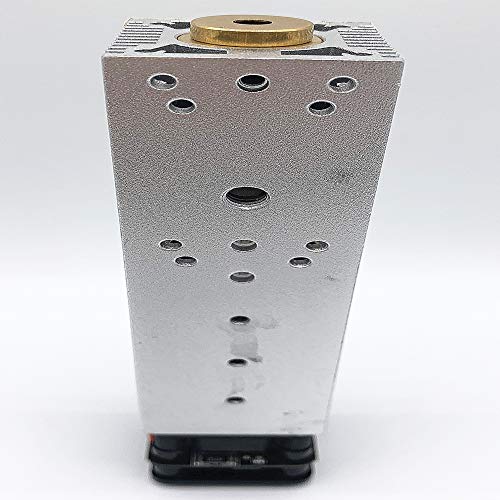

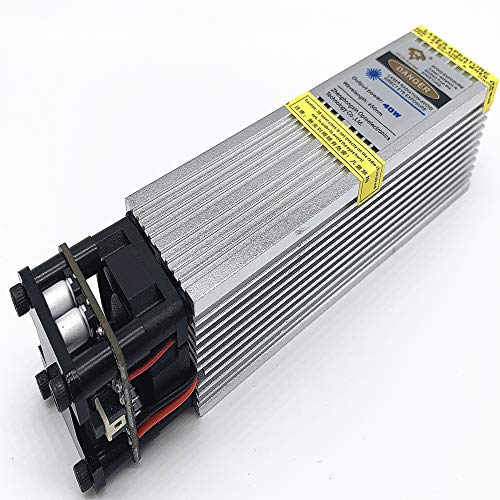

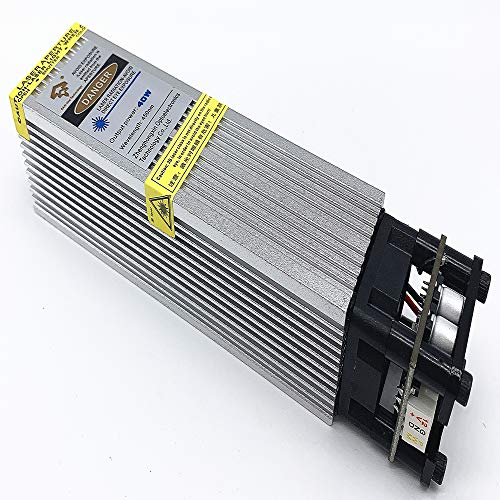

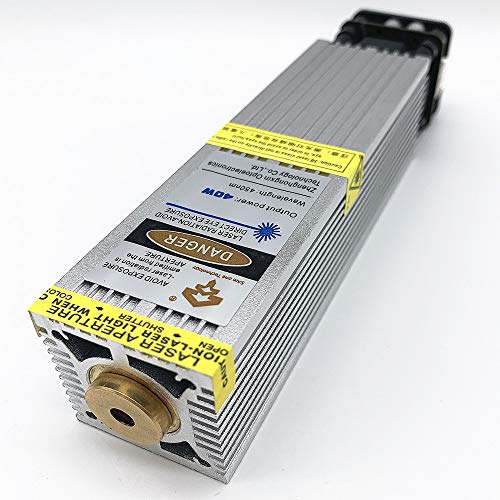

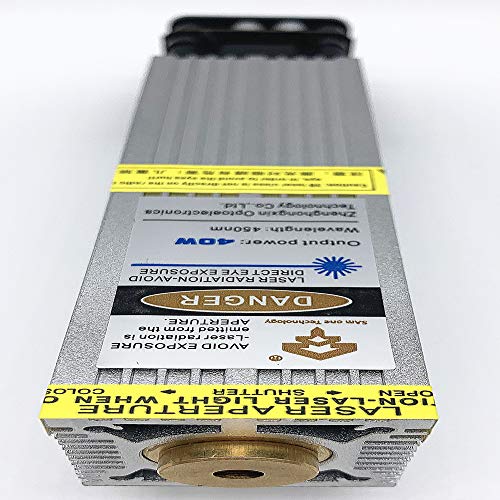

Shell material: aviation aluminum
Color: polar oxygen silver
Module center material: copper
Shell size: 33✖️ 33✖️ 120mm (This size is the same size as 33✖️ 33✖️ 70mm)

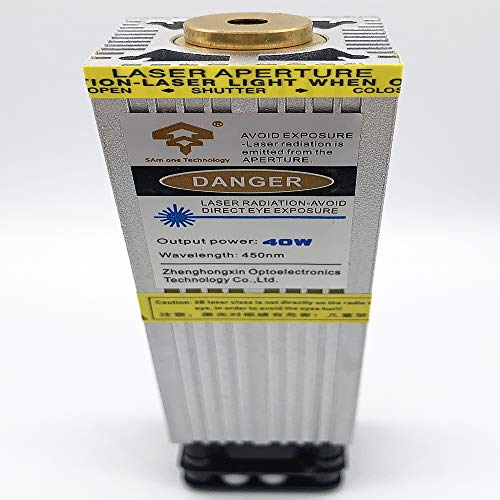

Optical power output: 40W
Focus power: 25W
Laser wavelength: 450nm
Supply voltage: 12V
Power control: PWM/TTL (signal control voltage 0-5V)
Supply current: 4A
Interface specifications: 3pin 2.54 /4pin 2.54
Light shape: point-shaped fixed focus (the best focal length of the laser is 20mm according to the fixed focus column equipped)

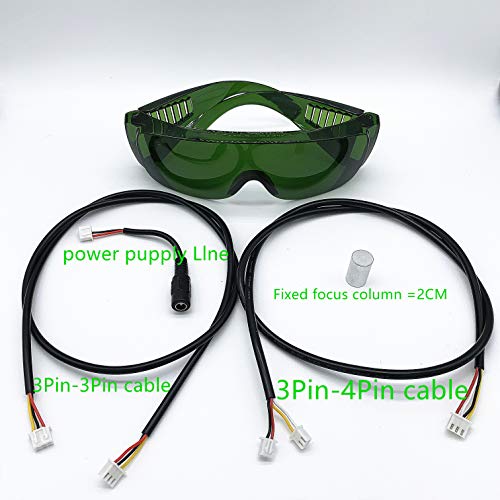

The list includes: 4P line*1, 3P line*1, short line DC*1, focal length column*1, glasses*1, laser module*1. (The color of the glasses is delivered randomly)
The life span is 16800 hours. (If the smoke is blurred, please add a fan when engraving or cutting)

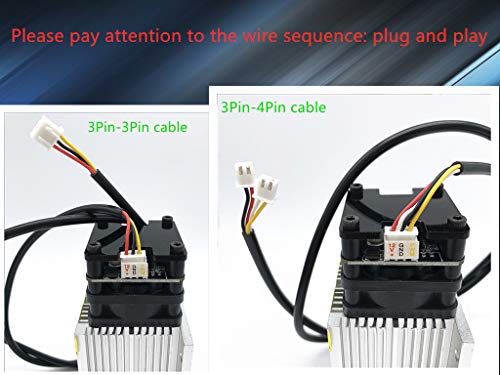

Buyers read: Please pay attention to the sequence of wires: 3P wire link mode, red wire 12v+, black wire GND -, yellow wire pwm+, if you need to replace, please check carefully
Buyers read: Please pay attention to the sequence of wires: 4P wire link mode, red wire 12V+, black wire 12V-, yellow wire TTL+, white wire TTL- please check carefully
Note: For industrial use only, eye contact is forbidden, children are forbidden to come into contact with this laser product, at your own risk.
Not engravable: copper raw materials, aluminum raw materials, steel raw materials,
Cutting materials: cutting plywood, cutting black acrylic board, leather, paper, etc.
Cutting just proves whether the laser module has actual wattage. actual power. Frequent cutting can easily lead to power drop.
Engraving must know: Engraving reflective objects must be blacked out before engraving, otherwise the reflective light will easily damage the laser lens, or the engraving will not be effective.
If you don’t know whether this laser head can use your engraving machine, you can send me a pictu
EAN: 0741847631285
Package Dimensions: 0.8 x 0.5 x 0.2 inches
