4040 CNC Engraving Machine CNC Router Machine Kit Pro Milling Machine for Wood Metal Acrylic MDF Carving Arts Crafts
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: DNYSYSJ
Features:
- ✅【Premium Material】 The engraving machine with an aluminum frame and wood panel workbench is corrosion-resistant and strong, having a long service life.
- ✅【High Efficiency & Accuracy】 The engraving machine with the industrial-grade chip and 75W high-power spindle motor take a very short time to complete the engraving, and have precise calculations and can achieve precise engraving of ≤ 0.05mm/0.001inch.

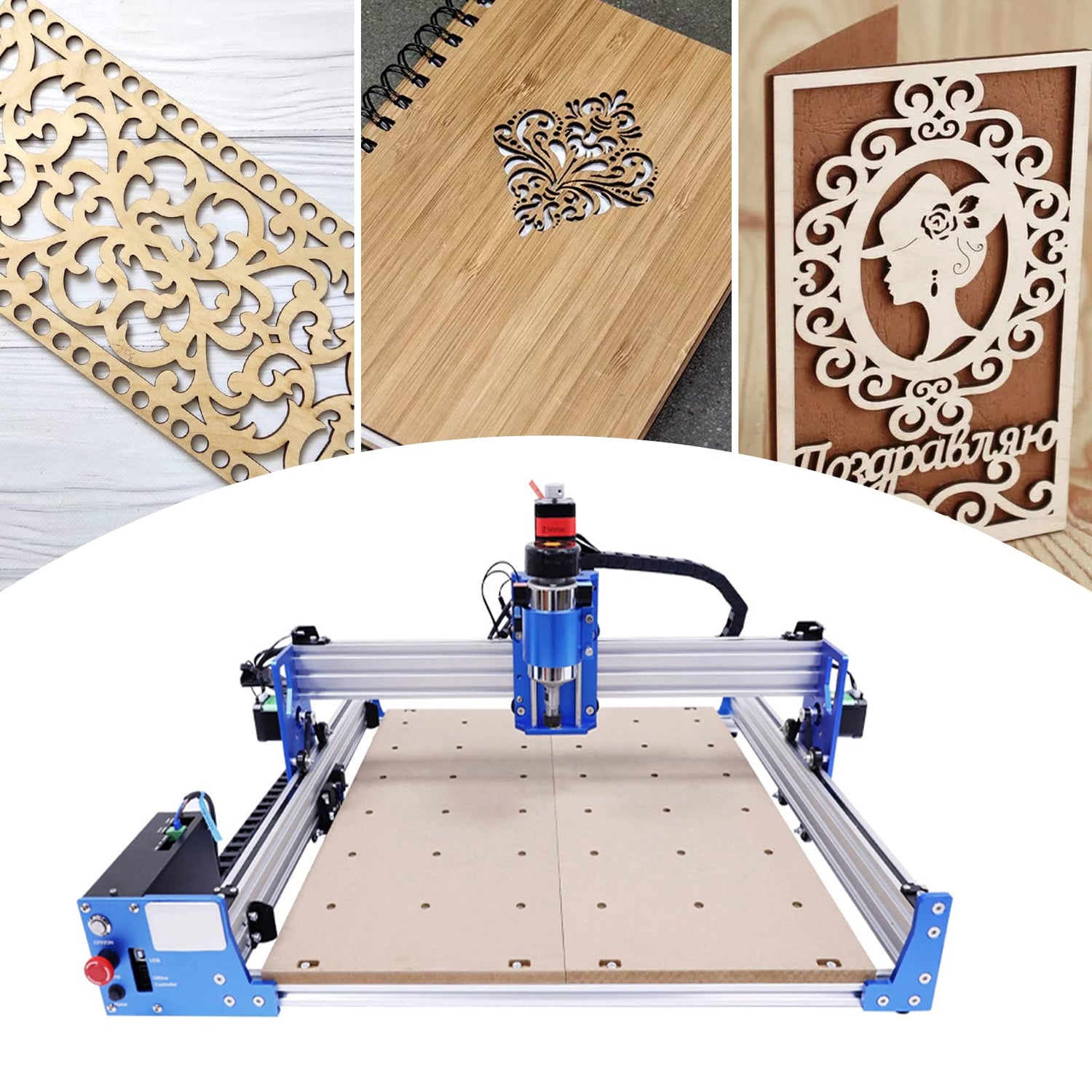

- ✅【Wide Application】 With an effective engraving area of 400*400*83mm, the machine can easily accommodate most projects. Suitable for industrial technology, advertising design, art, educational programs, amateurs, architectural models, printed circuit boards, etc. It is suitable for engraving plastic and wood.
- ✅【Stable Operation】 The spindle motor with an air cooling system cools the machine, stable, reliable, and durable. The 42 two-phase stepper motor has good control performance.
- ✅【DIY】 The mini DIY engraving machine is easy to operate, and can be used to make gifts for your friends and exercise your hands-on skills. It can make you experience the joy of DIY by completing your sculptures.
Details: ✔ Good Control Performance: The starting, stopping, and flipping are done within a few pulses. Also, the machine is equipped with limits in several directions to prevent accidental touching of the edges and to reduce damage to the machine.
✔ Easy to Operate: The machine has clearly displayed function buttons and we have provided a manual to enable you to use the machine quickly.
✔ The straight square rails allow the bearings to work for long periods without affecting performance.
✔ Emergency Stop Button: You can press the emergency stop button to protect the machine when it is affected or when it is working erratically.
Specification
Color: Blue
Material: Aluminum, Wood
Maximum Workpiece Thickness: 78mm/3.07inch
Effective Stroke: 15.75*15.75*3.27inch
Drive Power: 12V 5A
Spindle Power: 75W
Voltage: 110V
Power: 100W
Spindle Speed: 0-10000rpm
Spindle Accuracy: Radial Runout ≤ 0.05mm
Stepper Motor: 42 Two-phase Stepper Motor
Rotation Speed: 6000rpm
Acceptable Software: GRBL/Candle
Communication Interface: USB
Gross Weight: 12kg/26.46lbs
Engraving Speed: 50-1500mm / min (Depending on the Material Speed Setting)
Standard Spindle: 42mm High-Speed Spindle / ER11 Chuck / 3.175mm Clamping Centre
Workbench Size: 23.62*20.47inch

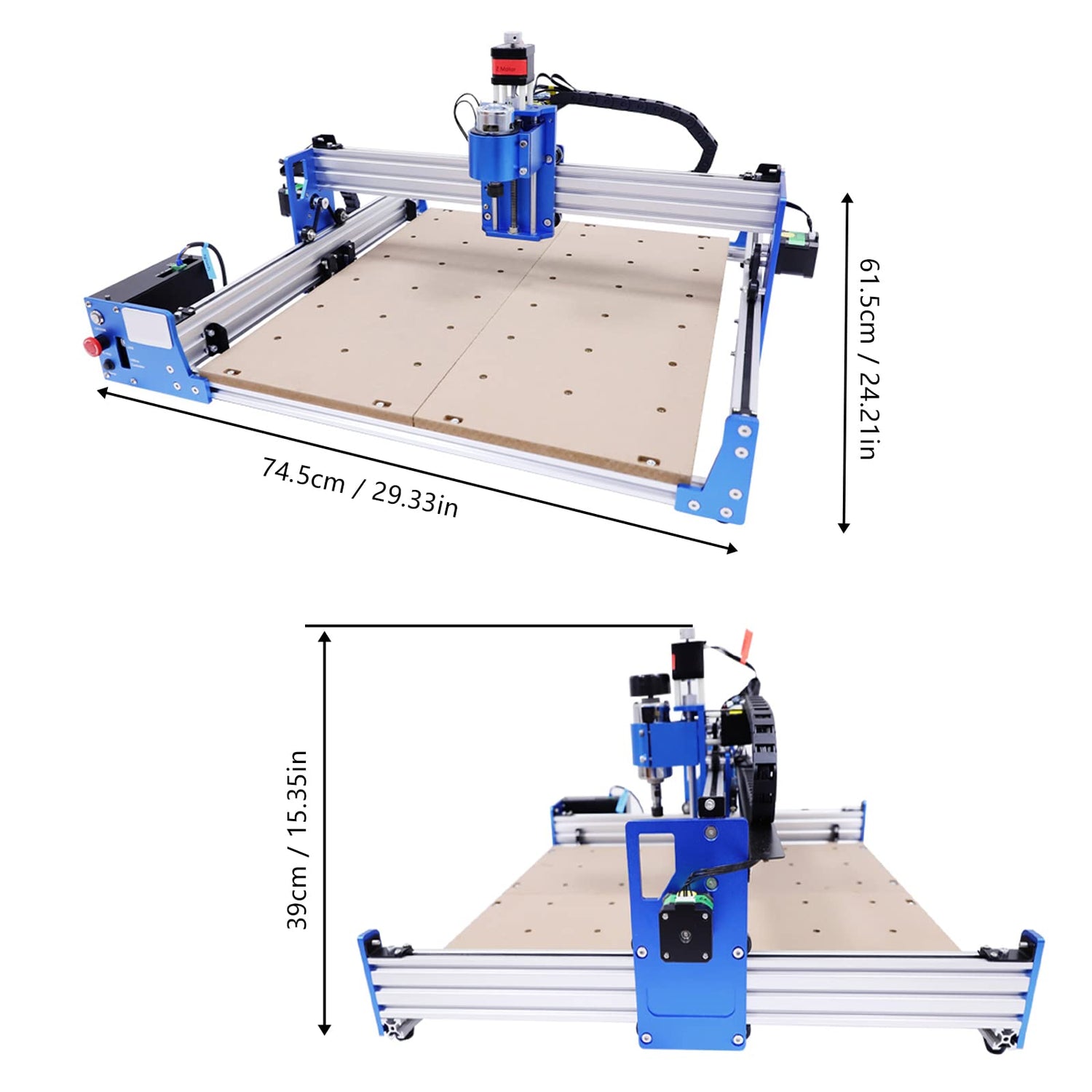

Product Size: 29.33*24.21*15.35inch
Package Size: 26.38*15.35*11.42inch

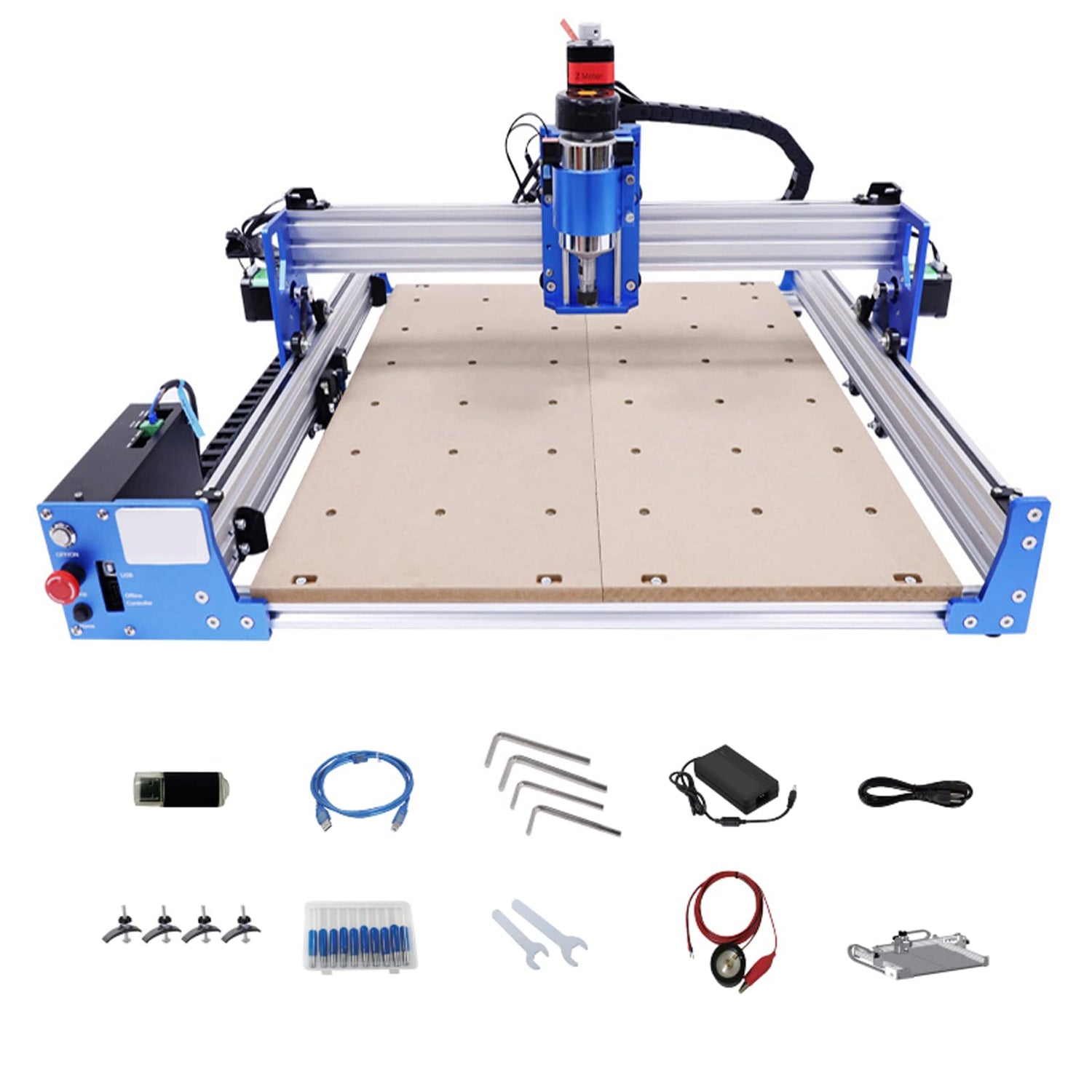

Package Included
1 Set* Carving Bit
1* Z Probe
1* Right-Y-axis
1* U Disk
1* USB
1* Power Supply
1*Power Cable
4* Clamps
1*Manual
Other Accessories for Installation
Notes
1. Please read the manual completely before installation and use. And pay particular attention to the safety instructions included.
2. It can't be used to carve hard metals, jade, or other hard objects.
model number: GANLI140922A
