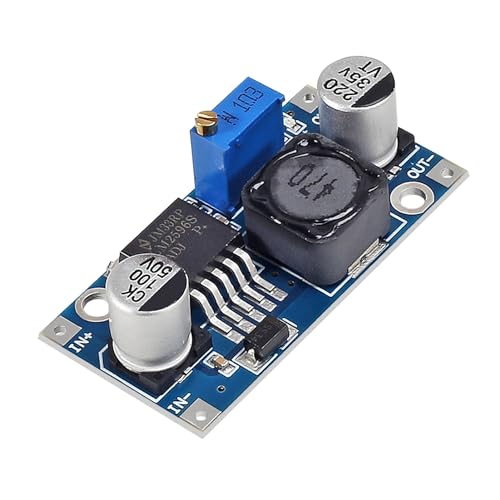

5 Pack LM2596 DC to DC Buck Converter 3.0-40V to 1.5-35V Power Supply Step Down Module
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: AITRIP
Color: 5PCS
Features:
- Input: DC 3 V to 40 V (input voltage must be 1.5 V higher than the output voltage, no boost)
- Output: DC 1.5 V to 35 V voltage is continuously adjustable, maximum output current is 3 A

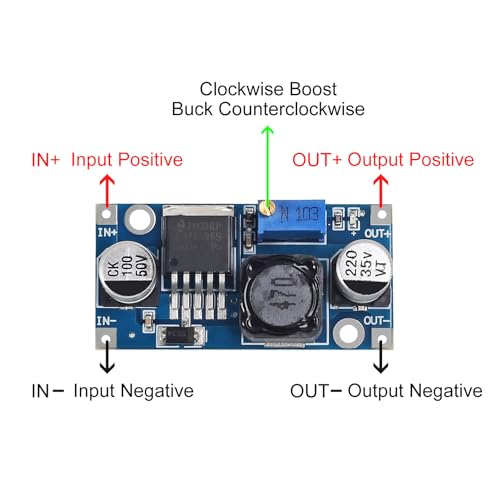

- Steps: connect to power source, adjust the swirl button on the blue potentiometer and monitor voltage with multimeter to get the needed voltage (The factory have tested these at max voltage so they are very high by default, takes about 15-20 turns CCW before the voltage starts ramping down)

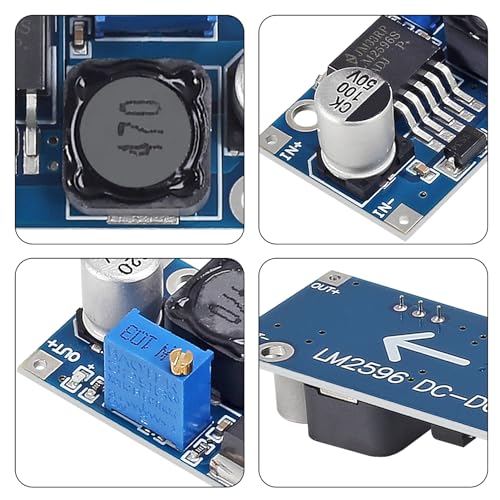

- Features: all use SANYO solid-state capacitors, 36 u thickening circuit boards, high-Q inductance with LED indicator output

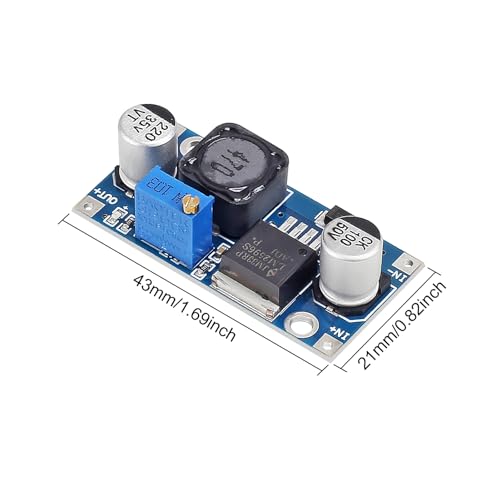

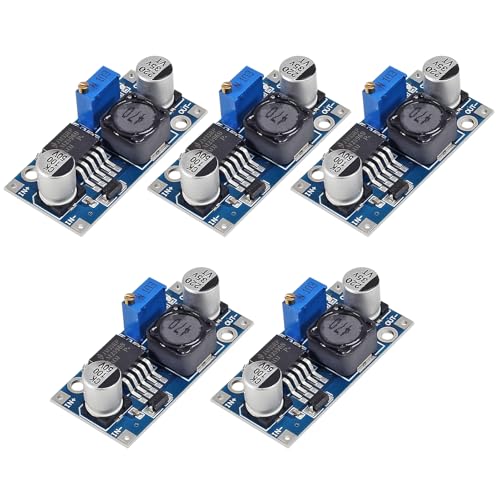

- Quantity: 5 pieces; Size: 45 * 20 * 14 mm
Binding: Electronics
model number: LM2596
Part Number: LM2596
Details: AITRIP LM2596 DC to DC Buck Converter 3.0-40V to 1.5-35V Power Supply Step Down Module Kindly Note: 1. Input voltage must be 1.5 V higher than the output voltage, no boost 2. Do not reverse the input and output interface 3. Keep output under 2.5A and use a heat sink when for a long time working Features: DC to DC step down module Thickened circuit boards Advanced solid-state capacitor Short circuit and over-temperature protection Specifications: Model: LM2596 Input voltage: DC 3V - 40V Output Voltage: DC 1.5V - 35V (adjustable) Output Current: 3A (max.) Conversion Efficiency: 92% (max.) Switching Frequency : 65KHz Rectification: non-synchronous rectification Module property: non-isolated buck module Operating Temperature: -45℃ to +85℃ Load Regulation: ±0.5% Voltage Regulation: ±2.5% Package List: 5 x LM2596 DC-DC Buck Converter Module.
EAN: 0701715453975
Package Dimensions: 5.2 x 3.4 x 0.9 inches
