Alinan 6pcs Digital Voltmeter Ammeter DC 100V 10A Amp Voltage Current Volt Amp Meter Tester 3 Bits Dual LED Display Panel(Red-Blue) Amp Volt
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Alinan
Color: Blue
Features:

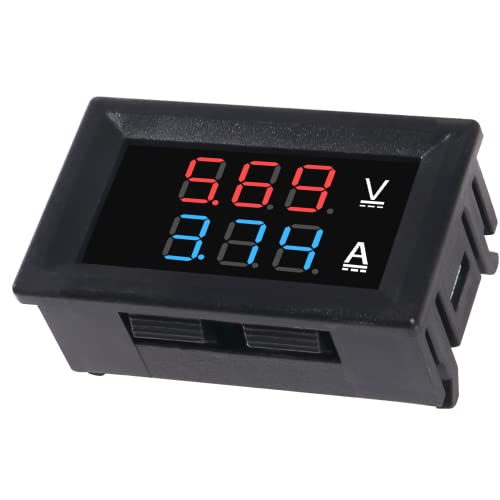

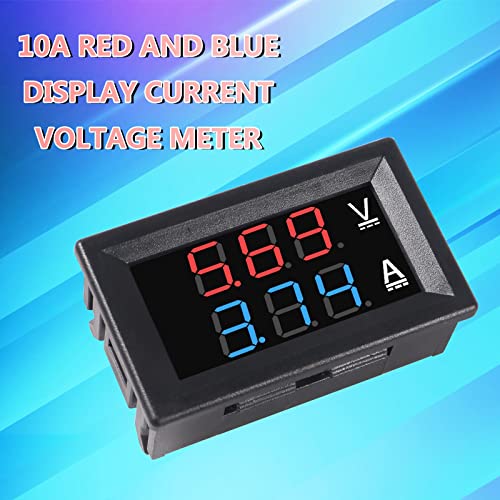

- 【Dual LED Display Panel】: 0.28" digital tube, Two color red and blue. Display Voltage and current simultaneously in different colors, red for Voltage, Blue for current (the current is Measured in the negative rail)
- 【High Quality】: We have been committed to providing high-quality products and services. Each of our products undergoes very strict testing and calibration during production to ensure the high quality of the products
- 【Applications】: Alinan dc voltmeter ammeter has handy connection and wide application, Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement, and monitoring storage battery, DC adjustable power supply, or voltage and current changing state of other device
- 【This Digital Volt Ampere Meter Specification】: Working voltage of Meter itself:DC 4 - 30V(The maximum input voltage can not exceed 30V. Otherwise the meter will be burned), Small size, fast response
- 【High Precision】: Wide measuring range (dc 0-100v; 0-10A) and high accuracy percent (± 1 digit)
model number: Voltmeter-1
Part Number: Voltmeter-1
Details: Features:
Operating voltage:DC 4.5 ~ 30V
Measure voltage: DC 0 ~ 100V
Minimum resolution(V): 0.1V
Minimum resolution(A): 0.01A
Operating current: <20mA
Display: three 0.28" LED digital tube
Display color: Red and Blue (two-color display)
Dimensions: 48 x 29 x 21mm
Mounting cutout: 45.5 x 26.5mm
Refresh rate: about 500mS / times
Measure accuracy: 1%
Operating temperature: -10 to 65ºc
Operating Humidity: 10 to 80% (non-condensing)
Working pressure: 80 to 106 kPa
Applications:Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement

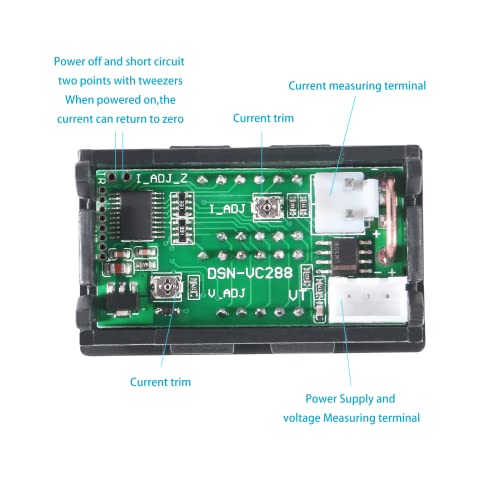

Wiring:
Black line (thin): vacant or buck circuit (module) negative
Red line (thin): power supply+
Black line (thick): COM, common measuring
Red line (thick): PW+, measuring terminal voltage input positive
Yellow line (thick): IN+, current input+

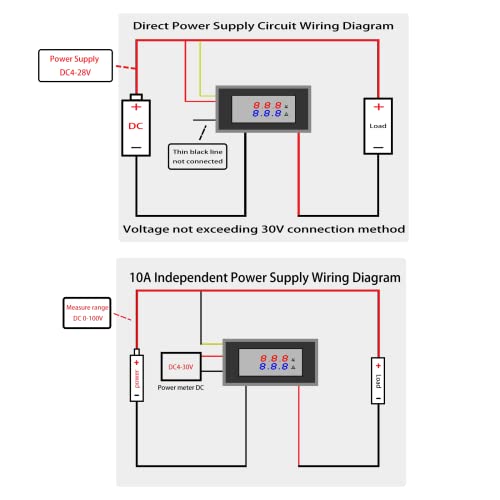

(Please refer to the wiring diagrams for more details)
Note:
The voltage between the thin red and thin black
lines must be within DC 4.5-30V
The ammeter can only be connected to the negative of the device under test
10A below ammeter (include 10A), built-in shunt, does not require external shunt
When the black thin line vacant, it is better to use insulating tape around the exposed part of the wire, to prevent short circuits
If just be used as a voltmeter, it is recommended that the yellow line and the black line were connected together, to prevent the ammeter digital flashing
Package Include:

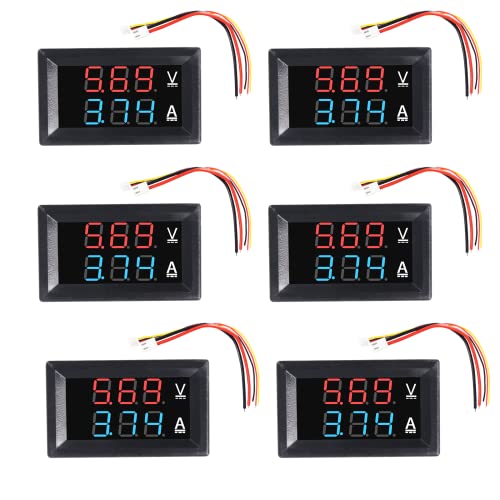

6 x Digital Volt Ampere Meter
12Pcs Cable
EAN: 0701715497337
Package Dimensions: 6.5 x 4.6 x 1.5 inches
