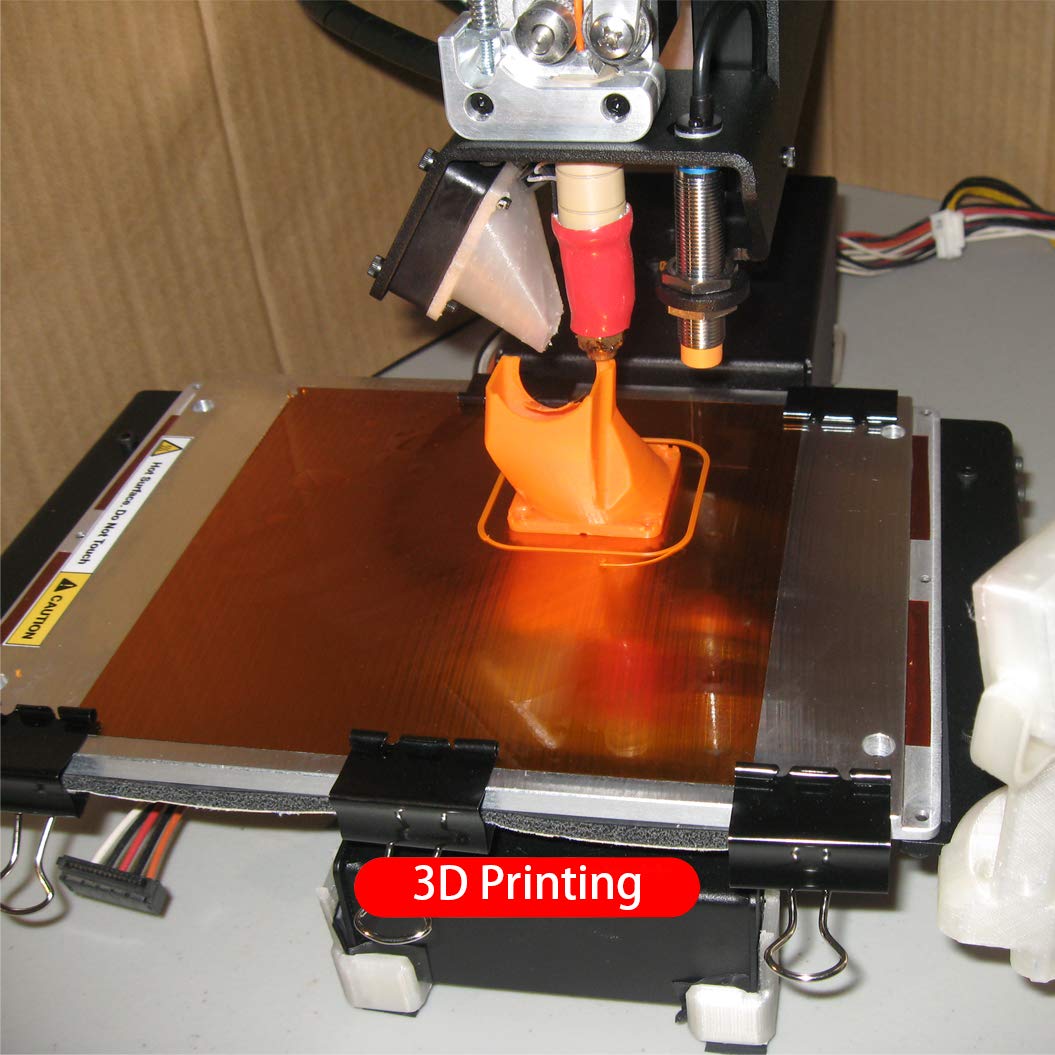

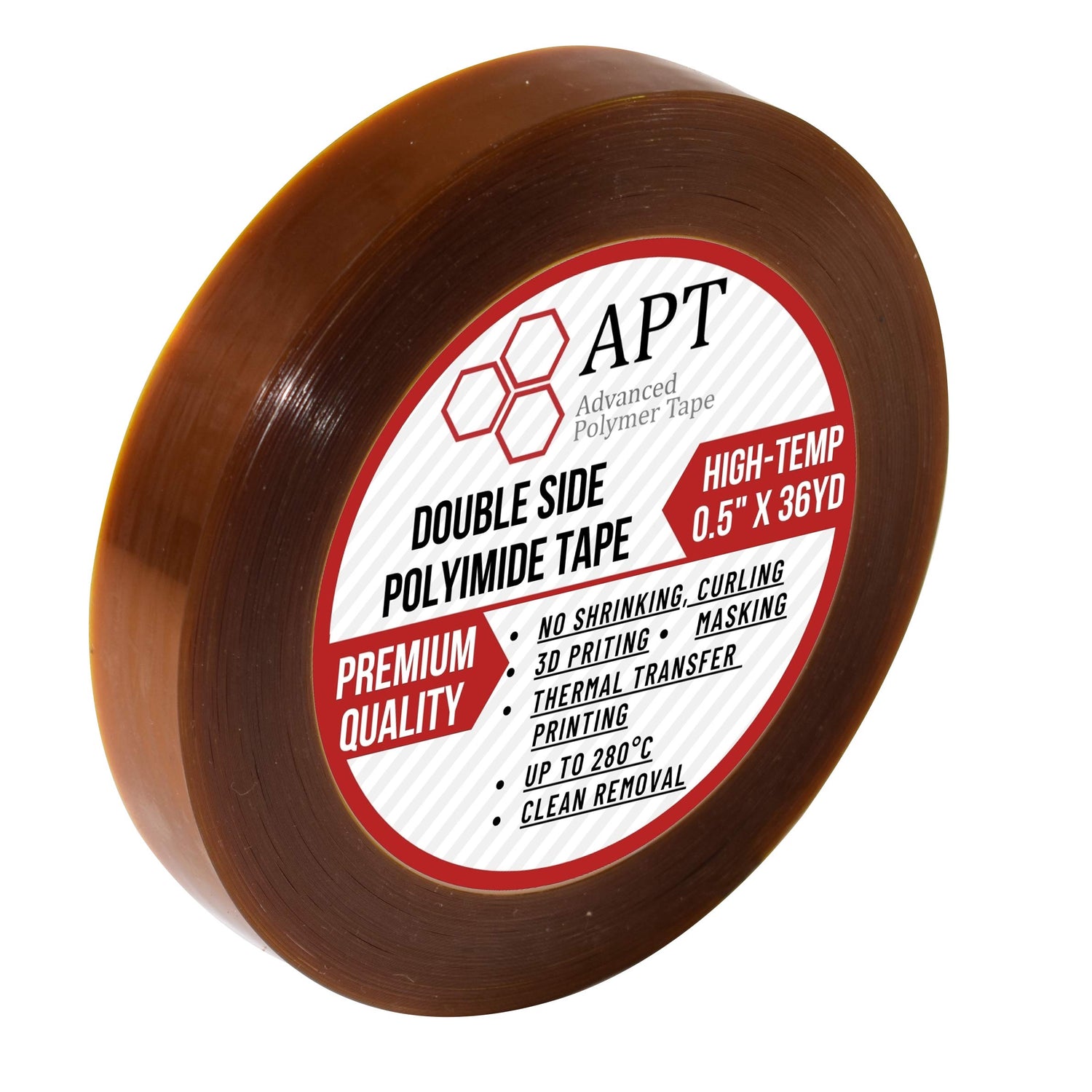

APT, Double Side Polyimide Adhesive Tape, HighTemperature and Heat Tape, for Masking, Soldering, Electrical, 3D Printer Application. (0.5" x 36Yd)
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: APT Advanced Polymer Tape
Color: Amber
Features:
- Used for splicing of insulation layers
- Insulating circuit boards and coils.
- Ideal for water dicing die cutting optic cable and solar panel.
- RoHs/ REACH Compliant

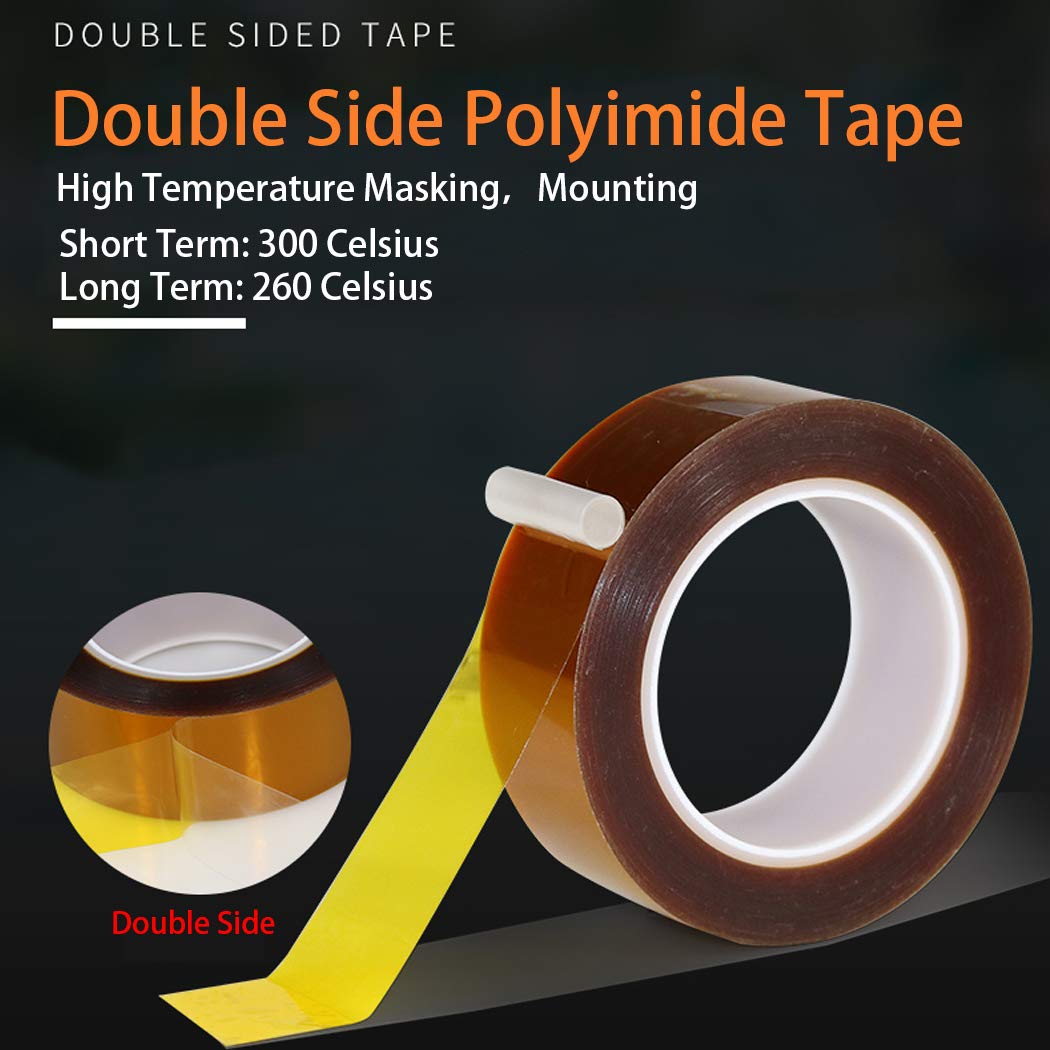

Details: Double Sided Polyimide Tape has superior dielectric strength, high temperature & chemical resistance; tear, puncture & abrasion resistant.
An excellent choice for high temperature masking and electrical insulation.

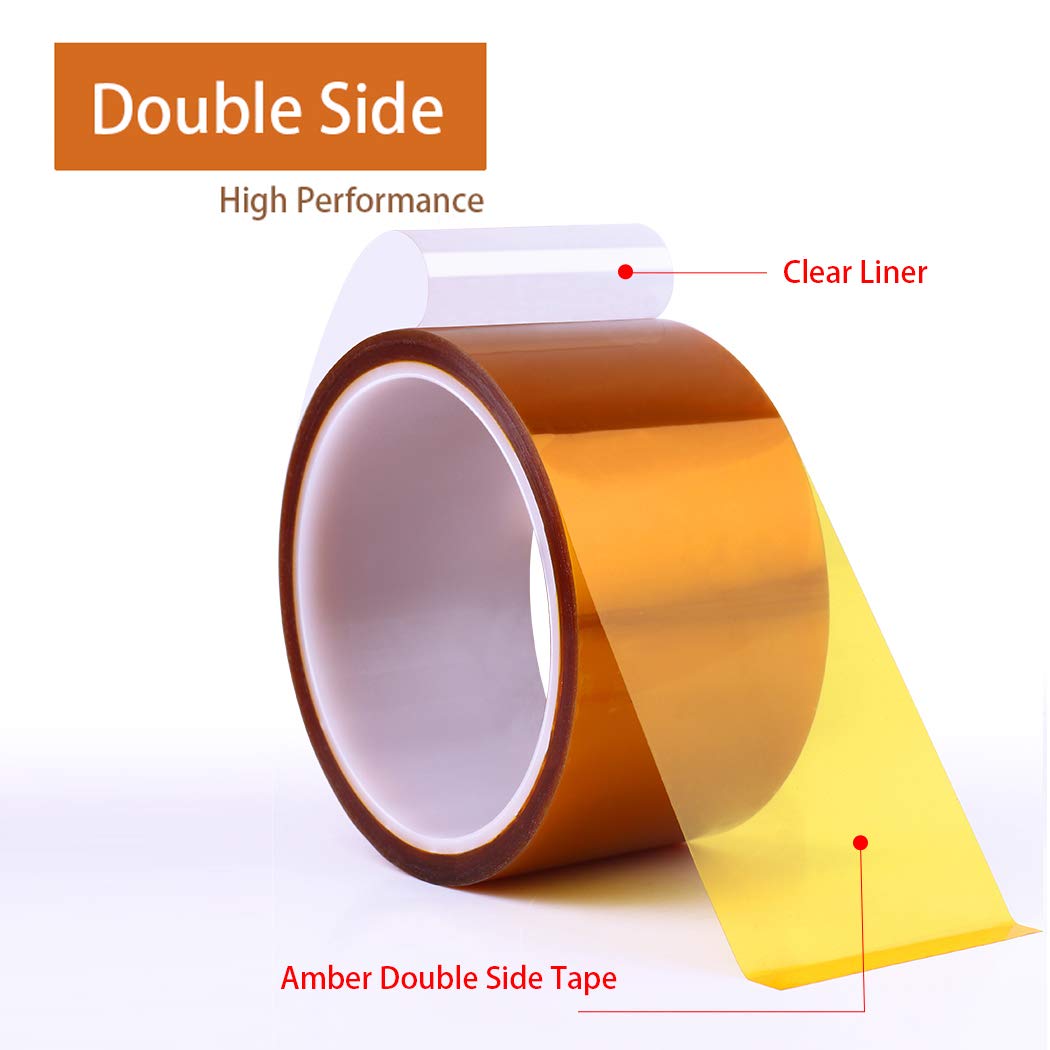

These tapes are coated on both side and comes with single or double Clear PET liner.
Product Appications:
▼Used for splicing of insulation layers.
▼ insulating circuit boards and coils.
▼Ideal for water dicing die cutting, optic cable and solar panel.
Technical Data Sheet:
Backing: 1 Mil Polyimide
Adhesive: Silicone

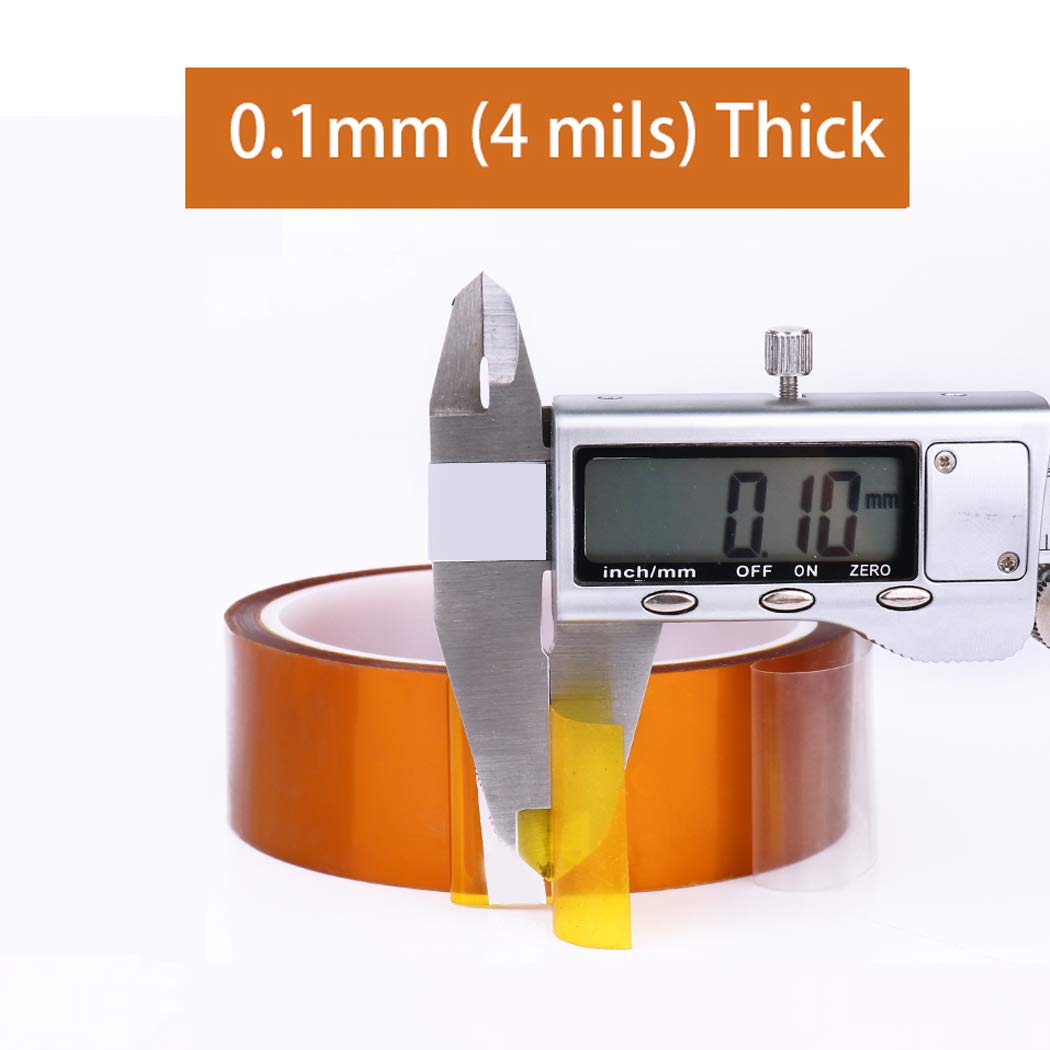

Total Thickness Mil(mm): 4(0.1016)
Adhesion to Steel oz/in(N/cm): 25(2.8)
Tensile Strength lbs/in(N/cm): 30(52)
Elongation(%): 55
Dielectric Strength Volts: 6500
Operating Temp. : 260°C (500°F)
Length: 36 Yards.
Size Available
▼0.25 inch Width with 36 Yards
▼0.5 inch Width with 36 Yards
▼1 inch Width with 36 Yards
Part Number: APTDSP-105836
model number: APTDSP-105836
