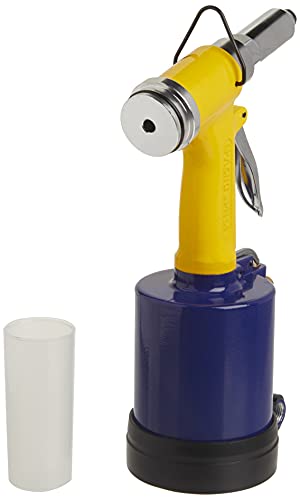

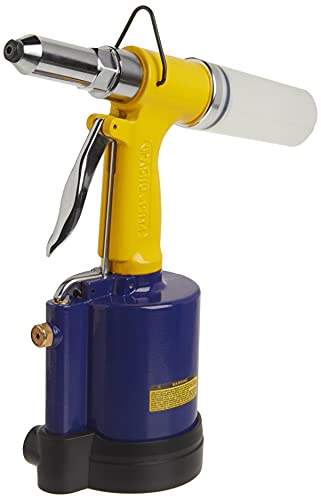

Astro Pneumatic Tool PR14 Air Riveter - 3/32", 1/8", 5/32", 3/16" and 1/4" Capacity

Brand: Astro Pneumatic Tool

Features:

• Includes the following nosepieces: 1/4-inch(6.4mm), 3/16-inch(4.8mm), 5/32-inch(4mm), 1/8-inch(3.2mm), 3/32-inch(2.4mm), 3 Nose pieces are screwed onto the base
• Powerful durable, high speed production tool
• Quick release air valve permits cylinder to return quickly for high speed assembly operations: Prevents overloading for long life
• Performs well at any angle
• Pulling Pressure - 2423 pounds

Binding: Tools & Home Improvement

model number: PR14

Part Number: APT-PR14

Details: Product Description

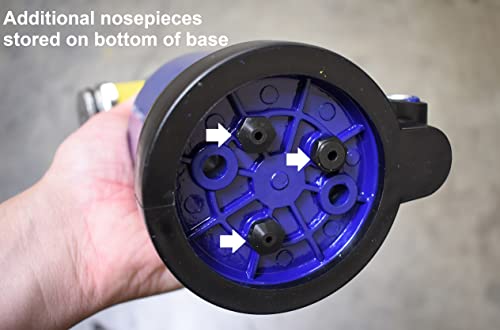

The Astro Pneumatic Pr14 Air Riveter Is Designed For Heavy Duty Industrial Application Of Rivets From 3/32 To 1/4-Inch. This Tool Will Increase Productivity In Any Field. Range Of Use Includes Industrial, Fabrication Shops And Body Shops. Specifications: Rivet Capacity: 1/4-Inch, Overall Length: 10-7/8-Inch (280Mm), Net Weight: 3-1/2-Pound (1.6Kg), Pulling Force Is 633 Pounds, Stroke: 15Mm, Motor: 1/2Hp, Air Inlet Thread Npt: 1/4-Inch, Air Hose I.D. Size: 3/8-Inch (10Mm), Avg. Air Consumption.: 2.320 Liter/Stroke, Air Pressure: 90-120Psi. The Instructions Show You Where To Find All 5 Nose Parts. Three Are Under The Unit, One Is In The Unit And The Other Is In The Bag

From the Manufacturer

The Astro Pneumatic PR14 Air Riveter is designed for heavy duty industrial application of rivets from 3/32 to 1/4-inch. This tool will increase productivity in any field. Range of use includes industrial, fabrication shops and body shops. Specifications: Rivet Capacity: 1/4-inch, Overall Length: 10-7/8-inch (280mm), Net Weight: 3-1/2-pound (1.6kg), Pulling Force is 633 pounds, Stroke: 15mm, Motor: 1/2hp, Air Inlet Thread NPT: 1/4-inch, Air Hose I.D. Size: 3/8-inch (10mm), Avg. Air Consumption.: 2.320 Liter/Stroke, Air Pressure: 90-120psi. The instructions show you where to find all 5 nose parts. Three are under the unit, one is in the unit and the other is in the bag. Parts break down in the form of a pdf manual: http://www.astrotools.com/index.php/air-riveter-3-32-1-8-5-32-3-16-and-1-4-capacity.html http://www.astrotools.com/pdf/PR14.pdf

EAN: 0684055004079

Package Dimensions: 13.4 x 9.1 x 6.5 inches
