ASZLBYM 3/4'' inch CNC Lathe Indexable Turning Tool Holder with Nickel Plated,CNC Heavy-Duty Metal Lathe Bit Set with Tin Coated Carbide Turning

Brand: ASZLBYM

Features:

• ★Packing : 1pcs MTJNR3/4" , 1pcs MWLNR3/4" ,1pcs MCLNR3/4" ,1pcs SER3/4" turning holder , 4pcs carbide turning inserts and 3pcs wrenches.

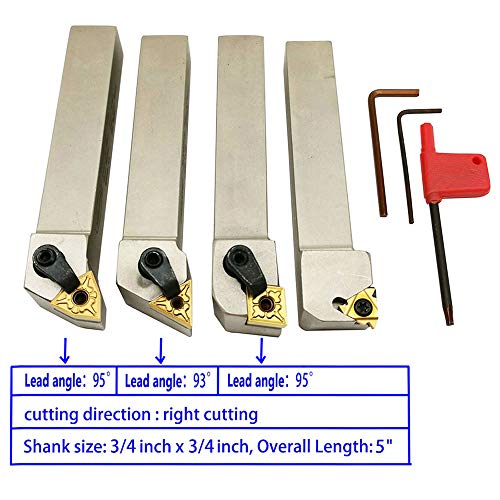

• ★ASZLBYM lathe tool holder set : Shank size:3/4" inch x 3/4" inch; Overall Length: 5"inch, cutting direction:right cutting.
• ★Turning holders : turning holder are made of high quality alloy steel with Nickel Cotated,which can effectively improve the wear resistance, corrosion resistance and stability of the turning holder , for long time use.
• ★Turning inserts : inserts are made of carbide and the coating material is TiN ,it can be used for finishing or semi finishing steel ,the inserts has high hardness, low friction coefficient, good wear resistance and chemical stability .

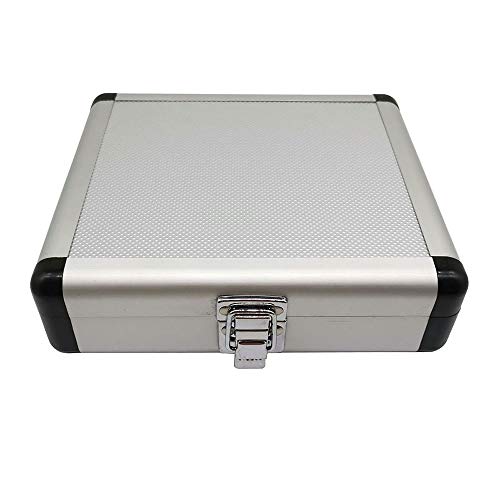

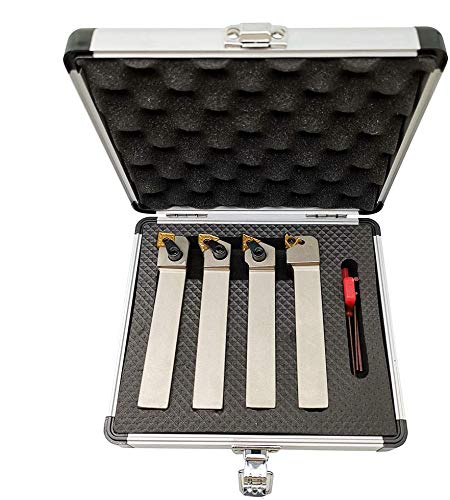

• ★The holders are packed in a premuim aluminium carrying case,easy to carry.

Binding: Tools & Home Improvement

Details: Package includes：

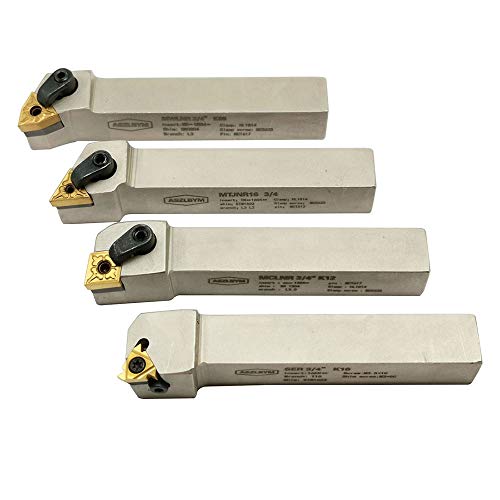

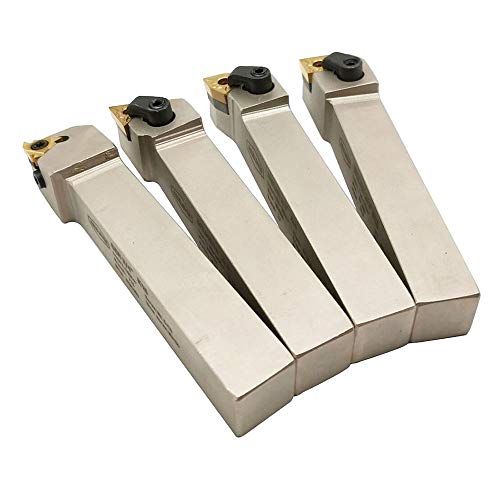

1PC MTJNR3/4"H16 turning tools
1PC MWLNR3/4"H08 turning tools
1PC MCLNR3/4"H12 turning tools
1PC SER3/4"H16 turning tools

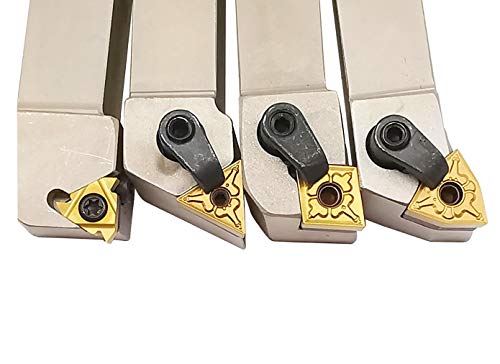

1pcs TNMG331 carbide turning insert
1pcs WNMG431 carbide turning insert
1pcs CNMG431 carbide turning insert
1pcs 16ER AG60 carbide turning insert
3PCS wrenches
1PCS Aluminum box

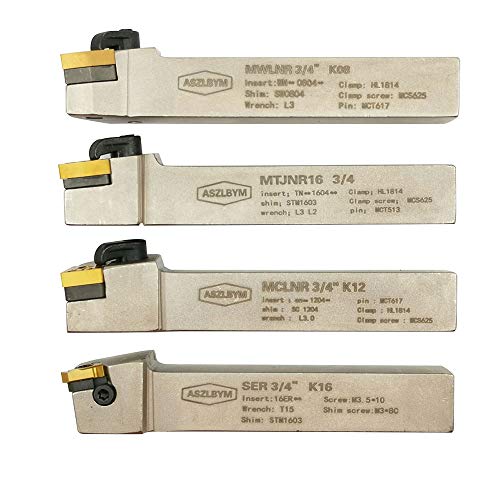

----------(1)MTJNR3/4"H16 :
Material : alloy steel with Nickel cotated
Shank Diameter （length×width）: 3/4" * 3/4"
Overall length：4.92" mm
Main declination : 93º
Shim : ST 1603
Pin : MCT513
Clamp : HL 1814
Clamp Screw:MCS625
Wrench : L2.0 ,L3.0
Inserts : TNMG 160404 / TNMG 331

----------(2)MWLNR3/4"H08 :
Material : alloy steel with Nickel cotated
Shank Diameter （length×width）: 3/4" * 3/4"
Overall length：4.92" mm
Main declination : 95º
Shim : SW 0804
Pin : MCT617
Clamp : HL1814
Clamp Screw : MCS625
Wrench : L3.0
Inserts : WNMG 080404 / WNMG 431

-----------(3) MCLNR3/4"H12 :
Material : alloy steel with Nickel cotated
Shank Diameter （length×width）: 3/4" * 3/4"
Overall length：4.92" mm
Main declination : 95º
Shim : SC 1204
Pin : MCT617
Clamp : HL1814
Clamp Screw : MCS625
Wrench : L3.0
Inserts :CNMG 120404 / CNMG 431

-----------(3)SER3/4"H16 :
Material : alloy steel with Nickel cotated
Shank Diameter （length×width）: 3/4" * 3/4"
Overall length：4.92" mm
Shim : STM1603
Screw : M3.5*10
Wrench : T15
Inserts :16ER AG60

If you need more matching insert or 5/8" lathe turning tools set, you can search for ASIN ： B07G386Y3B or B07ZYY8LV1

EAN: 8414740895987

Package Dimensions: 8.0 x 7.0 x 2.4 inches
