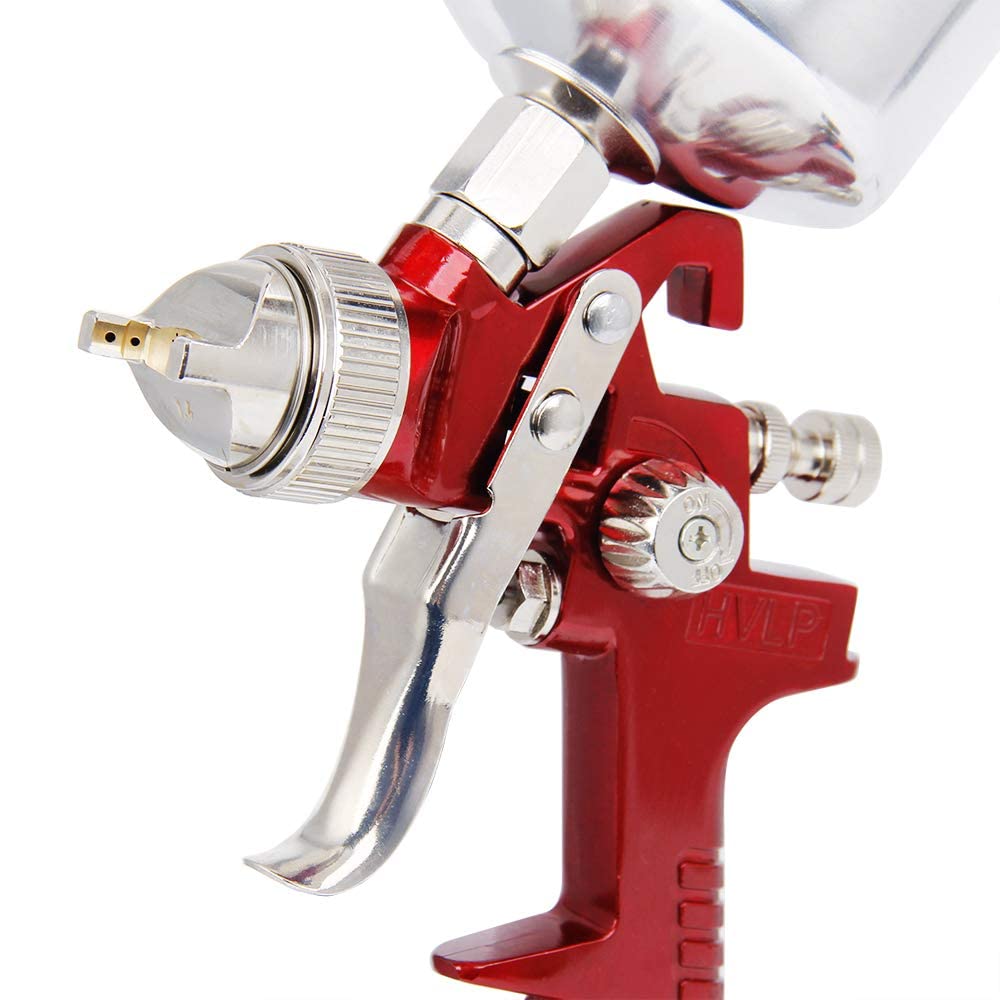

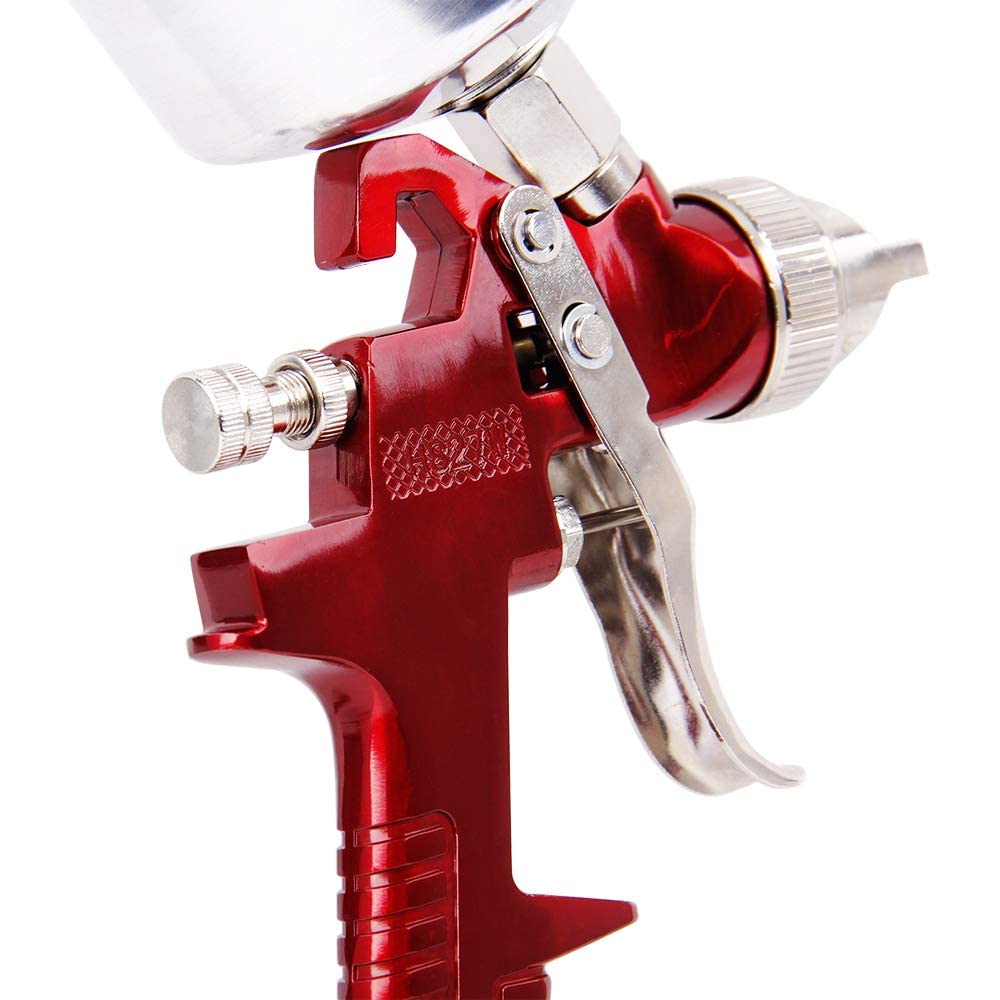

BANG4BUCK High Performance HVLP Gravity Feed Spray Gun with 1.4mm 1.7mm 2.5mm Fluid Tips, 1000cc Aluminum Cup for Auto Paint, Primer, Clear/Top Coat

Brand: B4B BANG 4 BUCK

Color: Red

Features:

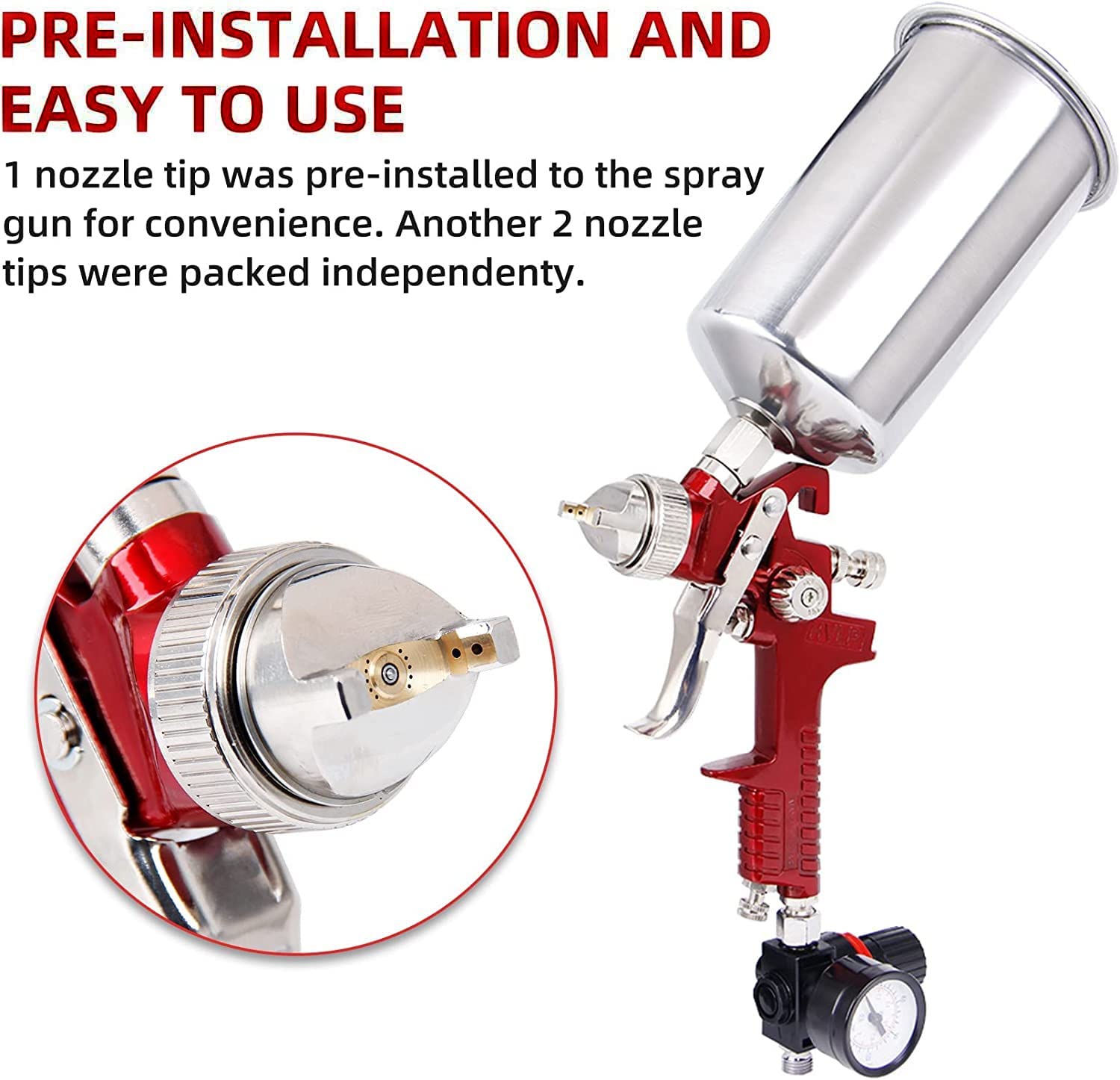

• Package Include: 1 x Spray Gun; 1 x 1.4mm Nozzle; 1 x 1.7mm Nozzle; 1 x 2.5mm Nozzle (1 nozzle was pre-installed to the spray gun); 1 x 1000cc Aluminum Cup(1L); 1x True Micrometer Air Regulator with Gauge; 1 x Barbed Tail; 1 x Adjustment Wrench
• This spray gun set is designed to provide equal atomization and partical size for all kinds of surface painting.
• It has control knobs for full adjustment over spray pattern, fluid control and air pressure. Contains 1.4mm/1.7mm/2.5mm stainless steel needles and nozzles set to meet your different applications
• Light weight, ergonomic design and easy trigger pivot reduces operating fatigue.
• Ideal for spraying base coats, clear coats and other high viscosity coatings such as extreme high build or polyester primers, thick enamels, latex paints, chip guard, metal flakes, gel coats, liquid mask, etc. Two years warranty.

Details: Bang4Buck hvlp gravity spray gun set -auto Paint Primer-metal Flake with air regulator. Two years warranty.


Features :
-Stainless steel needle and nozzle accommodate a variety of coatings.
-Precise 1.4mm/1.7mm/2.5mm stainless steel needle and nozzle set.
-3 Knobs for full adjustment: Fluid, Pattern and Air Pressure Controls.

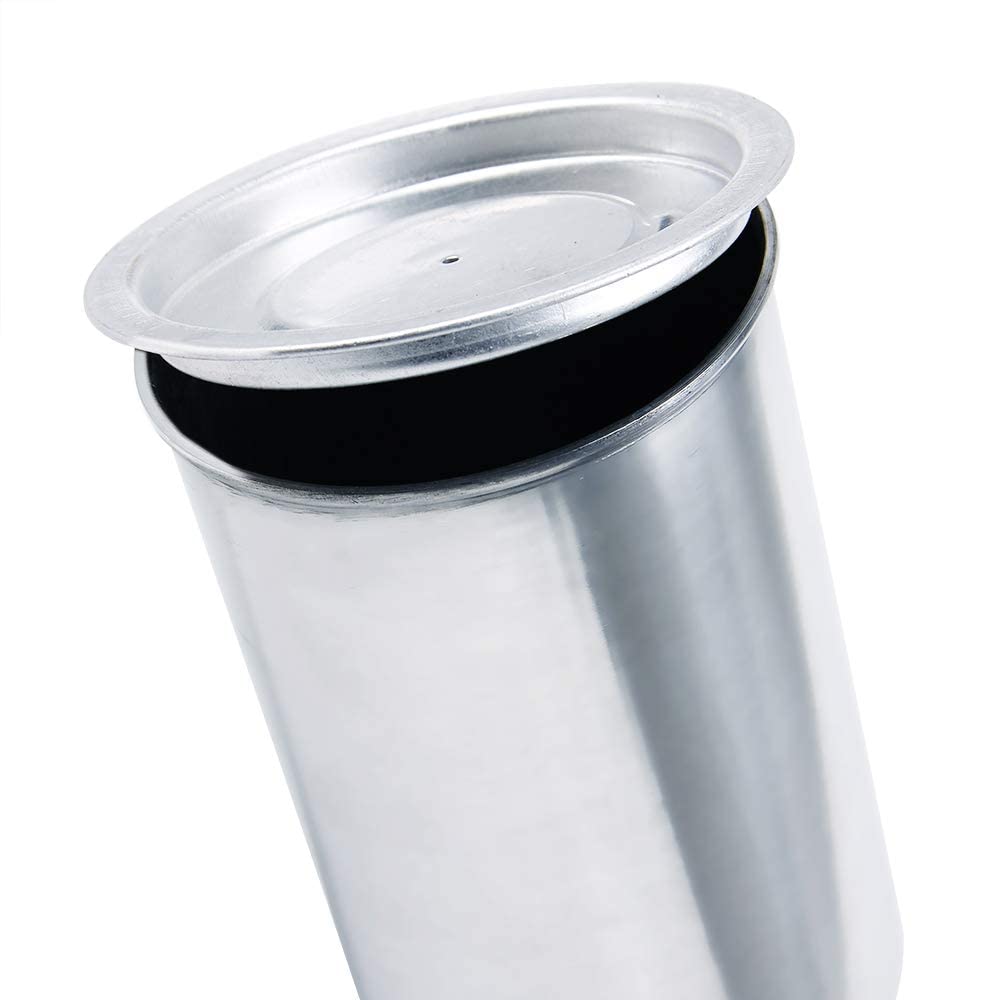

-1000cc Aluminum Fluid Cup with Lid.
-Ideal for Full Atomization when Spraying Base-coats, Clear-coats, Single Stage and other Light to Medium Viscosity Materials.


Specifications:
Gravity type

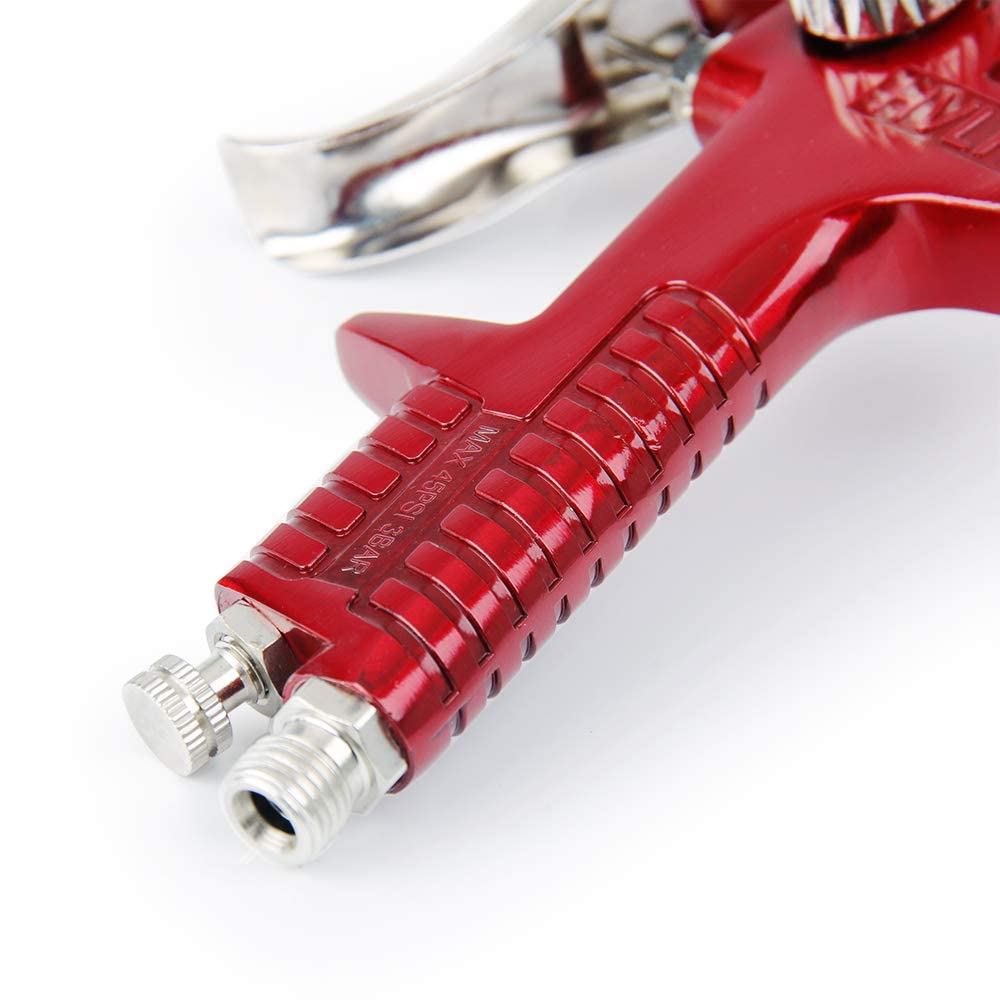

Air Inlet: 1/4" + Barbed and Nitto Plug
Ready to connect hose or nitto socket
Nozzle size: 1.4mm, 1.7mm, 2.5mm
Operating pressure: 30-45 psi
Air consumption: 7-12 CFM
Compressor required: 2-3 HP
Gun dimensions (without cup): 15 x 18.5cm
1000mm Aluminum cup



Full Adjustment:
The desired pattern and fine atomization can be easily obtained by regulating the Pattern Adjusting Knob and Fluid Adjusting Knob.

-
Pattern Adjustment: Turn the Pattern Adjusting Knob to the right until tight which will make spray pattern round, or turn left to make spray pattern ellipse.
-
Fluid Adjustment:Turn the Fluid Adjusting Knob clockwise which will decrease the volume of fluid output and counter-clockwise will increase fluid output.

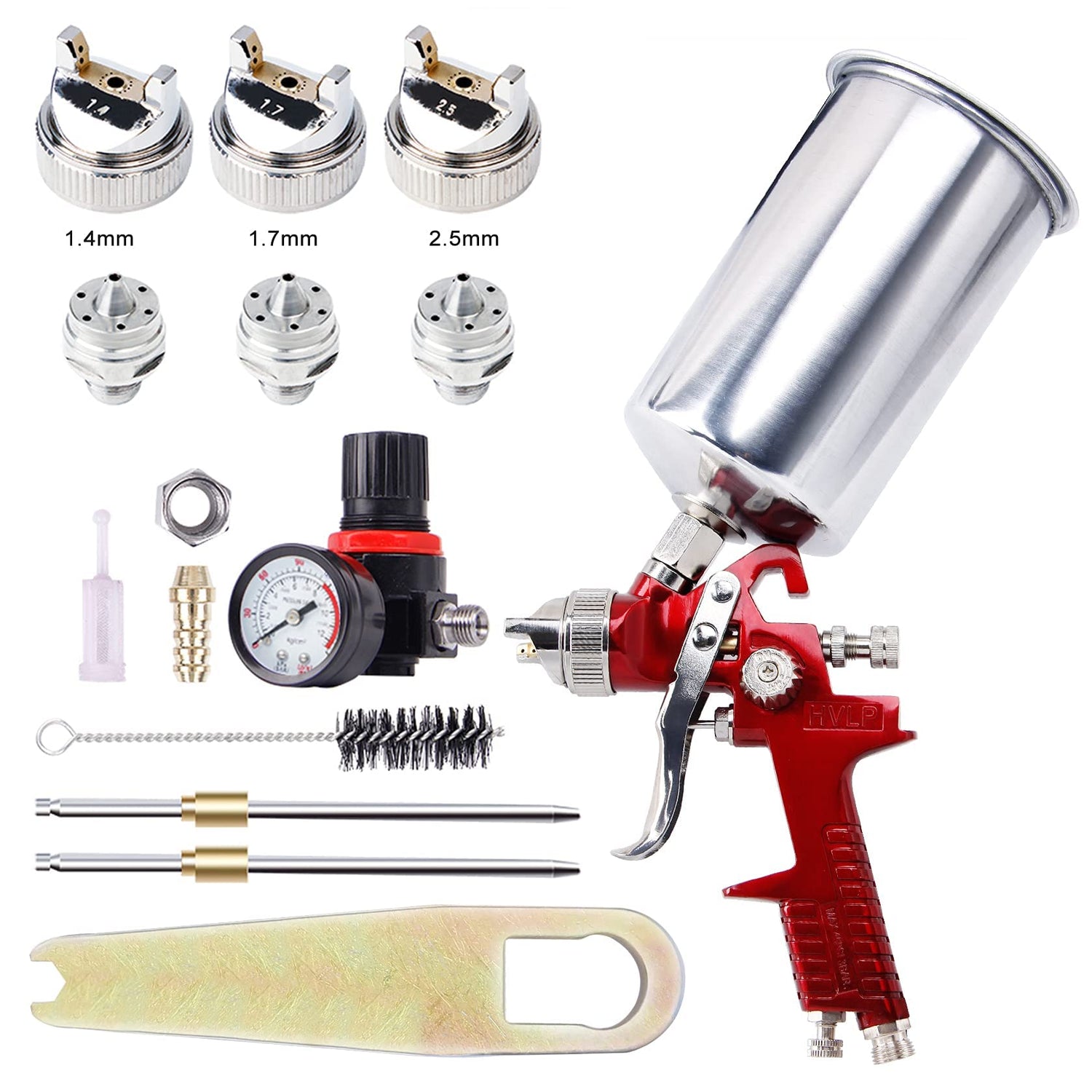

What’s in the package?
1 x Spray Gun
1 x 1.4mm Nozzle
1 x 1.7mm Nozzle
1 x 2.5mm Nozzle

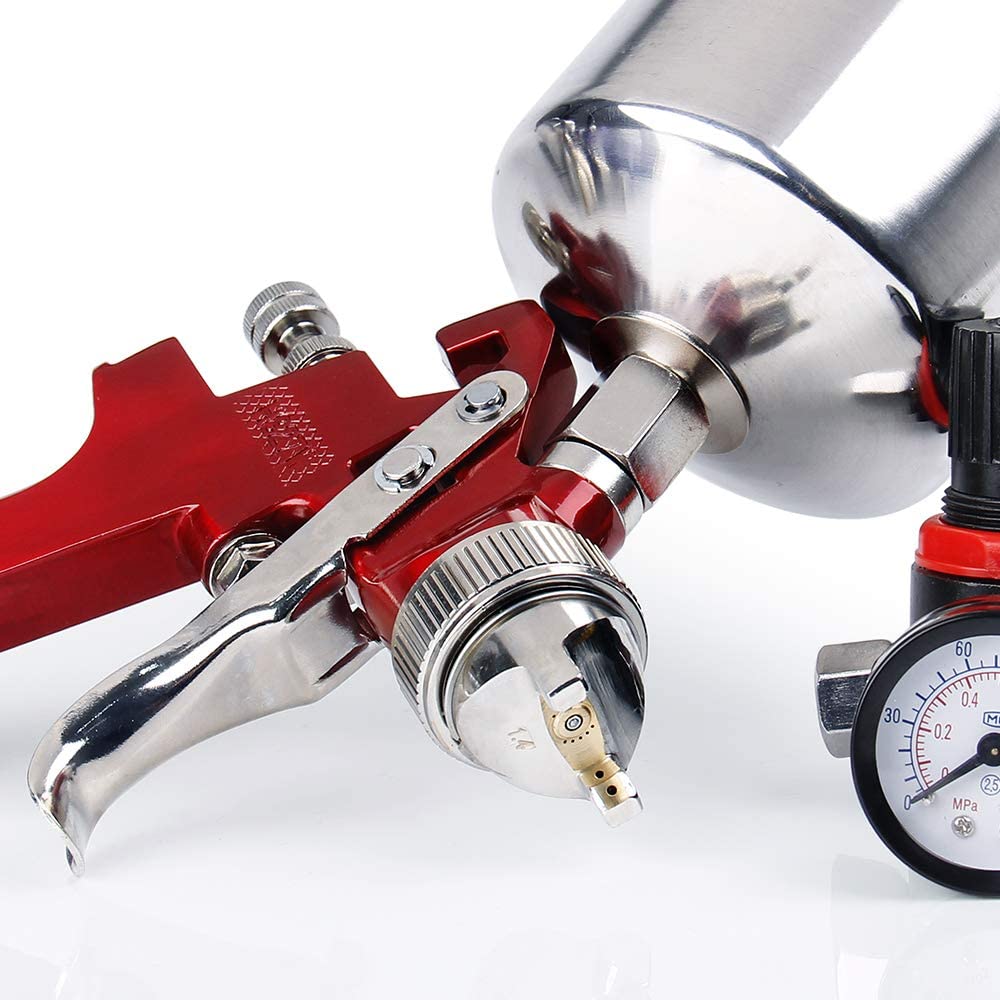

1x True Micrometer Air Regulator with Gauge
1 x 1000cc Cup
1 x Barbed Tail
1 x Adjustment Wrench

EAN: 0711639834767

Package Dimensions: 8.9 x 5.4 x 5.2 inches
