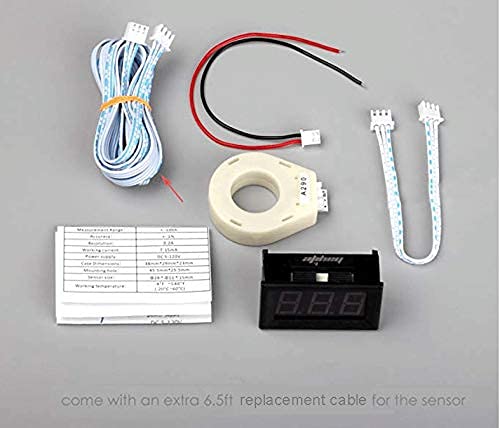

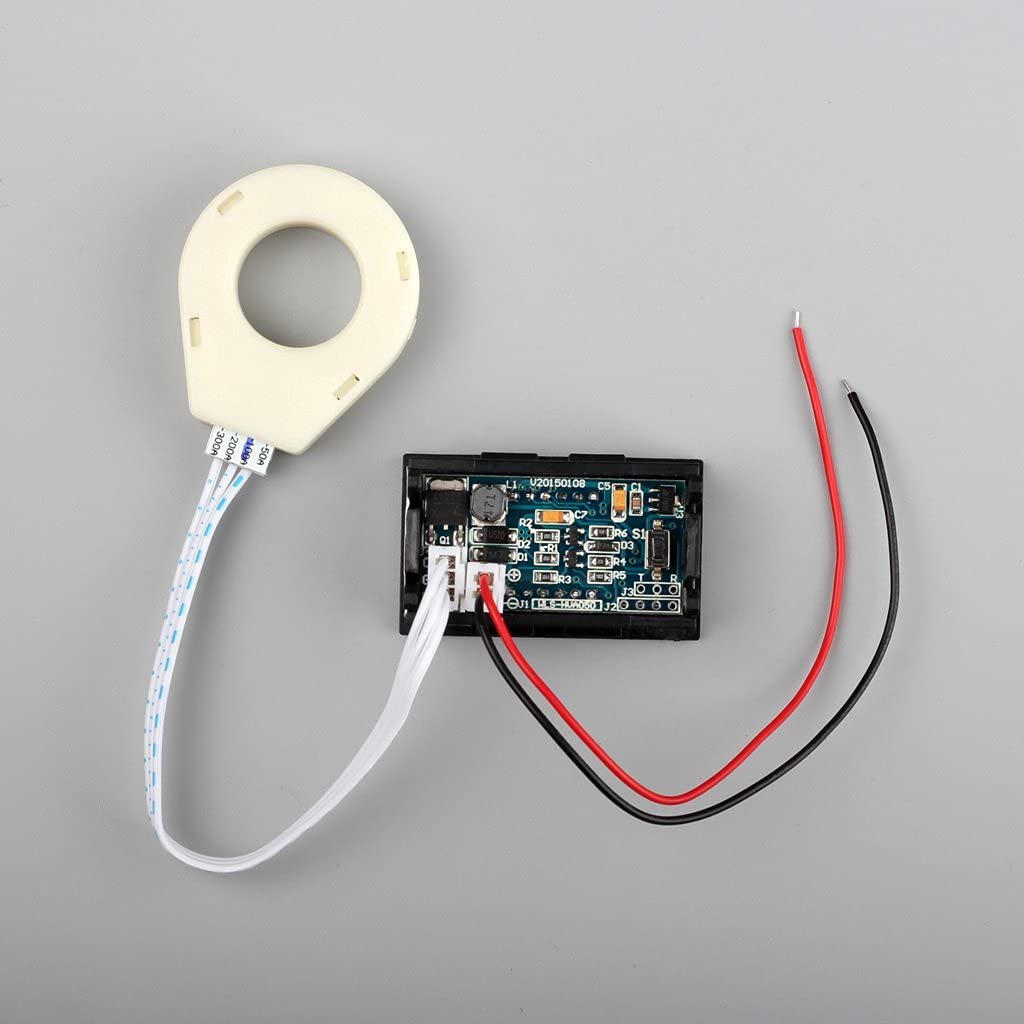

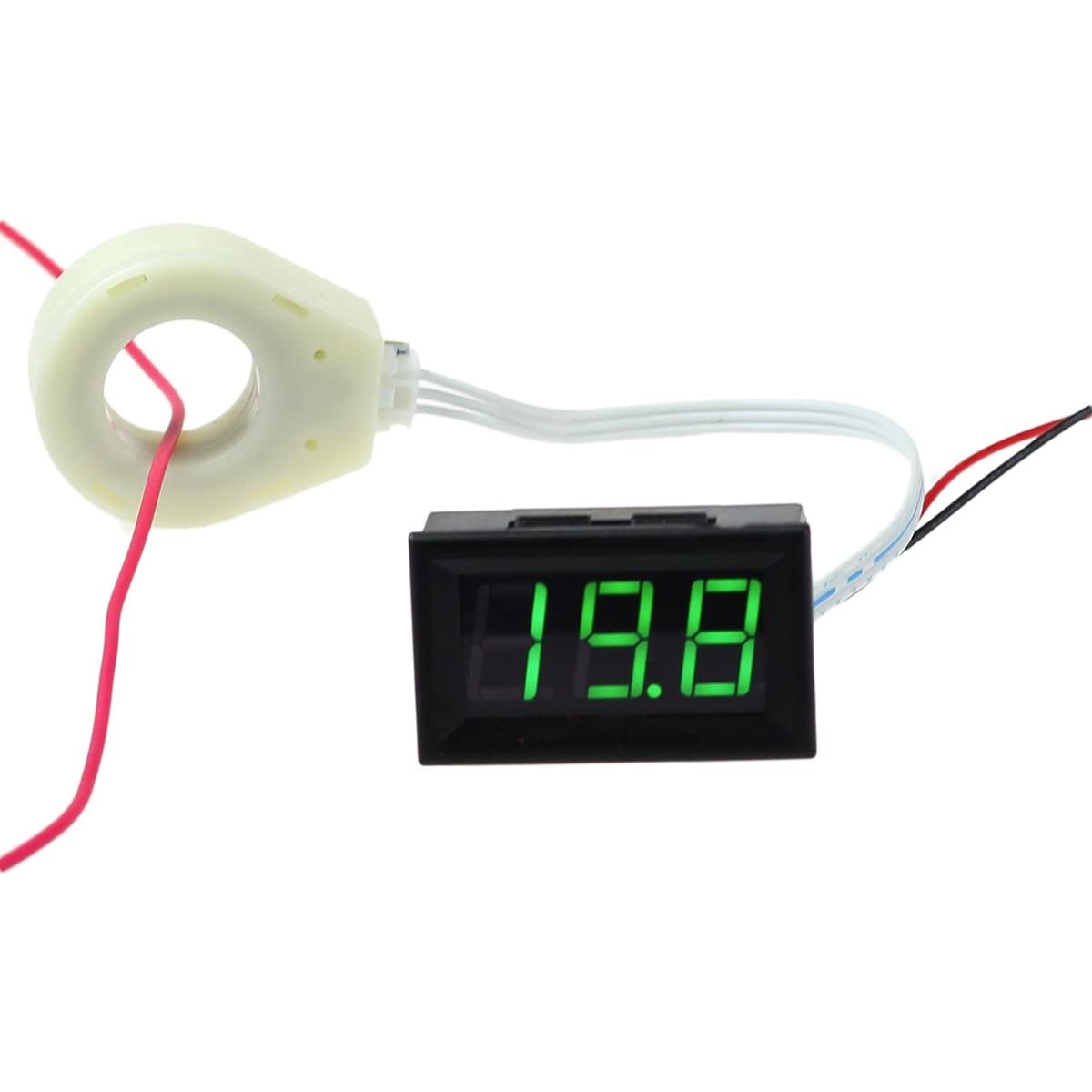

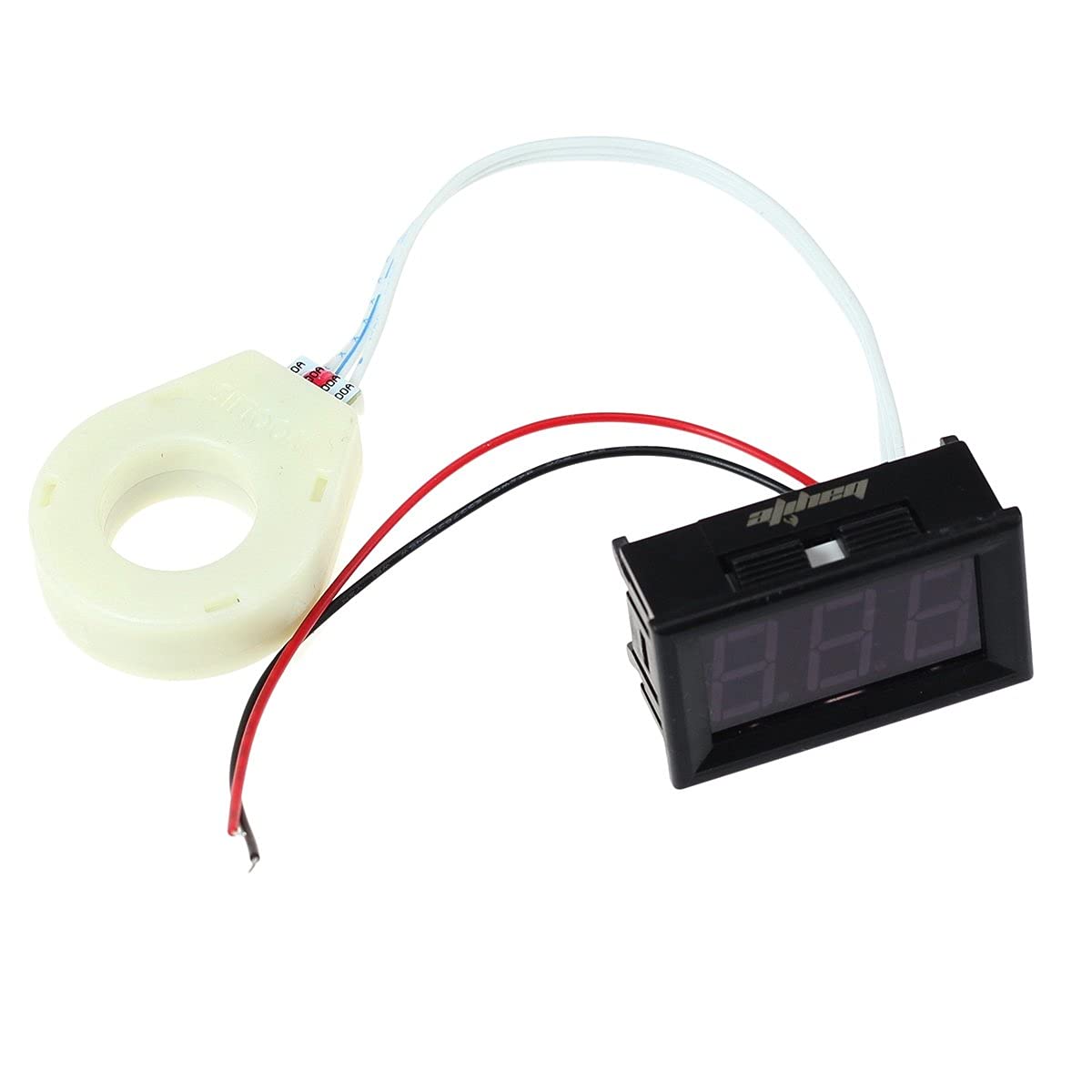

bayite DC 5-120V 100A Mini Digital Current Voltage Amp Meter Ammeter Gauge with Hall Effect Sensor Transformer
10% off
10% off
Sale price
$18.98
Regular price
$20.98
Unit price
/
Unavailable
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: bayite
Features:
- Through-hole design: Easy Wiring; Measure positive or negative current; No current direction limitation
- Electrically isolated from high voltage power source which eliminates risk to delicate monitoring equipment and also minimizes safety concerns
- Display Voltage or (+ -)Current; Voltage Range: 5V-120V; Current range: 0-100A
- Compatible with large wire; Diameter of the hole through sensor is 3/4 inch(19 mm)
- Loop through sensor multiple times to strengthen signal. For example, if your current signal is only 0.2 Amps, you could loop the wire through the sensor 10 times and the signal would by 10X stronger and would appear as 2.0 Amps
Part Number: BYT-VAM-033
Details: Main Specifications:
Measurement Range: + -100A
Measuring Accuracy: + -1%
Resolution: 0.3A
Working current: 7-15mA
Power supply: DC 5-120V
Overall Dimensions: 48mm*29mm*23mm
Cutout size: 45.5mm*25.5mm
Sensor hole diameter: 19mm
Operating temperature: -4°F - 140°F (-20°C - 60°C)
Package Dimensions: 2.8 x 2.8 x 2.5 inches
