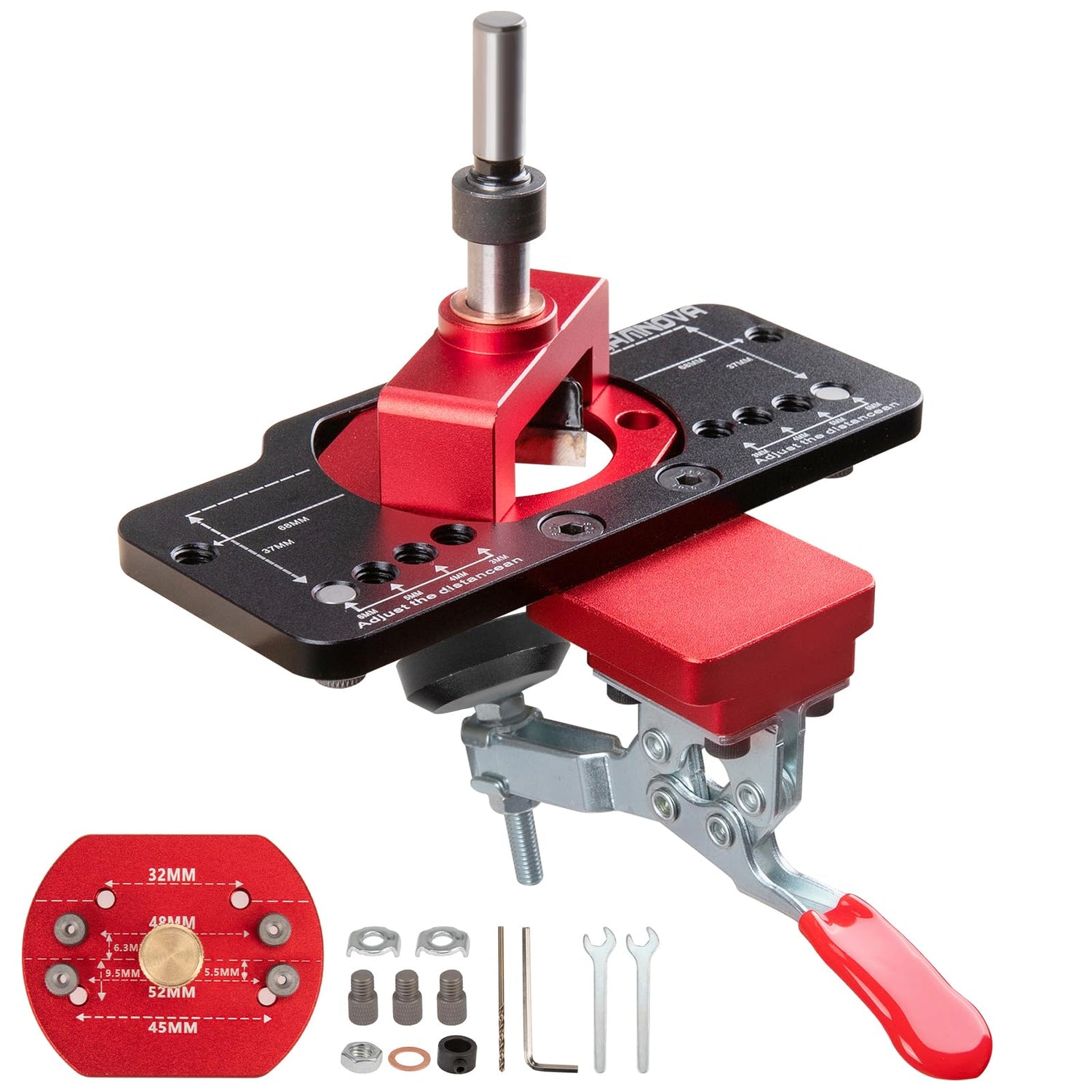

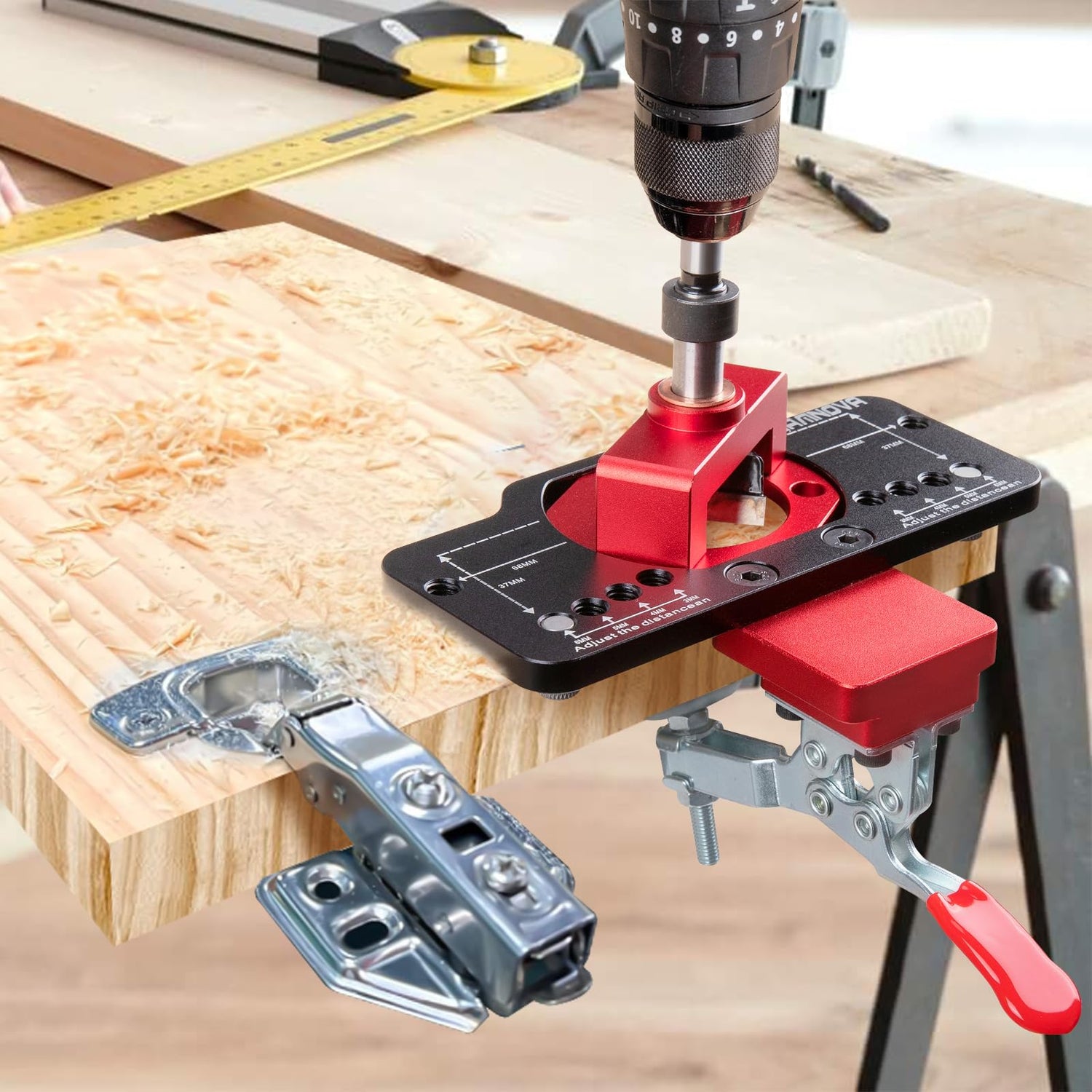

BEAMNOVA 35mm Concealed Hinge Jig with Drilling Guide Locator Aluminum Alloy Cabinet Door Hinge Jig,Woodworking Tool for Door Cabinets Hinges Mounting，Accurate Locking Hinge Boring Jig

Brand: BEAMNOVA

Color: Red

Features:

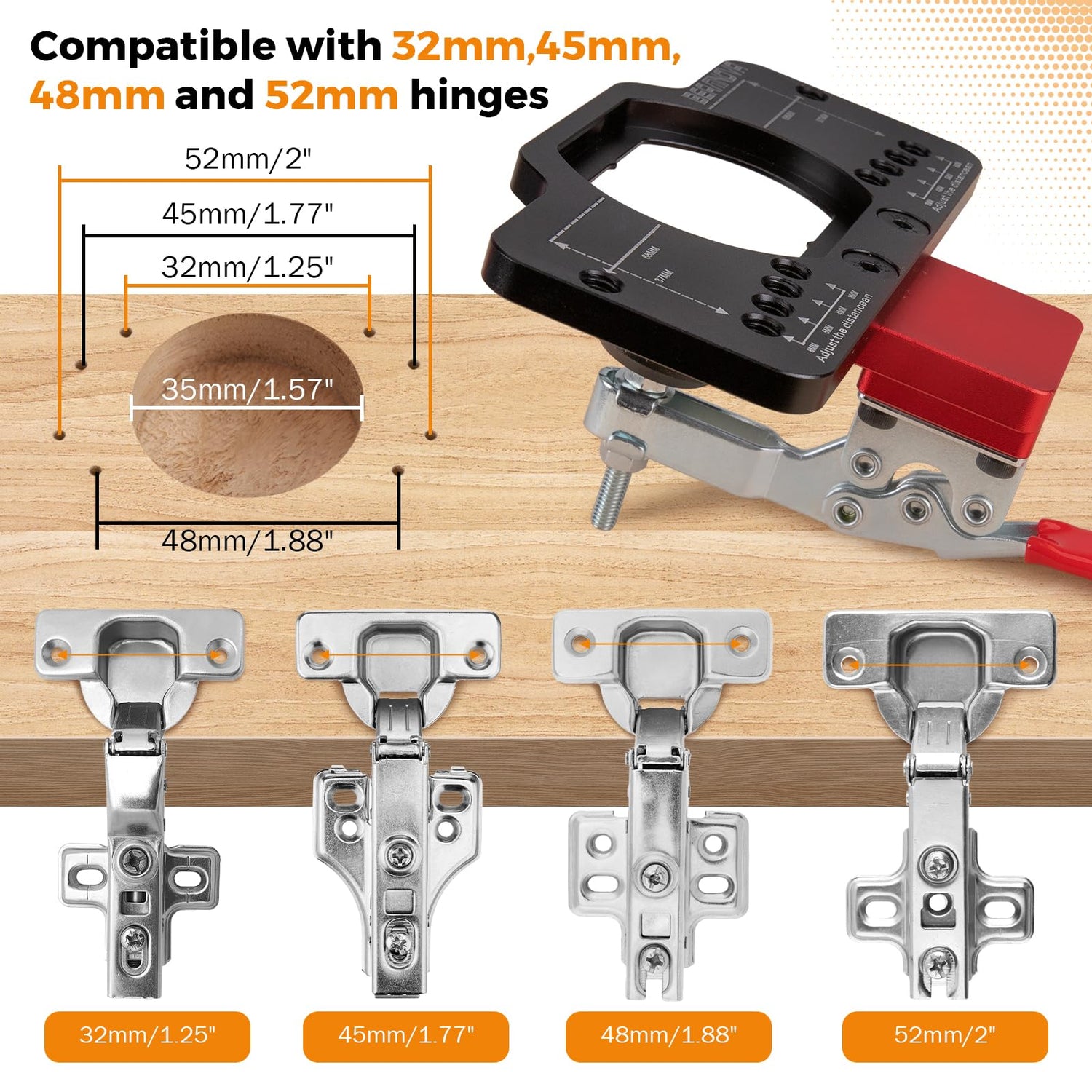

• 【Drill Guide Locator】：Hinge boring jig comes with a hinge drilling guide, compatible with most hinges in the market including 32mm, 45mm, 48mm, and 52mm sizes, covering both American and European
• 【Adjustable】：BEAMNOVA cabinet hinge jig has multiple position limits,hinge hole edge distance adjustment3/4/5/6mm,and this cabinet door hinge jig does allow for more adjustments on how deep you need the hinge cup,10-15mm

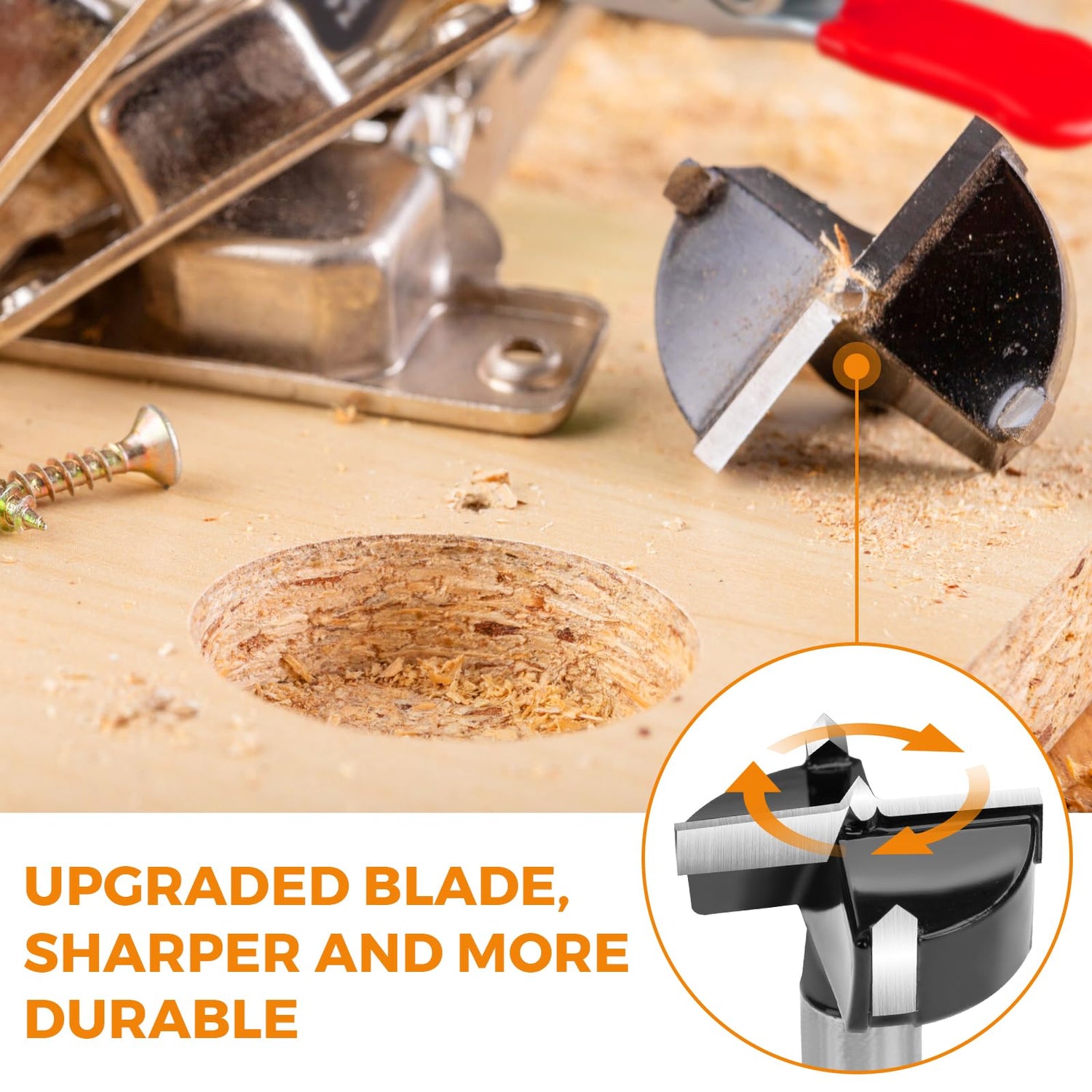

• 【Aluminum Alloy Material】：BEAMNOVA door hinge jig made of high-quality aluminum alloy material,rust-proof,sturdy,and can be used continuously for many years. Precision manufacturing, accurate positioning, and sharp drill bits make it a good helper for installing various cabinet door hinge fixtures

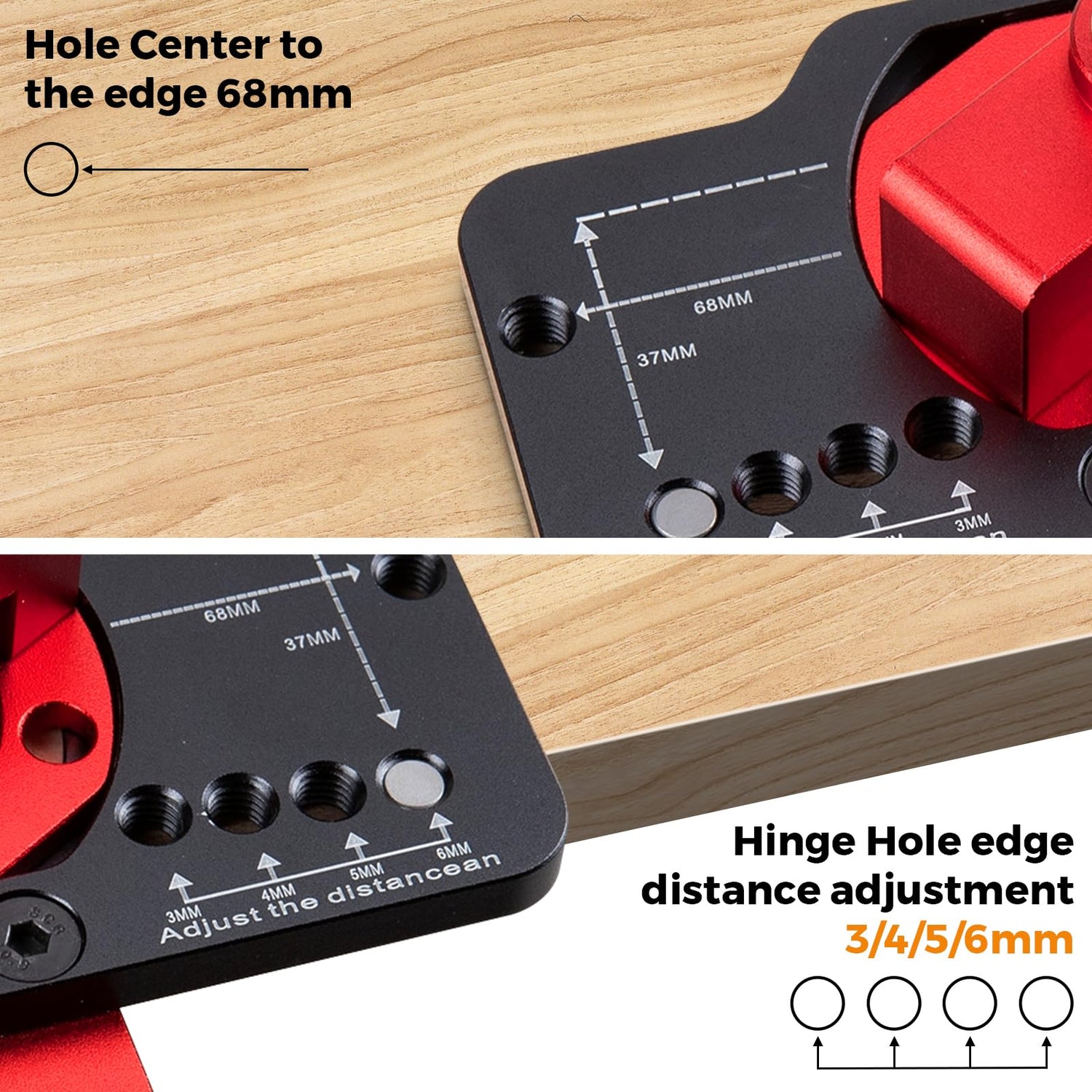

• 【Hole Center To The Edge 68mm】:hinge drilling jig has an end stop pointer set screw, which is set at a distance of 68mm from the center of the hinge hole you are drilling.

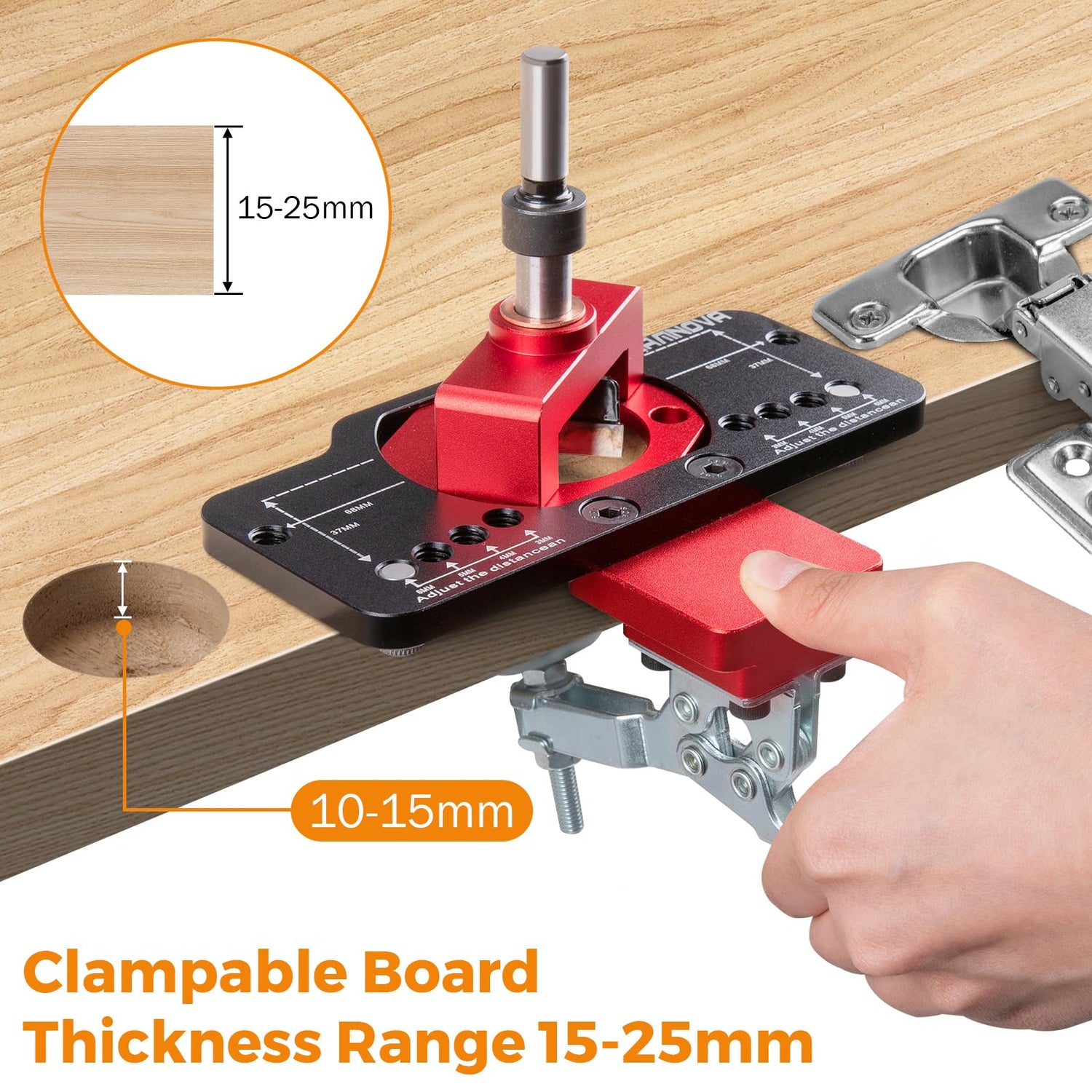

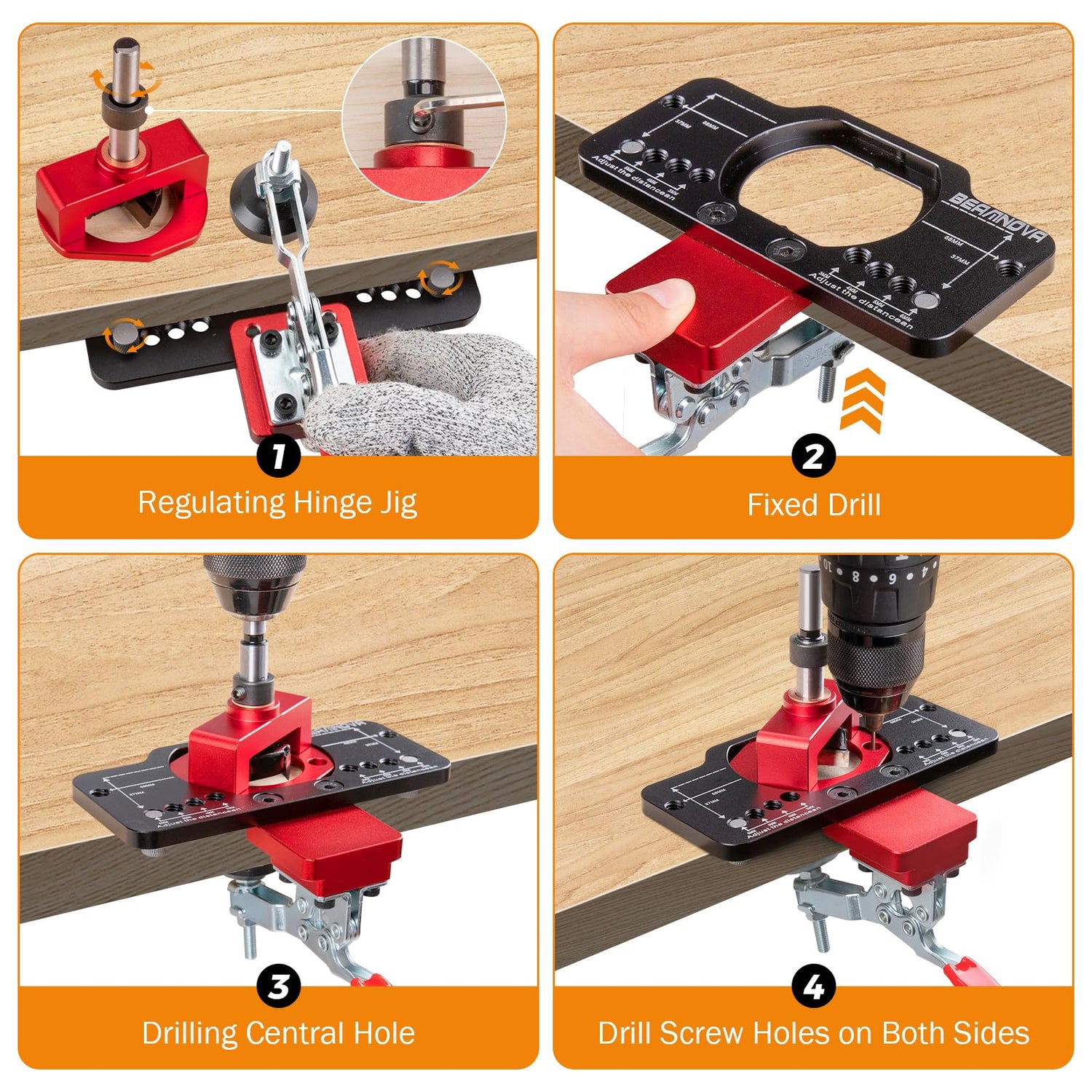

• 【How to use】 1. Install a 35mm hole saw and lock the limit ring. 2. Adjust the black fixing tool on the light fixture (the tool can adjust the fixing plate size to 15-25mm). 3. Install the locator and drill in the box. 4. Tighten the drill handle and press the hole evenly to a depth of 10-15 mm.5.drill suitable screw holes on both sides according to the size of the hinge.

Part Number: BEAMNOVA
