Description
Description
Brand: BEILOCKERY
Color: Grey
Features:
- High quality: The lathe is made of sturdy cast iron material and undergoes quenching treatment, significantly improving the strength, toughness, and wear resistance of the bed, ensuring the stability of the lathe during long-term operation

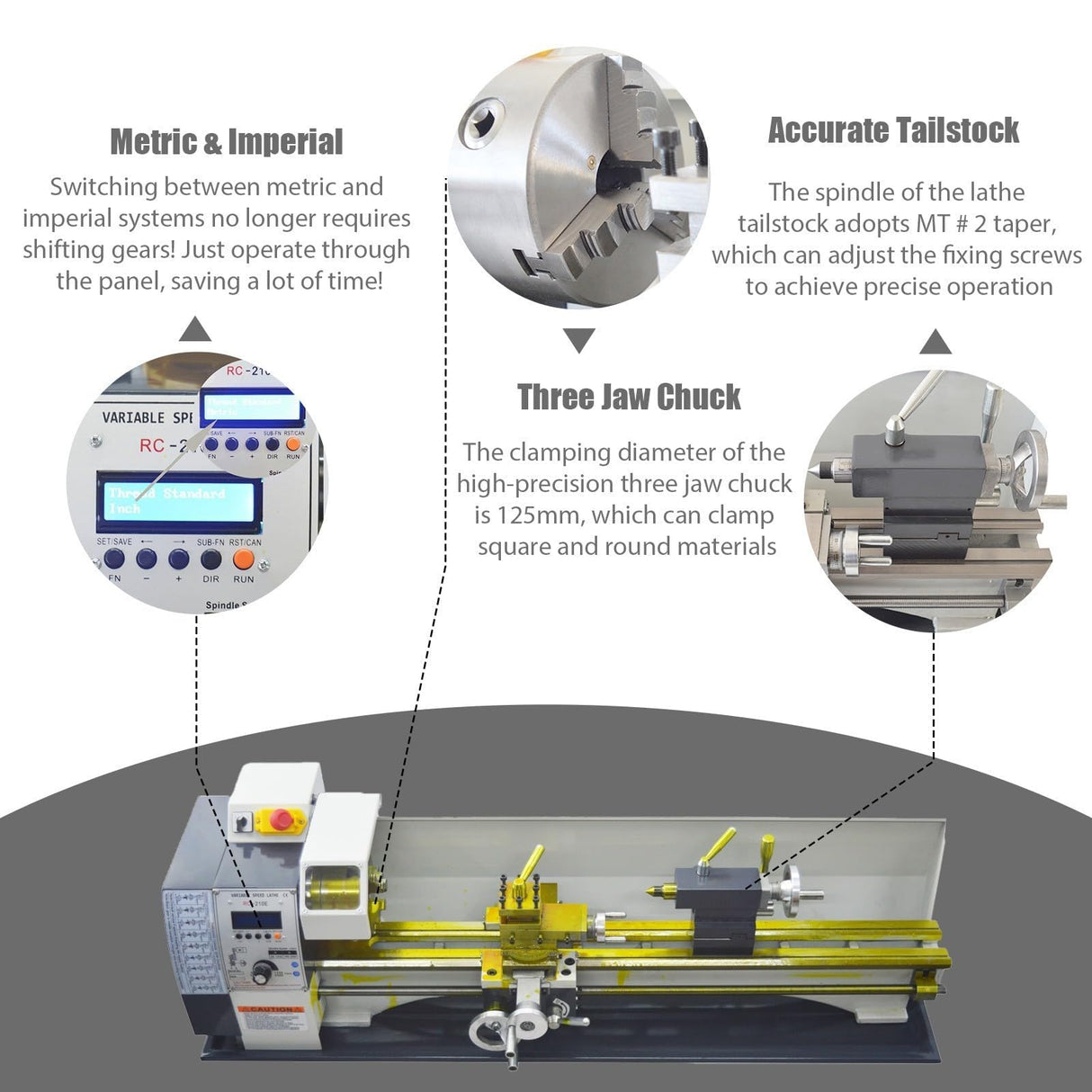

- Switchable between metric and imperial systems: This lathe can automatically switch between metric and imperial systems without shifting gears, greatly facilitating the operator. Processing both imperial and metric threads is easy, without the need to replace parts or adjust settings, improving work efficiency and processing flexibility
- Indexing function: You can switch the direction of turning tool through "DIR" button. Angles can be cleared with one click

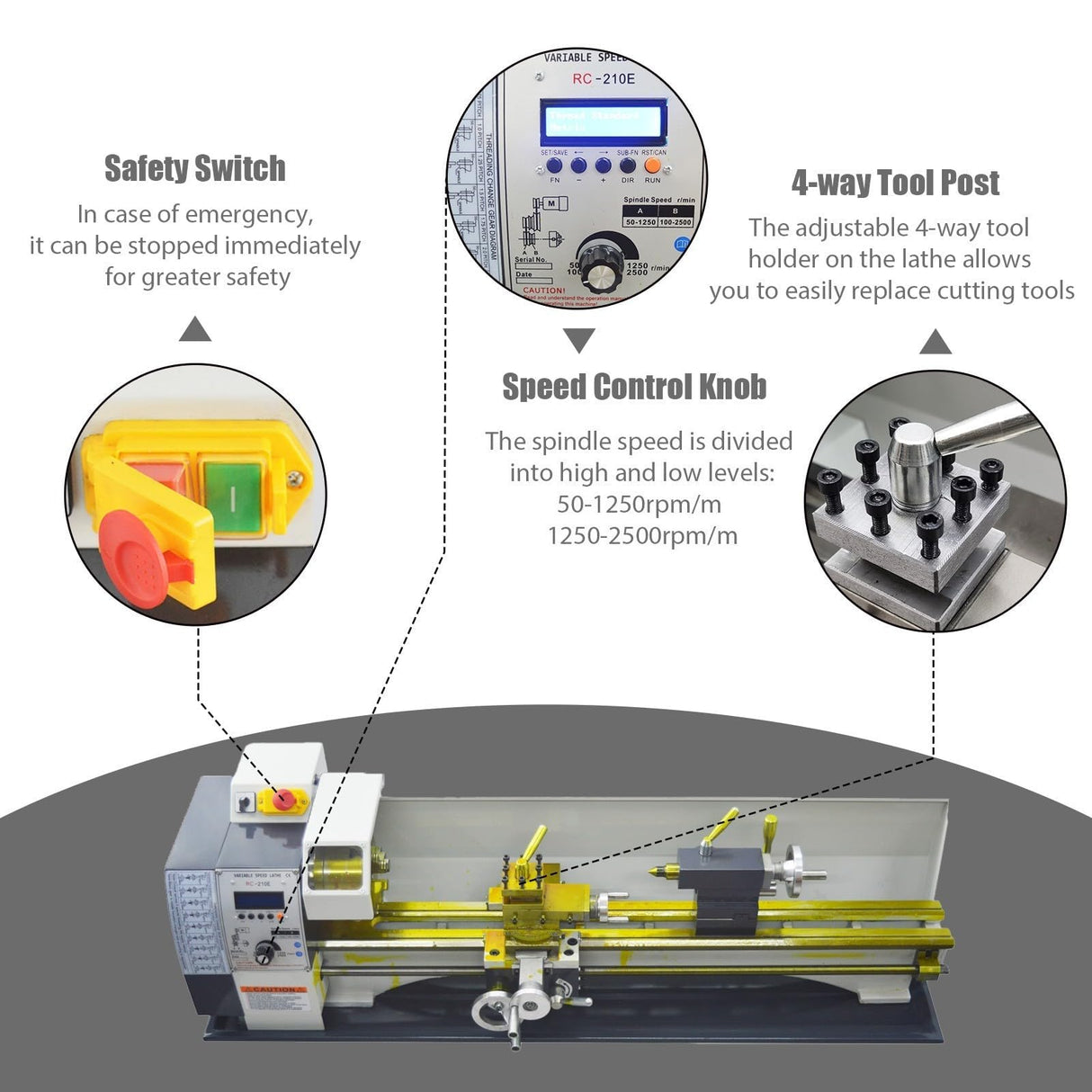

- Convenient design: The lathe is equipped with a user-friendly operating interface, including a one click start stop switch and forward/reverse switch, making operation more convenient and efficient
- Wide applicability: This lathe is suitable for processing various materials, including metal, plastic, wood, etc. It can process various rotating surfaces and end faces of rotating bodies. For example, turning inner and outer cylindrical surfaces, conical surfaces, ring grooves, formed cutting surfaces, and turning end faces. Whether it's industrial production or DIY enthusiasts, they can find suitable application areas for themselves
Details: Product Parameters:
Model: RC-210E
Voltage: AC110V 50/60Hz(Brushless Motor)
Power: 1100W(1.5HP)
Length of center: 39.37"(1000mm)
Swing Over Bed: 8.27"(210mm)
Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: 1.50"(38mm)
Diameter of chuck: 4.92"(125mm)
Width of lathe bed: 3.94"(100mm)
Thread standard: Metric/imperial/customized
Turning delay start time: 1s-30s
Number of Spindle Speeds: Infinitely variable speeds
Range of Inch Threads: 10-44T.P.I
Range of metric threads: 0.5mm-3mm
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of the spindle: 0.01mm
Automatic feed range: 0.01mm-0.4mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 26.77"(680mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)

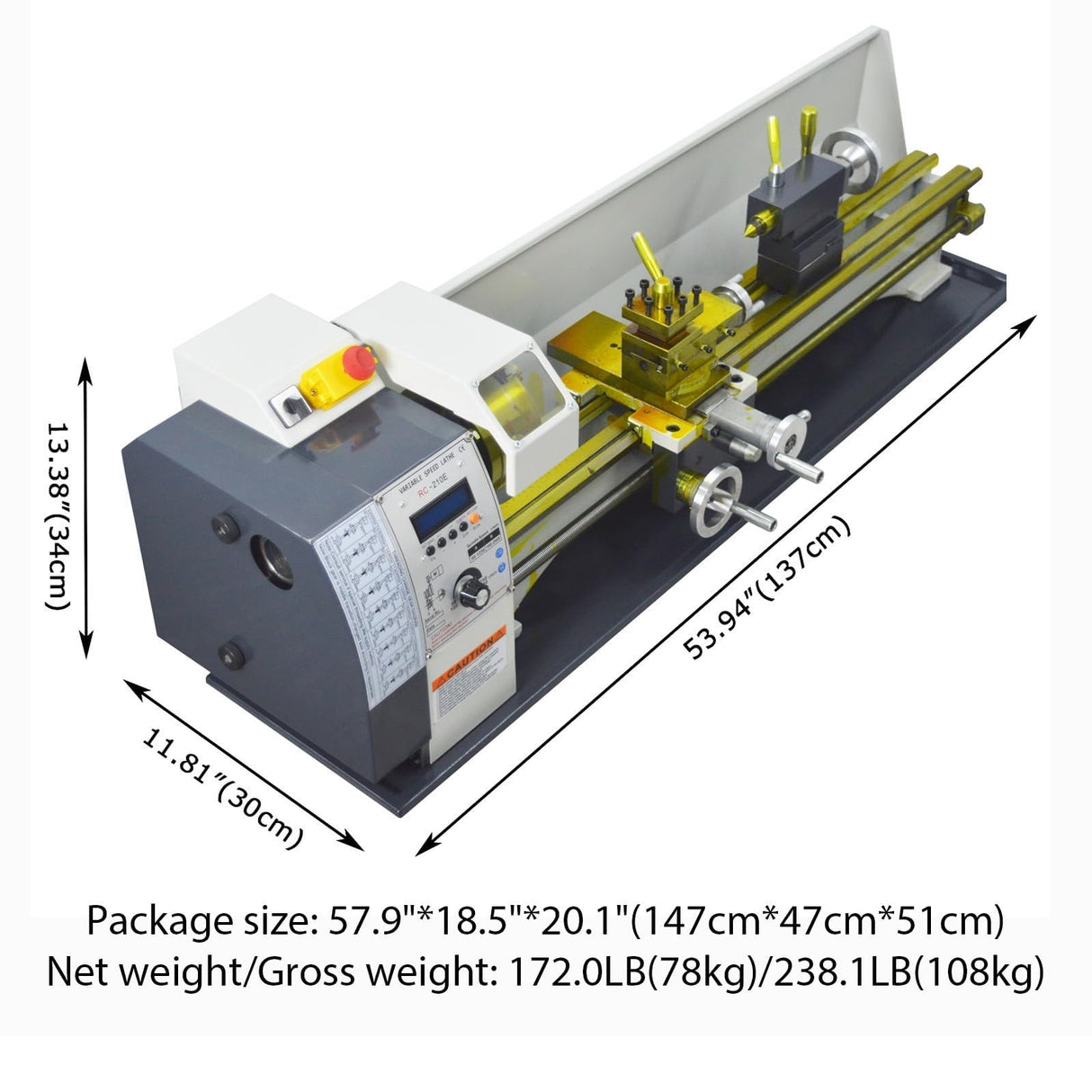

Package size: 57.9"*18.5"*20.1"(147cm*47cm*51cm)
Net weight/Gross weight: 172.0LB(78kg)/238.1LB(108kg)
Attention: The yellow parts on the lathe body and chuck are rust proof oil, which is a normal phenomenon. They can be wiped off with oil or gasoline before use. Before starting, be sure to clean the rust proof oil on the chuck and rotate it by hand to prevent the chuck from getting stuck and causing the circuit board to burn out!!
Item Included (028501)
RC-210E lathe *1
Base oil pan *1
English manual *1
Oil can *1
Hexagon wrench *5
Open spanner *2
The screwdriver *2
Chuck jaw *3
Chuck spanner *1
EAN: 0198462846523
Part Number: S028501
