BEILOCKERY Mini Metal Lathe CJ0618 Metric Thread 750W Benchtop Precision Metal Wood Horizontal Lathe 0-2500rpm Variable Speed 7"*14" 110V for Teaching and Production
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: BEILOCKERY
Color: Blue
Features:
- High quality: The lathe is made of sturdy cast iron material and undergoes quenching treatment, significantly improving the strength, toughness, and wear resistance of the body, ensuring the stability of the lathe during long-term operation

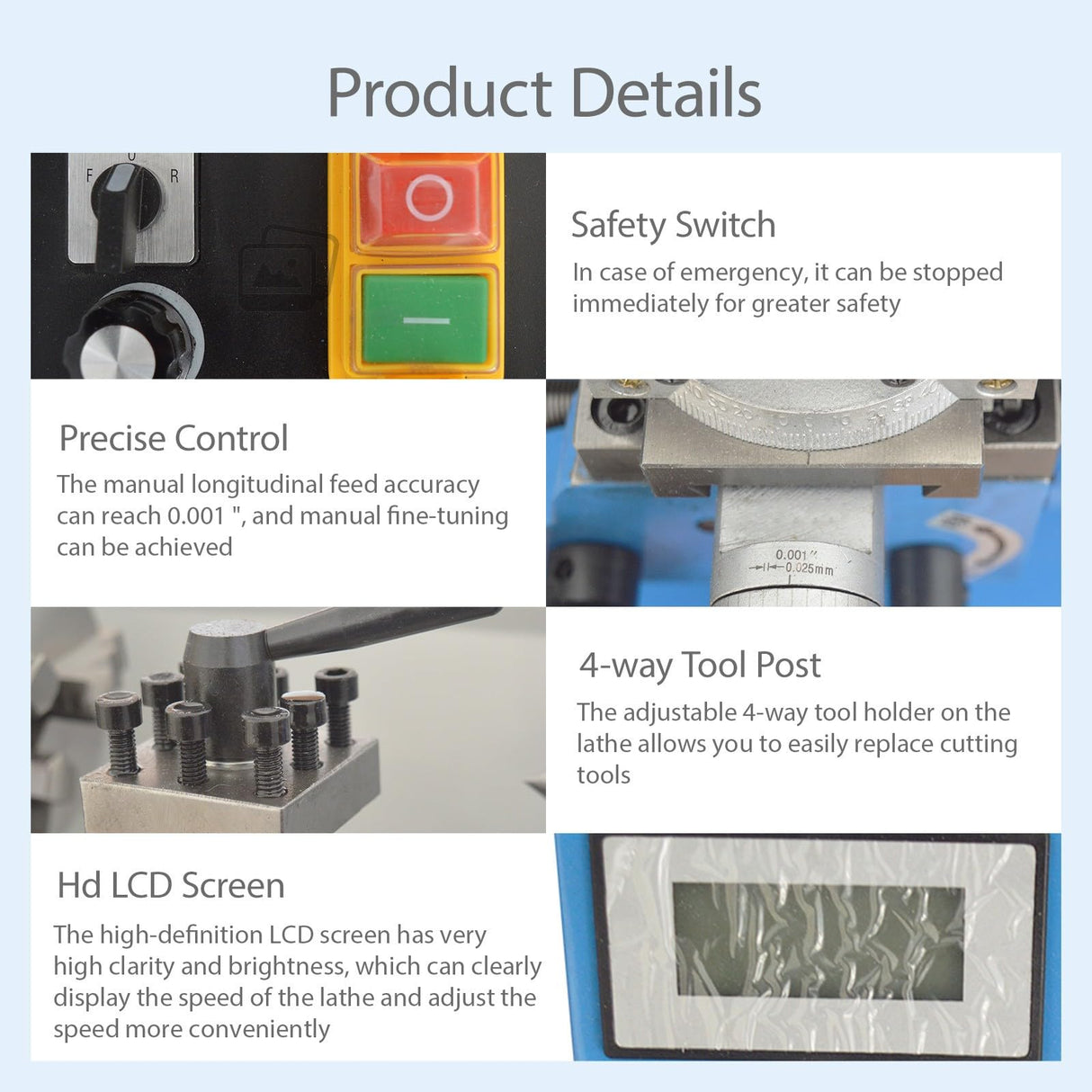

- Convenient design: The lathe is equipped with a user-friendly operating interface, including a one click start stop switch and forward/reverse switch, making operation more convenient and efficient
- Motor: The lathe adopts a high-power 750W (1HP) brushless motor with low noise and long service life. The motor undergoes precision machining and strict testing to ensure stability even during high-speed operation, reducing vibration and errors, providing strong support for precision machining
- Easy to maintain: The structure of small lathes is relatively simple, and daily maintenance and upkeep work is also relatively easy. Users can quickly solve some common small problems to ensure the stable operation of the lathe
- Wide applicability: This lathe is suitable for processing various materials, including metal, plastic, wood, etc. It can process various rotating surfaces and end faces of rotating bodies. For example, turning inner and outer cylindrical surfaces, conical surfaces, ring grooves, formed cutting surfaces, and turning end faces. Whether it's industrial production or DIY enthusiasts, they can find suitable application areas for themselves

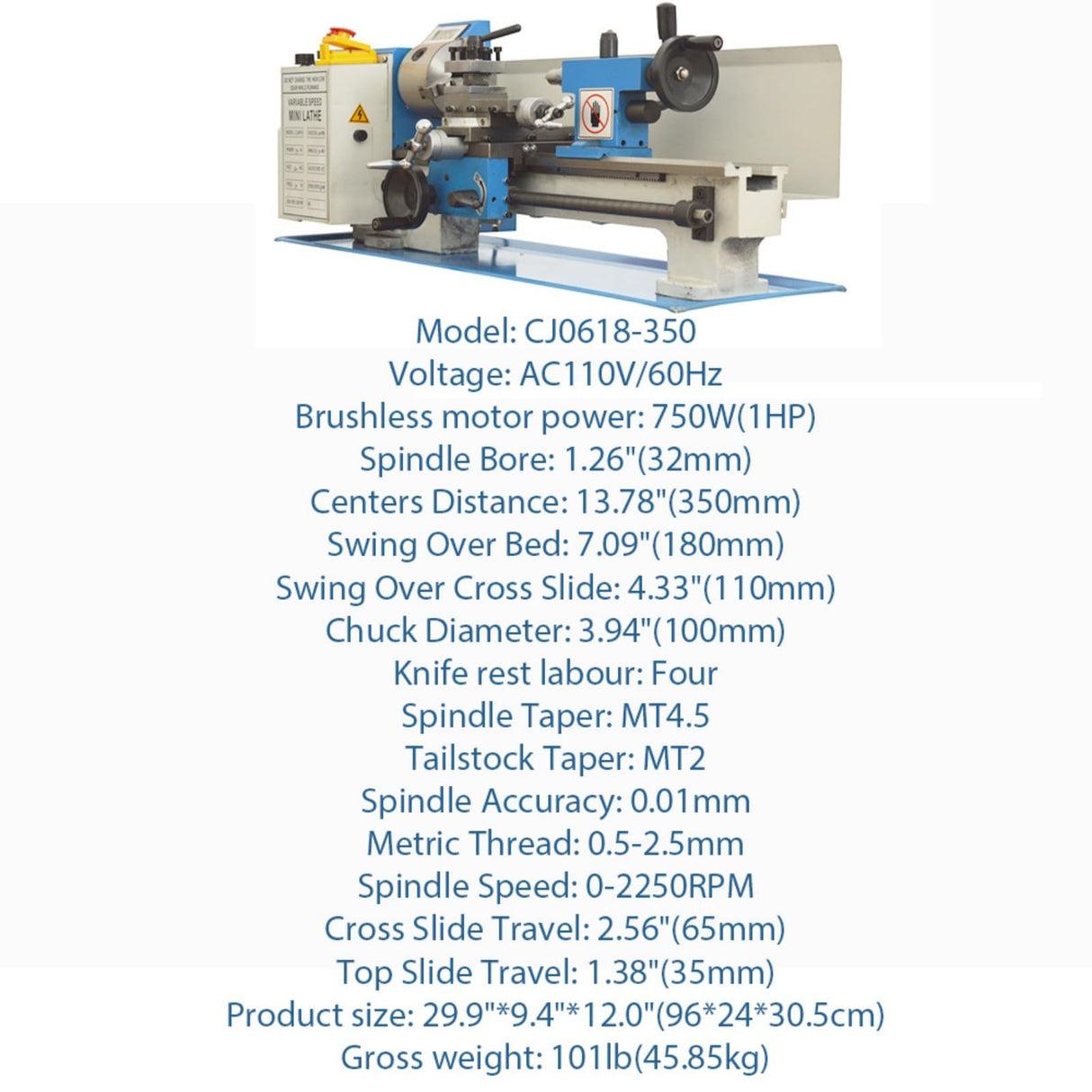

Details: Product Parameters:
Model: CJ0618-350
Voltage: AC110V/60Hz
Brushless motor power: 750W(1HP)

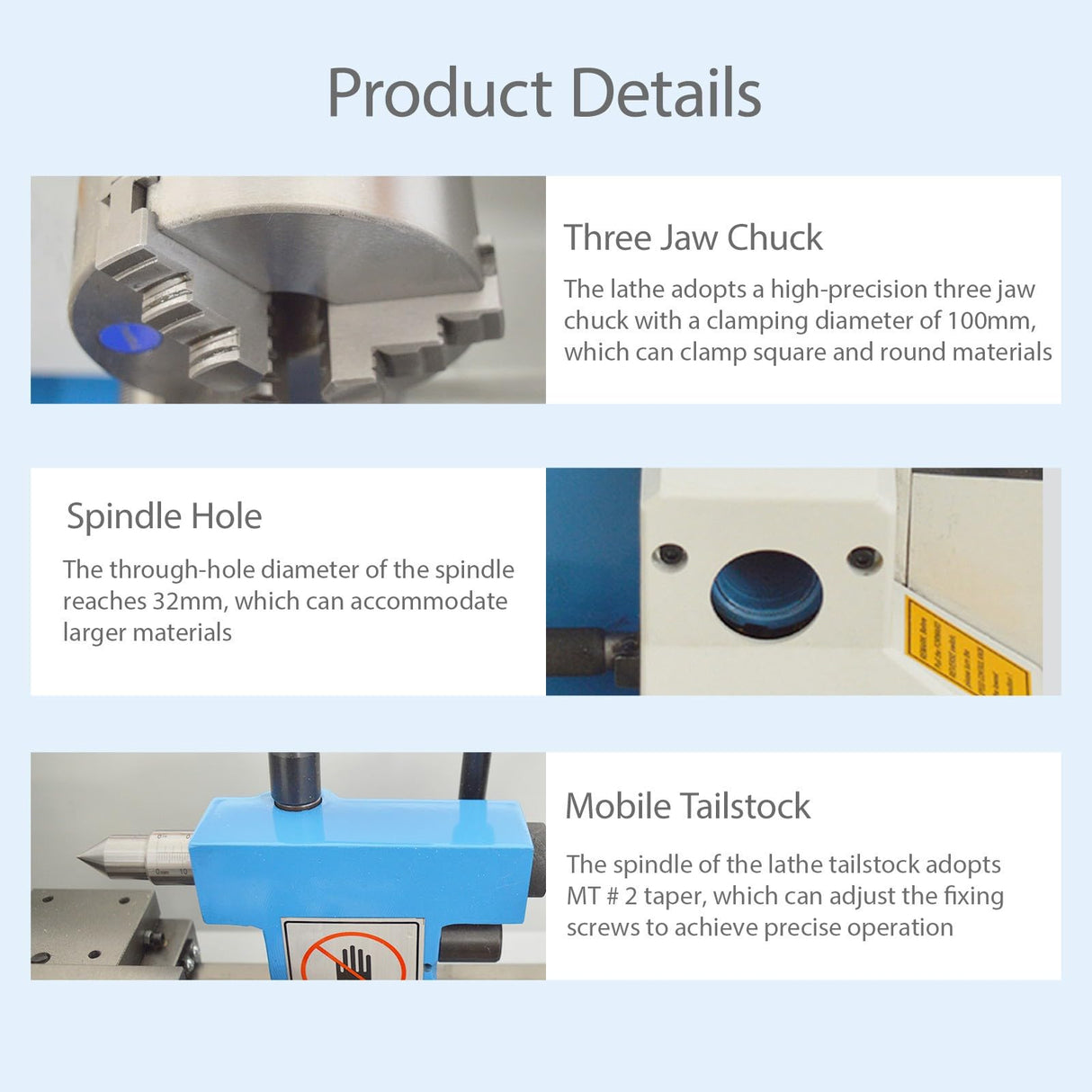

Spindle Bore: 1.26"(32mm)
Centers Distance: 13.78"(350mm)
Swing Over Bed: 7.09"(180mm)
Swing Over Cross Slide: 4.33"(110mm)
Chuck Diameter: 3.94"(100mm)
Knife rest labour: Four
Spindle Taper: MT4.5
Tailstock Taper: MT2
Spindle Accuracy: 0.01mm
Metric Thread: 0.5-2.5mm
Spindle Speed: 0-2250RPM
Cross Slide Travel: 2.56"(65mm)
Top Slide Travel: 1.38"(35mm)

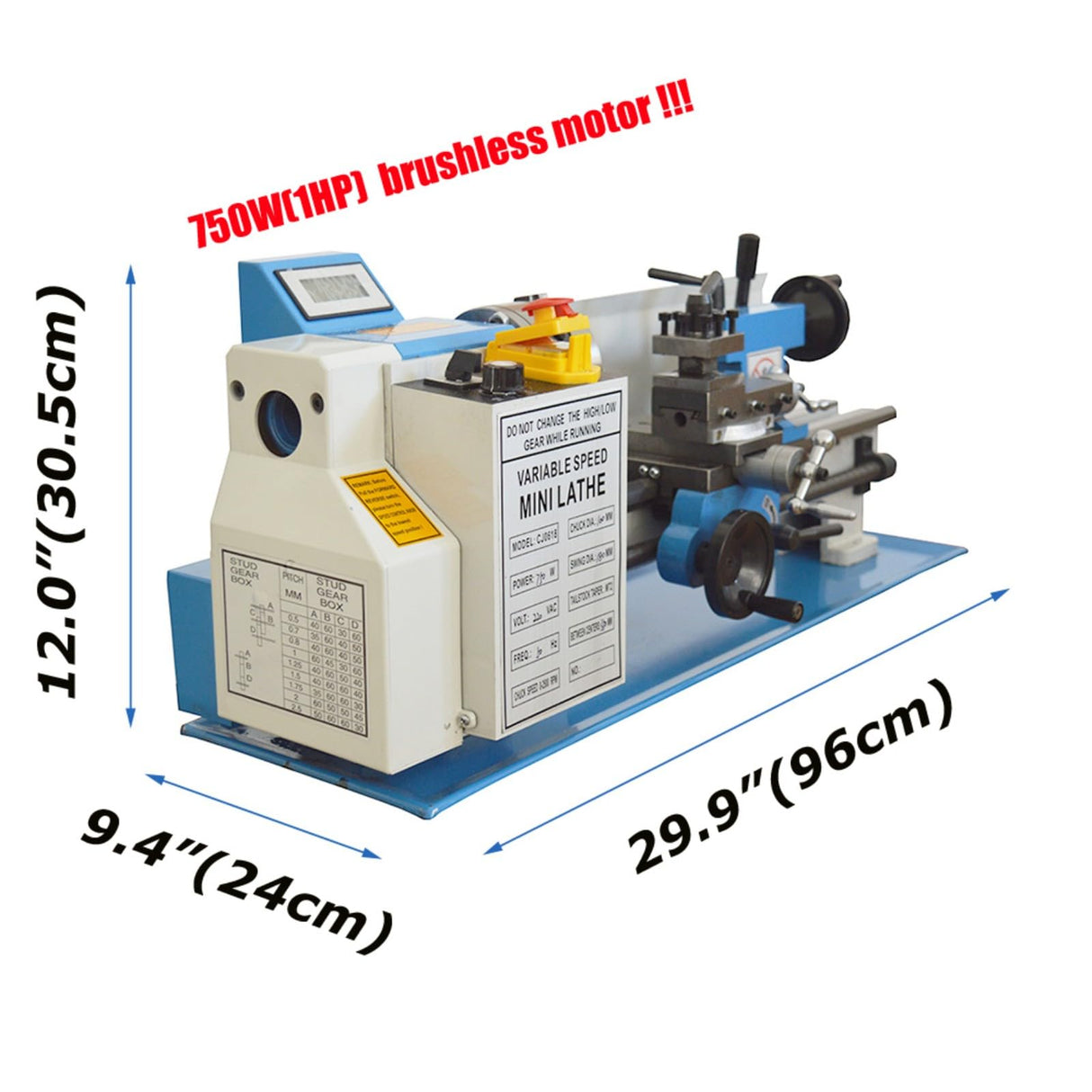

Product size: 29.9"*9.4"*12.0"(96*24*30.5cm)
Gross weight: 101lb(45.85kg)
Item Included (028333)
CJ0618 lathe * 1
Fork wrench * 2
Non-slip pads *4
Metal gear *8 (60/60/50/45/40/40/35/30)
Oil can * 1
Set screw *4
Hexagon wrench *5
Chuck claw * 3
Chuck wrench *1
English instruction manual *1
EAN: 0198462848107
Part Number: S028333
