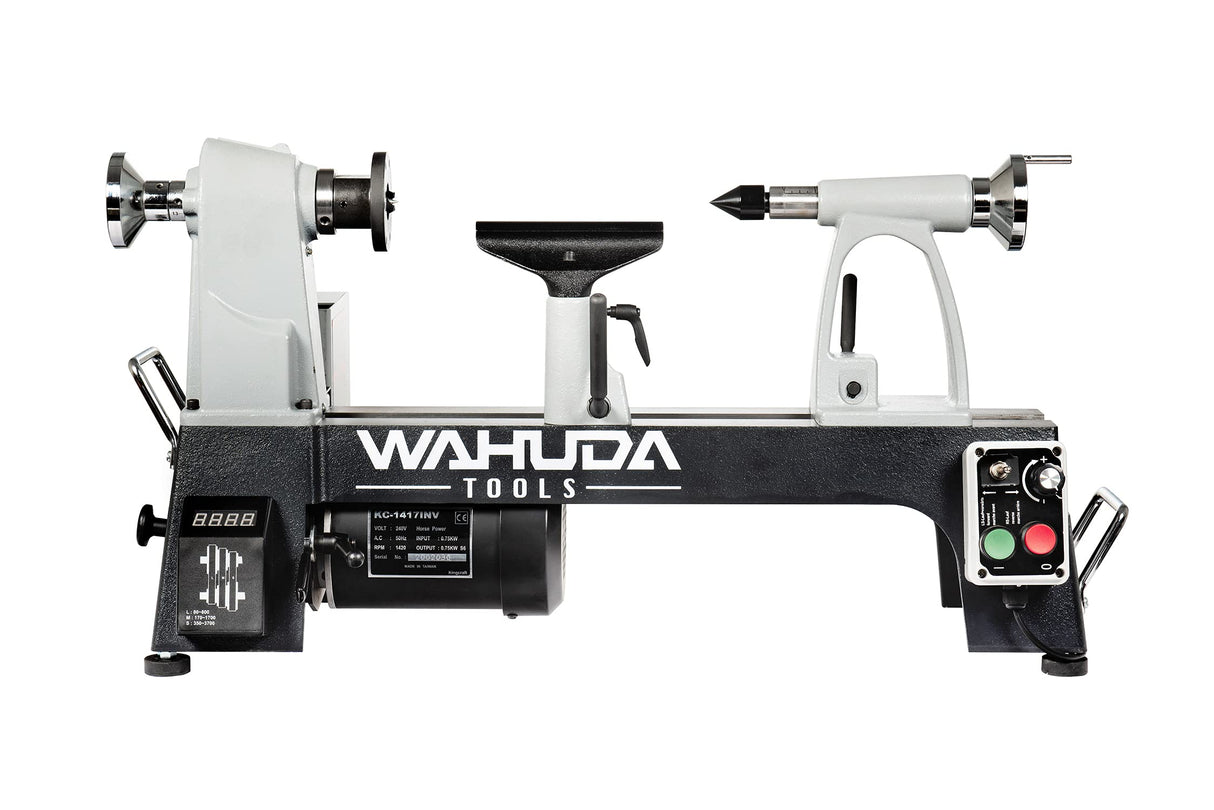

Benchtop 14" Variable Speed Wood Lathe w/induction motor

Brand: WAHUDA TOOLS

Features:

• Wahuda Tools has listened to many people’s suggestions and integrated the most desirable features into our 14” Midi Lathe. Our lathe is 830 mm long x 330 mm wide x 430 mm high and is portable, but big enough, to satisfy the needs of beginners to advanced users.

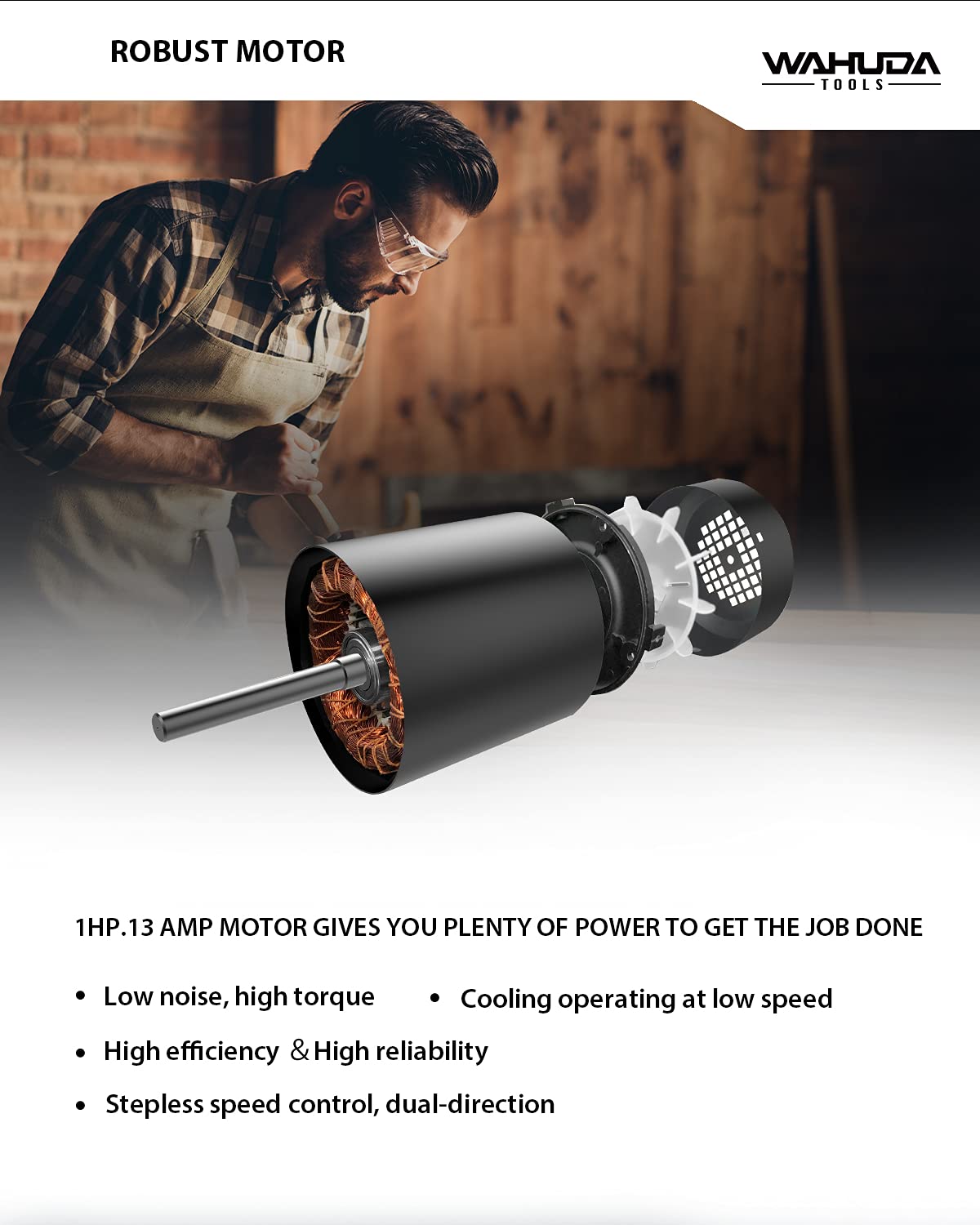

• The exceptional 1HP AC motor that is perfectly paired with an inverter that maintains a higher and more consistent output torque which is not found on most of the competitive models in today’s market This is especially effective when running at speeds as low as 30RPM and maintaining the output torque of the spindle at or near 100% which is beneficial for users who need to work at low speeds to make certain projects.
• The Midi Lathe has three speed ranges (30-800, 150-1,700, and 350-3,700 RPM) which can be easily changed with a quick release lever on the motor to release belt tension. The spindle speed can conveniently be viewed on the front window of the lathe’s digital display.
• Even though this is a bench top lathe, Wahuda uses a 1’’ diameter toolrest which is a common size used on medium and large lathes which allows it to be able to use many of the different toolrests on the market.

Part Number: 60170ML-WHD

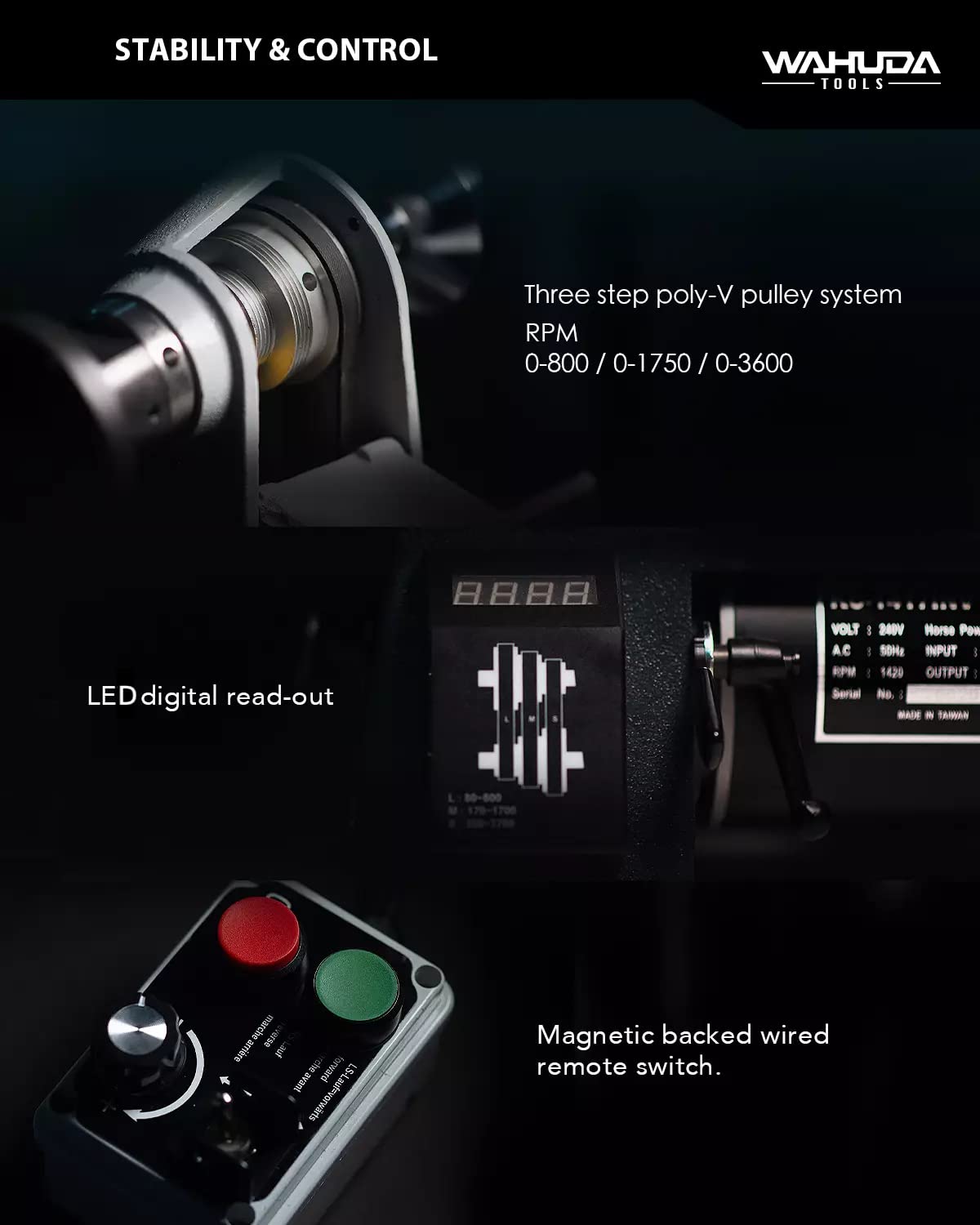

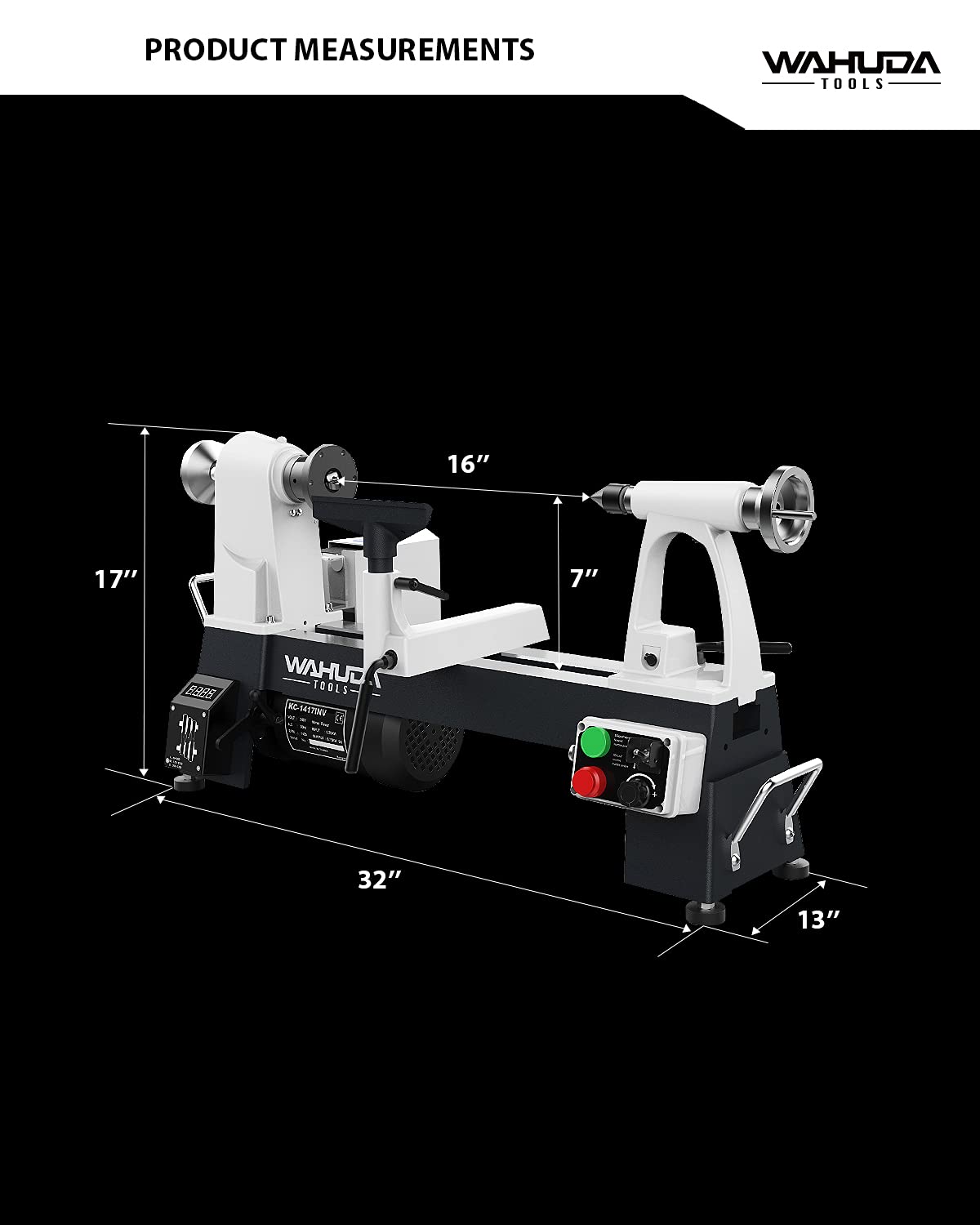

Details: The Wahuda benchtop 14" mini lathe utilizes the very reliable inverter technology, usually found on much larger machines, to keep constant torque at various speed settings. Electronic variable speed is a desirable feature for wood turners, enabling fine tuning of speed to suit delicate work, larger diameters or out of balance work pieces. A three step poly-V pulley system allows three speed ranges, 0 to 800, 0 to 1750, and 0 to 3600 rpm, which when coupled with the load sensing inverter, ensure maximum torque and stable spindle speeds. The included magnetic backed wired remote switch can be placed on any convenient position on the lathe bed or the headstock to suit the work in hand. It incorporates on/off buttons, a speed control knob, and a forward and reverse switch. A LED digital read-out of the spindle speed in RPM, located on the base of the unit, is a useful feature that helps to control your work. With a maximum of 16" (400mm) between centers, (distance will vary with type of drive center or accessory used) and a 14" (350mm) swing over the bed, the capacity offered is generous on a lathe this compact. Spindle indexing is achieved in 15 degree segments by insertion of the included magnetic index dowel pin. The 6 " tool rest sports a sturdy tool post diameter of 1 ". Headstock and tailstock spindle tapers are # 2MT, with a drive spindle thread of 1 1/4 - 8 TPI RH threads , and drive spindle hole diameter of 3/8 ". At 90lbs the lathe is heavy enough to be very stable but can still be moved around you shop. It's compact size, at 32 " L x 17 " H x 13 " D still provides plenty of capacity to show off your skills. Threaded holes (3/8"-16 UNC) are provided at each corner of the lathe for bench mounting. And the 120V AC 13 AMP motor gives you plenty of power to get the job done. Also included are a 4 prong drive center (already installed in headstock), standard 60 degree live center .

EAN: 0723707417536

Package Dimensions: 33.5 x 19.0 x 12.0 inches
