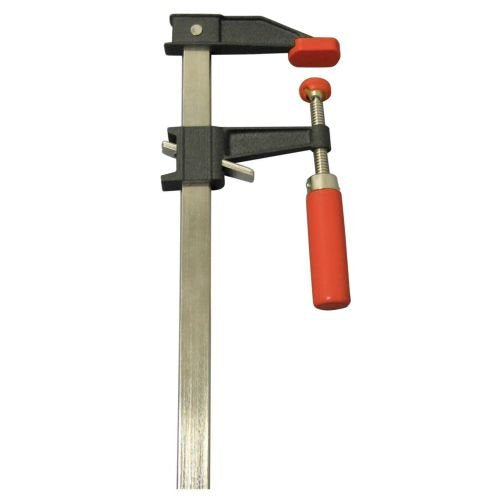

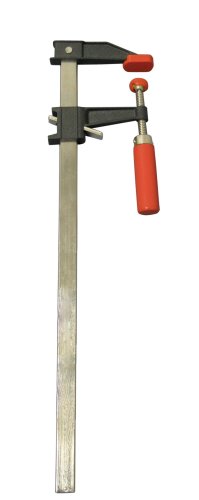

BESSEY GSCC2.536, 36 In., 600 lb clamping force, Clutch Style bar Clamp

Brand: Bessey

Color: Black/Red

Features:

• Mpn: GSCC2.536
• Country of manufacture: China
• Manufacturer: Bessey
• Cast heads
• Powder-coated finish
• Zinc finish rail
• 2 piece clutch plate system
• Protective pads for both top and bottom jaws

Binding: Tools & Home Improvement

model number: GSCC2.536

Part Number: GSCC2.536

Details: Product Description

Clutch Style Bar Clamp, Opening (In.) 36, Throat Depth (In.) 2-1/2, Load Capacity (Lb.) 600, Nominal Rail Size (In.) 3/4 x 1/4, Nominal Clamping Pressure 600, Spindle Dia. (In.) 0.40, Pad Type Non-Marring, Swivel on Anvil Surface, Swivel Type Replaceable, Swivel Pad (In.) 1, Screw Size (In.) 0.4, Max. Jaw Opening (In.) 36, Clamp Face (In.) 1-1/8 x 1-5/8, Bar Thickness (In.) 3/4, Bar Width (In.) 1/4, Bar Material Nickel-Plated, Drawn Steel Serrated Rail, Handle Length (In.) 3-1/2

From the Manufacturer

New economical Bessey F-Style clutch bar clamps come with cast heads with powder-coated finish to resist corrosion and chipping. Bessey provides a zinc finished rail with a two piece clutch plate system for opening and closing the lower movable jaw. The Bessey clutch clamps are also provided with protective pads on both the top and bottom jaws and come with a comfortable wooden handle.

EAN: 7241870619838

Package Dimensions: 40.0 x 4.4 x 1.0 inches
