Bonvoisin Electric Hydraulic Hole Puncher Φ1/4"-4/5" 1200W Punching Machine 110V Metal Hole Punch with Carbon Brush 5 Dies for Iron Copper Aluminum Plate Angle Steel
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Bonvoisin
Color: Grey
Features:

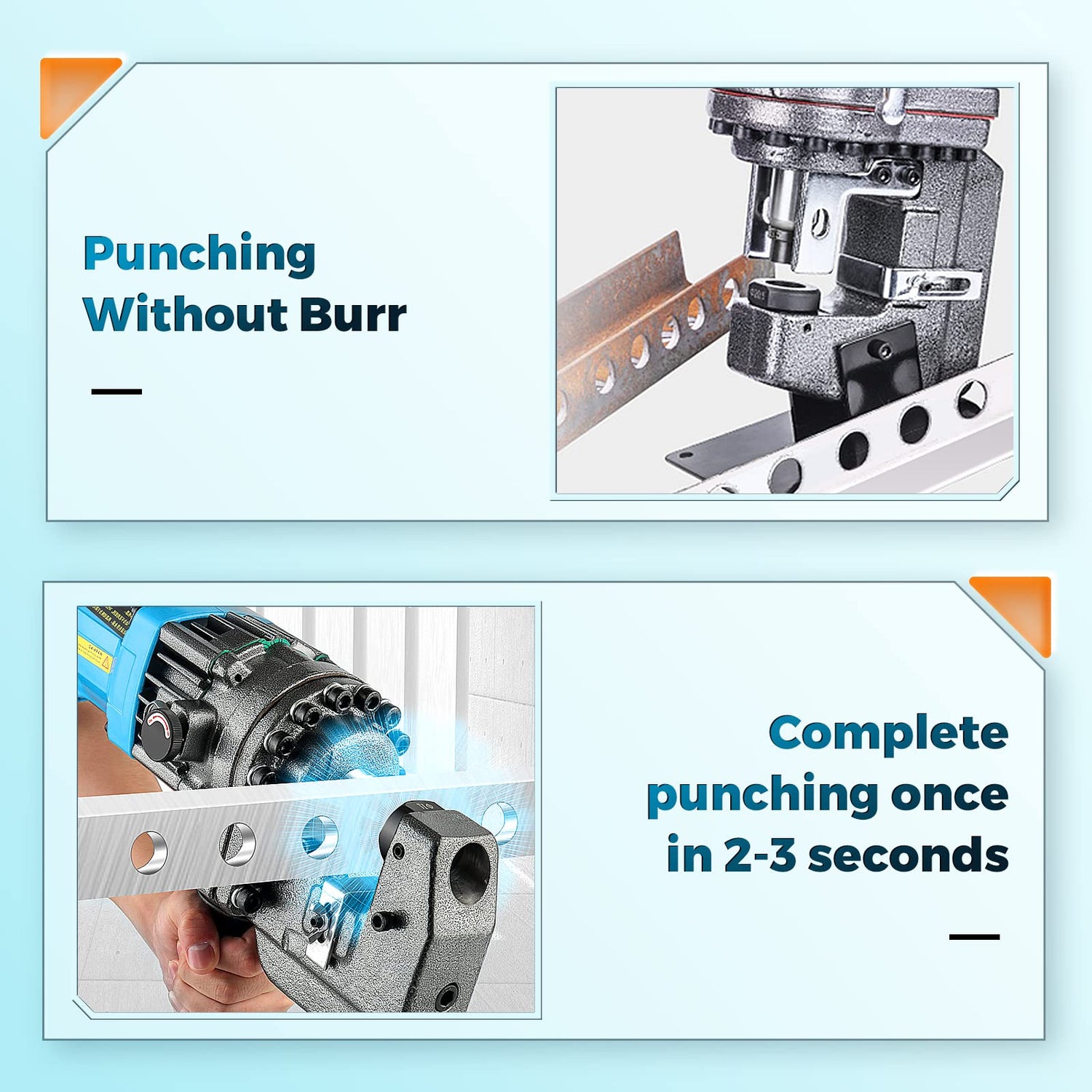

- [Fast Punch & Precise Positioning] - The hydraulic hole puncher uses a high-power motor, with a punching speed of 2-3 seconds. The punch is precisely designed, and every punch is precise.

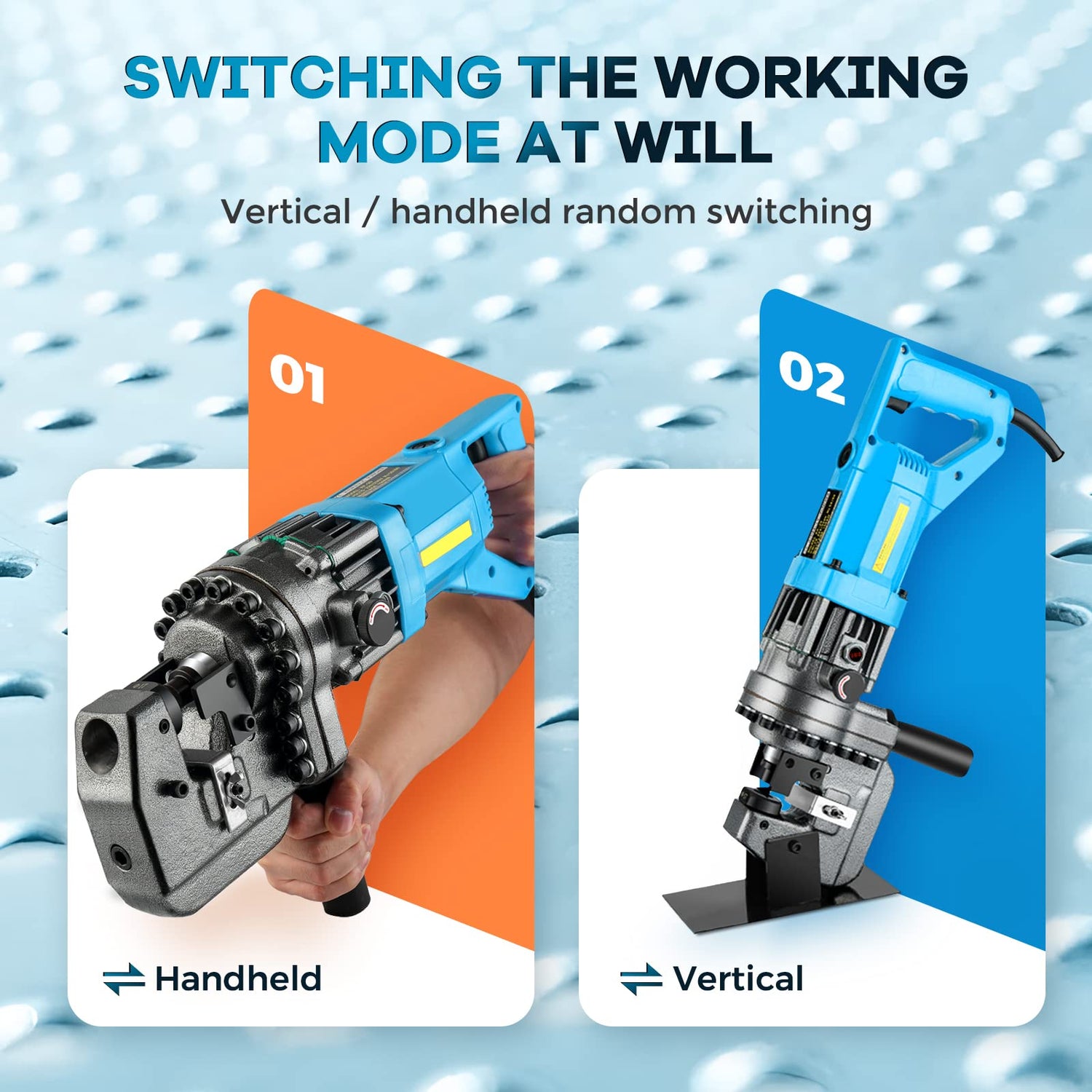

- [Portable & Convenient] - This hole punch is portable, and can be operated anytime, anywhere. Equipped with an auxiliary handle, it can be operated by hand, which is convenient for working at different angles. It can also be installed on the base to work on the platform.

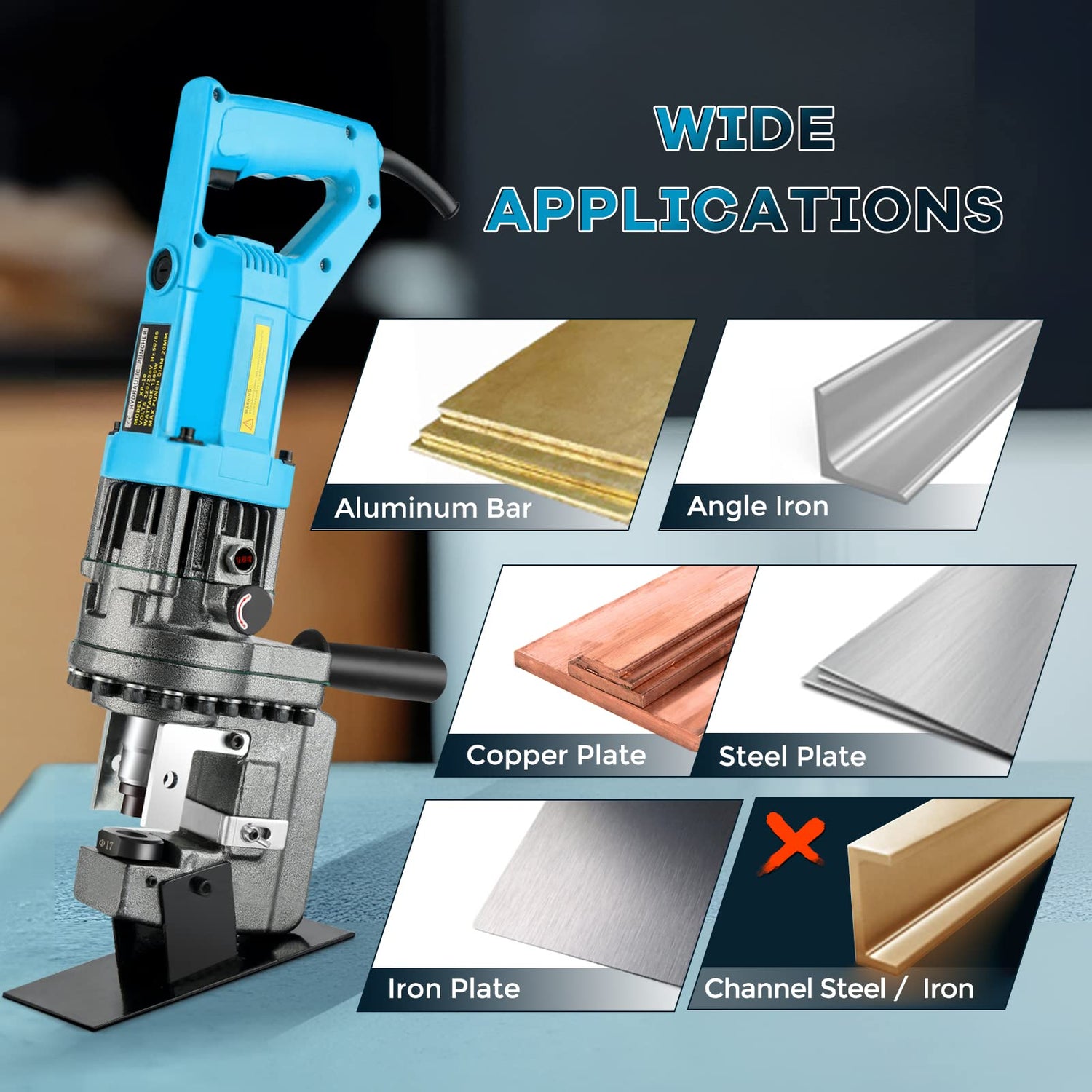

- [Applicable Range] - This hydraulic punch is suitable for copper/aluminum plates with a thickness of 0.11"~0.31"; iron/steel plates with a thickness of 0.11"~0.23"; 4~6# angle steel/iron. However, it does NOT apply to channel steel! Don't use on metal plates that are too thin or too soft, as they may easily stick.

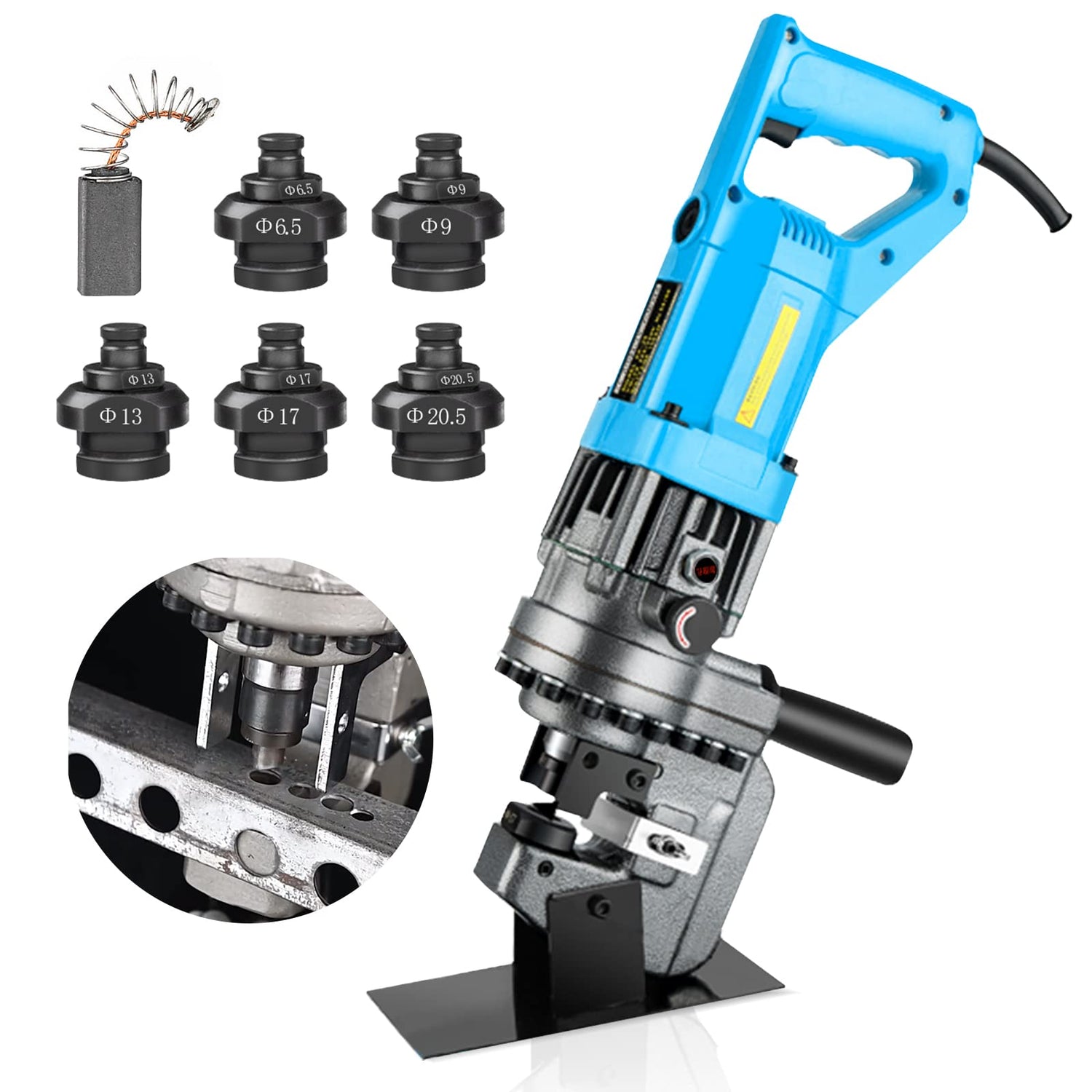

- [Complete Accessories] - The package includes: 1 x punching machine, 1 x big wrench, 1 x base, 2 x hexagon wrench, 2 x screws, 1 x auxiliary handle, 1 x carbon brush, 5 x standard dies: Φ6.5mm/9mm/13mm/17mm/20.5mm (Φ1/4”, 3/8”, 1/2”, 11/16”, 4/5”). The electric punch is packed in an iron box, and the internal parts are arranged neatly, shockproof and drop-proof.
- [Note] - Press the manual switch to punch holes. Please make sure that the upper mold reaches the bottom end. At this time, release the manual switch and the upper mold will automatically return. If the upper mold does not reach the bottom end once, it will not automatically return.
Part Number: SUS-6
Details: The portable electric punching machine can punch holes quickly. Different materials can be done in one machine.
Features

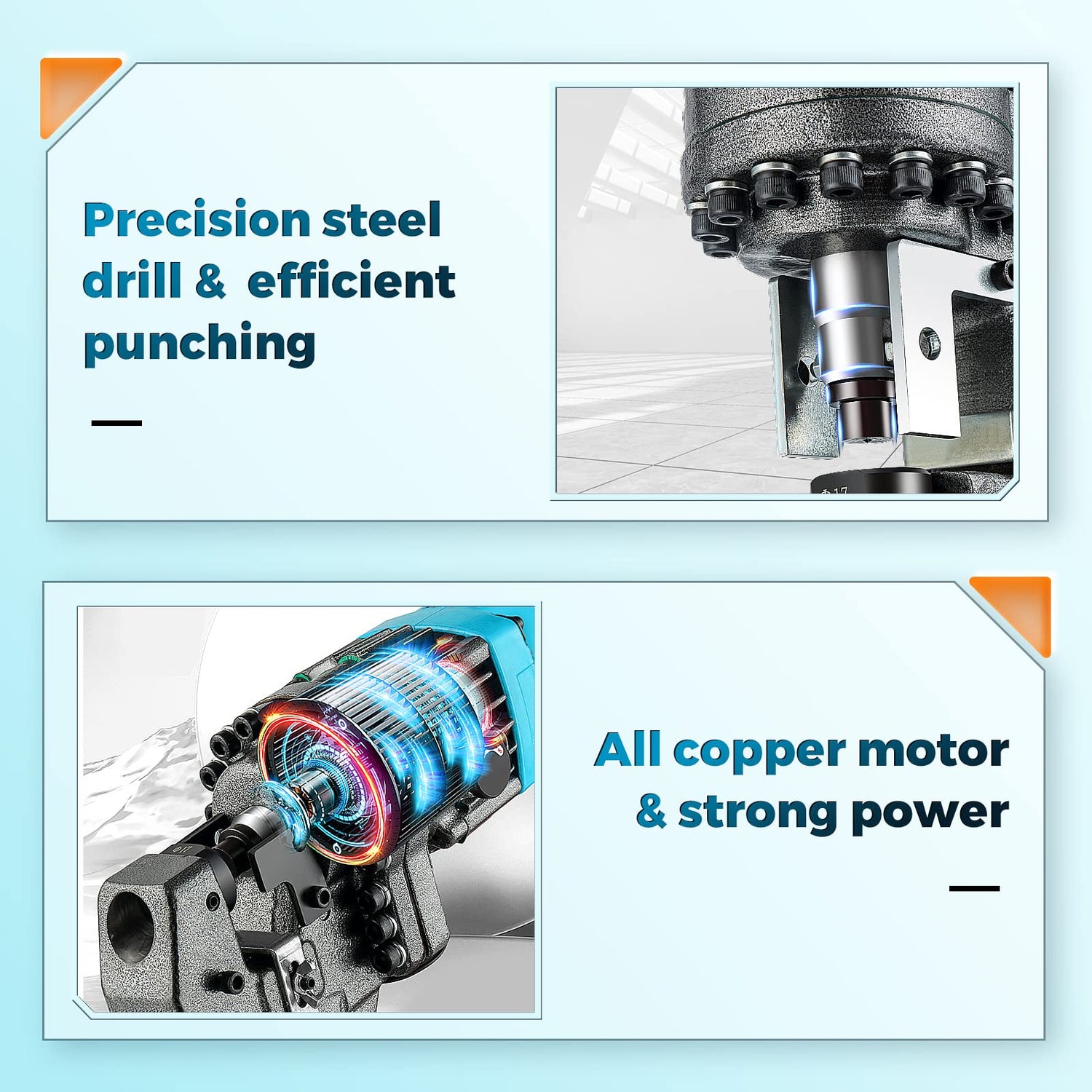

900W high-power motor, with a punching speed of 2-3 seconds
Iron box packaging, shockproof and drop-proof
Small and portable
5 standard dies: Φ6.5mm/Φ9mm/Φ13mm/Φ17mm/Φ20.5mm

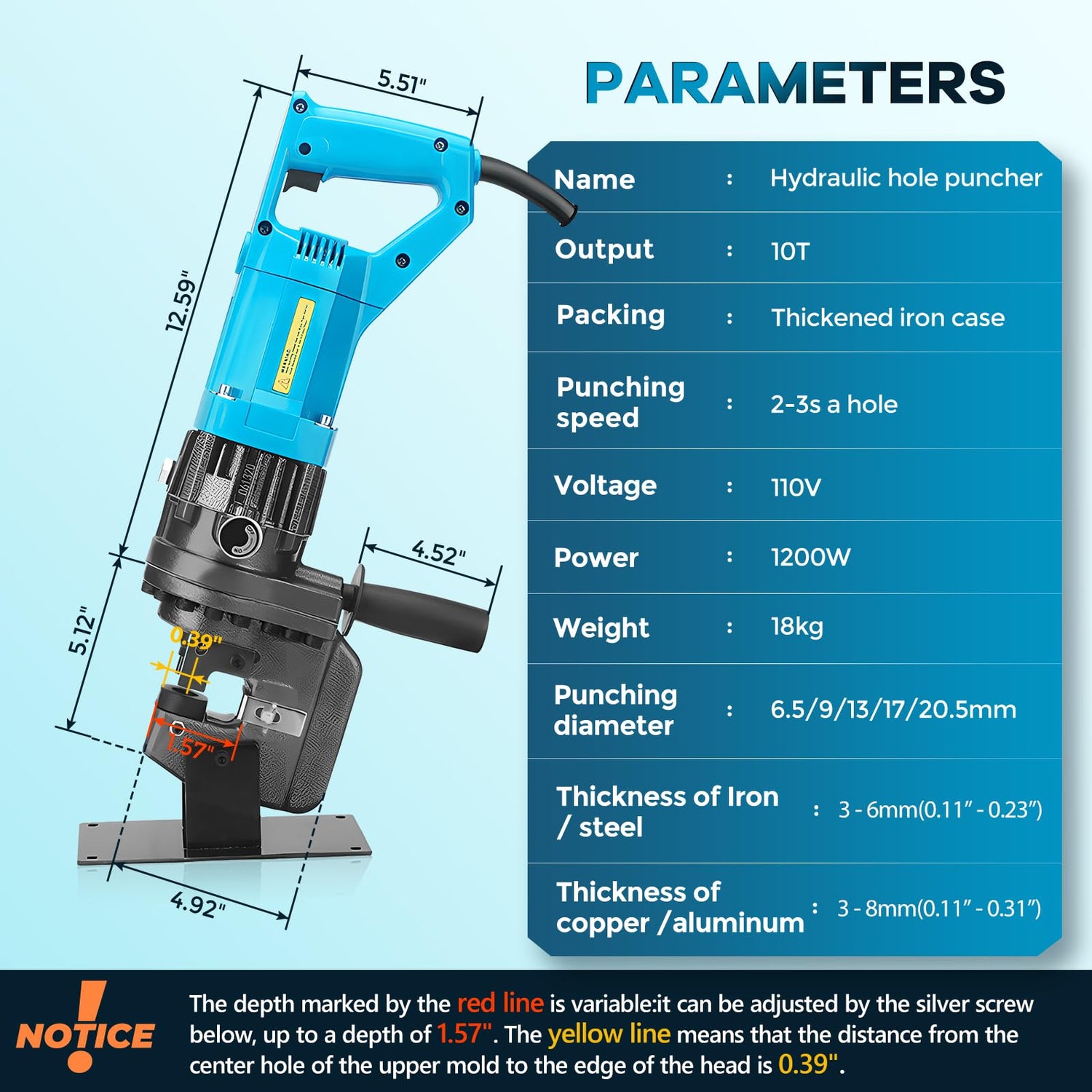

Specification
Product name: Bonvoisin Hydraulic Hole Puncher
Output force: 10T
Copper/aluminum plate: thickness≤8mm
Iron/steel plate: thickness≤6mm
Voltage: 220V/110V
Power: 900W
Weight: 12Kg (20Kg with iron box)
Mold size: Φ6.5mm/Φ9mm/Φ13mm/Φ17mm/Φ20.5mm
Package contents
1 x big wrench
1 x base
2 x hexagon wrench
2 x screws
1 x auxiliary handle
1 x punching machine
1 x hydraulic oil
5 x standard dies
1 x Iron Box
1 x User Manual
Warranty
7/24 Online Customer Service
30-Day Money Back Guarantee
12-Month Replacement Warranty
Lifetime technical Support
EAN: 0795787258422
Package Dimensions: 21.4 x 12.6 x 6.6 inches
