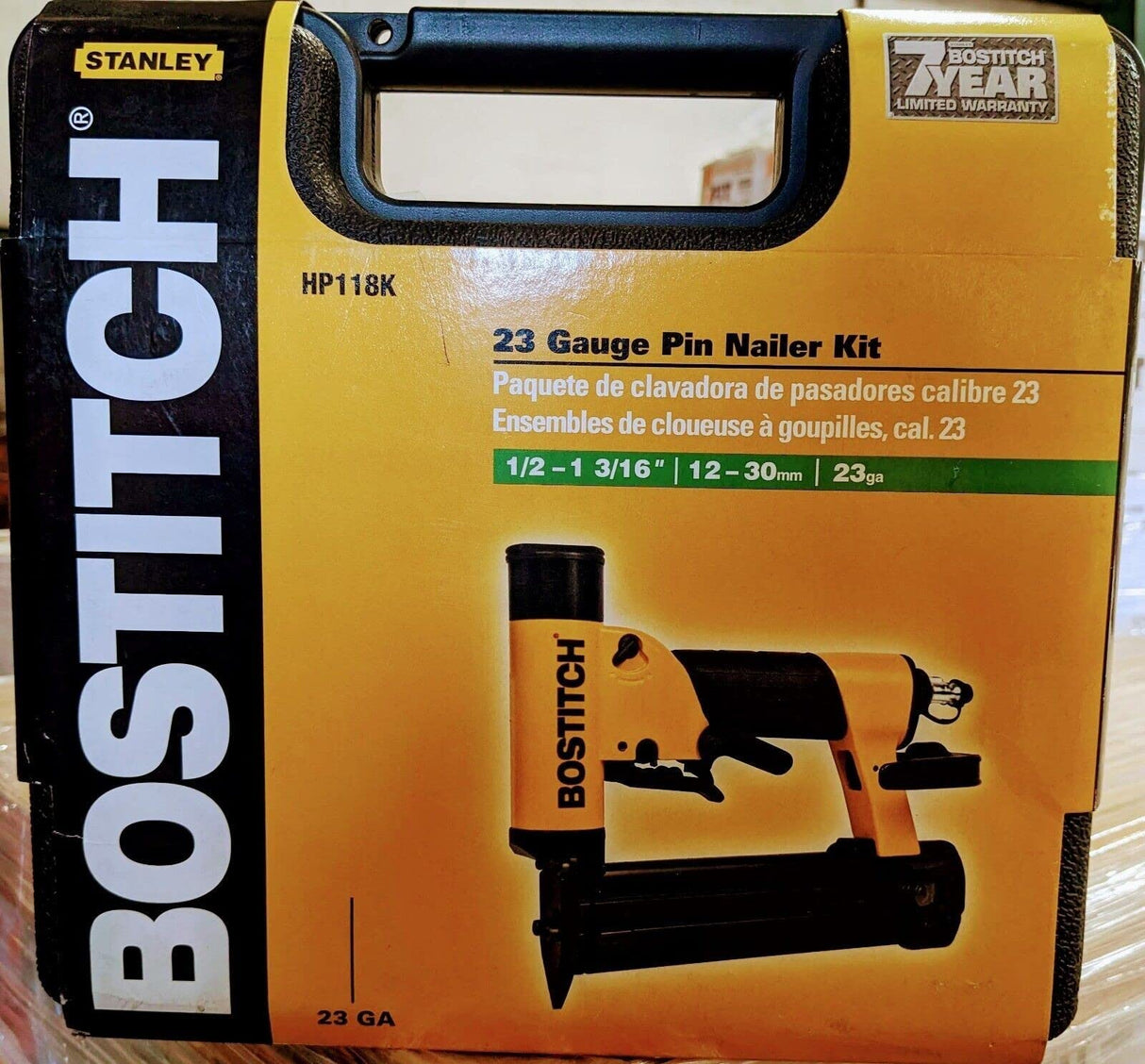

BOSTITCH Pin Nailer 23 Gauge, 1/2-Inch to 1-3/16-Inch (HP118K) , Black

Brand: Bostitch

Color: Black

Features:

• 1/2 Inch to 1 3/16 Inch 23 Gauge Pin Nailer, Low Profile Nose Piece Tapers for Clear Site
• Adjustable High/Lower Power Switch for Depth Control and Longer Life
• Lightweight and Durable Aluminum Housing
• Includes Nailer, 1/4 inch Air Fitting, Oil, Nail Selection, Carrying Case, and Belt Hook

Details: Amazon.com

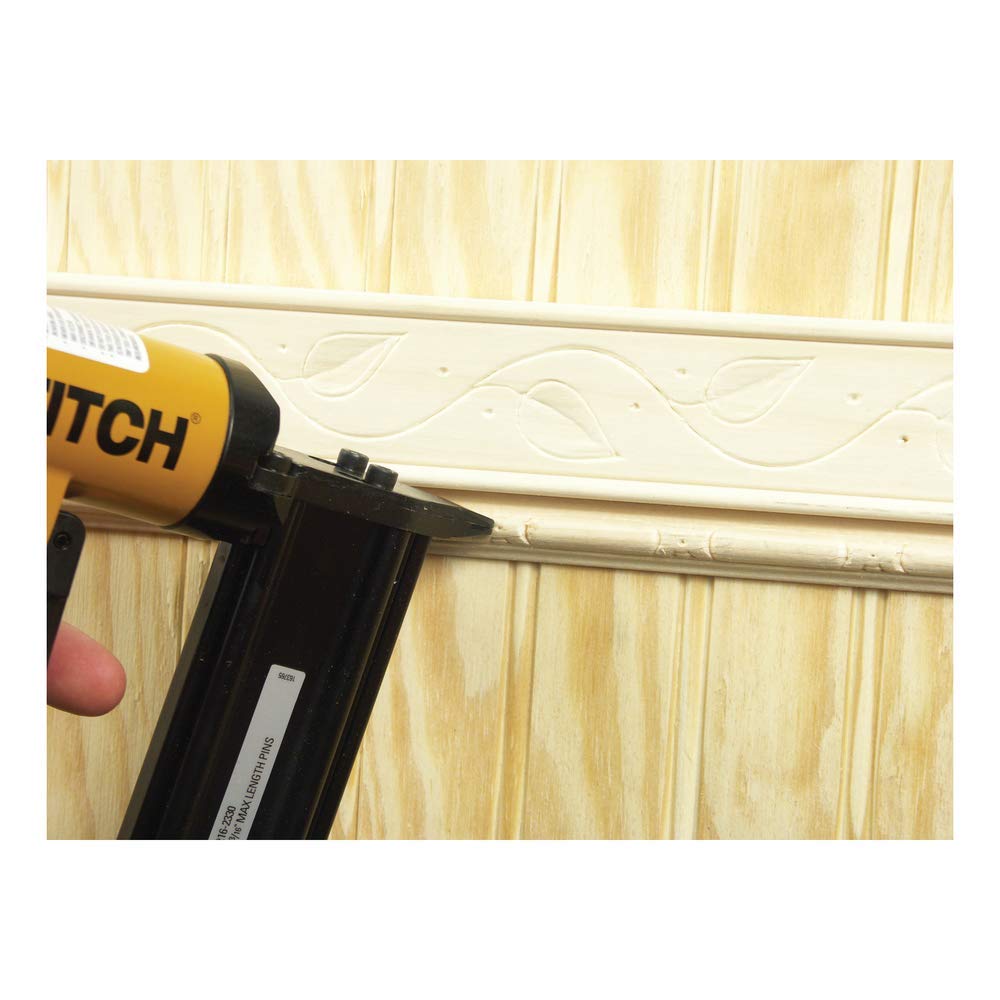

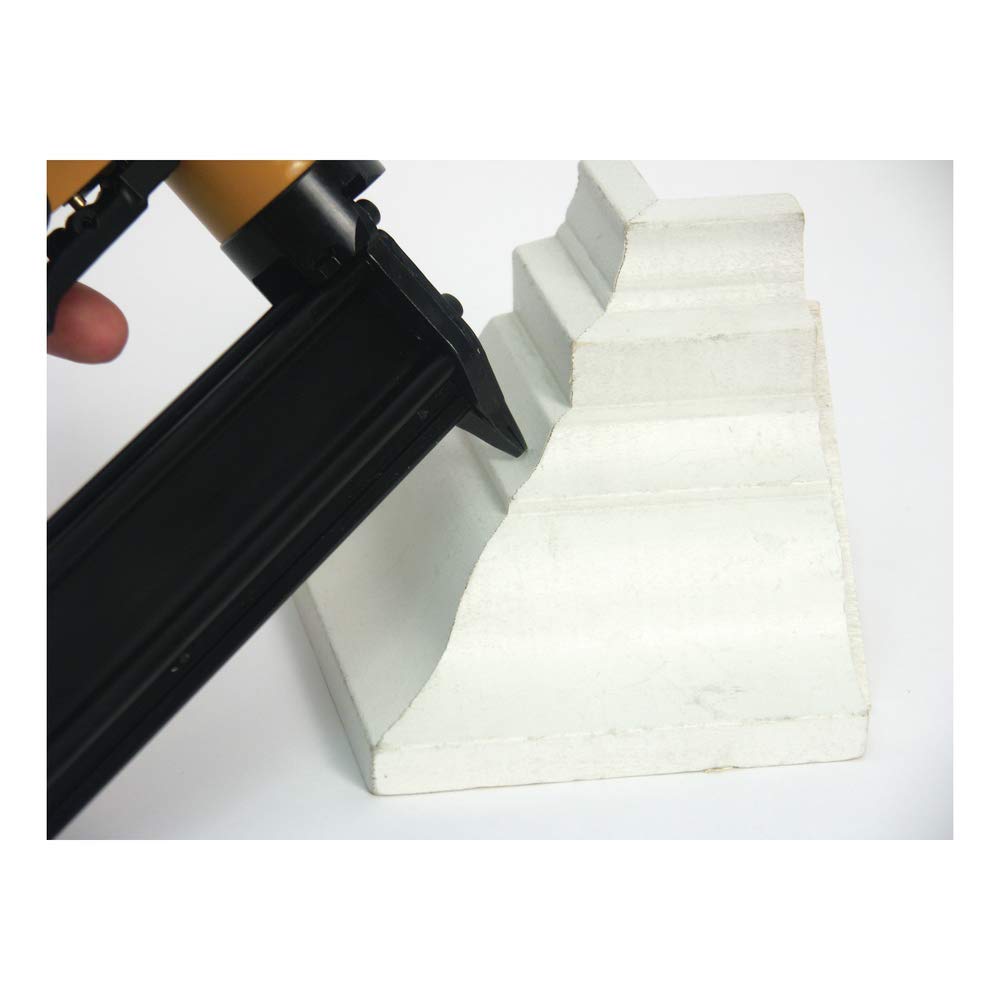

The Bostitch HP118K 23-Gauge 1/2-Inch to 1-3/16-Inch Headless Pin Nailer delivers the accuracy and comfortable handling you need to make quick work of detailed finish, trim, and woodworking projects. This pin nailer offers you the power of pneumatic action backed by Bostitch's long history of producing innovative fastening technology for dependable on-the-job performance.
Powerful, Adjustable Fastening for Precise, Clean Work

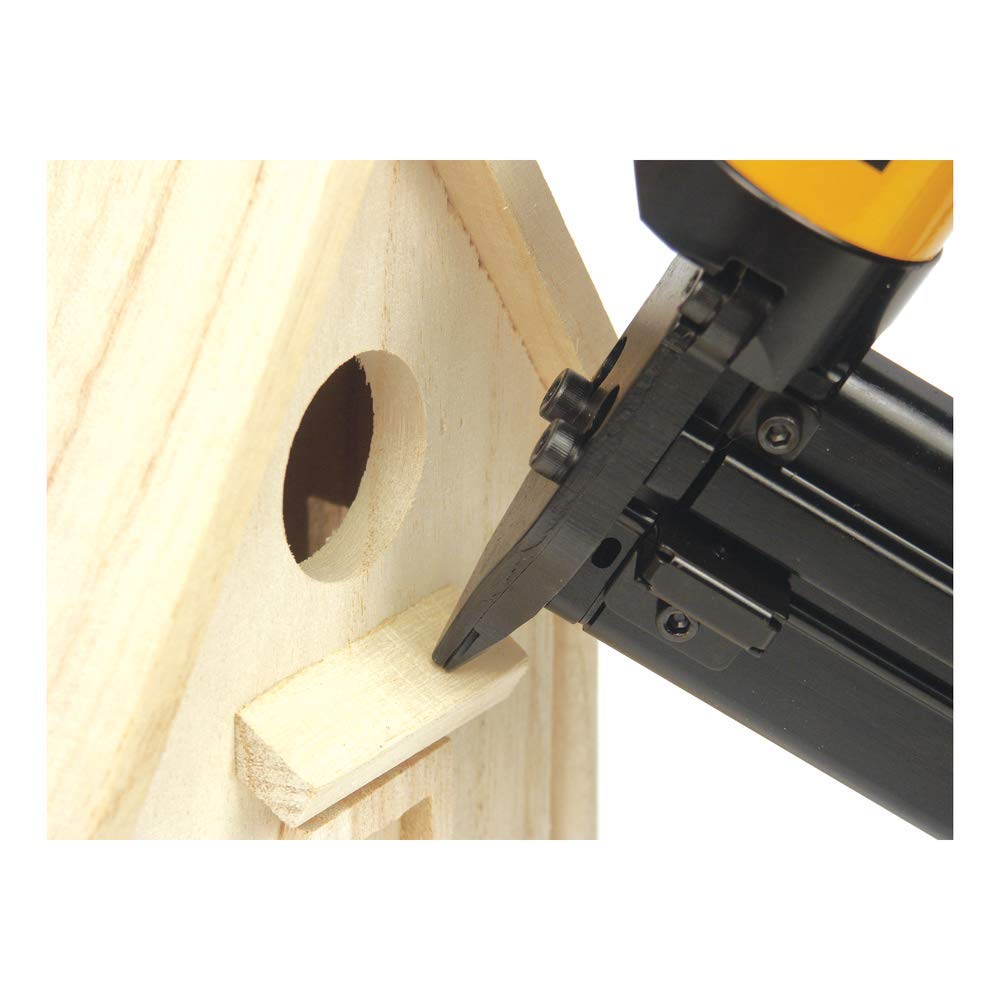

The Bostitch HP118K is well-suited for use with slim or delicate materials that might be split by an 18-gauge nail or brad. With this tool and set of 23-gauge pin nails, you can save time and money by preventing damage to work surfaces. An ideal choice for woodworking applications, the HP118K provides effective fastening for glue sets that are tough or impossible to clamp, and it will help you avoid the witness marks or holes that can be left by other driver heads, letting you create clean finished products.
Designed to keep you in control at all times, this nailer offers an adjustable high/low power control that sets pin depths without requiring you to adjust your compressor setting. It backs this precision with the ability to deliver 60 in./lbs. of driving power, so you can be sure that each pin is securely seated.
With the ability to handle 23-gauge headless pin nails that range from 1/2 inch to 1-3/16 inches, this nailer enables you to utilize a wide range of fasteners for job-specific performance. And its magazine capacity of 200 pins allows you to work without stopping to reload.
Ergonomic Design for Comfort and Convenience

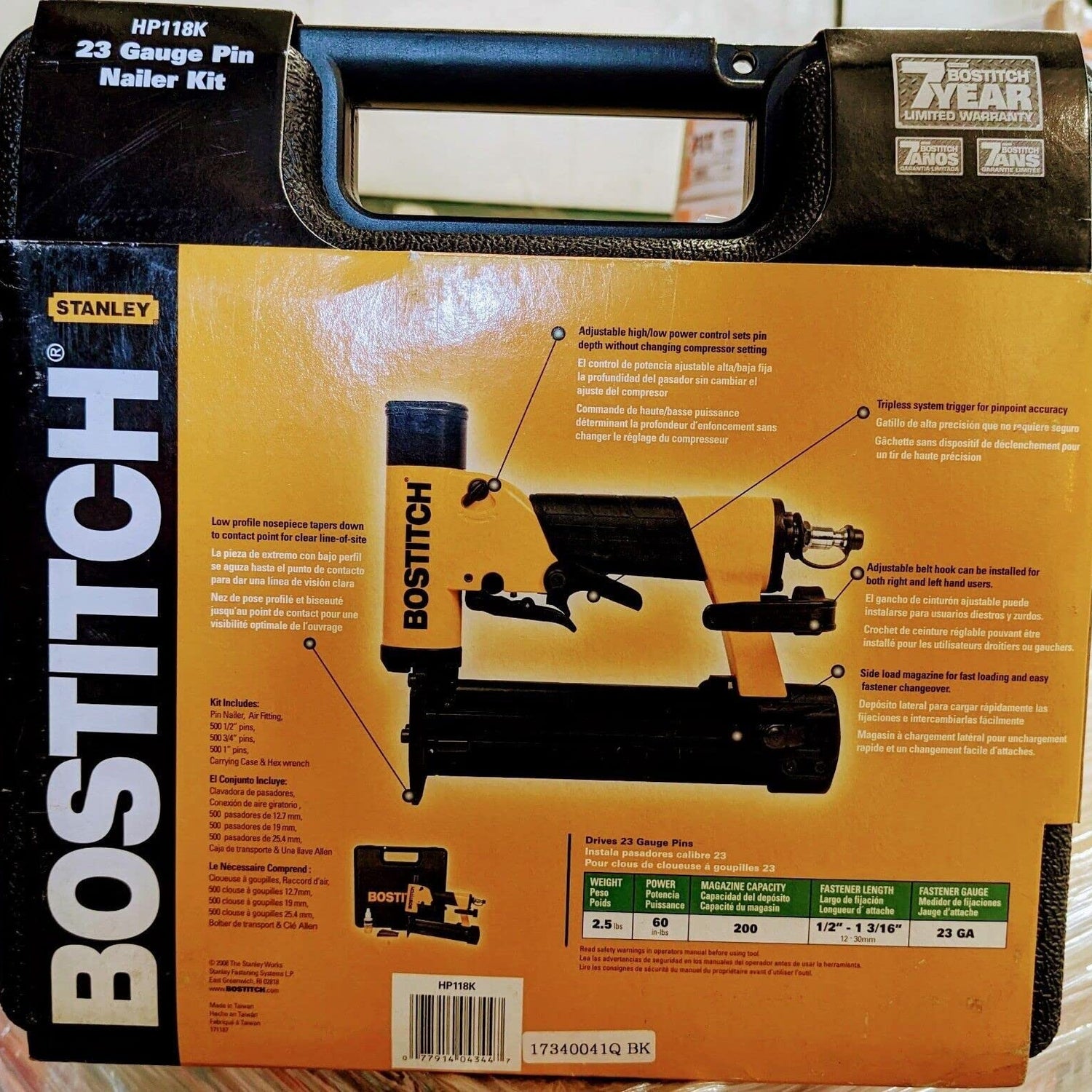

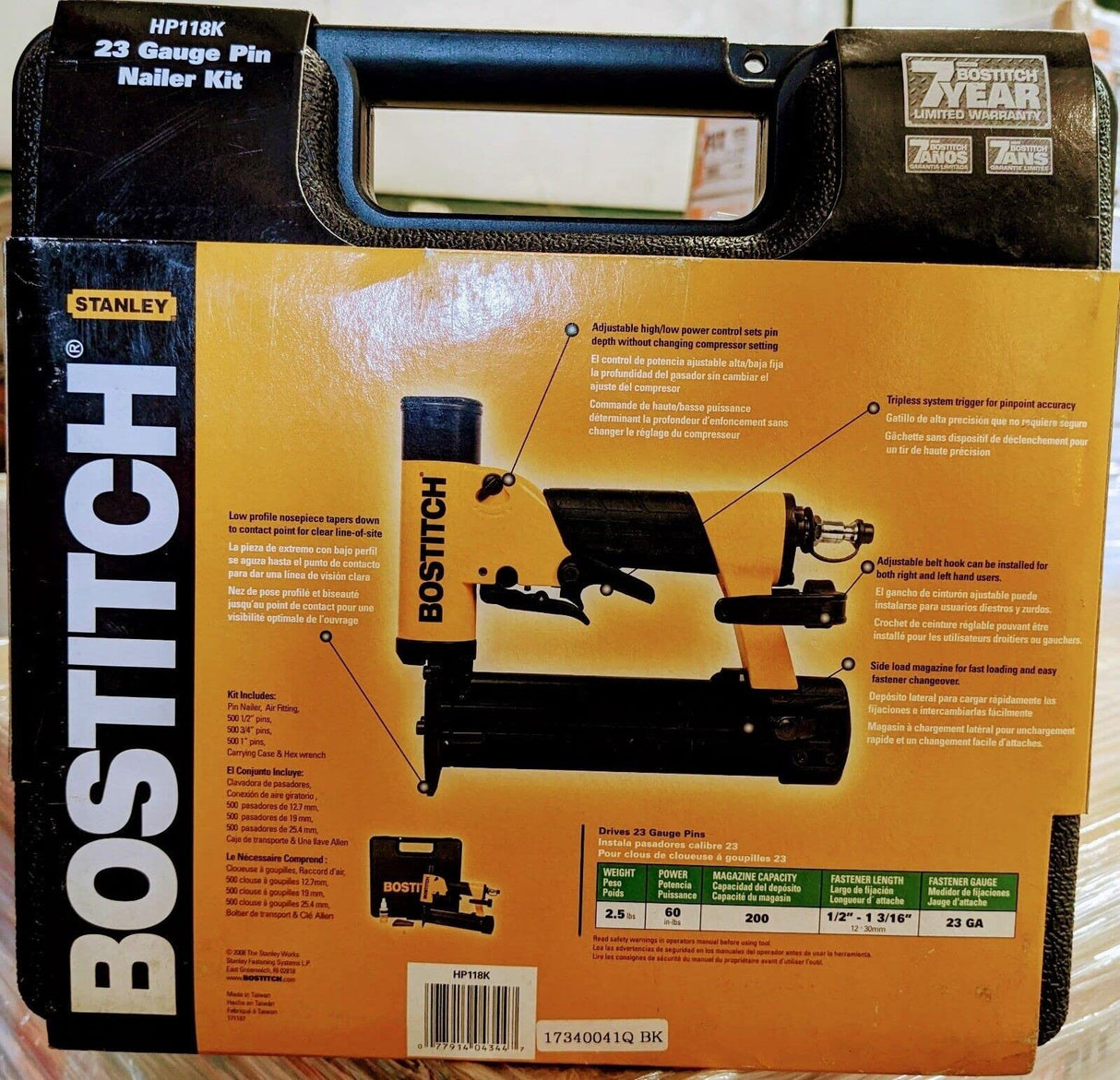

The HP118K offers a full range of design features dedicated to smooth, safe, and intuitive use. It features a low-profile nosepiece that tapers down to the contact point which offers a clear line-of-site for perfect placement. An over-molded grip ensures slip-free handling, and it is balanced to sit comfortably in your hand during extended use. And, for added comfort while you work, the nailer's rear exhaust directs air away from your face. The pin nailer also features a reversible belt hook for convenience on the job.

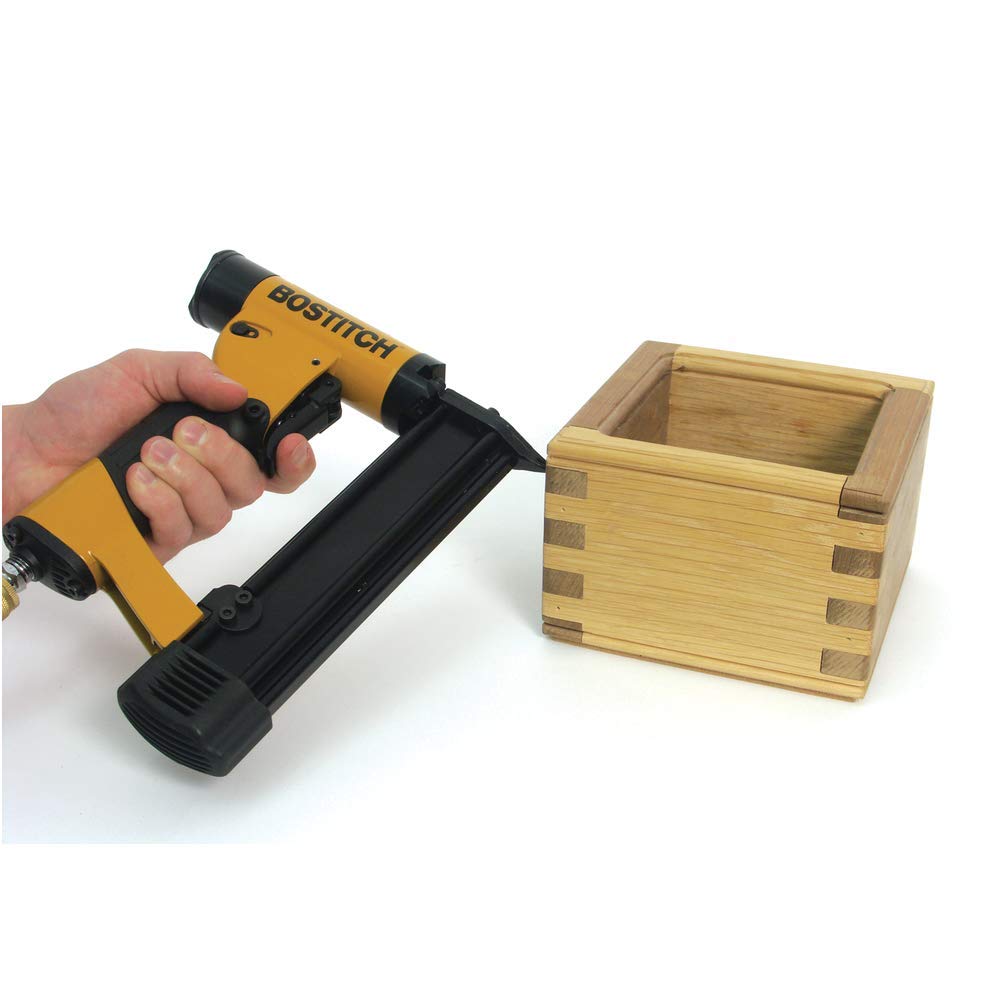

Its compact body is easy to maneuver, which is of particular importance when doing intricate work like crafting custom cabinetry or picture frames, and, thanks to a durable, lightweight aluminum housing, it weighs just 2.5 pounds.
Reliable, Pneumatic Performance
This lightweight durable tool operates between 70 and 120 PSI and includes a 1/4-inch NPT fitting for easy coupling with your air hose and compressor.
This pin nailer is backed by a manufacturer's 7-year limited warranty.
How to Load the HP118K
1. Depress the spring loaded lever as shown bewlow in loading instructions Fig.1.
2. Pull sliding portion of magazine back as shown bewlow in loading instructions Fig.2
3. Load the stick of pins as shown bewlow in loading instructions Fig.3 with the arrow pattern pointing down as shown. If pins have black dots instead of arrows, the dots should be positioned up.
4. Close magazine as shown bewlow in loading instructions Fig.4 until it latches in the forward position. The tool is now ready for use.
What's in the Box
HP118K 23-Gauge Pin Nailer; 1/4-inch air fitting; 500 each of 1/2-inch pins, 3/4-inch pins, and 1-inch pins; tool lubricant; and carrying case.

Loading Instructions and Available Bostitch Fasteners:

Product Description

Air Pin Nailer Kit, Straight, Collation Type Adhesive, Fastener Range 1/2 In. to 1-3/16 In., 23 Gauge, CFM per Shot 0.018, Required Pressure 70 to100 psi, Max. Pressure 100 psi, Magazine Capacity 200, Rear Exhaust, No-Mar Tip, Housing Material Aluminum, Yellow Color, Air Inlet 1/4 In. Male, Length 9-1/8 In., Width 1-5/8 In., Height 7-7/8 In., Tool Weight 2.50 lb., For Use With 23 ga. Pins, Includes (500) 1/2 In. Pins, (500) 3/4 In. Pins, (500) 1 In. Pins and Carrying Case

EAN: 0706398200694

Binding: Tools & Home Improvement

Part Number: HP118K

model number: HP118K
