BREVELTION Line Portable Boring Machine, 45-180MM(1.77-7.08inch) Hole Diameter, Engineering Mechanical Connecting Rod Hole Drilling Tool with 4.9ft
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: BREVELTION
Color: Yellow
Features:
- 【Parameters】 - The maximum processing hole diameter is Ф180mm(7.09inch); The minimum processing hole diameter: Ф45mm(1.77inch); Boring bar: 40*1500MM(1.57*59.06inch); The maximum processing travel: 380mm(14.96inch); The maximum feed depth: 2mm on one side (A3 steel); Surface roughness: Ra3.2; Deviation from circular form≤0.02mm; Rotate speed: 0-83RPM

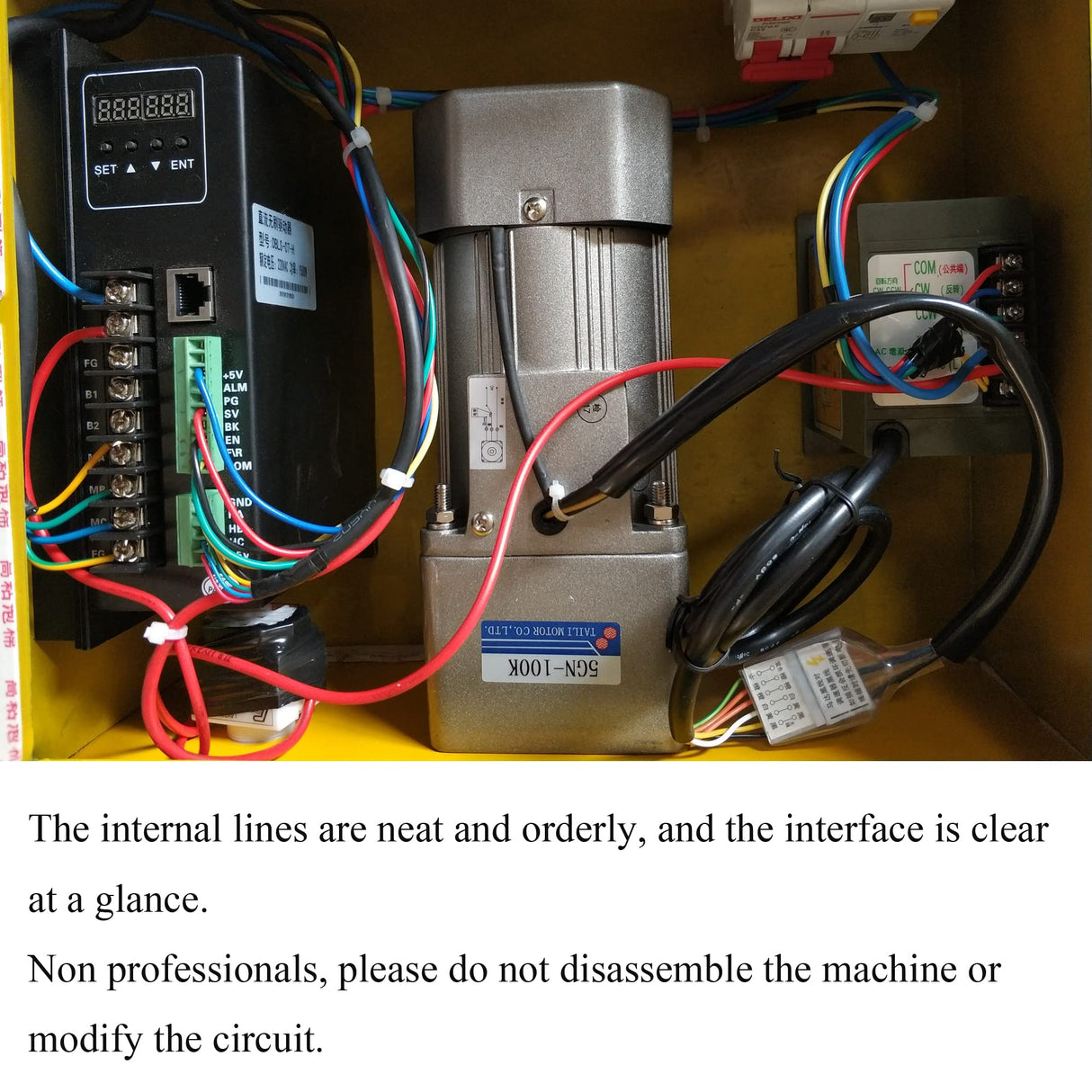

- 【Motor】 - The whole machine adopts 110V constant current motor with low speed and large torque, which can realize stable processing and superior performance. The motor controller is equipped with a dynamic delayed braking program to avoid vibration during shutdown. The control cabinet is installed under the host, which is conducive to safe operation.
- 【4.9FT Boring Bar】 - The boring bar is made of high-strength alloy and structural steel, which has the characteristics of high hardness, high precision, high toughness and good wear resistance. The boring bar can be disassembled separately for convenient installation.
- 【Stepless Speed Regulation】 - Stepless speed regulation can be realized for feed processing. The feeding process can be set as required, and it will stop automatically after reaching the limit switch.

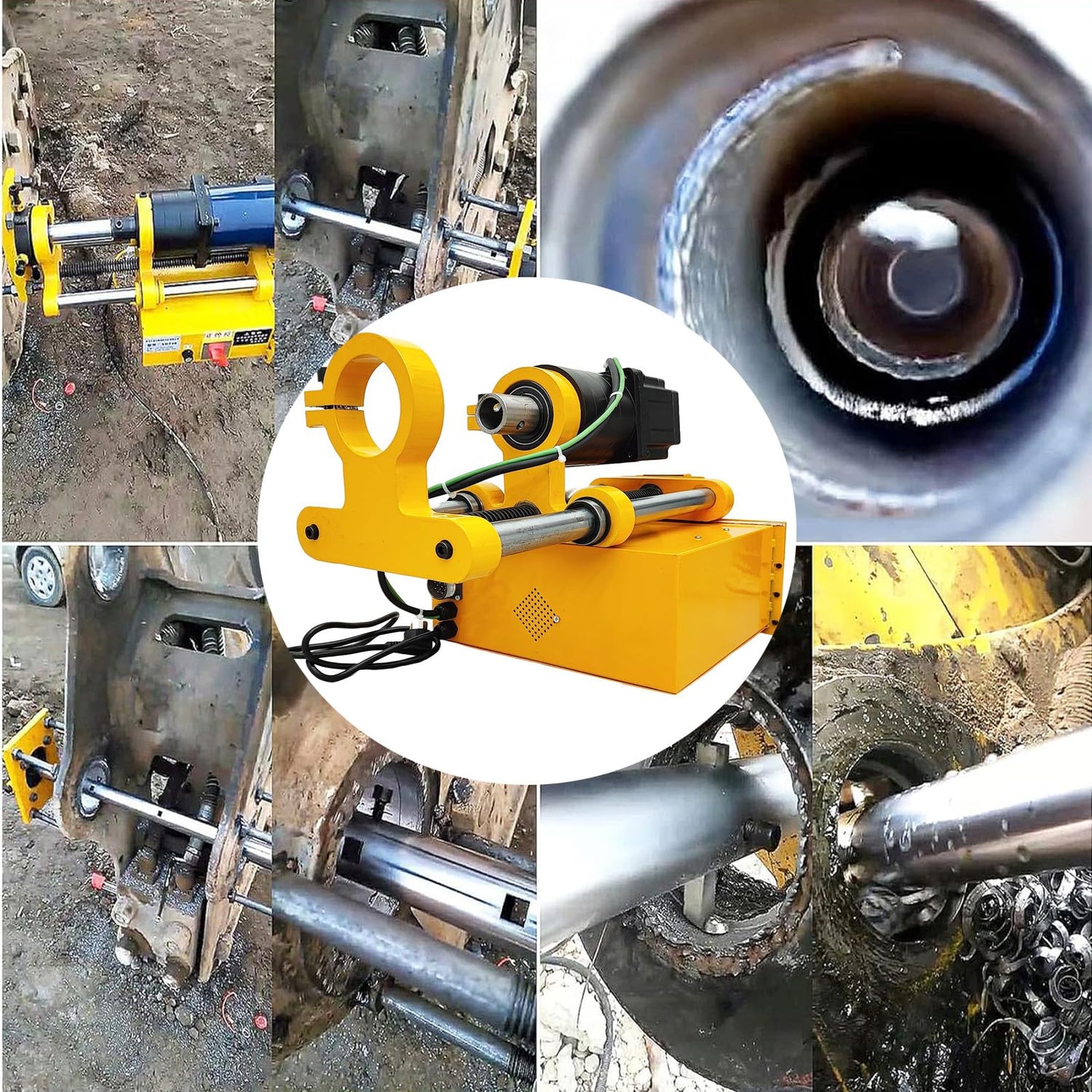

- 【Application】 - The drilling machine is a portable processing equipment developed for on-site service of construction machinery. It is mainly used for processing inner holes of small tubes and concentric cross holes. Widely used in excavators, cranes, loaders, cranes and other construction machinery.
Part Number: ATL022398
Details: Attention
Use fixed fixture for installation, and use different tool holders according to different diameter ranges.
Please confirm the diameter of the machining hole before use to select a suitable tool holder.
The drill pipe and feed screw that are not used frequently shall be coated with mud oil.
The feed box shall be filled with proper lubricating oil every six months.
If the spindle box and feed box are not used for a long time, they should be sealed and stored.
Before machining, add proper lubricating oil to guide posts and screws.
Parameters

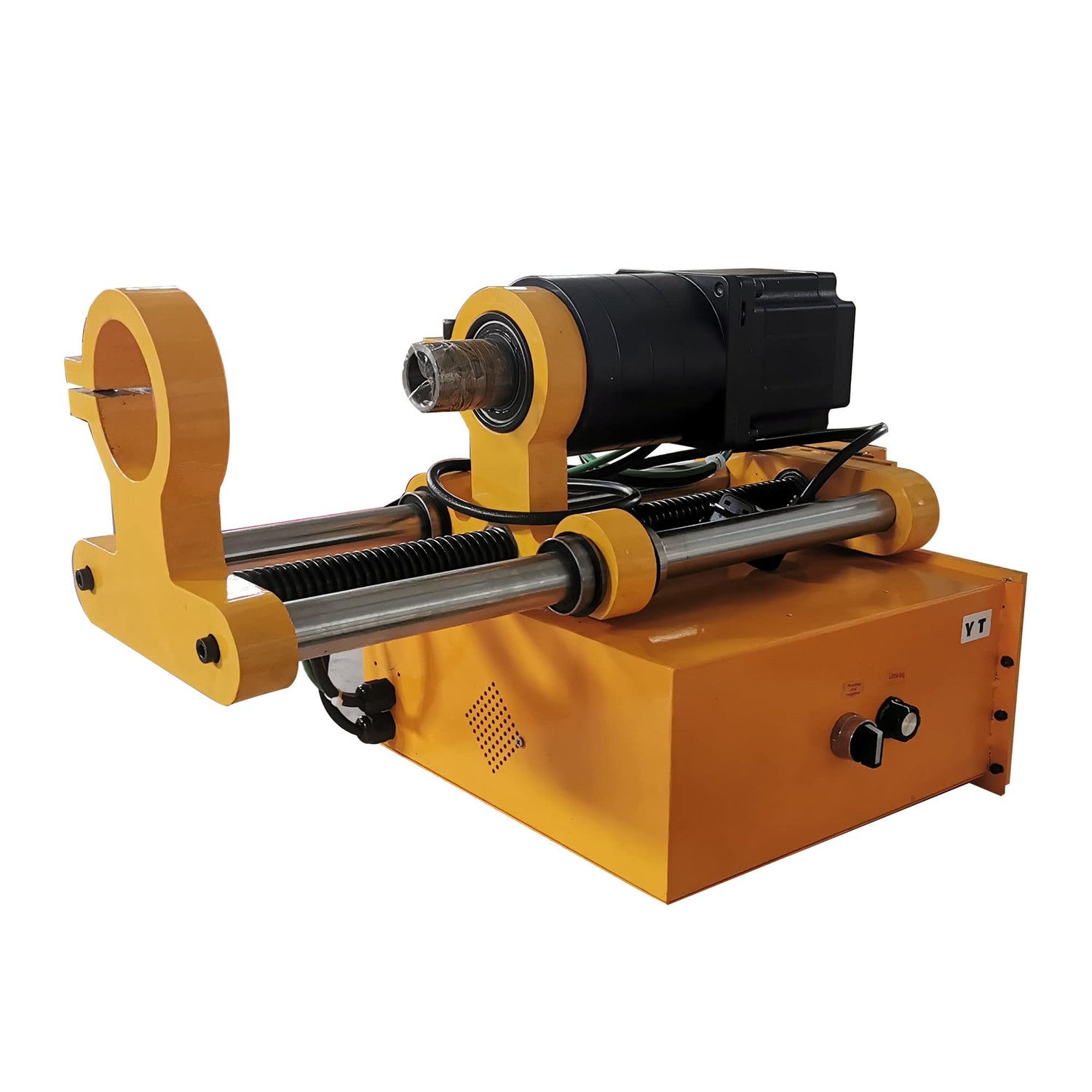

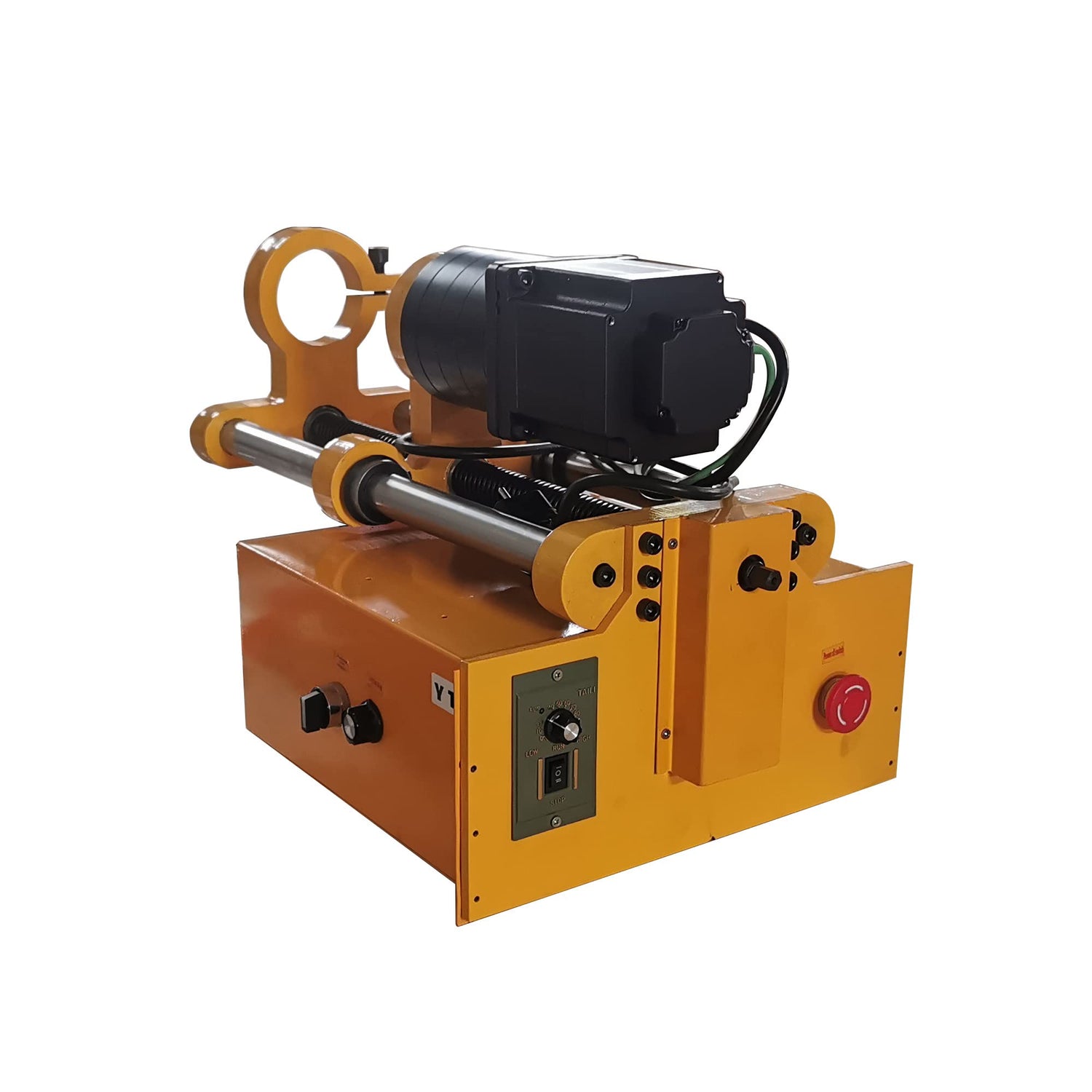

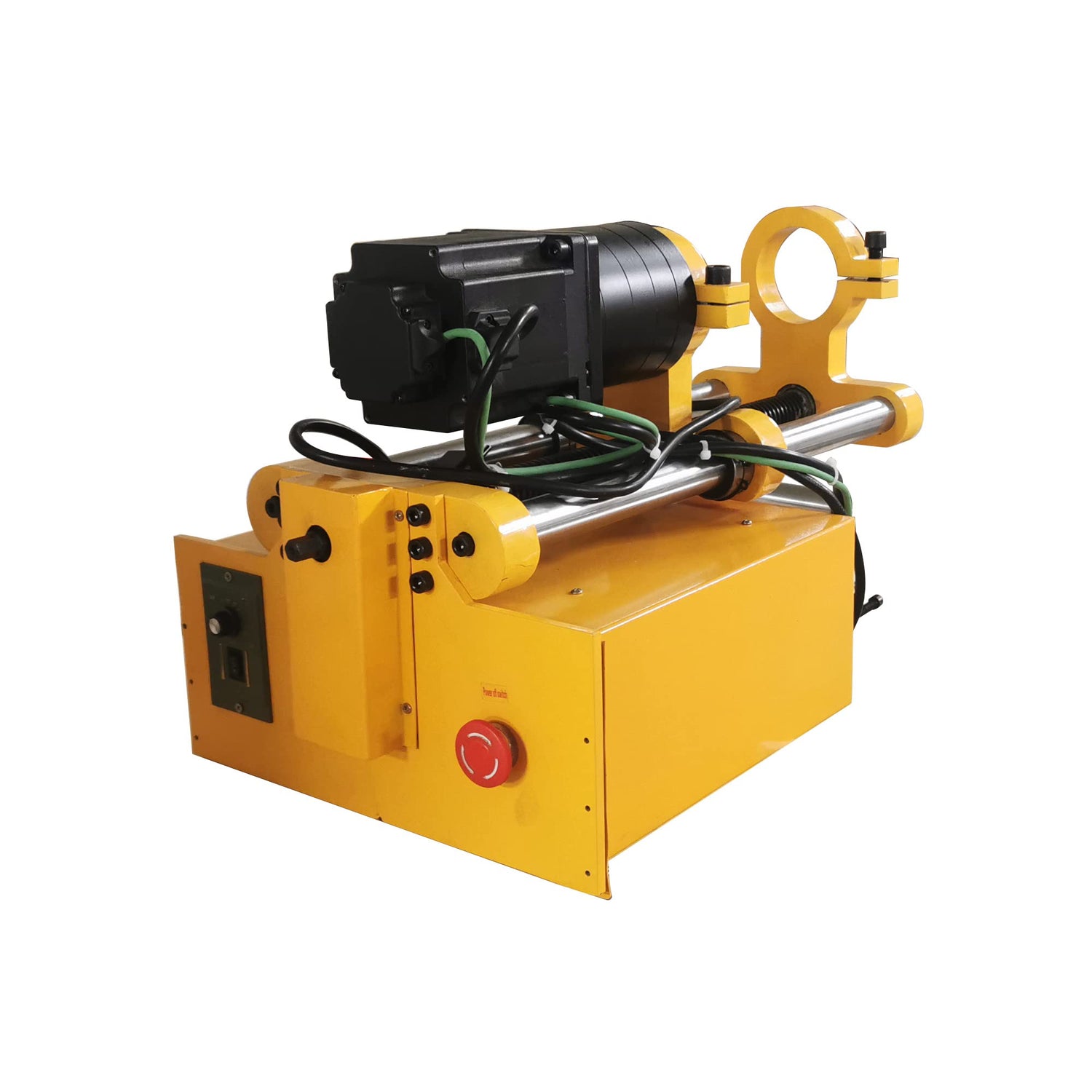

Type: XDT40 Portable Line Boring Machine
Max. processing hole diameter: Ф180mm
Min. processing hole diameter: Ф45mm
Max. processing travel: 380mm
Max. feed depth: 2mm on one side (A3 steel)
Surface roughness: Ra3.2
Deviation from circular form≤0.02mm
Rotate speed: 0-83RPM
Boring bar: 40*1500MM
Power: 1.5KW

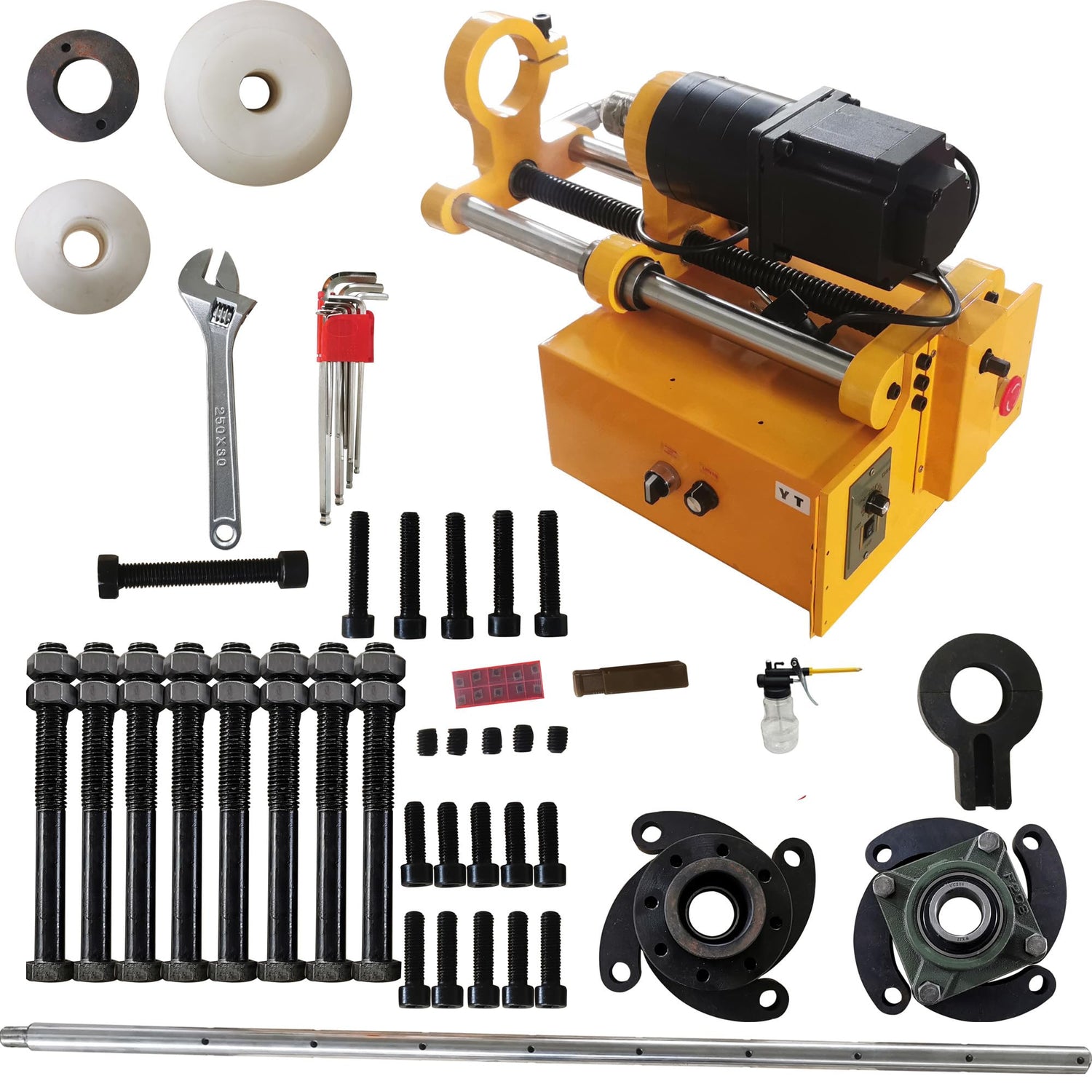

Package Content #022398
1 x Line Boring Machine XDT40 in two packages
EAN: 0740170094408
Package Dimensions: 28.3 x 22.0 x 16.5 inches
