CHANCS 775 Motor DC 12V/24V Table Saw Kit High Power Torque Circular Saw With Saw Blade Chuck And Saw Blade

Brand: CHANCS

Color: 775 Motor + Connecting Rod + Bracket+circular Saw Blade

Features:

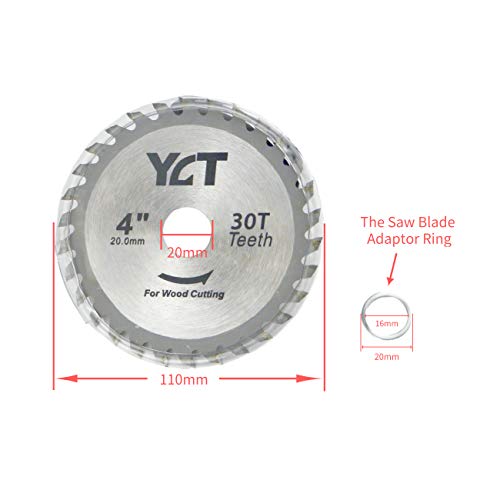

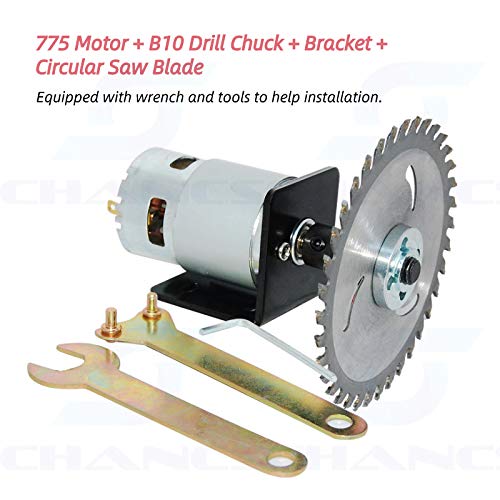

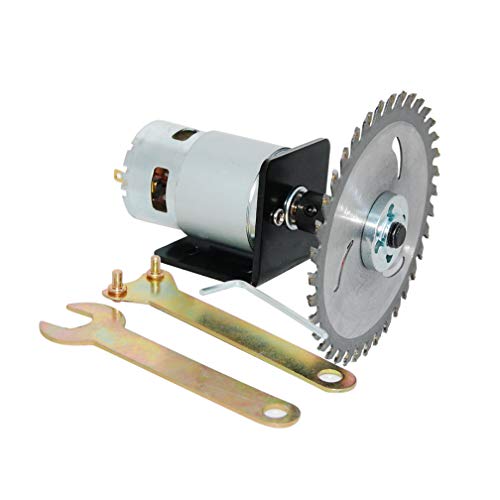

• 1.This is a DIY combination of a mini saw. Contains motor, bracket, saw blade chuck, and circular saw blade.
• 2.The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.
• 3.The specification of motor:Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM. Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM. Starting current: 4-5A Motor Body Diameter: 42mm, Motor Body Length: 66.5mm, Shaft Length: 16mm, Shaft Diameter: 5mm.
  The specification of bracket: Length: 50mm,Width: 52mm,Height: 53mm, Mounting hole diameter: 4mm, Thickness of bracket: 3mm.
• 4.Application:Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw for cutting / polishing.

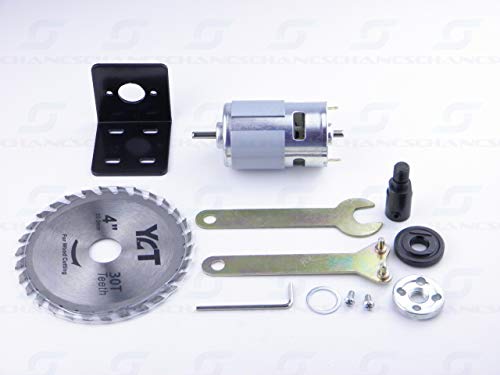

• 5.Package: 1PCS x DC Motor, 1PCS x Bracket, 1 Set x Saw Blade Chuck, 2PCS x Screws, 2PCS x Matching Hardware Tools, 1PCS x Saw Blade.

Binding: Tools & Home Improvement

Details: Product description:
1.This is a DIY combination of a mini saw. Contains motor, bracket, saw blade chuck, and circular saw blade.
2.The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.



Features:

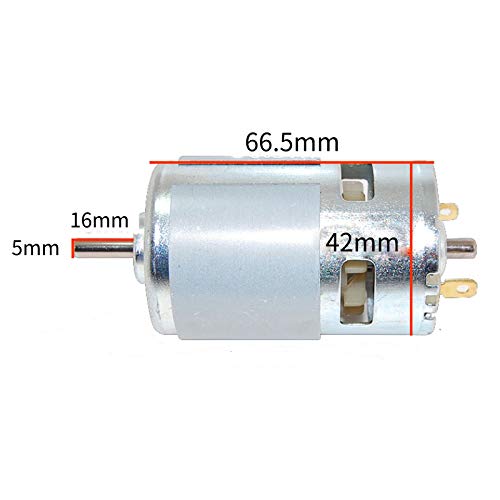

The specification of motor:
1.Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM.
2.Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM.
3.Starting current: 4-5A.
4.Motor Body Diameter: 42mm,
5.Motor Body Length: 66.5mm,
6.Shaft Length: 16mm,
7.Shaft Diameter: 5mm.

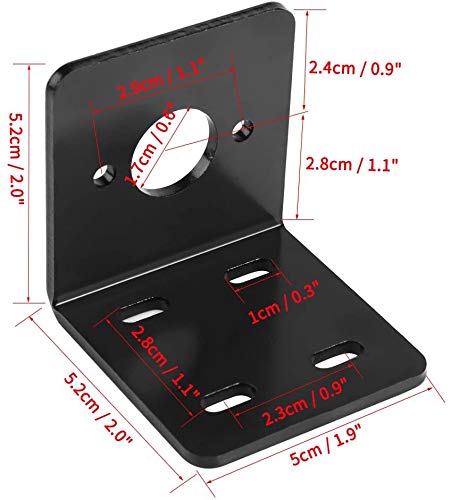

The specification of bracket:
1.Length: 50mm
2.Width: 52mm
3.Height: 53mm
4.Mounting hole diameter: 4mm
5.Thickness of bracket: 3mm.



Application:
Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw for cutting / polishing.



Package:
5.Package: 1PCS x DC Motor, 1PCS x Bracket, 1 Set x Saw Blade Chuck, 2PCS x Screws, 2PCS x Matching Hardware Tools, 1PCS x Saw Blade.

Attention:
At DC 12V the motor speed and cutting force is less than at DC 24V. We recommend that you use DC 24V for cutting materials, especially if the material is hard and the motor may not work very well with DC 12V.

Package Dimensions: 5.9 x 4.6 x 3.6 inches
