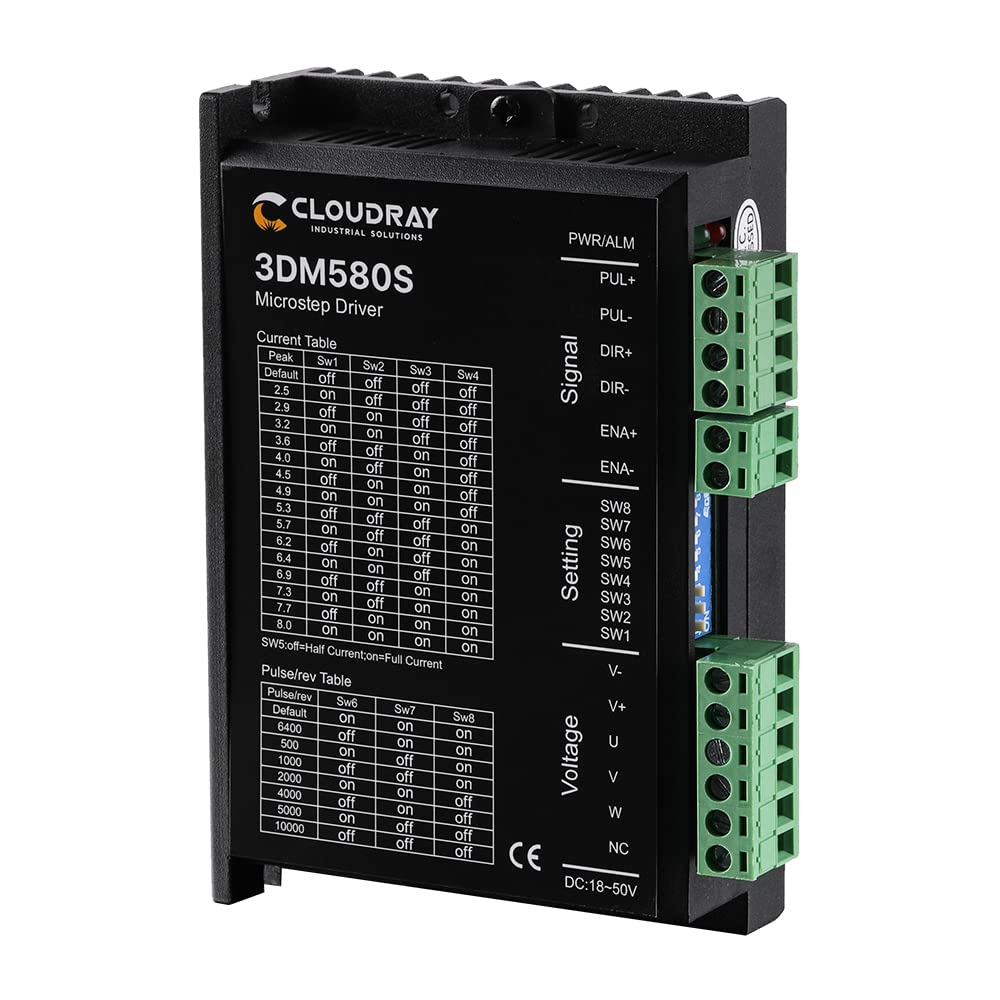

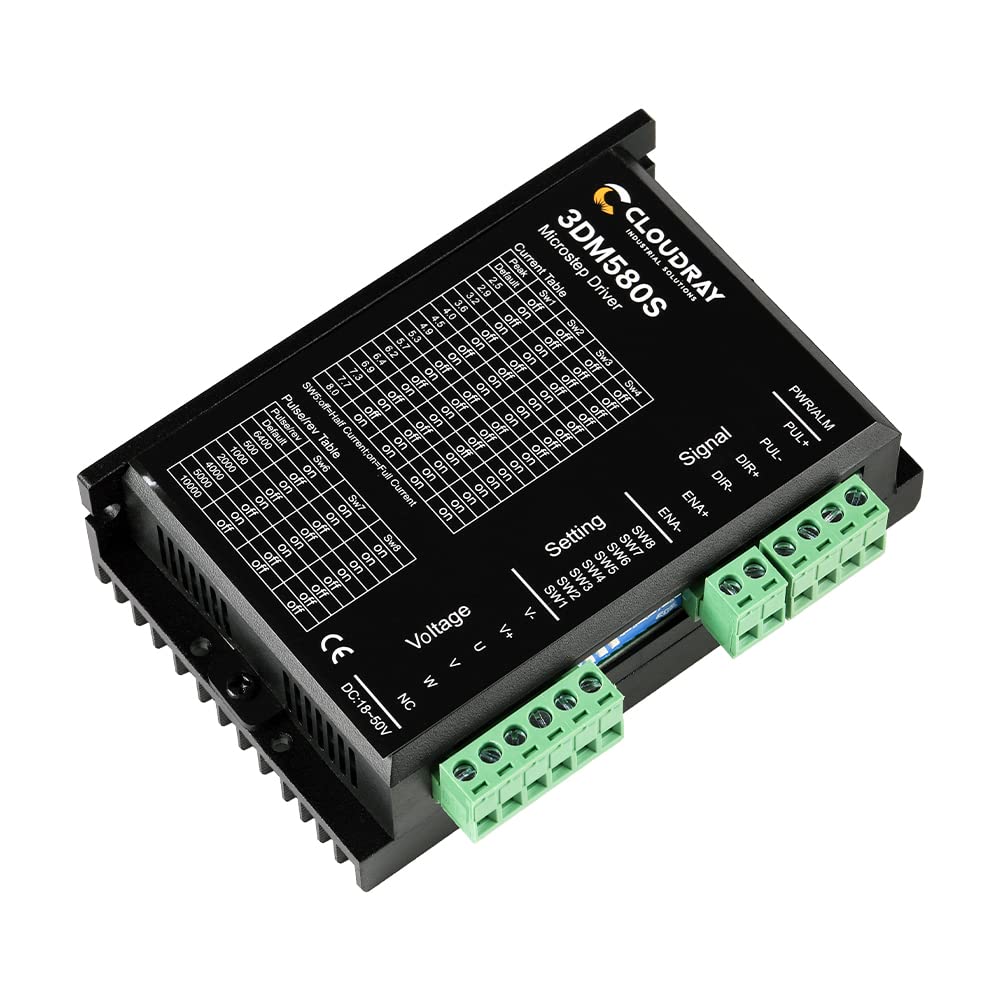

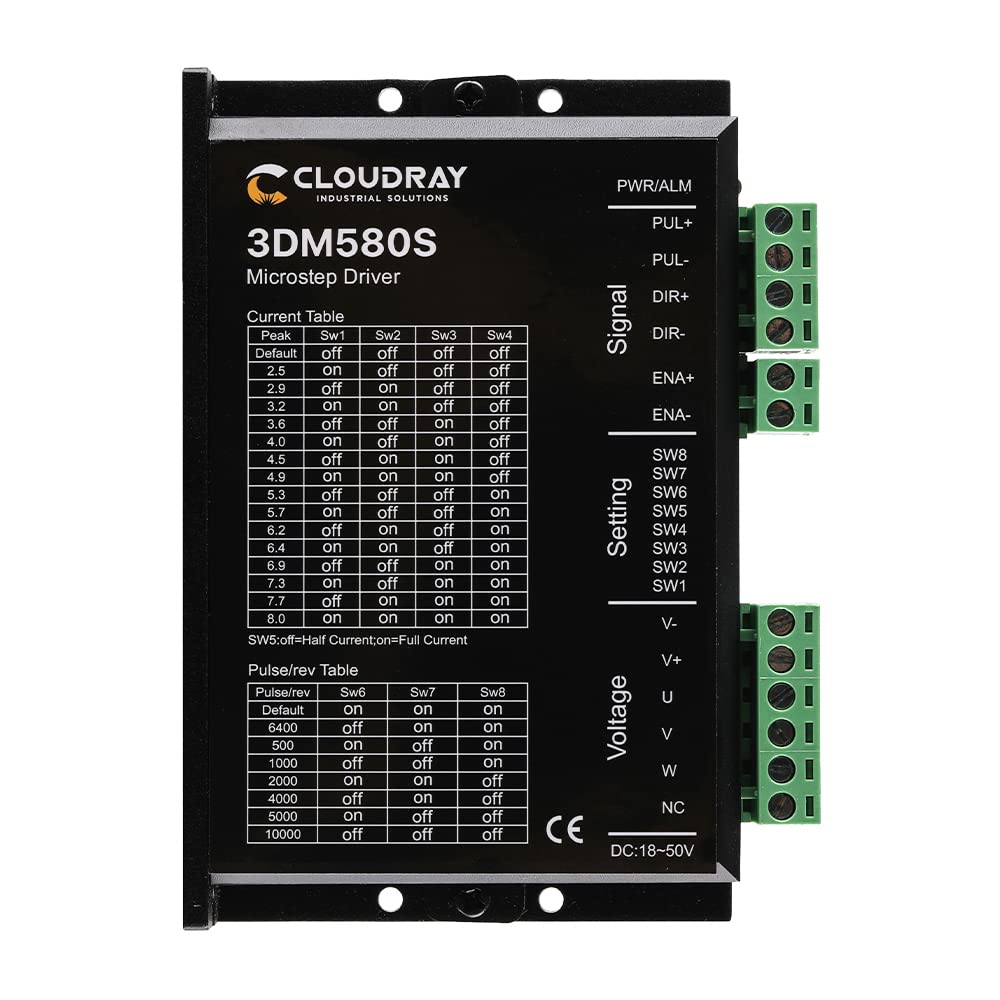

Cloudray 3-Phase Stepper Motor Driver 3DM580S 1.0-8.0A 18-50VDC for CNC Nema 17, 23, 24 and 34 Stepper Motor
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Cloudray
Color: Black
Features:
- Extra-low motor noise offers excellent quietness.
- Industrial-grade Stepper Driver.
- Suit for 3-Phase Nema 17, 23 and 34 Stepper Motor.
- Output Current: 1.0 ~ 8.0A, Supply Voltage: 18 ~ 50VDC.
- Application areas: engraving machine, filature, wire-stripping machine, marking machine, cutting machine, die bonder, plotter, numerical control machine, automatic assembly equipment etc.
Binding: Automotive
model number: 3DM580S
Part Number: SMD10SR3DM580S
Details: Overview:
Smartrayc 3DM580S Digital 2-phase Stepper drive is based on TI’s 32-bit DSP platform and integrated with the micro-stepping technology and the auto tuning of power-up parameters. With the features of low noise, low vibration, low heating and high-speed high torque output, it is suitable for most stepper motors.
Key Features:
* Anti-Resonance provides optimal torque and nulls mid-range instability
* Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
* Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
* 16 Pulse/Rev: 400-25600
* Soft-start with no “jump” when powered on
* 8 selectable peak current including 1.00A to 8.00A
* Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
* Automatic idle-current reduction
* Suitable for 3-phase motors
* Support PUL/DIR mode
* Over-voltage and over-current protections

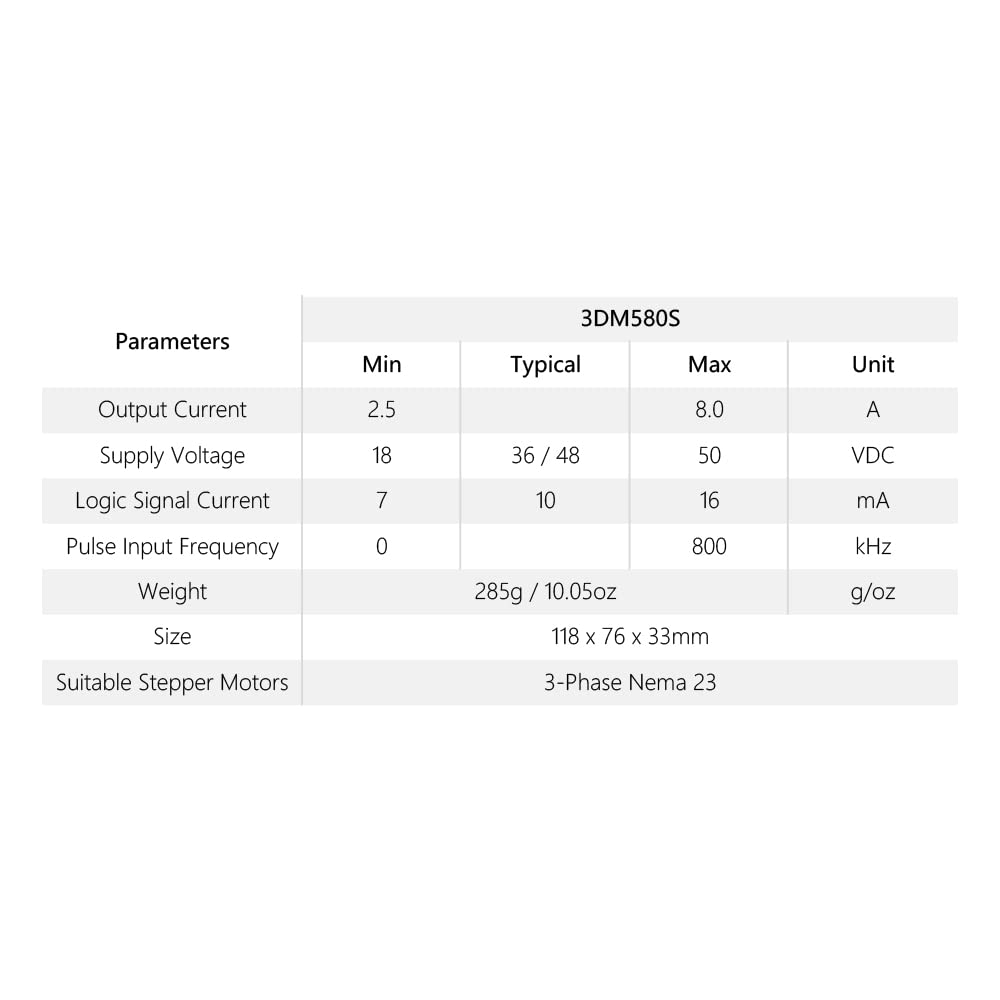

Electrical Specifications:
* Output Peak Current: 1.0~8.0A
* Input Voltage: +18~50VDC (Typical 36VDC)
* Logic Signal Current: 7~16mA (Typical 10mA)
* Pulse Input Frequency: 0~800kHz
* Pulse Width: 2.5μS
* Cooling: Natural Cooling or Forced cooling
* Environment: Avoid dust, oil fog and corrosive gases
* Operating Temperature: -10℃~45℃
* Vibration: 10-55Hz / 0.15mm
* Weight: Approx.285g (10.0oz)
Packing List:
1 x Stepper Motor Driver 3DM580S
EAN: 0669819721683
Package Dimensions: 5.8 x 4.3 x 3.4 inches
