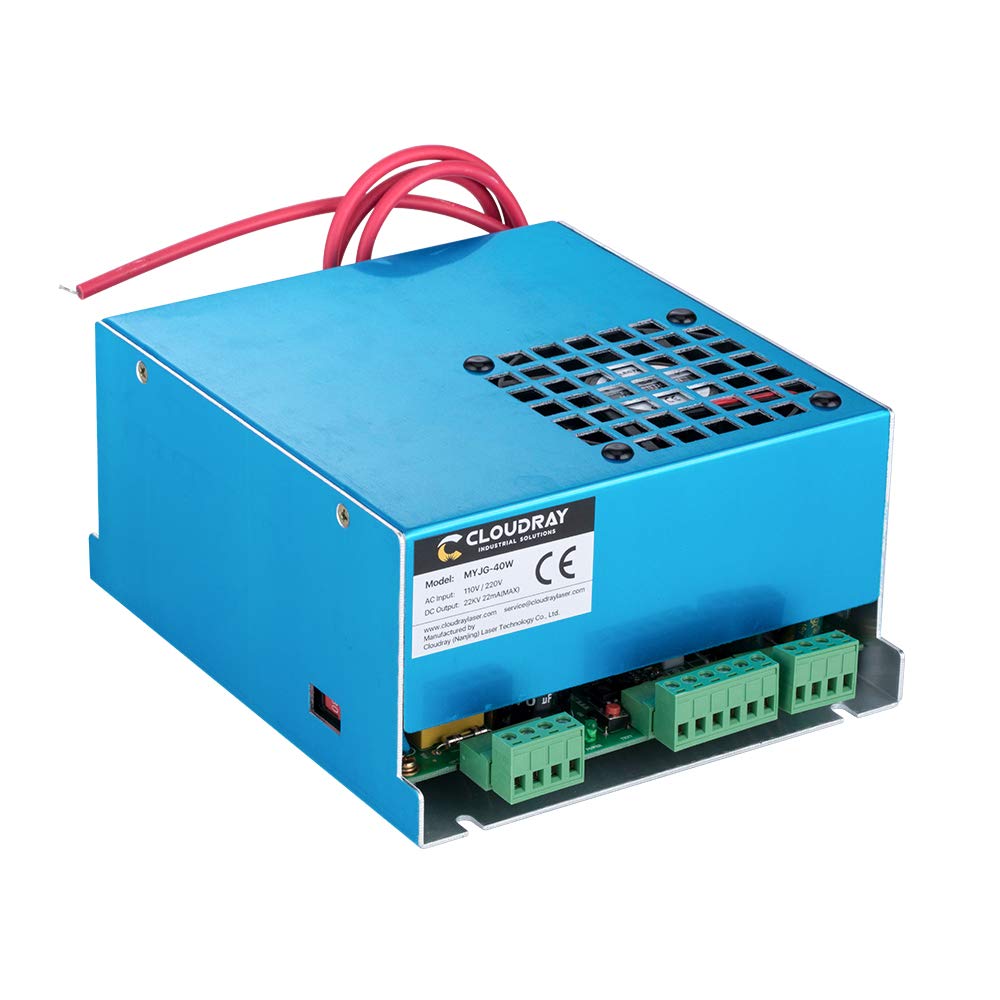

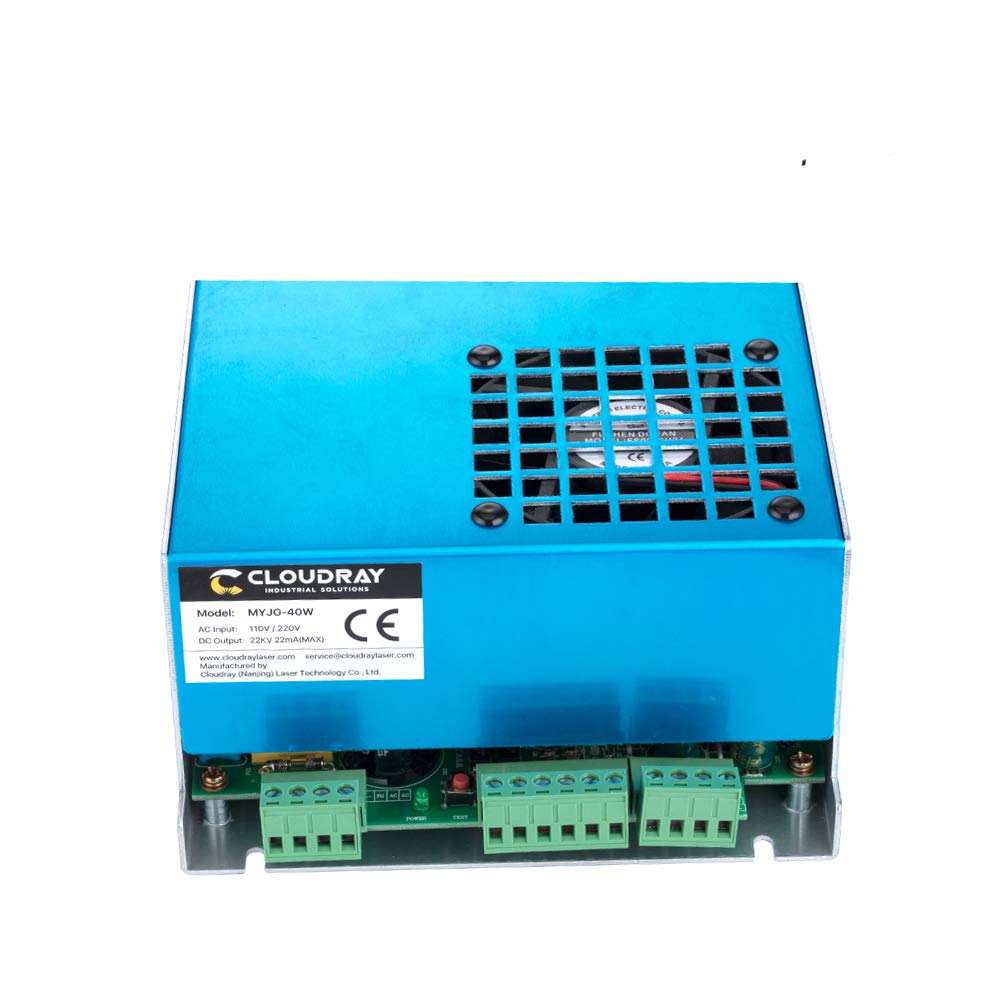

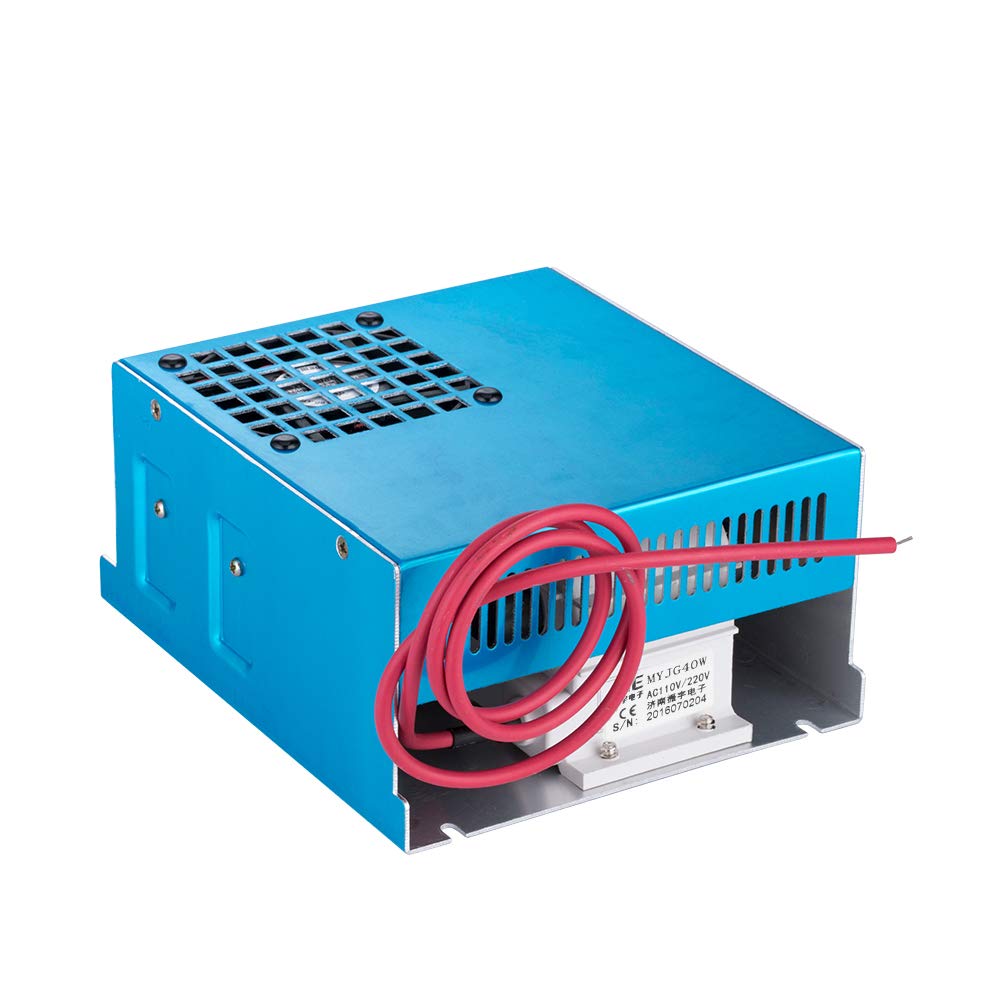

Cloudray 40W Laser Power Supply for CO2 Laser Engravers, Laser Engraver Power Supply 110V/220V Power Supply Replacement for 30W 40W Laser Tube Laser
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Cloudray
Color: Myjg-40w Power Suppy
Features:
- Good Compatibity : Applicable to various 35-50W Laser Tube
- High Performance Long Life : Quick response Output open circuit protection
- Easy control: The start and stop of laser can be easily controlled by TTL level.

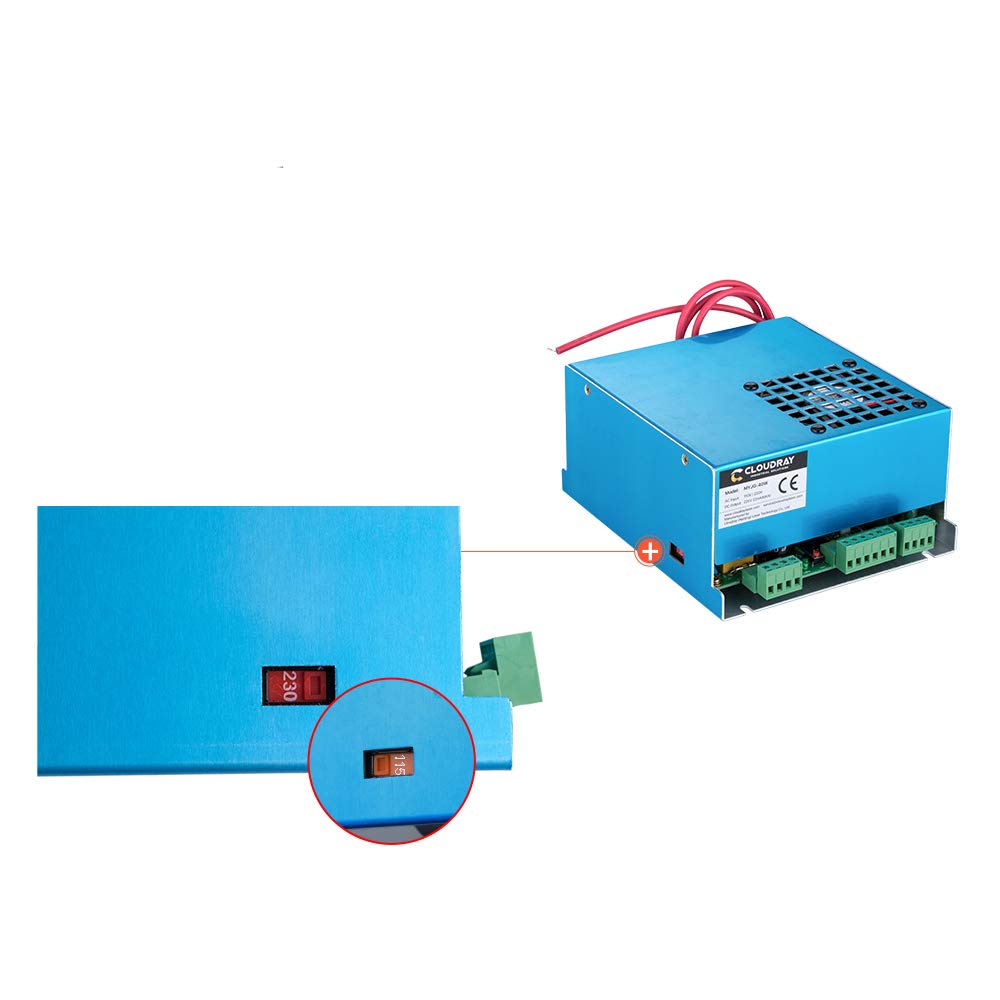

- Input Voltage : AC 220V / AC 110V (Adjust with Switch)
- Application: Sculpture and cut acrylic,fabric,double color sheet and rubber etc.
Binding: Home

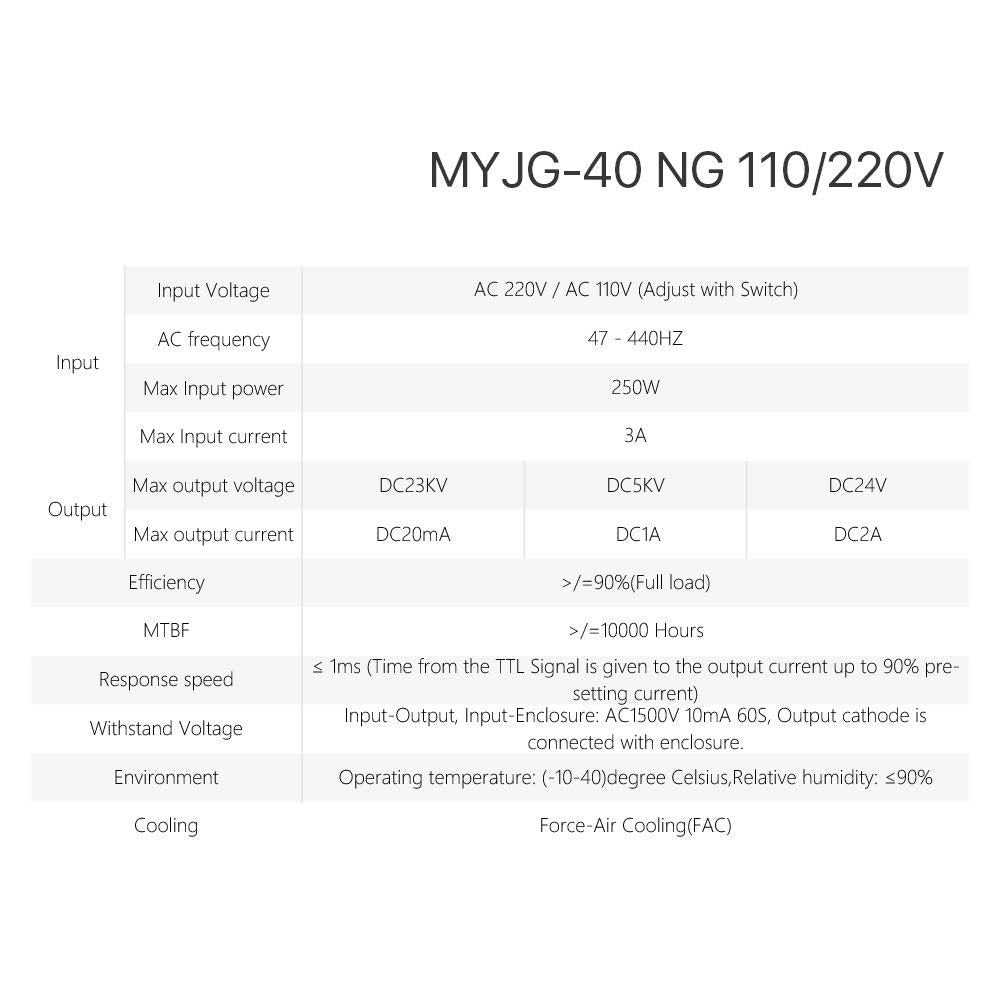

model number: MYJG-40 NG 110/220V
Part Number: PS06ZM40G2
Details: Size:Amz Shipping: MYJG-40W 110/220V Model C
Feature:
1. Good compatibility: it can be applicable to 30-40W Laser Tube manufactured by various factories.
2. Quick response speed and effect,high performance,large cutting power,it also can prolong laser tube service life.
3. Easy control: the start and stop of laser can be easily controlled by TTL level.
4. The power supply has output open circuit protection.
5. The power supply has TTL signal indication, water through signal indication and laser output indication.
6. This power supply has the Buttonto test output laser manually.
7. Application: Sculpture and cut acrylic,fabric,double color sheet and rubber etc.

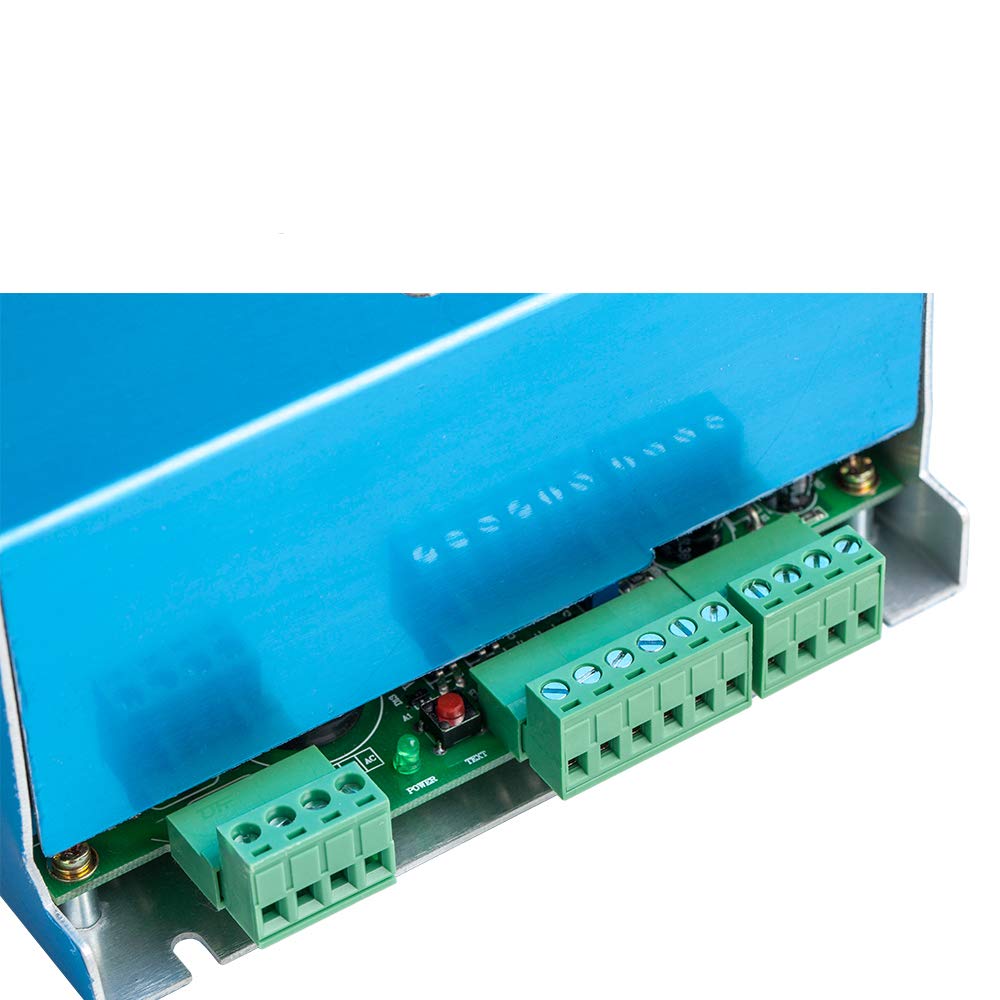

Pin Definition:
*P1:
1--L-: Connect Negative Electrode of Laser Tube.
2--FG: Connect with G Internal, and Connect the Power Supply Shell.
3&4--AC AC: AC 110V/220V Input.
*P2:
1--G Signal Ground:The foot must connected with laser machine's enclosure and ground properly.
2--P Input Signal:Water Protction Switch.
3--L Input Signal:The control of laser: Low Level, emitting laser.
4--G Signal Ground : The foot must connected with laser machine's enclosure and ground properly.
5--IN Input Signal :Laser Power supply control terminal can use 0-5V Analog Signal Control,also can use 5V PWM Signal to Control.
6--Output Power: 5V,Max output Current 50mA.
*P3:
1--24V:output 24V,Max Current 2A,power for master board.
2--G:24V and 5V Ground.
3--5V:output 24V,Max Current 1A.
4--L:The control of laser: Low Level, emitting laser.
EAN: 0661021759980
Package Dimensions: 8.5 x 8.0 x 5.5 inches
