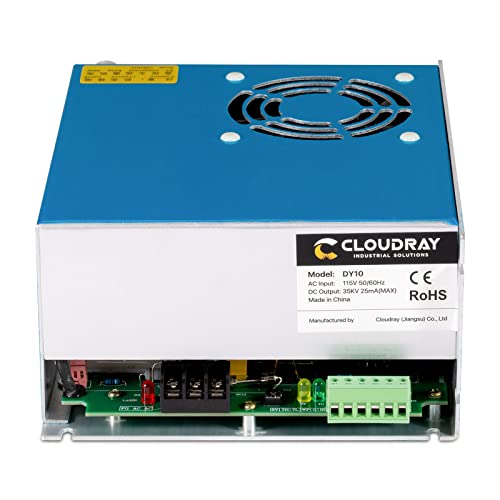

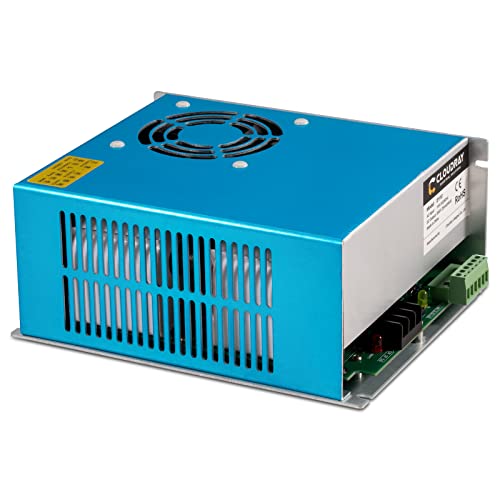

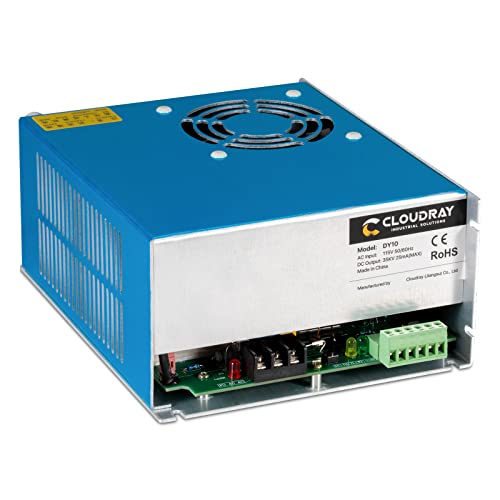

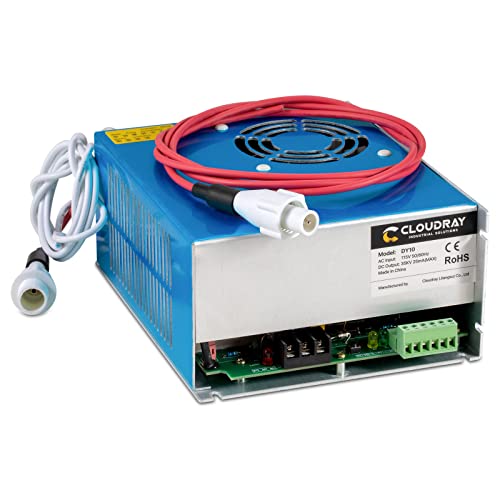

Cloudray 80W CO2 Laser Power Supply 110V PSU DY10 for RECI W1/Z1/S1 Laser Cutter Co2 Laser Engraver Tube
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Cloudray
Color: 110V
Features:
- This power supply is specially designed for RECI Z1S1Z1(75-90W) laser tube
- Quick response speed and effect,high performance,large cutting power,it also can prolong laser tube service life.
- Easy control: the start and stop of laser can be easily controlled by TTL level.
- The power supply has TTL signal indication, water through signal indication and laser output indication.
- Application: Replacement Parts for CO2 Laser Tube and CO2 Laser Engraver /Cutter / Marker
Binding: Office Product
model number: DY10
Part Number: DY10 110V
Details:
1. This power supply is specially designed for RECI Z1S1Z1(75-90W) laser tube. The power supply makes laser tube output larger and more stable.
2. Quick response speed and effect,high performance,large cutting power,it also can prolong laser tube service life.
3. Easy control: the start and stop of laser can be easily controlled by TTL level.
4. The power supply has output open circuit protection.
5. The power supply has TTL signal indication, water through signal indication and laser output indication.
6. This power supply has the Buttonto test output laser manually.
7. Application: Sculpture and cut acrylic,fabric,double color sheet and rubber etc.

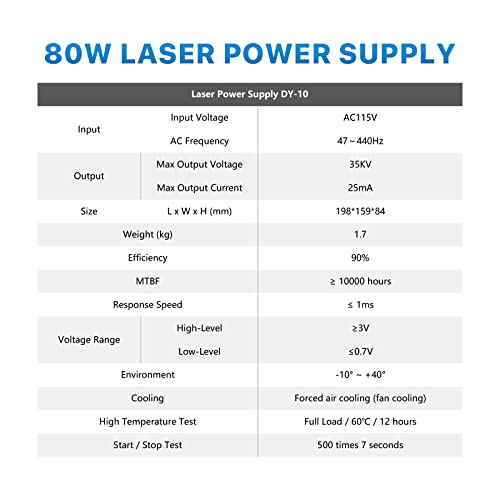

Specification:
Input:
Input Voltage: AC110V
AC frequency: 47 - 440HZ
Max Input power: 450W
Max Input current: 5A
Output:
Max output voltage: DC35KV
Max output current: DC24mA
Efficiency: >/=90%(Full load)
MTBF: >/=10000 Hours
Response speed: ≤ 1ms (Time from the TTL Signal is given to the output current up to 90% pre-setting current)
Withstand Voltage: Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure.
Environment: Operating temperature: (-10-40)degree Celsius,Relative humidity: ≤90%
Cooling: Forced air cooling (fan cooling)
Packing List:
Laser power supply 80w x 1pcs
EAN: 0669819727869
Package Dimensions: 10.7 x 8.7 x 6.7 inches
