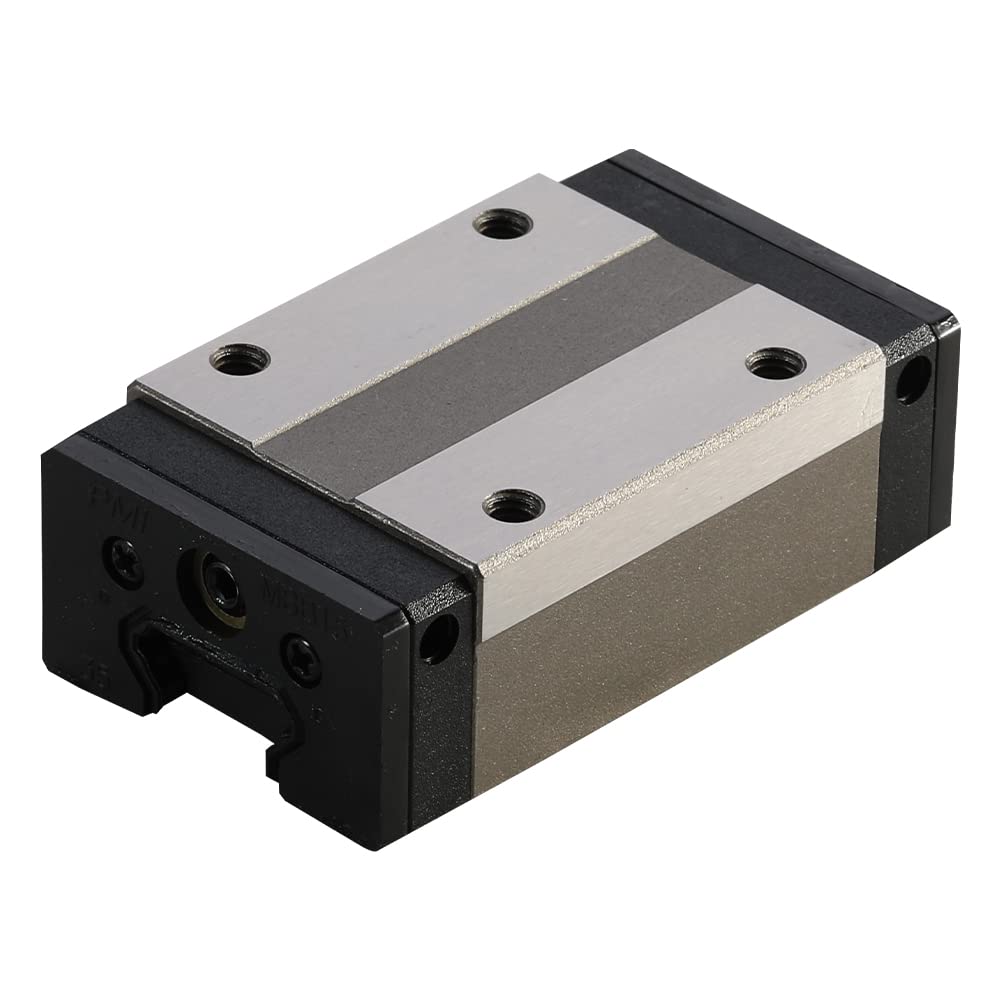

Cloudray CO2 Laser Cutting Machine Universal Metal Parts PMI Linear Guideway Carriage MSB-15-S

Brand: Cloudray

Color: Msb-15-s

Features:

• 【Self Alignment Capability】The arc groove design of the front combination (DF combination) makes it self-aligning and can absorb even if it is preloade，Installation error, and maintain smooth, stable, high-precision linear motion.
• 【Lubrication Route 】The patent design of lubrication route makes the lubricant evenly distribute in each circulation loop.
• 【Compact，Four-way Equal Load】The section design with lower slider height and the 45° arc contact angle design of 4 rows of steel balls provide the same rated load capacity in radial, reverse radial and lateral directions, and can apply sufficient preload to enhance its Rigid, suitable for various installation methods.
• 【Smooth Movement with Low Noise】The simple and smooth design of the steel ball return path, and the use of impact-resistant reinforced synthetic resin steel ball circulation accessories, has good running smoothness and low noise.
• 【Interchangeability & Convenient Installation and Maintenance】Under strict manufacturing precision control, the dimensions can be maintained within a stable tolerance, so for interchangeable linear guides, the slider can be arbitrarily assembled on the same type of guide during assembly, and maintain the same smoothness, pre- Pressure and precision, assembly and maintenance are the easiest.

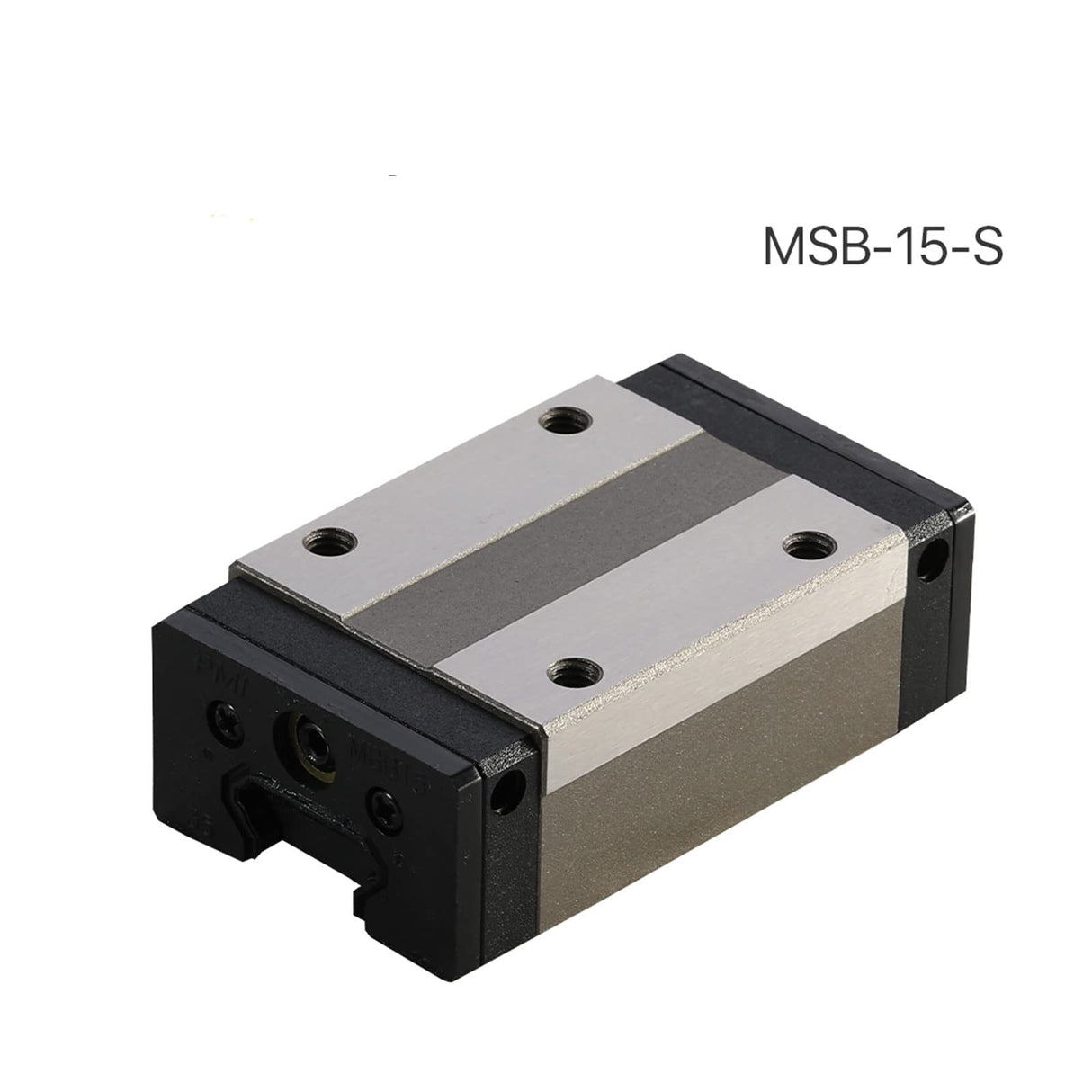

model number: MSB-15-S

Part Number: LG09PMIMSB15SN

Details:

The trains of balls are designed to a contact angle of 45° which enables it to bear an equal load in radial, reversed radial and lateral directions.

Therefore, it can be applied in any installation direction.

Four-way Equal Load Self Alignment Capability

Smooth Movement with Low Noise Interchangeability

EAN: 0053554512208

Package Dimensions: 5.2 x 3.6 x 3.3 inches
