Cloudray Co2 Laser Rotary Attachment Rotary Axis 2 Axis CNC Laser Rotary Attachment with Nema 23 2-Phase Stepper Motor(Roller-4 Pin)
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Cloudray
Color: With 2 Phase Stepper Motor
Features:
- 【Attention】This item is a Roller rotary 2 axis (With 2 phase steppter motor),with 4 pin；2 Phase Stepper Motor has 4 Leads, 3 Phase Stepper Motor has 3 Leads. Please confirm before buying.
- 【Accuracy Engraving】Higher Speed and Accuracy Engraving,Closed-Loop control, No Longer lose any steps, up to its maximum torque,getting the best projects without missing a detail;Reduced motor heating and more efficient.
- 【Easy to Install】You just need to connect the 4-wire connection cable of this rotary tool to the dedicated port on the laser engraver and configure the settings in the software to start engraving. Easy loading and unloading laser cutting machine pre-assembled and modular design, saving your precious engraving time.

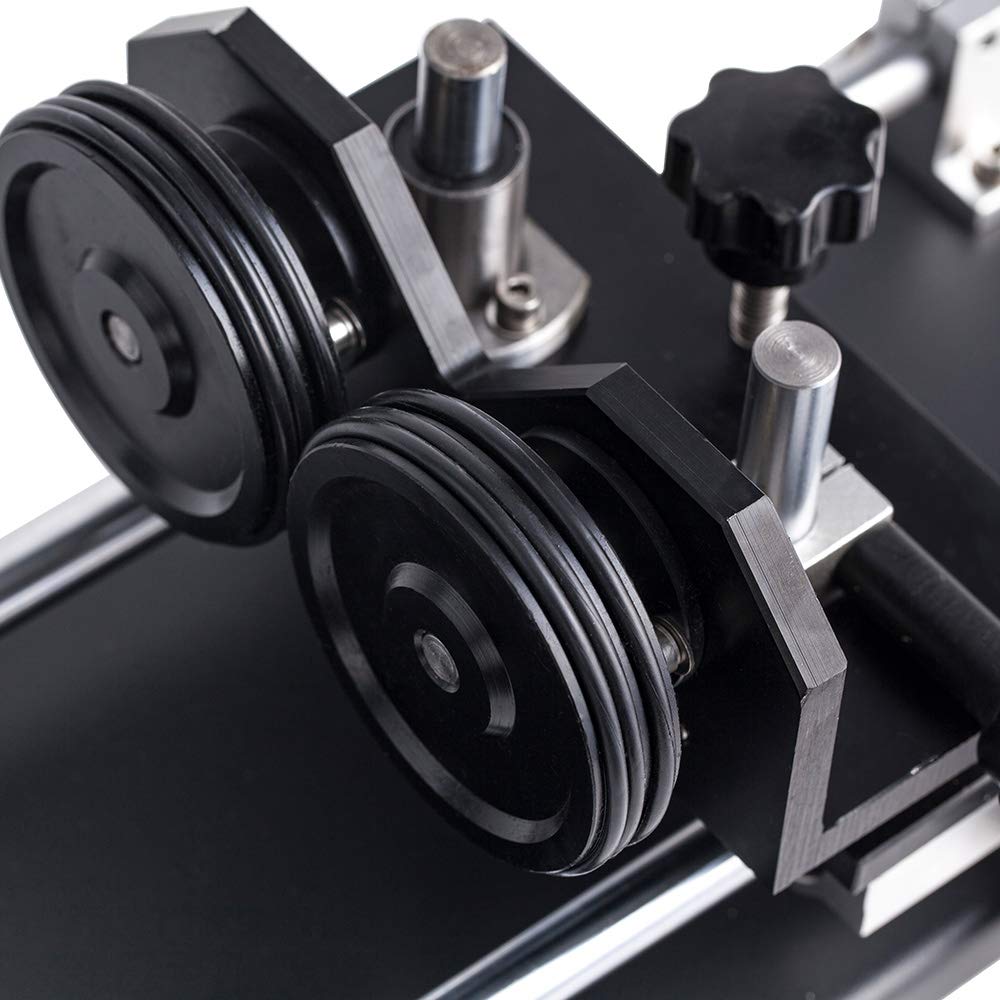

- 【Stable and Low Noise 】The rotating shaft attachment is equipped with a non-slip rubber ring and a stable tailstock. The refined craftsmanship enables the machine to maintain high-speed cutting, and the Nema 23 stepper motor achieves smooth, efficient, and noise-free performance. Suitable for personal DIY, home, or business.
- 【Widly Application】co2 laser rotary attachment ,Our Standard Rotary Attachment is ideal for engraving cylinder items with your laser.Such as Christmas glasses, ring, ball,personalized wine glasses, pipe piping etc. Unleash your creativity on almost all round objects .
model number: Rollendrehwelle+2-Phasen-Schrittmotor
Part Number: MP09RA2P
Details:

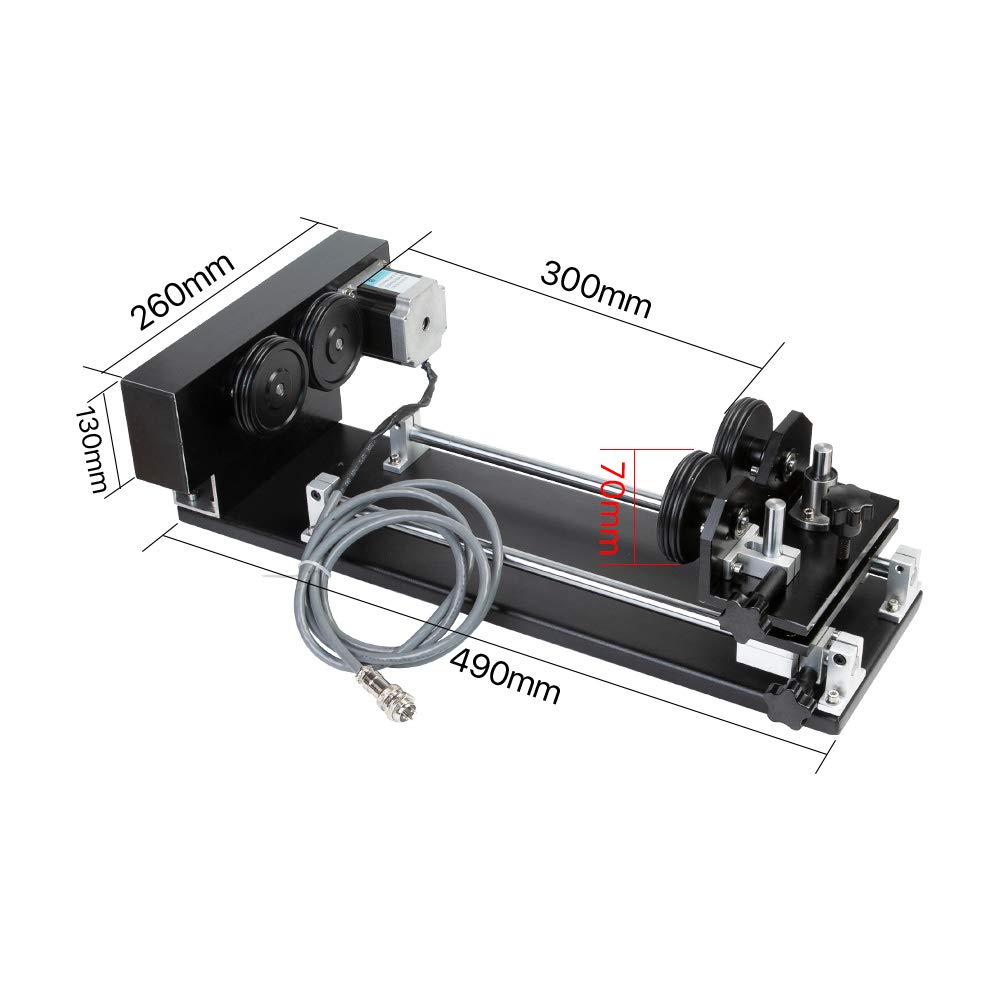

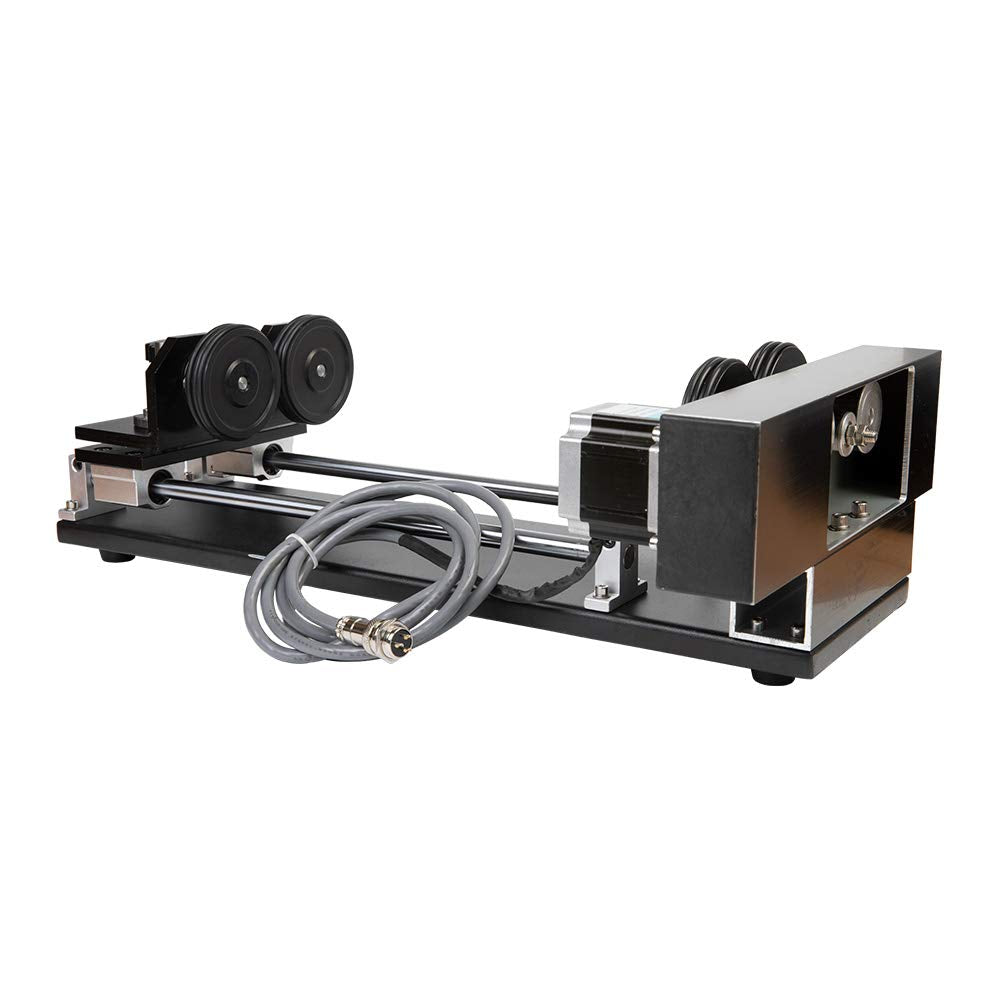

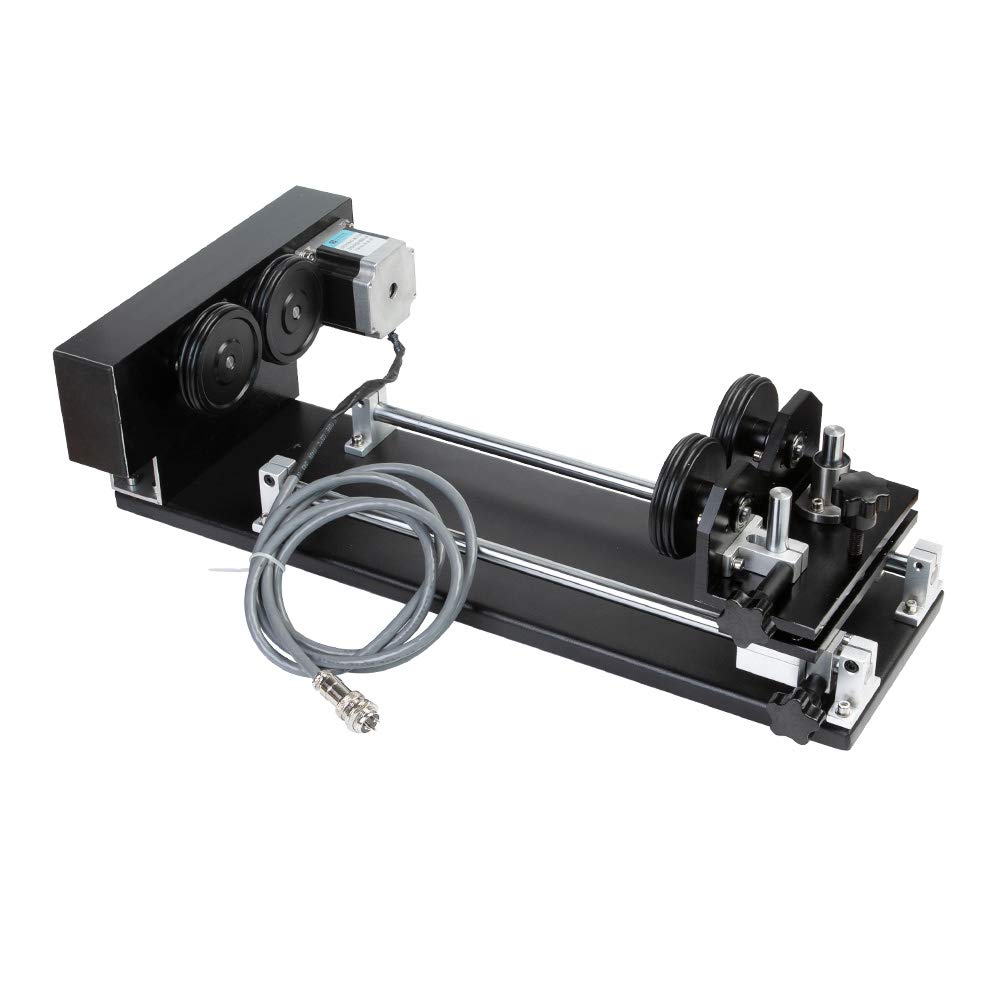

Rotary Axis Attachment Our Standard Rotary Attachment is ideal for engraving cylinder items with your laser. From glasses, to mugs, to wine bottles, to flashlights, the Rotary Attachment can quickly and easily adjust to size for a wide variety of products.
Note :When the product arrives at customs, if UPS charged you, the extra fee they charged should be the tax, The taxes may apply for imported goods/service and is regulated by the country law.Cloudray store is not responsible for tax invoice charged on its products.
Feature:
Closed-Loop Control, No Longer Lose Any Steps, Up To Its Maximum Torque
Reduced Motor Heating And More Efficient
Smooth Motion And Super-Low Motor Noise
Higher Torque And Higher Speed
No Tuning And Always Stable
Zero-Speed Stability
Specifications:
3-Phase Stepper Motor
Phase: 3 (Or 2-Phase Stepper Motor)
Step Angle: 1.2 Degree (1.8 for 2-Phase Stepper Motor)
Angle Accuracy: plus or minus 5%(full step,no load)
Insulation Resistance: 100M ohms min.500VDC
Current /phase(A): 5.6A
Usage:
Match Drivers:
3DM580 / 3DM683 --3-Phase
DM542 / DM556--2-Phase
Machine operation instructions

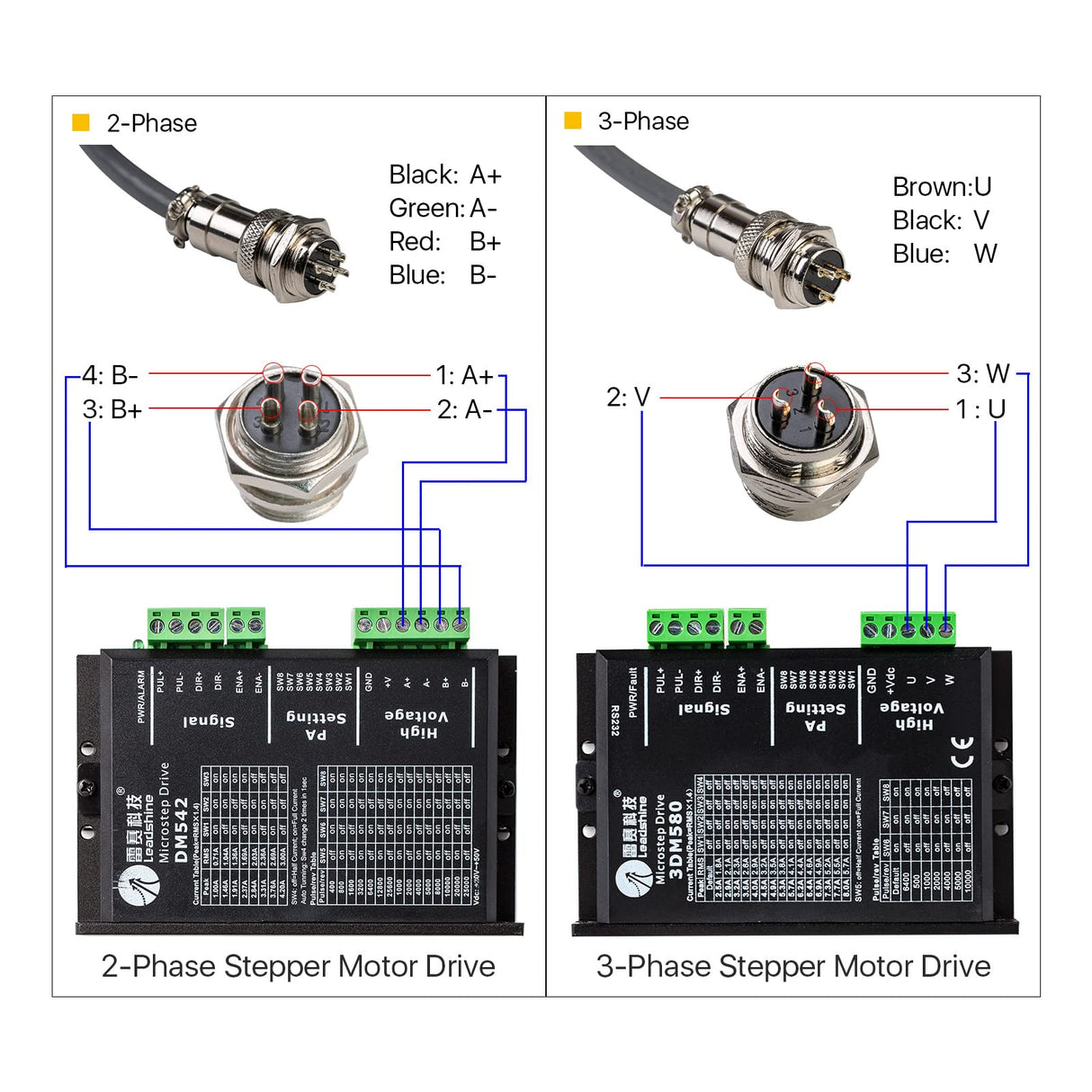

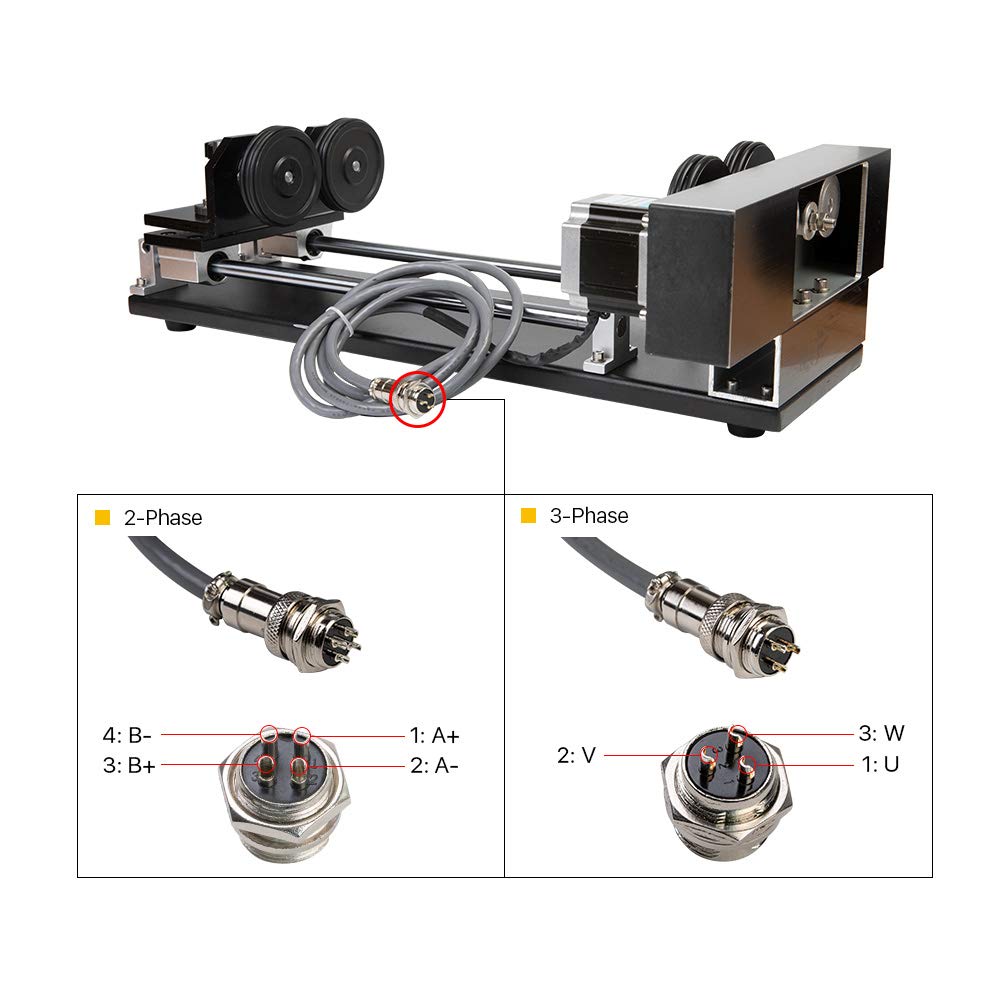

Step1:Connection the motor on the rotary axis to driver (Y axis on machine). Please make sure the phase is matching. If your motor driver on machine is 2-phase(Port A+, A-, B+, B-), please choose the maching one for rotary axis. 3-Phase motor's port is U, V and W.
Step 2:Enable the Rotating in the software and Set the correct value for engraving part's diameter and Circle Pulse. The reducer ratio for rotary is 1:2.
Step 3:Do a engraving job. If you need any further help, feel free to contact with Cloudray technical support team.
EAN: 0756910779160
Package Dimensions: 22.2 x 13.3 x 9.0 inches
