Cloudray CO2 Power Supply 50W 60W 80W AC90-250V LCD Screen DIY Replace Part for RECI W2 Glass Tube & CO2 Laser Engraver Cutter
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Cloudray
Color: Multi
Features:
- High intelligence: Built-in control, can communicate with motion controller,and it can communicate with max 32pcs power supplies by cascade connecting, then the controller panel can display working condition of power supply, very easy for user to monitor and judge the fault.
- Make the maintenance much easier: User can judge the problem by himself. Multi-function LCD screen: One LCD screen can show the information of two power supplies, easy use for multi-head machine.
- Universal: With PFC function, AC90-250V input voltage range, globally universal.
- Open circuit protection: When the high voltage end is in open circuit or not connected well, the power supply will start automatic protection, to prevent high voltage arc effectively.
- More safety: With high voltage discharge function, no residual voltage when turning off, safer for user.
Binding: Office Product
model number: HY-Z80
Part Number: PS06HZ80M
Details:
Main Features:
High intelligence:
Built-in control, can communicate with motion controller,and it can communicate with max 32pcs
power supplies by cascade connecting, thenthe controller panel can display working condition of power supply,
very easy for user to monitor and judge the fault.
Make the maintenance much easier:
User can judge the problem by himself.

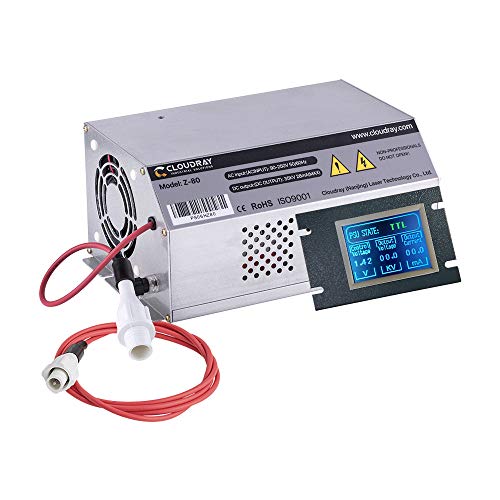

Multi-function LCD screen: One LCD screen can show the information of two power supplies, easy use for multi-head
machine.
Universal:
With PFC function, AC90-250V input voltage range, globally universal.
Open circuit protection:
When the high voltage end is in open circuit or not connected well, the power supply will start
automatic protection, to prevent high voltage arc effectively.
More safety:
With high voltage discharge function, no residual voltage when turning off, safer for user.
Excellent cover with patent design:
Good appearance, better heat dissipation.
Improved current control mode, more stable laser, better compatibility.
Specification:
Input voltage: AC90-250V
AC frequency: 47---440Hz
Max input power: 500W
Max input current (when 90V input): 6A
Max output voltage: 40KV
Max output current: 28mA
Efficiency: ≥90%(when full load)
MTBF: ≥10000 hours
Response speed: ≤1mS(the time from the signal is given to output current reaches 90% of set current)
Switch control mode: TTL
Power control mode: PWM(>20KHz） or 0-5V or 0-3.3V analogue
Communication mode: Special serial port
Withstand voltage: Input-output, input-shell:AC1500V 10mA 60s
Working environment: Input-output, input-shell:AC1500V 10mA 60s
Cooling: Force air cooling
<EAN: 0661021766063
Package Dimensions: 10.9 x 8.8 x 6.7 inches
