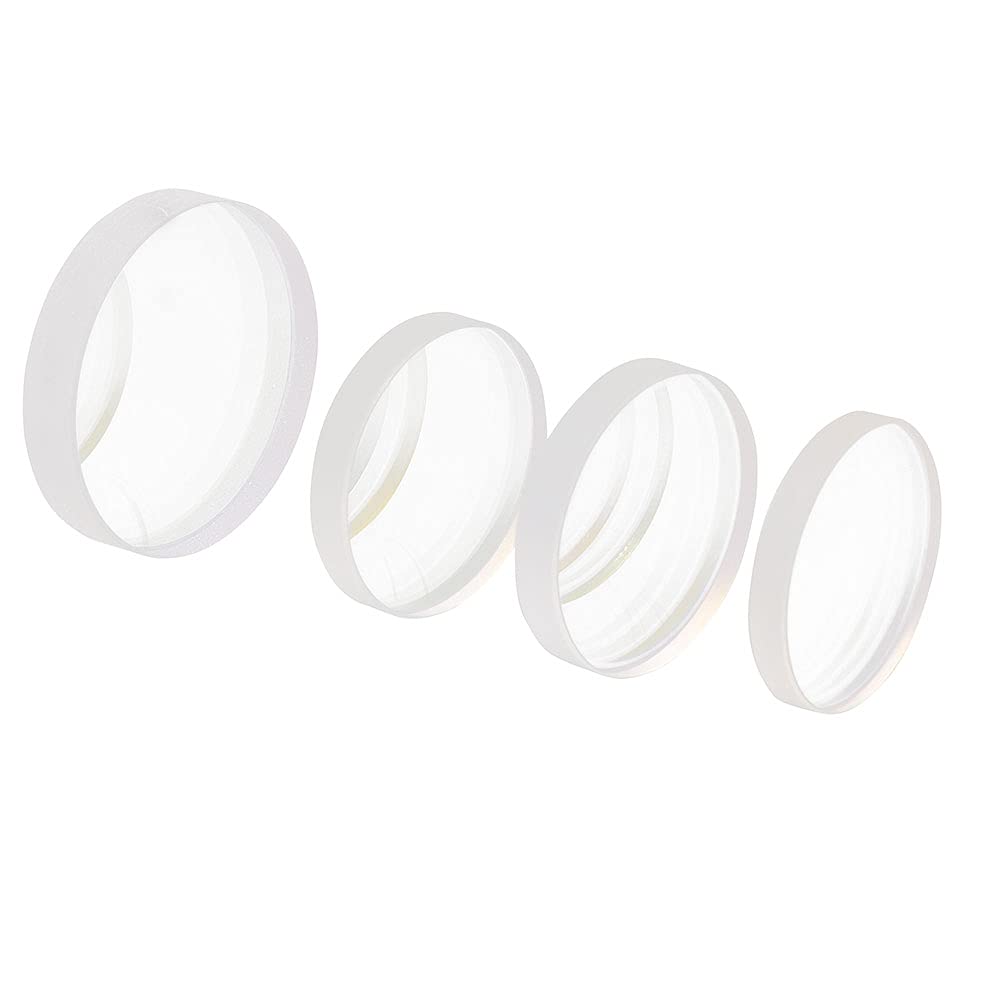

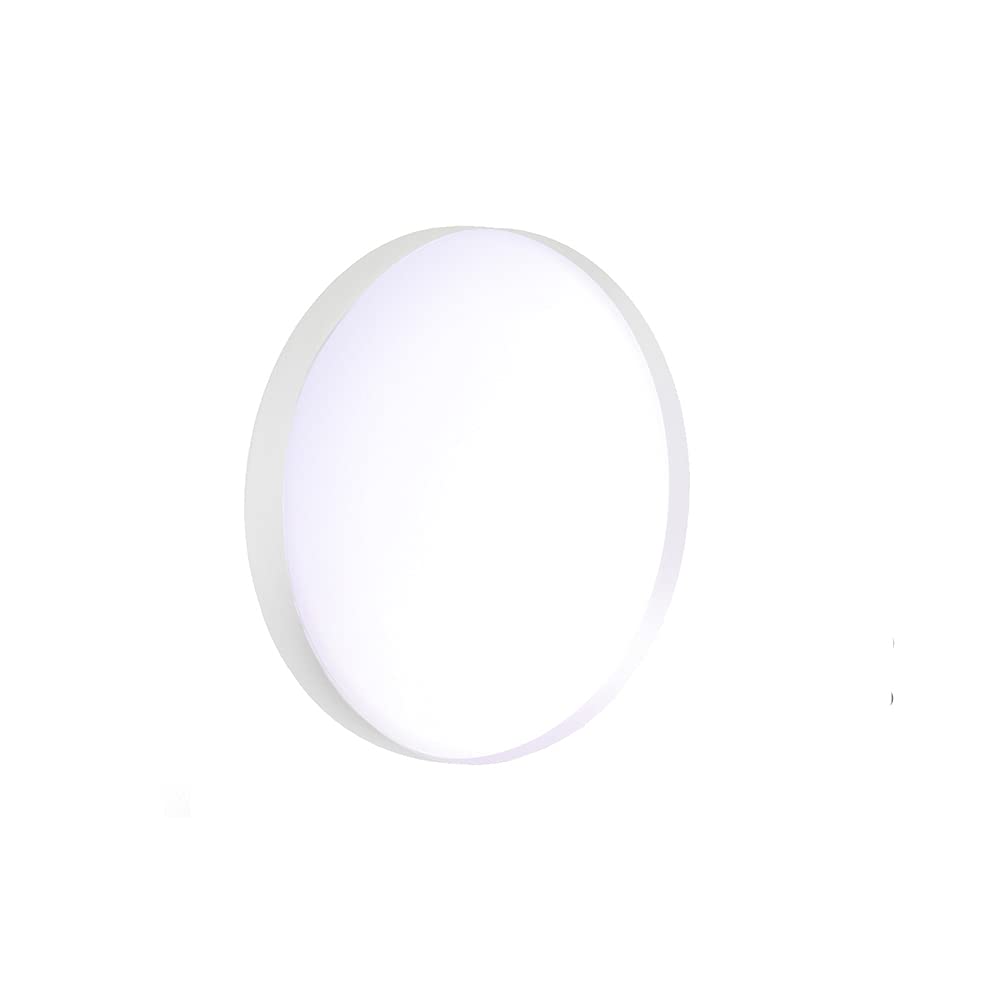

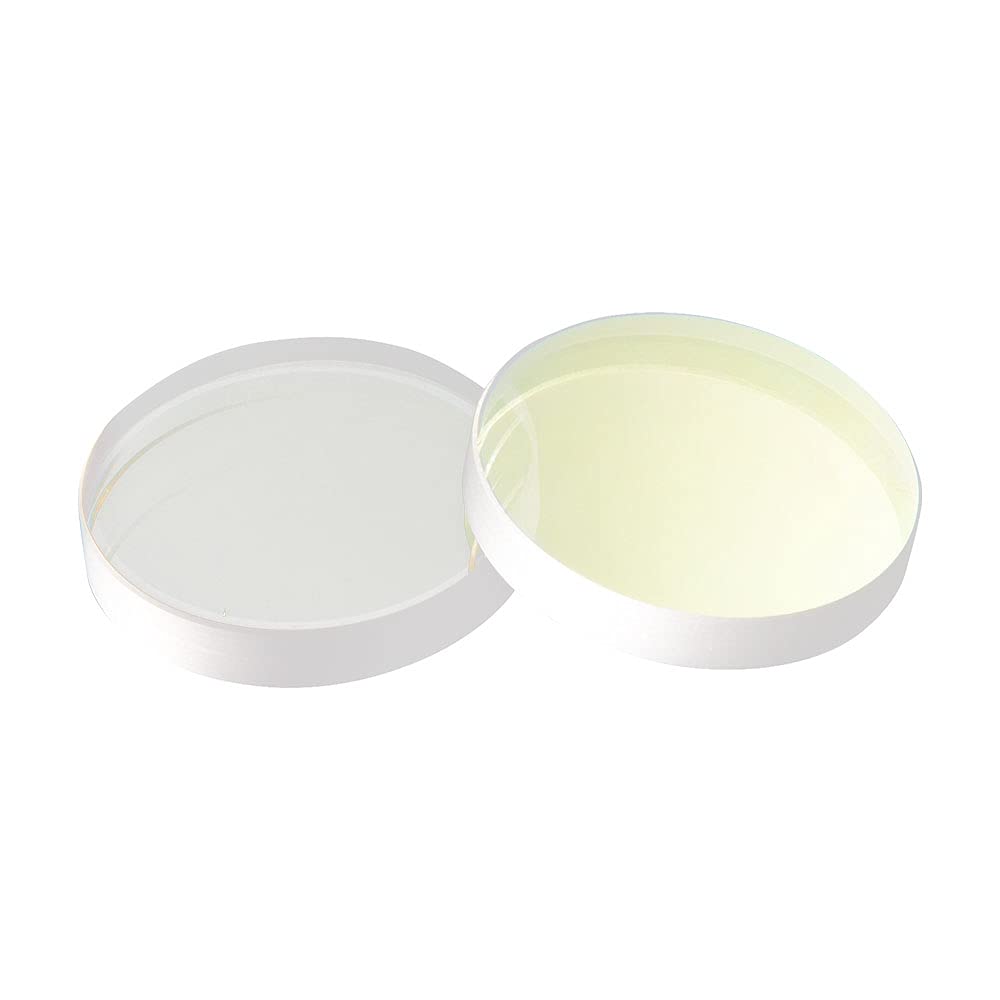

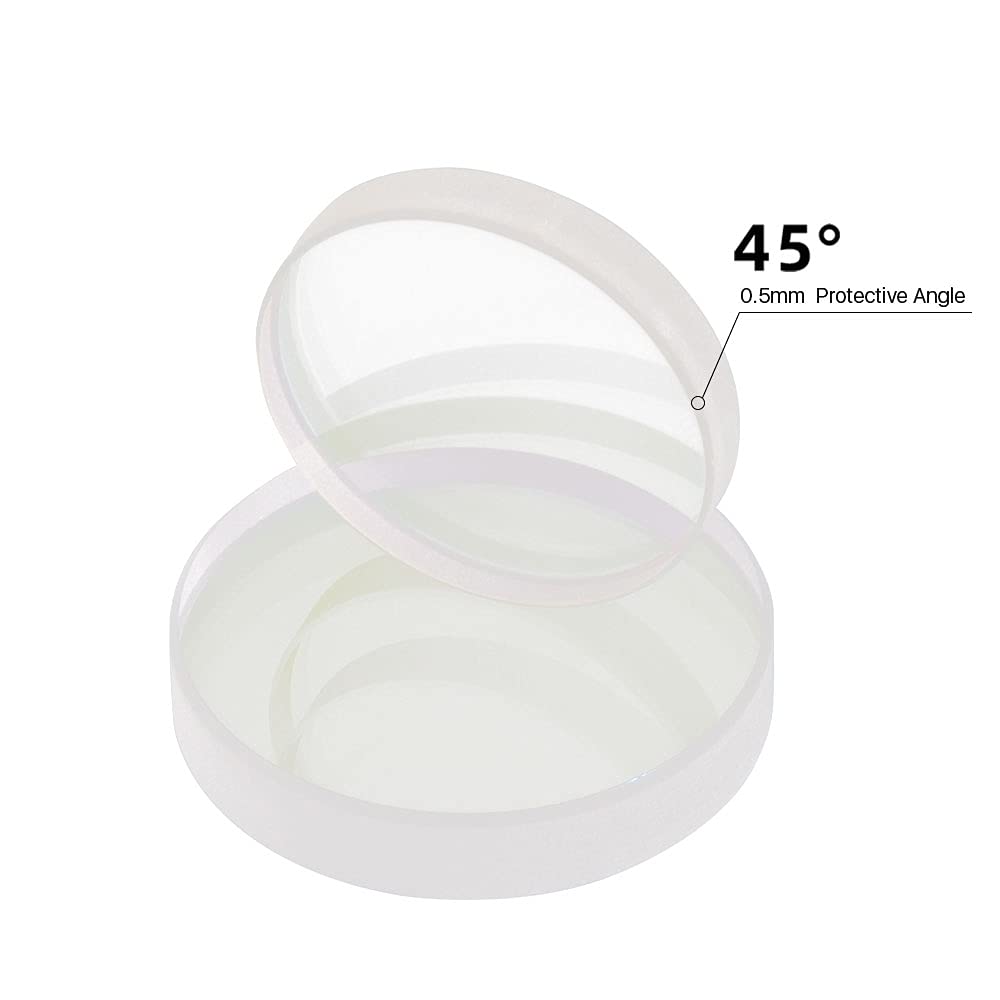

Cloudray Fiber Laser Protective Lens Dia 38mm Thk 2mm for 1064nm Fiber Laser Engraver Cutting Engraving Machine
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Cloudray
Color: Thickness: 2mm
Features:
- Diameter：38mm thickness：2mm，Wavelength：1064nm，Package:1PCS lens
- HQ Quartz Crystal: Irradiation-resistant, Stable Performance and Long Life, Used in a Harsh Environment.
- Low Scattering: Standard High Efficiency Low Loss Anti-reflectance, Low Scattering.
- Lower Power Loss: Thin Film Coating Applied to Both Sides, High Damage Threshold (>15J/cm2)
- Various Specifications: We have enough stock to meet needs of our Customers, also ca n make the customized parts.
Binding: Office Product
Part Number: PW02FS38X2
Details:
Size:Dia 38mm Thk 2mm

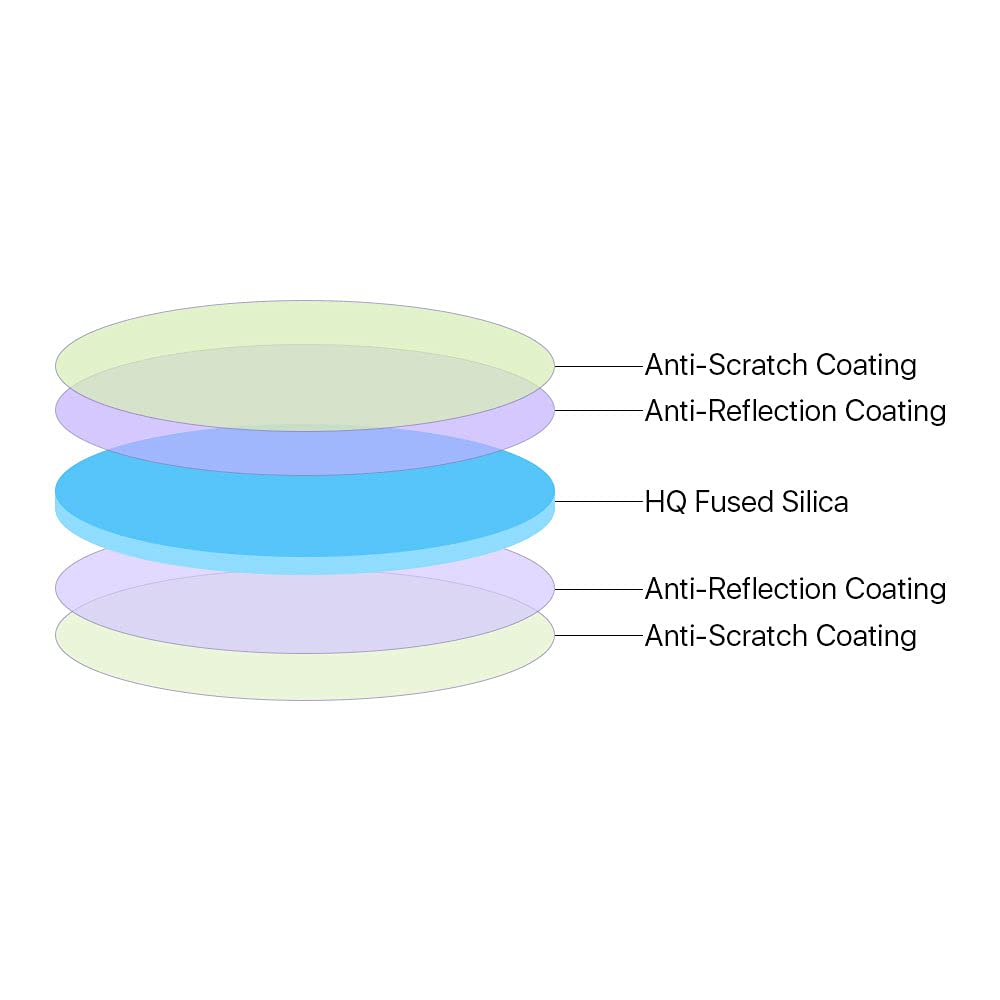

1. Plano-plano window is coated AR coating in both sides.
2. The substrate of the window is normally JGS1 or Fused Silica(FS).
3. The protective window which will be used at laser cutting head to protect the focusing lens in case of damage.
4. We can provide any wavelength antireflection coating according to customer demand.
5. Other wavelengths, diameter, thickness and coating.
6. we can also be customized according to customer requirements.
Features:
Standard High Efficiency Low Loss Anti-reflectance
Thin Film Coating Applied to Both Sides
Long life time
Total Absorption < 30PPM, Transmission : > 99.5%

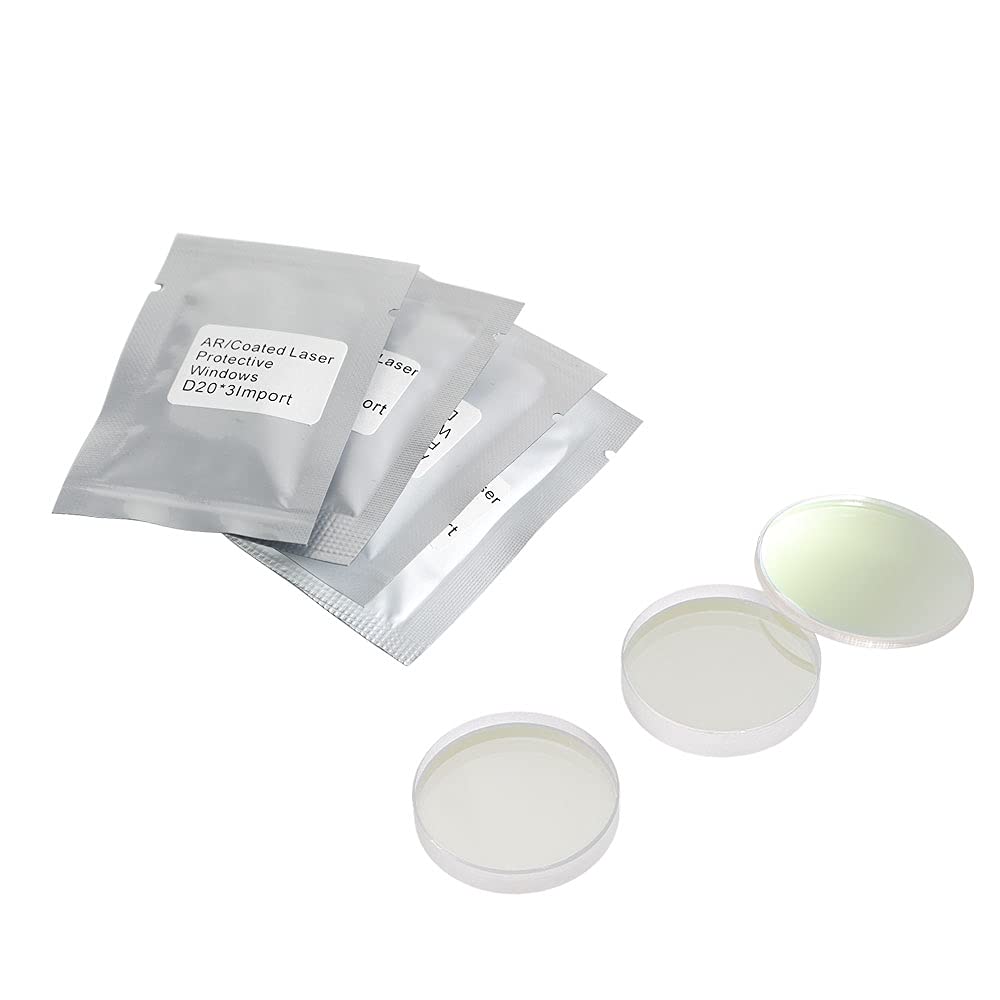

Every window is packaged individually

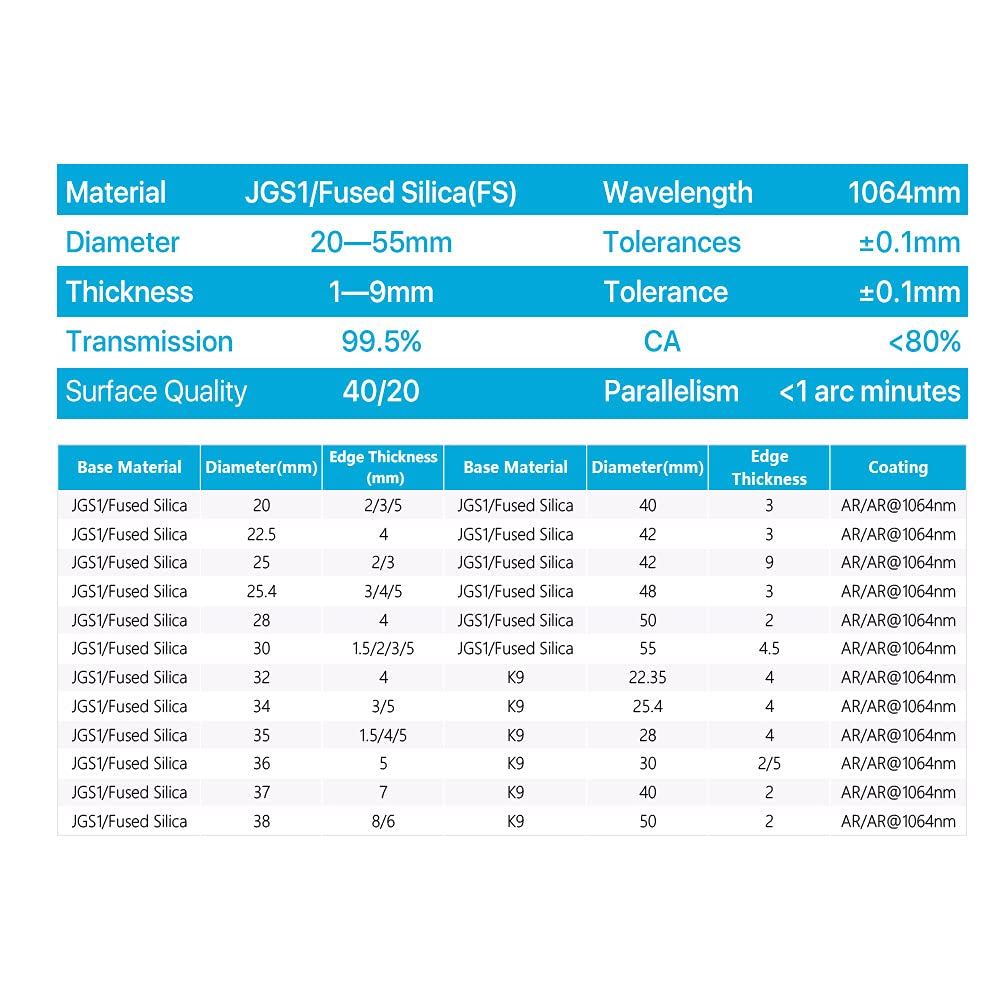

Specifcation:
Material: Fused Silica(FS)
Diameter Tolerances: ±0.1mm
Thickness Tolerances: ±0.1mm
Coating: AR/AR@1064nm
Transmission : > 99.5%
Parallelism: < 1 arc minutes
Surface Quality:
40-20 scratch dig Laser Finish
Packing List:
Protective Lens x1pcs
EAN: 0669819730784
Package Dimensions: 5.8 x 4.2 x 2.7 inches
